Model Whirlpool MW1200XW0 – Common Parts & Diagrams

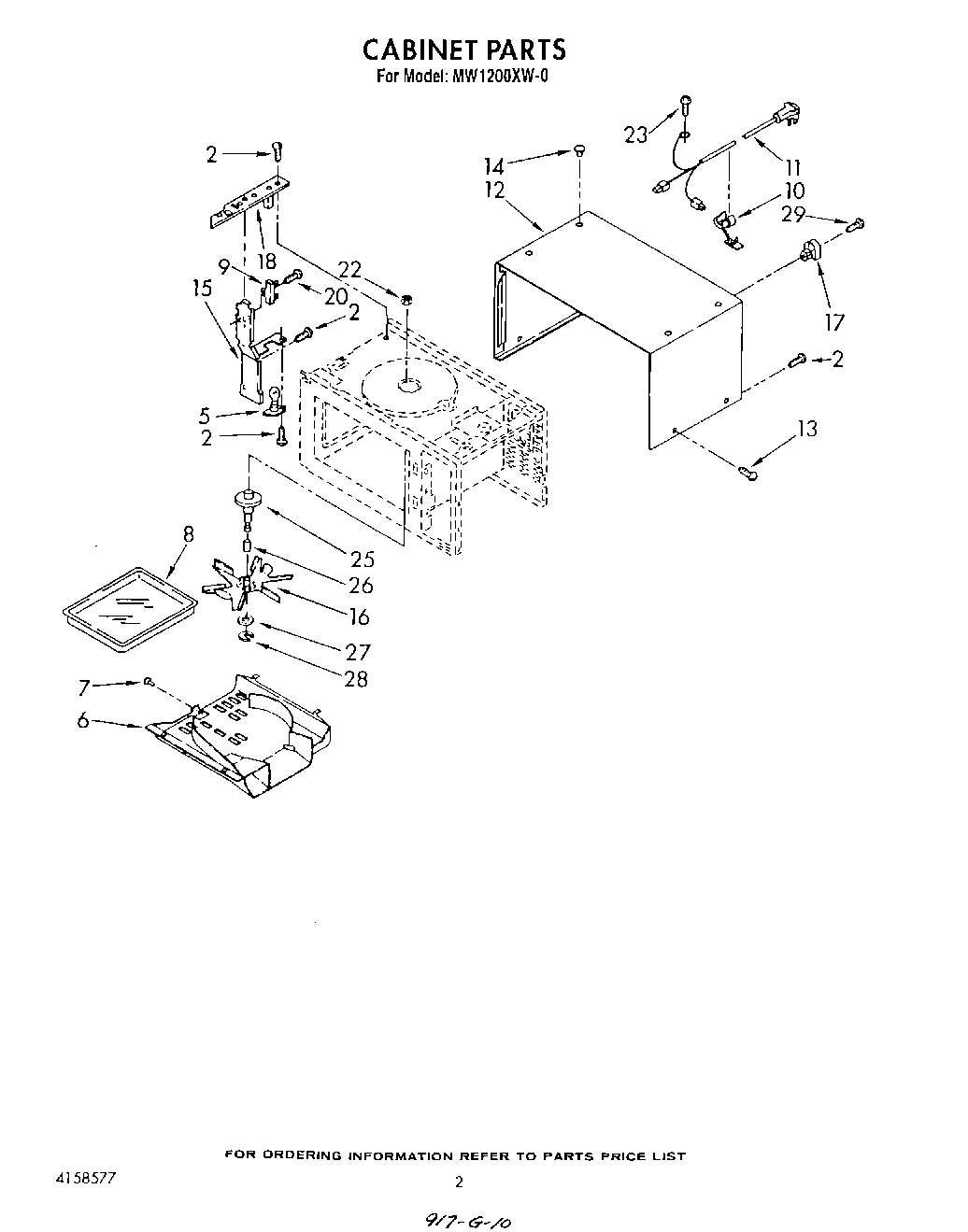

02 - CABINET

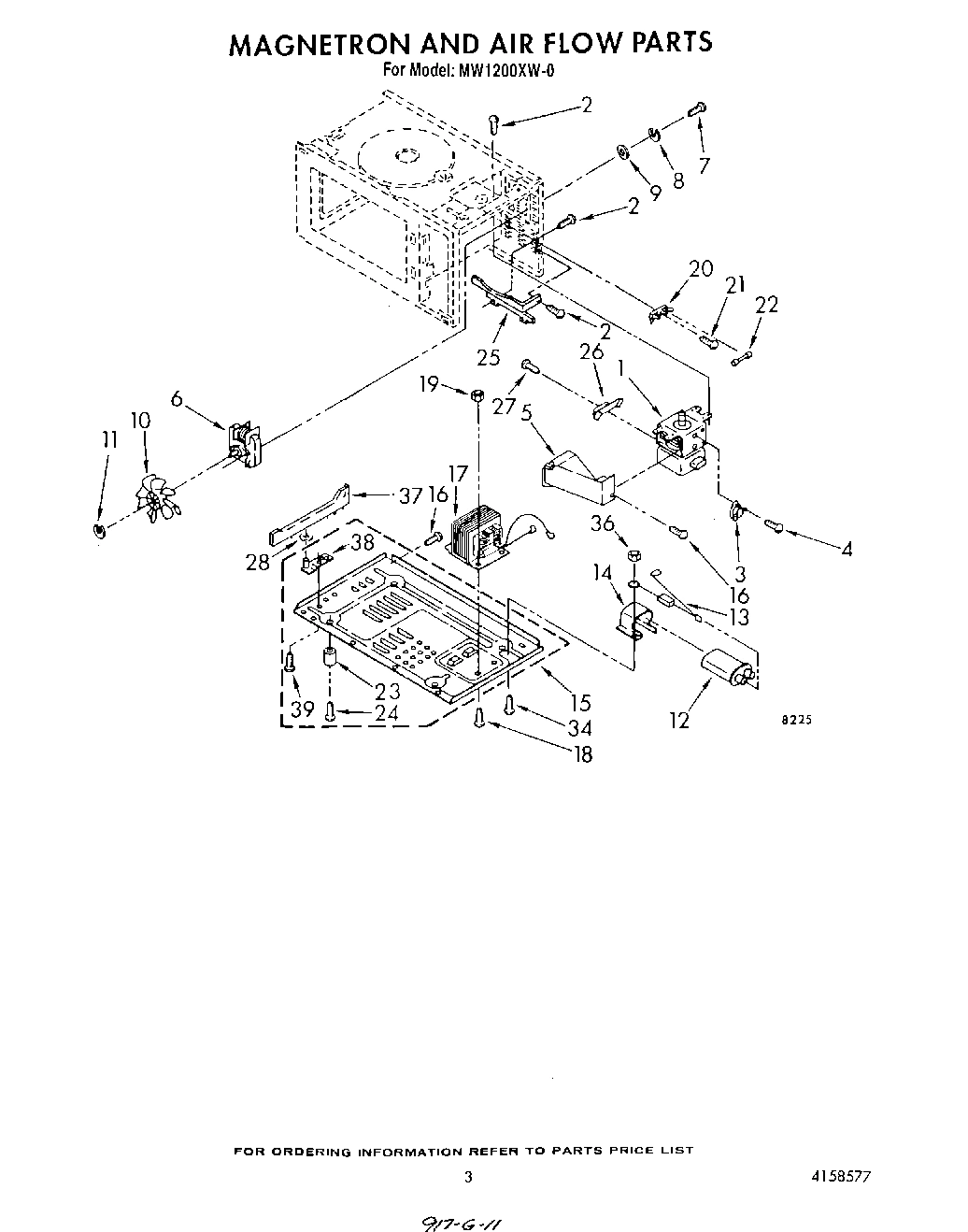

03 - MAGNETRON AND AIR FLOW
04 - OVEN DOOR AND LATCH
06 - WIRING HARNESS , LIT/OPTIONAL
05 - CONTROL PANEL
Common parts from model Whirlpool MW1200XW0
Under The Cabinet Mounting Kit WPL 4158000 Contact Us For Availability
Wall Mount Kit WPL 4158002 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
Cooking Guide WPL LIT4158011 Contact Us For Availability
Guide, Use & Care WPL LIT4158513 Contact Us For Availability
List, Repair Parts WPL LIT4158577 Contact Us For Availability
1
Magnetron WPL 4158054 Contact Us For Availability
1
Latch, Upper WPL 4158064 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158607 Contact Us For Availability
1
Insert and Panel WPL 4158125 Contact Us For Availability
2
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
2
Interlock, Switch Kit (All switches must be r WPL 4158134 Contact Us For Availability
2
Spring, Button WPL 4158110 Contact Us For Availability
3
Thermal Protector WPL 4158474 Contact Us For Availability
3
Screw WPL 4158187 Contact Us For Availability
3
Button, Door WPL 4158109 Contact Us For Availability
4
Screw, 3 x 8 mm (2) WPL 4158082 Contact Us For Availability
4
Latch, Lower WPL 4158066 Contact Us For Availability
4
Knob WPL 4158114 Contact Us For Availability
5
Screw WPL 4158307 Contact Us For Availability
5
Duct, Air WPL 4158058 Contact Us For Availability
5
Bracket, Timer WPL 4158115 Contact Us For Availability
6
Motor, Fan WPL 4158061 Contact Us For Availability
6
Rod, Release WPL 4158070 Contact Us For Availability
6
Timer WPL 4158107 Contact Us For Availability
7
Rivet (2) WPL 4339374 Contact Us For Availability
7
Screw, 4 x 10 mm WPL 4158077 Contact Us For Availability
7
Variable Power Control WPL 4158108 Contact Us For Availability
8
Tray, Glass WPL 4339279 Contact Us For Availability
8
Washer WPL 4158088 Contact Us For Availability
8
Lever, Release WPL 4158112 Contact Us For Availability
9
Fuse, Thermal WPL 4158562 Contact Us For Availability
9
Washer WPL 4158085 Contact Us For Availability
9
Base, Lever WPL 4158111 Contact Us For Availability
10
Strain Relief WPL 4158092 Contact Us For Availability
10
Fan WPL 4158389 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
10
Pin, Lever WPL 4158113 Contact Us For Availability
11
Cord, Power WPL 4158575 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
11
Lever, Switch WPL 4158068 Contact Us For Availability
11
Screw, 4 x 10 mm (6) WPL 4158076 Contact Us For Availability
12
Wrapper, Cabinet WPL 4158035 Contact Us For Availability
12
Capacitor WPL 4158579 Contact Us For Availability
13
Screw, 4 x 8 mm (4) WPL 4158084 Contact Us For Availability
13
Diode WPL 4158298 Contact Us For Availability
13
Door, Complete WPL 4158093 Contact Us For Availability
14
Plug, Hole WPL 4158090 Contact Us For Availability
14
Bracket, Capacitor WPL 4158043 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158051 Contact Us For Availability
15
Air Guide WPL 4158286 Contact Us For Availability
15
Plate, Base WPL 4158580 Contact Us For Availability
15
Washer WPL 4158086 Contact Us For Availability
16
Blade, Stirrer WPL 4339282 Contact Us For Availability
16
Washer WPL 4339331 Contact Us For Availability
17
Spacer WPL 4339376 Contact Us For Availability
17
Transformer WPL 4158279 Contact Us For Availability
18
Bracket WPL 4339326 Contact Us For Availability
18
Screw, 5 x 16 mm WPL 4158081 Contact Us For Availability
19
Nut WPL 4158053 Contact Us For Availability
20
Holder, Fuse WPL 4158581 Contact Us For Availability
21
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
23
Foot (4) WPL 4339375 Contact Us For Availability
24
Screw, 4 x 16 mm WPL 4158472 Contact Us For Availability
25
Mounting Axle WPL 4158250 Contact Us For Availability
25
Guide, Suction WPL 4158284 Contact Us For Availability
26
Bushing WPL 4339341 Contact Us For Availability
26
Bracket, Magnetron WPL 4158283 Contact Us For Availability
27
Washer WPL 4158252 Contact Us For Availability
27
Screw, 4 x 6 mm WPL 4158074 Contact Us For Availability
28
Retainer WPL 4158253 Contact Us For Availability
34
Screw, 4 x 10 mm WPL 4158194 Contact Us For Availability
36
Nut WPL 4158233 Contact Us For Availability
37
Barrier, Base WPL 4339328 Contact Us For Availability
38
Hinge WPL 4339380 Contact Us For Availability
39
Screw WPL 4158192 Contact Us For Availability
× ![]()
