Model Whirlpool MW1200XS0 – Common Parts & Diagrams
03 - MAGNETRON AND AIRFLOW
05 - CONTROL PANEL

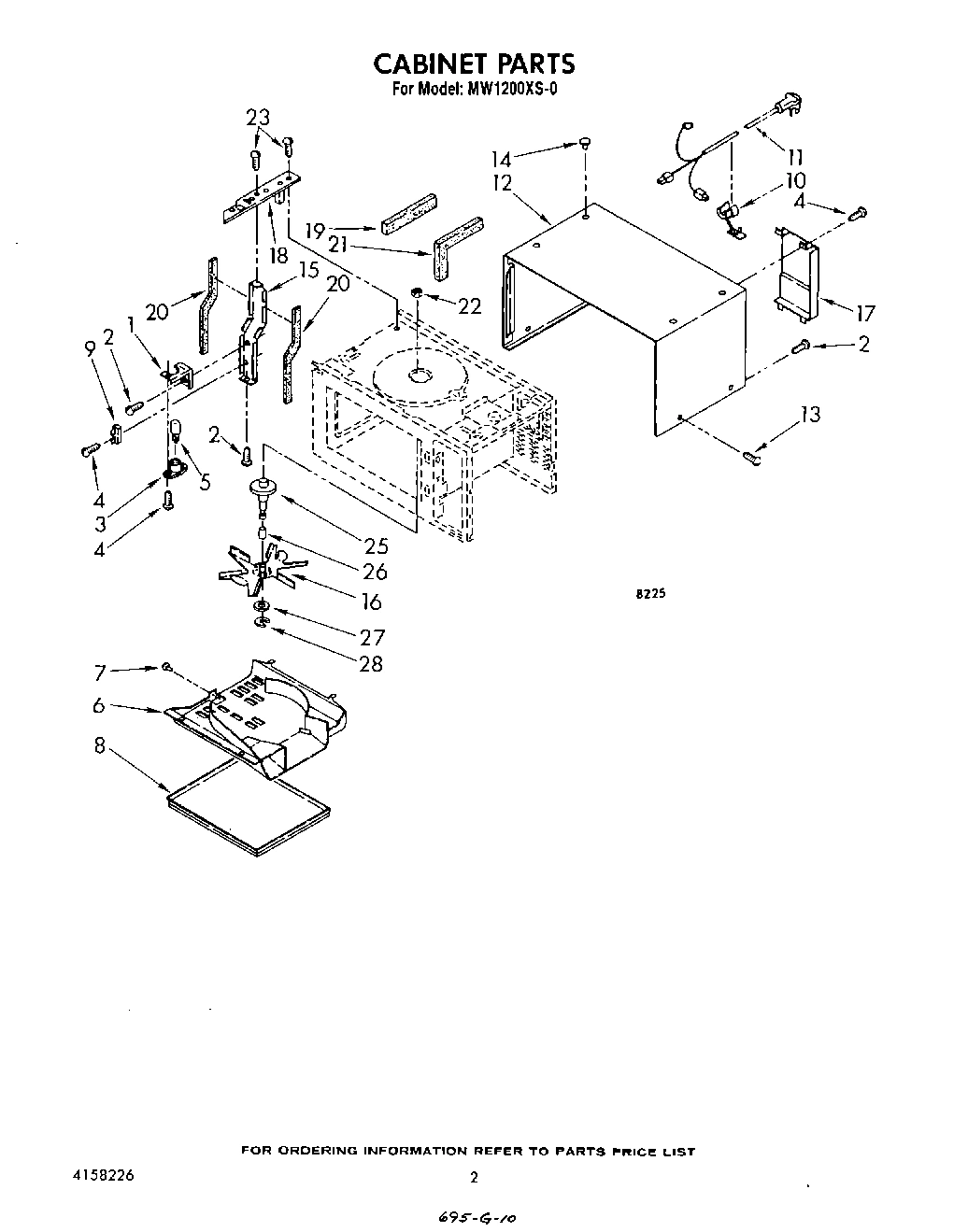

02 - CABINET

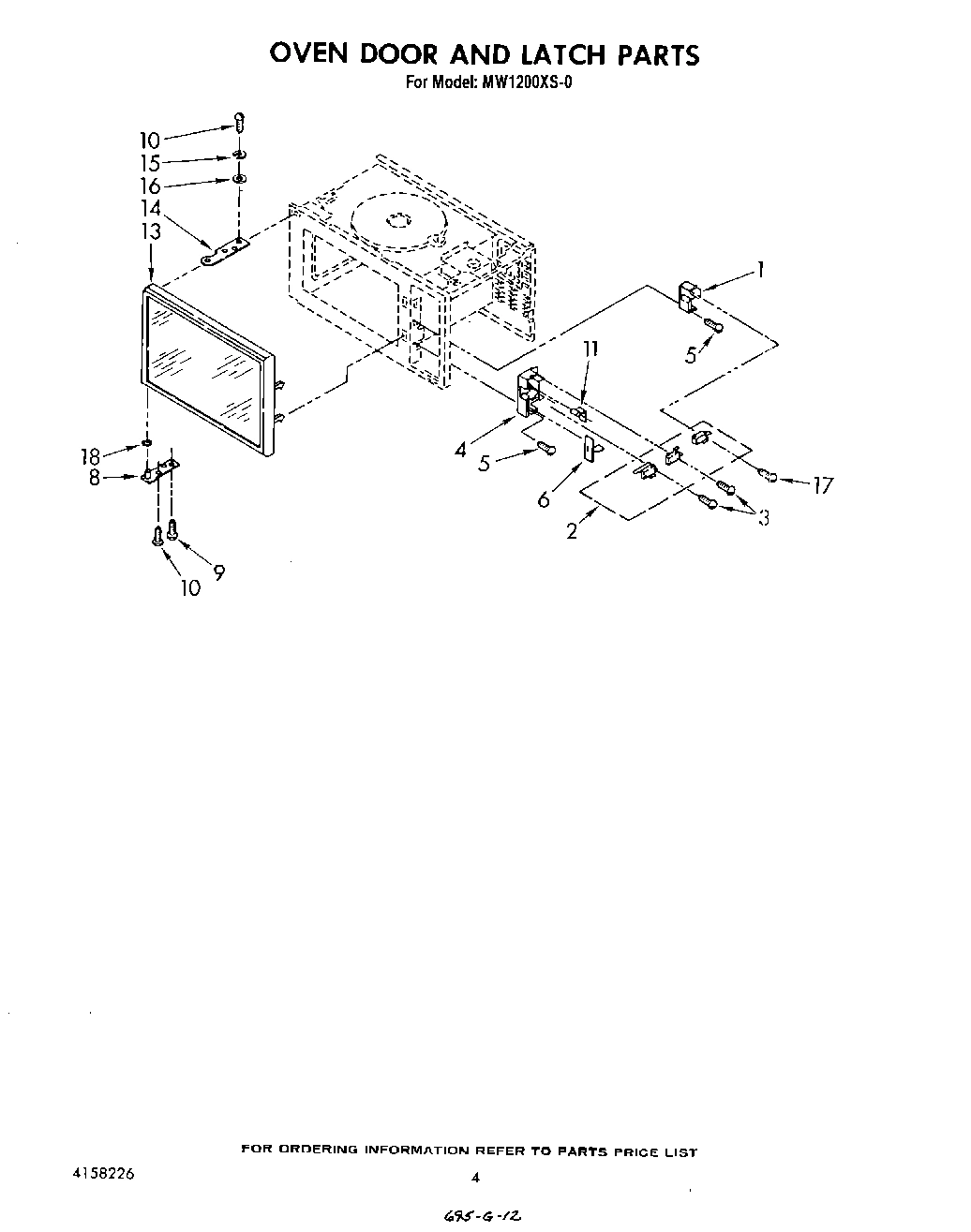

04 - OVEN DOOR AND LATCH

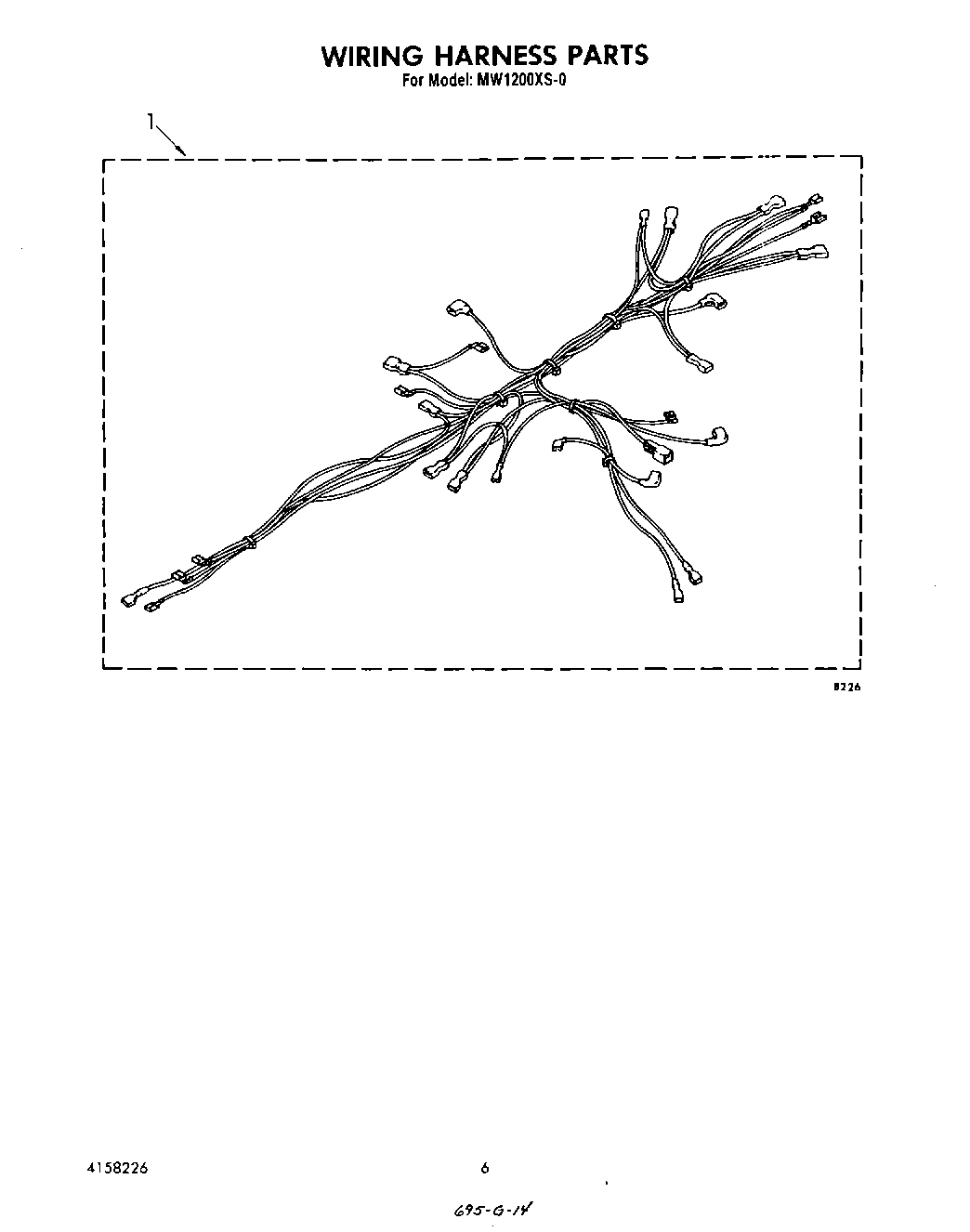

06 - WIRING HARNESS , LIT/OPTIONAL
Common parts from model Whirlpool MW1200XS0
Under The Cabinet Mounting Kit WPL 4158000 Contact Us For Availability
Wall Mount Kit WPL 4158002 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
Guide, Use & Care WPL LIT4158005 Contact Us For Availability
Cookbook WPL LIT4158011 Contact Us For Availability
List, Repair Parts WPL LIT4158226 Contact Us For Availability
1
Frame, Control Panel WPL 4158125 Contact Us For Availability
1
Bracket, Light WPL 4158096 Contact Us For Availability
1
Latch, Upper WPL 4158064 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158124 Contact Us For Availability
2
Spring, Button WPL 4158110 Contact Us For Availability
2
Interlock, Switch Kit (All switches must be r WPL 4158134 Contact Us For Availability
3
Button, Door WPL 4158109 Contact Us For Availability
3
Socket, Lamp WPL 4158097 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
4
Screw, 3 x 8 mm (2) WPL 4158082 Contact Us For Availability
4
Knob WPL 4158114 Contact Us For Availability
4
Latch, Lower WPL 4158066 Contact Us For Availability
5
Duct, Air WPL 4158058 Contact Us For Availability
5
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
5
Bracket, Timer WPL 4158115 Contact Us For Availability
5
Bulb WPL 4158098 Contact Us For Availability
6
Motor, Fan WPL 4158061 Contact Us For Availability
6
Timer WPL 4158107 Contact Us For Availability
6
Cover, Stirrer WPL 4158046 Contact Us For Availability
6
Rod, Release WPL 4158070 Contact Us For Availability
7
Screw, 4 x 10 mm WPL 4158077 Contact Us For Availability
7
Variable Power Control WPL 4158108 Contact Us For Availability
7
Rivet (2) WPL 4158047 Contact Us For Availability
8
Washer WPL 4158088 Contact Us For Availability
8
Lever, Release WPL 4158112 Contact Us For Availability
8
Shelf, Cavity WPL 4158089 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158040 Contact Us For Availability
9
Washer WPL 4158085 Contact Us For Availability
9
Base, Lever WPL 4158111 Contact Us For Availability
9
Fuse, Thermal WPL 4158049 Contact Us For Availability
9
Screw WPL 4158083 Contact Us For Availability
10
Fan WPL 4158062 Contact Us For Availability
10
Pin, Lever WPL 4158113 Contact Us For Availability
10
Strain Relief WPL 4158092 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
11
Cord, Power WPL 4158091 Contact Us For Availability
11
Switch WPL 4158068 Contact Us For Availability
12
Capacitor WPL 4158099 Contact Us For Availability
12
Wrapper, Cabinet WPL 4158035 Contact Us For Availability
13
Diode WPL 4158045 Contact Us For Availability
13
Screw, 4 x 8 mm (4) WPL 4158084 Contact Us For Availability
13
Door, Complete WPL 4158093 Contact Us For Availability
14
Bracket, Capacitor WPL 4158043 Contact Us For Availability
14
Plug, Hole WPL 4158090 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158051 Contact Us For Availability
15
Plate, Base (Includes Illus. No. 23) WPL 4158037 Contact Us For Availability
15
Air Guide WPL 4158033 Contact Us For Availability
15
Washer WPL 4158086 Contact Us For Availability
16
Blade, Stirrer WPL 4158048 Contact Us For Availability
16
Washer WPL 4158087 Contact Us For Availability
17
Transformer WPL 4158038 Contact Us For Availability
17
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
17
Cover, Rear WPL 4158036 Contact Us For Availability
18
Screw, 5 x 16 mm WPL 4158081 Contact Us For Availability
18
Bracket WPL 4158050 Contact Us For Availability
18
Washer WPL 4158117 Contact Us For Availability
19
Seal, Foam WPL 4158032 Contact Us For Availability
20
Holder, Fuse WPL 4158059 Contact Us For Availability
20
Seal, Foam WPL 4158034 Contact Us For Availability
21
Screw, 4 x 10 mm WPL 4158072 Contact Us For Availability
21
Seal, Foam WPL 4158094 Contact Us For Availability
22
Nut WPL 4158053 Contact Us For Availability
22
Fuse WPL 4158060 Contact Us For Availability
23
Foot (4) WPL 4158042 Contact Us For Availability
23
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
25
Cover WPL 4158052 Contact Us For Availability
25
Mounting Axle WPL 4158250 Contact Us For Availability
26
Bracket, Magnetron WPL 4158056 Contact Us For Availability
26
Bushing WPL 4158251 Contact Us For Availability
27
Screw, 4 x 6 mm WPL 4158074 Contact Us For Availability
27
Washer WPL 4158252 Contact Us For Availability
28
Lead, High Voltage WPL 4158122 Contact Us For Availability
28
Retainer WPL 4158253 Contact Us For Availability
29
Lead, High Voltage WPL 4158123 Contact Us For Availability
30
Seal, Foam WPL 4158039 Contact Us For Availability
31
Seal, Foam WPL 4158041 Contact Us For Availability
33
Seal, Foam WPL 4158057 Contact Us For Availability
34
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
35
Plate, Discharge WPL 4158126 Contact Us For Availability
× ![]()
