Model Whirlpool MW1200XP1 – Common Parts & Diagrams
03 - CABINET AND STIRRER
05 - CONTROL PANEL , LITERATURE AND OPTIONAL

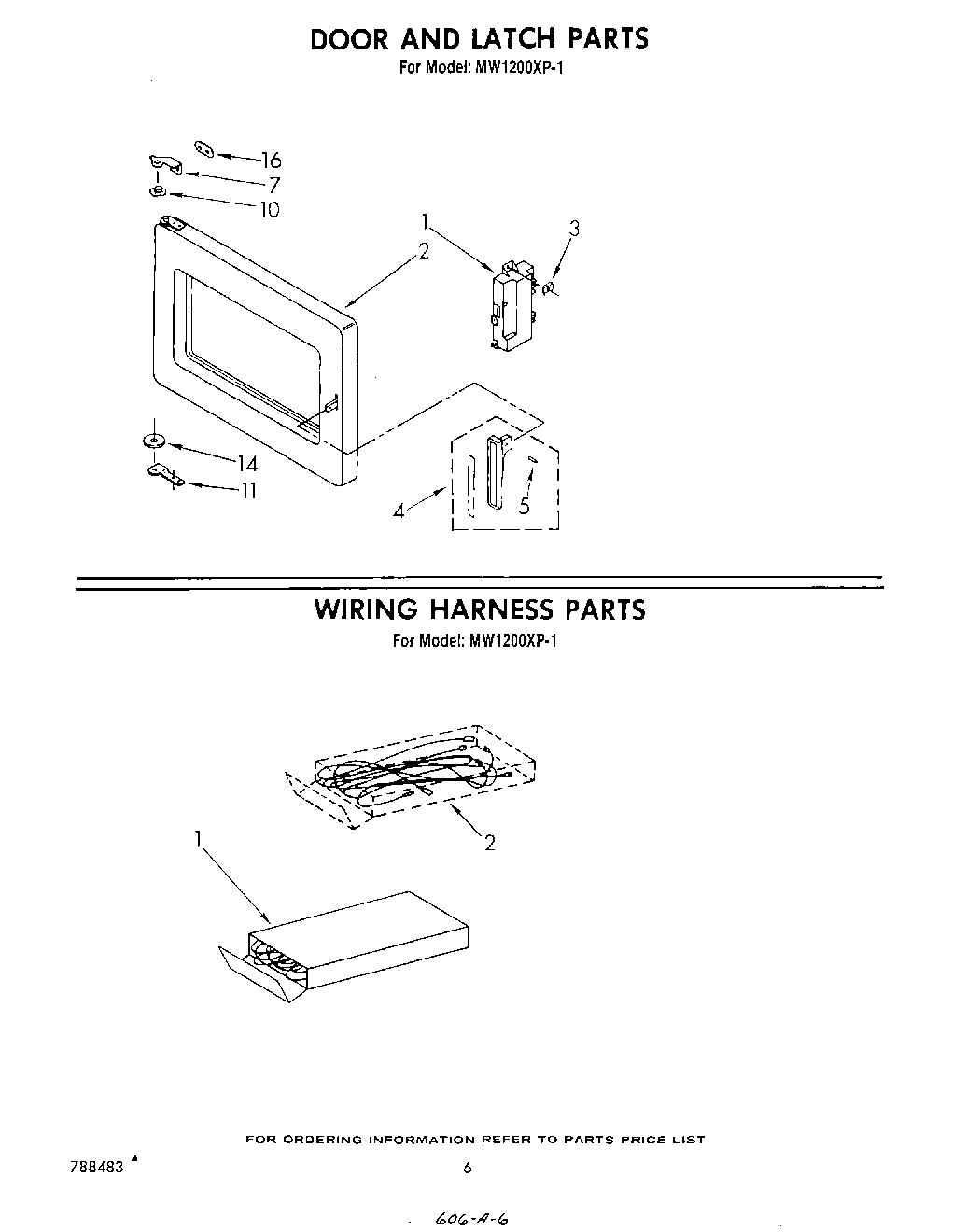

04 - DOOR AND LATCH , WIRING HARNESS

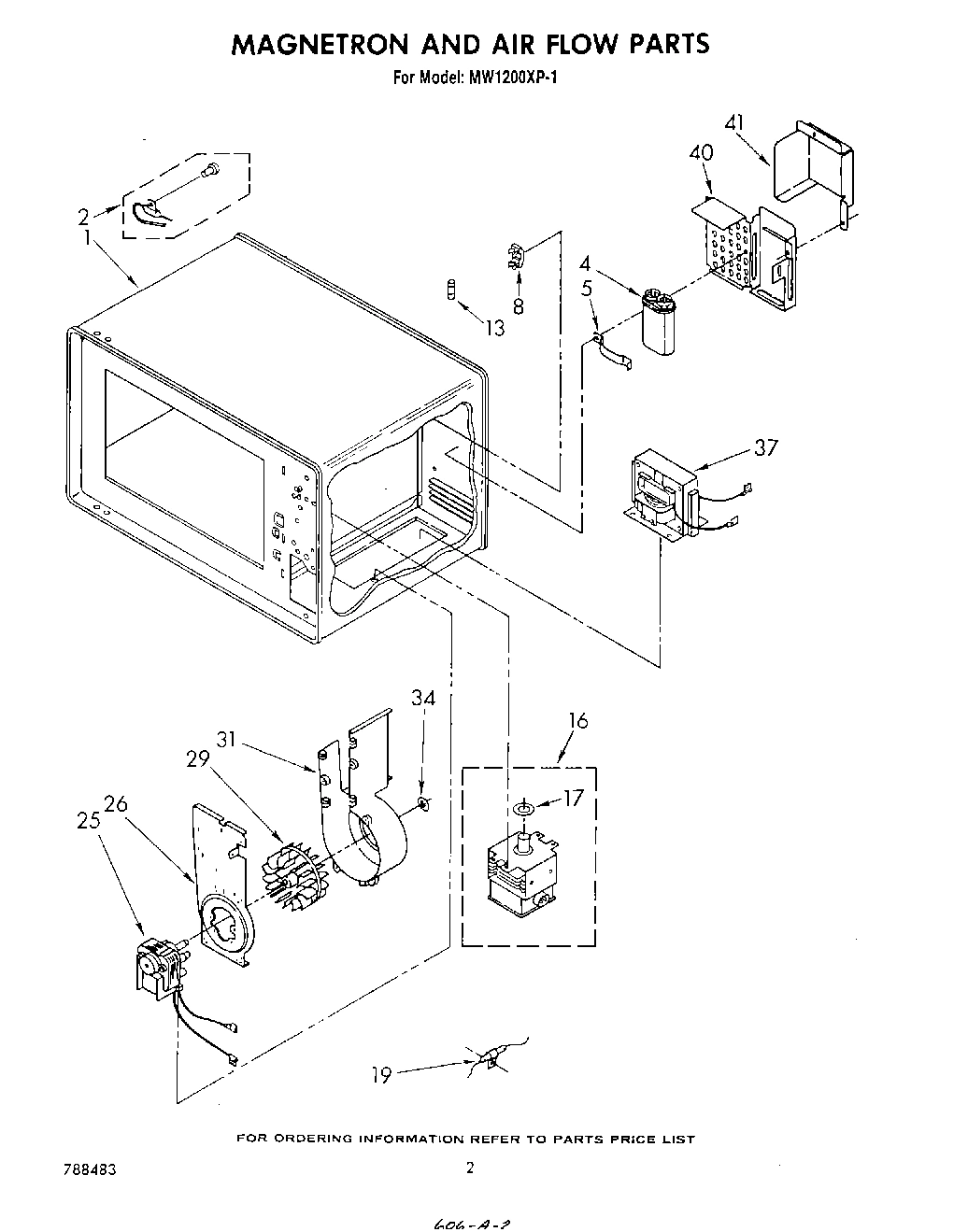

02 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool MW1200XP1
Guide, Cooking WPL LIT788018 Contact Us For Availability
Guide, Use & Care WPL LIT788267 Contact Us For Availability
List, Repair Parts WPL LIT788483 Contact Us For Availability
1
Decorative Panel Control (Includes Inlay) WPL 788336 Contact Us For Availability
1
Switch, Interlock WPL 788023 Contact Us For Availability
1
Complete Wiring Harness WPL 788351 Contact Us For Availability
1
Cavity Assembly (Not Serviceable) WPL ARI119346A Contact Us For Availability
2
Screw WPL 788314 Contact Us For Availability
2
Knob, Timer (2) WPL 788319 Contact Us For Availability
2
High Voltage Lead Kit (Magnetron) WPL 788042 Contact Us For Availability
2
Door, Complete WPL 788313 Contact Us For Availability
2
Protector, Thermal WPL 788040 Contact Us For Availability
3
Inlay, Control Panel WPL 788337 Contact Us For Availability
3
Clip, Switch Mounting (2) WPL 788102 Contact Us For Availability
4
Screw, 6-32 x 1/4 (2) WPL 788125 Contact Us For Availability
4
Timer (25 Minute) WPL 788333 Contact Us For Availability
4
Handle (Includes Inlay) WPL 788315 Contact Us For Availability
4
Capacitor / Diode WPL 788468 Contact Us For Availability
5
Pin, Handle Mounting WPL 788105 Contact Us For Availability
5
Bracket, Capacitor Mounting WPL 788311 Contact Us For Availability
7
Power Selector WPL 788034 Contact Us For Availability
7
Screw, 6-32 x 1/2 (2) WPL 788124 Contact Us For Availability
7
Hinge (Upper) WPL 788299 Contact Us For Availability
7
Screw (2) WPL 788300 Contact Us For Availability
8
Nut, 4-40 WPL 788099 Contact Us For Availability
8
Screw, 4-40 x 1/4 WPL 788112 Contact Us For Availability
8
Holder, Fuse WPL 788324 Contact Us For Availability
10
Resistor, Surge WPL 788334 Contact Us For Availability
10
Washer, Wave (Upper Hinge Pin) WPL 788106 Contact Us For Availability
11
Lamp WPL 788341 Contact Us For Availability
11
Bracket, Surge Resistor WPL 788076 Contact Us For Availability
11
Screw, 8-32 x 3/8 WPL 788113 Contact Us For Availability
11
Hinge (Lower) WPL 788301 Contact Us For Availability
11
Screw (2) WPL 788302 Contact Us For Availability
13
Cover, Component WPL 788340 Contact Us For Availability
13
Fuse (12 Amp) WPL 788325 Contact Us For Availability
14
Washer, Nylon (Lower Hinge Pin) WPL 788123 Contact Us For Availability
16
Reflector WPL 788343 Contact Us For Availability
16
MK100 Under-The-Cabinet Mounting Kit WPL 788262 Contact Us For Availability
16
MK110 Wall Mount Kit WPL 788264 Contact Us For Availability
16
Driver, Torx (T-20) WPL 788290 Contact Us For Availability
16
Plate, Component Mounting WPL 788335 Contact Us For Availability
16
Plate, Nut WPL 788298 Contact Us For Availability
16
Nut (4) WPL 788104 Contact Us For Availability
16
Magnetron (Includes Illus. No.17) WPL 788312 Contact Us For Availability
17
Cover, Stirrer WPL 788470 Contact Us For Availability
17
Gasket, Magnetron WPL 788056 Contact Us For Availability
19
Thermal Protector, Magnetron WPL 788067 Contact Us For Availability
25
Motor, Blower (Includes Illus. 34) WPL 788323 Contact Us For Availability
26
Rivet WPL 788094 Contact Us For Availability
26
Support Bar, Stirrer WPL 788295 Contact Us For Availability
26
Bracket, Blower WPL 788322 Contact Us For Availability
28
Insert, Stirrer WPL 788293 Contact Us For Availability
29
Blade, Stirrer WPL 788292 Contact Us For Availability
29
Wheel, Blower WPL 788321 Contact Us For Availability
31
Washer, No.8 WPL 788096 Contact Us For Availability
31
Screw, 8-32 x 3/8 WPL 788111 Contact Us For Availability
31
Cord, Power WPL 788329 Contact Us For Availability
31
Clamp WPL 788330 Contact Us For Availability
31
Screw, 8-18 x 1/2 (6) WPL 788121 Contact Us For Availability
31
Housing, Blower WPL 788320 Contact Us For Availability
32
Relief, Strain WPL 788331 Contact Us For Availability
34
E-Ring, Blower Wheel WPL 788028 Contact Us For Availability
37
Screw, 10-32 x 3/8 (4) WPL 788117 Contact Us For Availability
37
Transformer WPL 788326 Contact Us For Availability
38
Foot (4) WPL 788303 Contact Us For Availability
38
Rivet (4) WPL 788304 Contact Us For Availability
40
Shelf (Order Sealant Part No. 482338 For Inst WPL 788305 Contact Us For Availability
40
Cover, Capacitor WPL 788339 Contact Us For Availability
41
Panel, Access WPL 788327 Contact Us For Availability
41
Clip (4) WPL 788328 Contact Us For Availability
41
Cover, Lead WPL 788307 Contact Us For Availability
42
Bearing, Stirrer WPL 788294 Contact Us For Availability
× ![]()
