Model Whirlpool MW1000XP0 – Common Parts & Diagrams

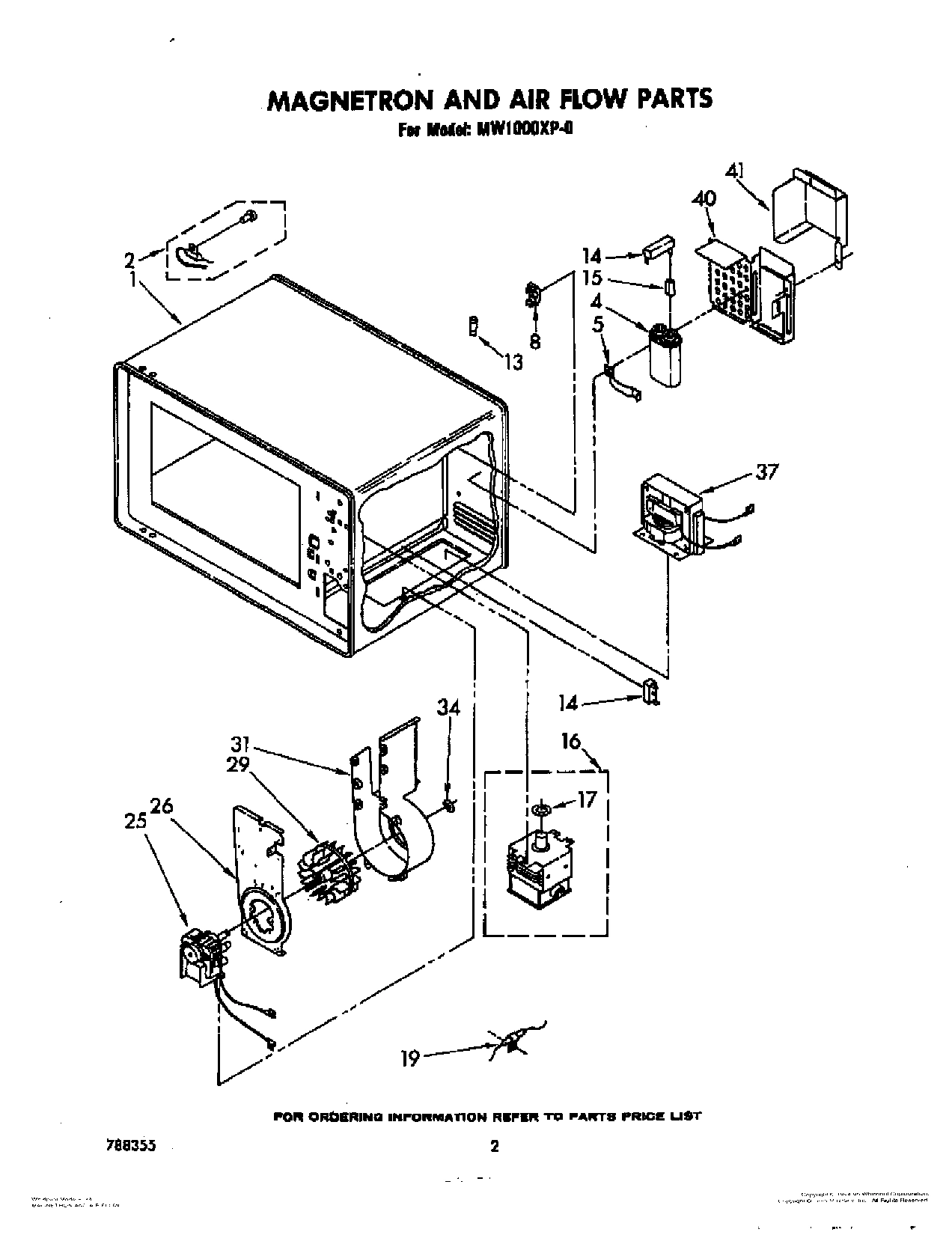

02 - MAGNETRON AND AIR FLOW

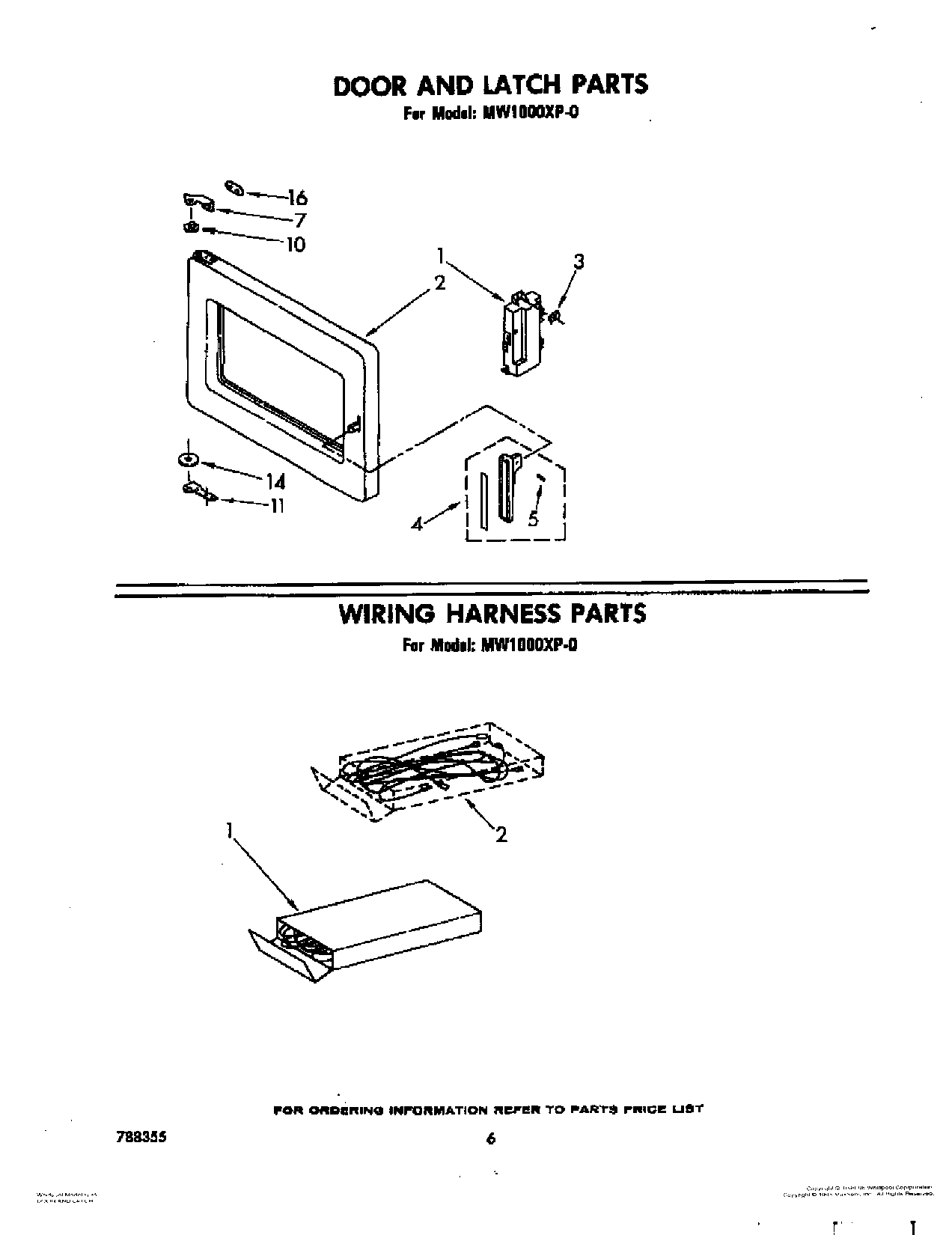

04 - DOOR AND LATCH, WIRING HARNESS

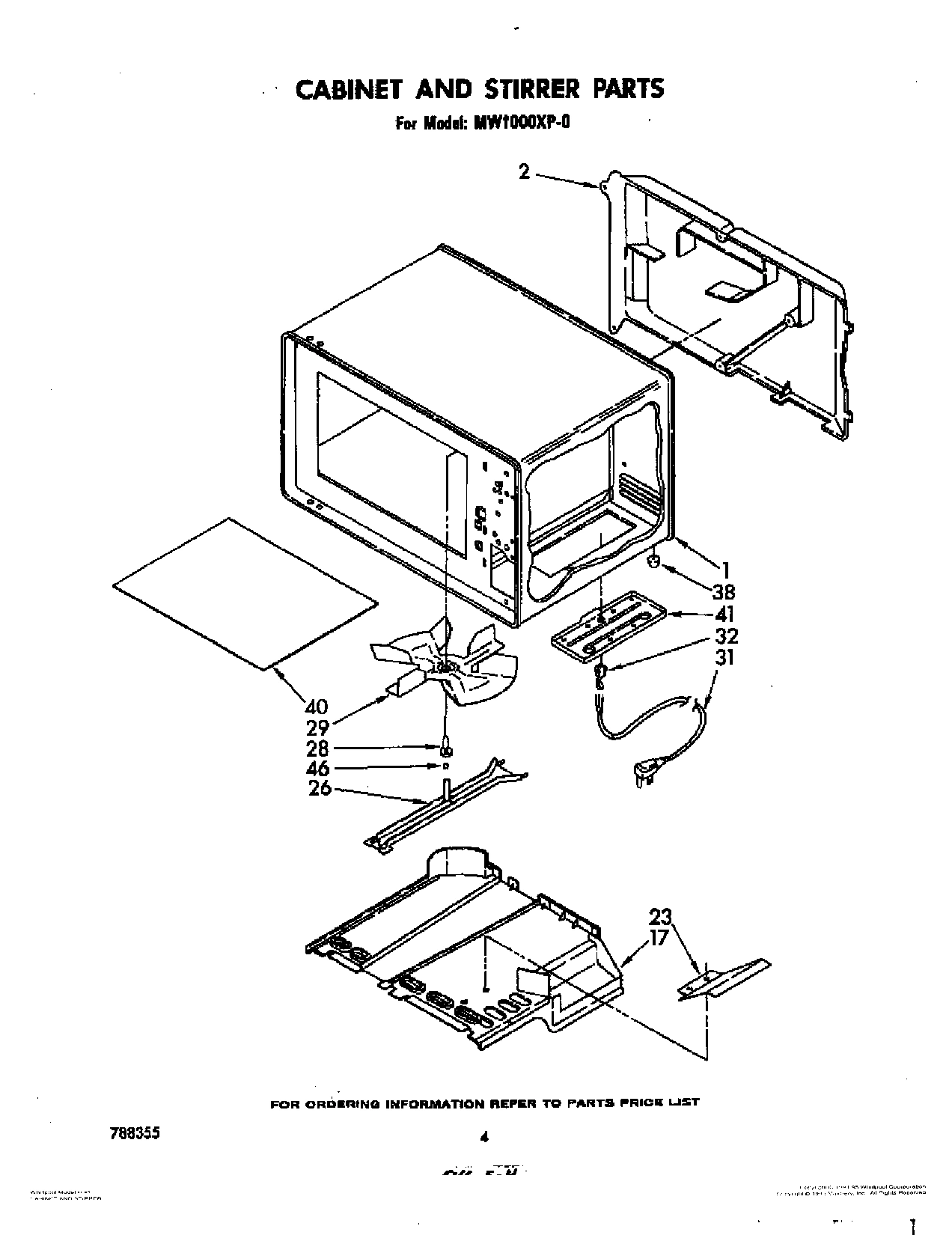

03 - CABINET AND STIRRER

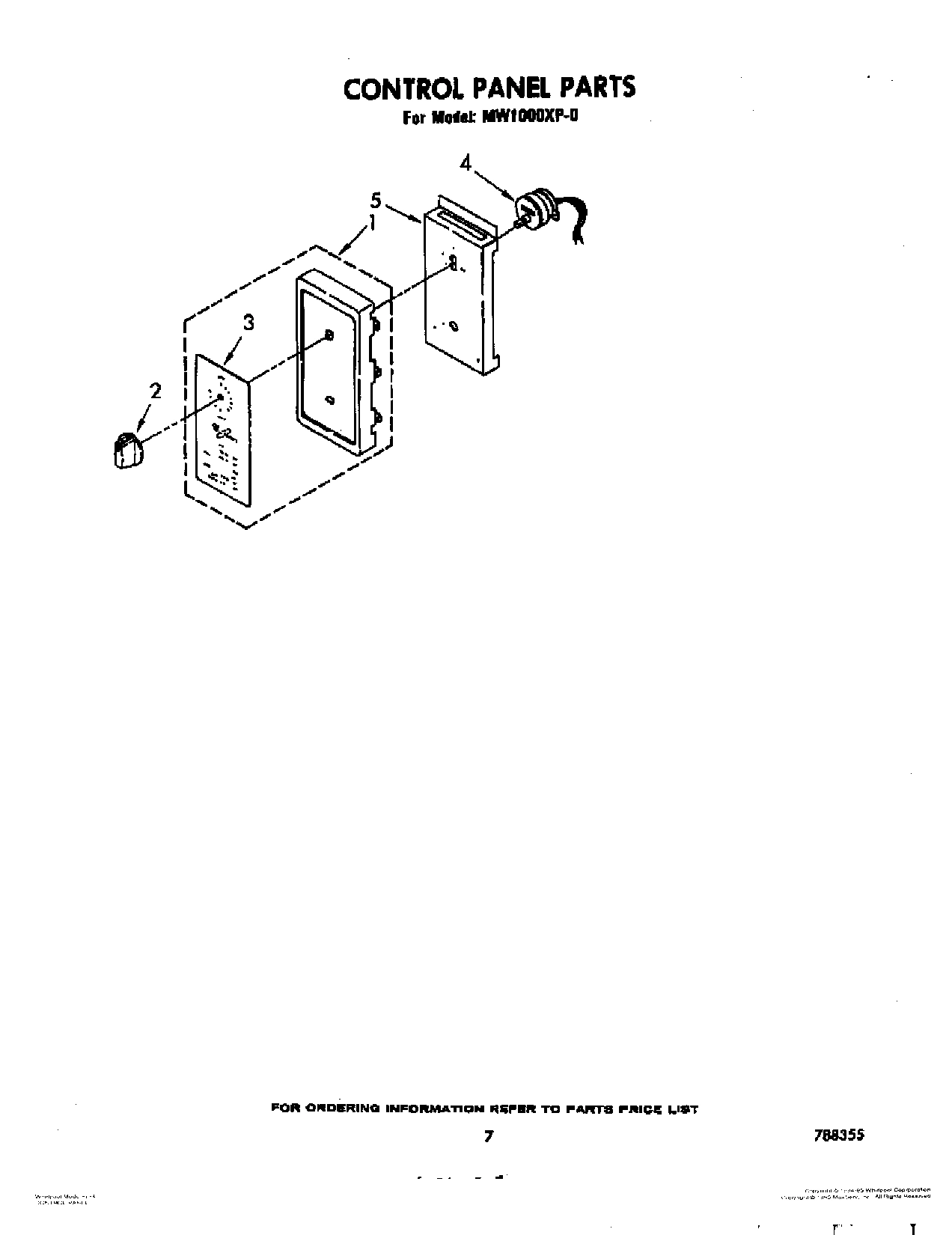

05 - CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool MW1000XP0
1
Switch, Interlock WPL 788023 Contact Us For Availability
1
Complete Wiring Harness WPL 788350 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI119341A Contact Us For Availability
1
Panel, Control (Includes Inlay) WPL 788317 Contact Us For Availability
2
High Voltage Lead Kit (Magnetron) WPL 788042 Contact Us For Availability
2
Door, Complete WPL 788313 Contact Us For Availability
2
Screw WPL 788314 Contact Us For Availability
2
Cover, Rear WPL 788365 Contact Us For Availability
2
Knob, Timer WPL 788319 Contact Us For Availability
3
Clip, Switch Mounting (2) WPL 788102 Contact Us For Availability
3
Inlay WPL 788318 Contact Us For Availability
4
Handle (Includes Inlay) WPL 788315 Contact Us For Availability
4
Screw, 6-32 x 1/4 (2) WPL 788125 Contact Us For Availability
4
Timer (15 Minute) WPL 788316 Contact Us For Availability
5
Bracket, Capacitor Mounting WPL 788311 Contact Us For Availability
5
Pin, Handle Mounting WPL 788105 Contact Us For Availability
5
Guide, Cooking WPL 788017 Contact Us For Availability
5
MK100 Under-The-Cabinet Mounting Kit WPL 788262 Contact Us For Availability
5
MK110 Wall Mount Kit WPL 788264 Contact Us For Availability
5
Guide, Use & Care WPL 788266 Contact Us For Availability
5
Driver, Torx (T-20) WPL 788290 Contact Us For Availability
5
Cookbook WPL 788332 Contact Us For Availability
5
Plate, Component Mounting WPL 788349 Contact Us For Availability
5
List, Repair Parts WPL 788355 Contact Us For Availability
7
Hinge (Upper) WPL 788299 Contact Us For Availability
7
Screw (2) WPL 788300 Contact Us For Availability
8
Nut, 4-40 WPL 788099 Contact Us For Availability
8
Screw, 4-40 x 1/4 WPL 788112 Contact Us For Availability
8
Holder, Fuse WPL 788324 Contact Us For Availability
10
Washer, Wave (Upper Hinge Pin) WPL 788106 Contact Us For Availability
11
Hinge (Lower) WPL 788301 Contact Us For Availability
11
Screw (2) WPL 788302 Contact Us For Availability
13
Fuse (15 Amp) WPL 788325 Contact Us For Availability
14
Diode WPL 788021 Contact Us For Availability
14
Washer, Nylon (Lower Hinge Pin) WPL 788123 Contact Us For Availability
15
Terminal, Adapter WPL 788309 Contact Us For Availability
16
Nut (4) WPL 788104 Contact Us For Availability
16
Magnetron (Includes Illus. No.17) WPL 788312 Contact Us For Availability
16
Plate, Nut WPL 788298 Contact Us For Availability
17
Gasket, Magnetron WPL 788056 Contact Us For Availability
17
Cover, Stirrer WPL 788296 Contact Us For Availability
19
Thermal Protector, Magnetron WPL 788067 Contact Us For Availability
23
Rivet (2) WPL 788093 Contact Us For Availability
23
Baffle, Right Air WPL 788297 Contact Us For Availability
25
Motor, Blower (Includes Illus. 34) WPL 788323 Contact Us For Availability
26
Bracket, Blower WPL 788322 Contact Us For Availability
26
Rivet WPL 788094 Contact Us For Availability
26
Support Bar, Stirrer WPL 788295 Contact Us For Availability
28
Insert, Stirrer WPL 788293 Contact Us For Availability
29
Wheel, Blower WPL 788321 Contact Us For Availability
29
Blade, Stirrer WPL 788292 Contact Us For Availability
31
Screw, 8-18 x 1/2 (3) WPL 788121 Contact Us For Availability
31
Housing, Blower WPL 788320 Contact Us For Availability
31
Washer, No.8 WPL 788096 Contact Us For Availability
31
Screw, 8-32 x 3/8 WPL 788111 Contact Us For Availability
31
Cord, Power WPL 788329 Contact Us For Availability
31
Clamp WPL 788330 Contact Us For Availability
32
Relief, Strain WPL 788331 Contact Us For Availability
34
E-Ring, Blower Wheel WPL 788028 Contact Us For Availability
37
Screw, 10-32 x 3/8 (4) WPL 788117 Contact Us For Availability
37
Transformer WPL 788326 Contact Us For Availability
38
Foot (4) WPL 788303 Contact Us For Availability
38
Rivet (4) WPL 788304 Contact Us For Availability
40
Cover, Lead WPL 788307 Contact Us For Availability
40
Shelf (Order Sealant Part No. 482338 For Inst WPL 788305 Contact Us For Availability
41
Cover, Capacitor WPL 788339 Contact Us For Availability
41
Panel, Access (Includes Illus. 38) WPL 788327 Contact Us For Availability
41
Clip (4) WPL 788328 Contact Us For Availability
46
Bearing, Stirrer WPL 788294 Contact Us For Availability
× ![]()
