Model Maytag MVWX700XL2 WASHER – Common Parts & Diagrams
01 - COVER SHEET

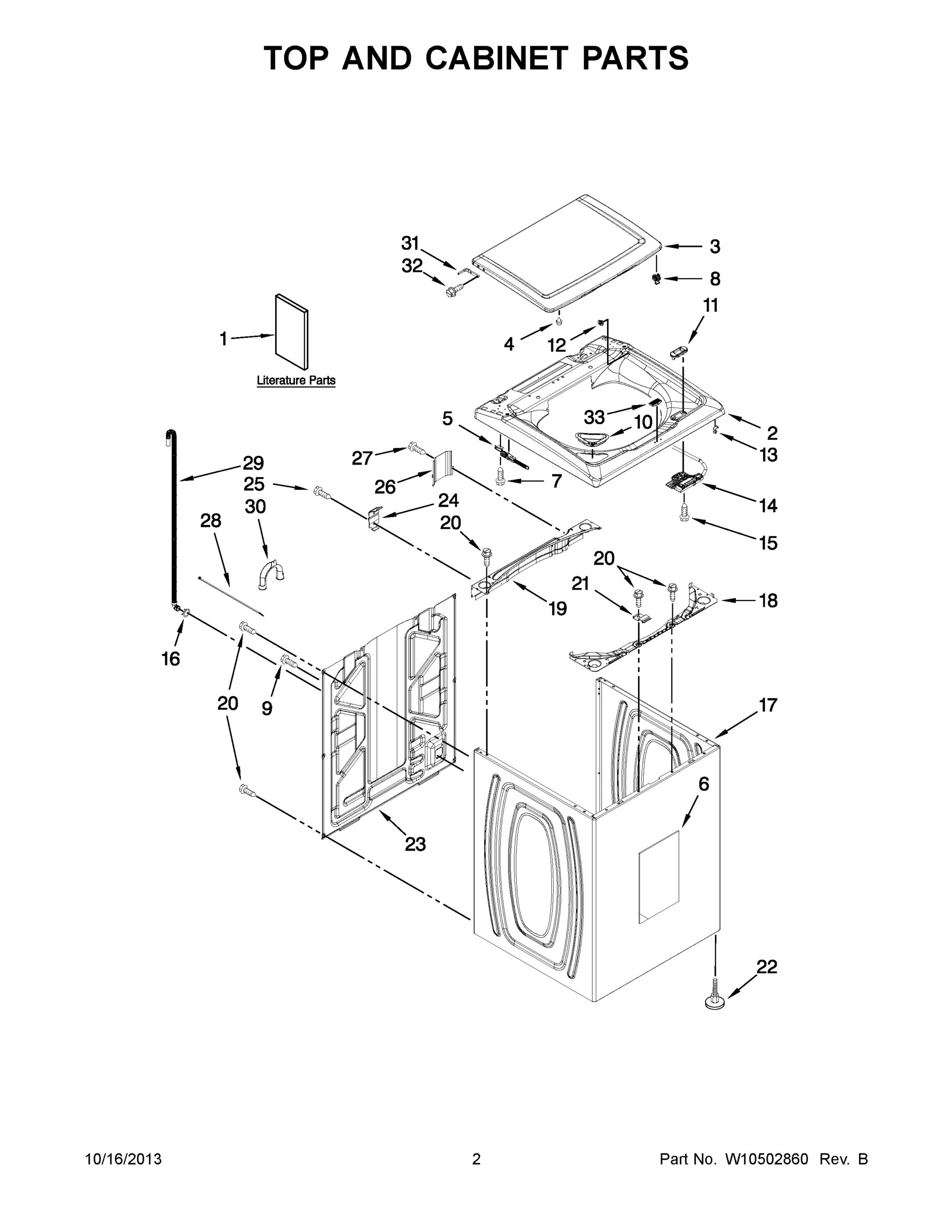

02 - TOP AND CABINET PARTS

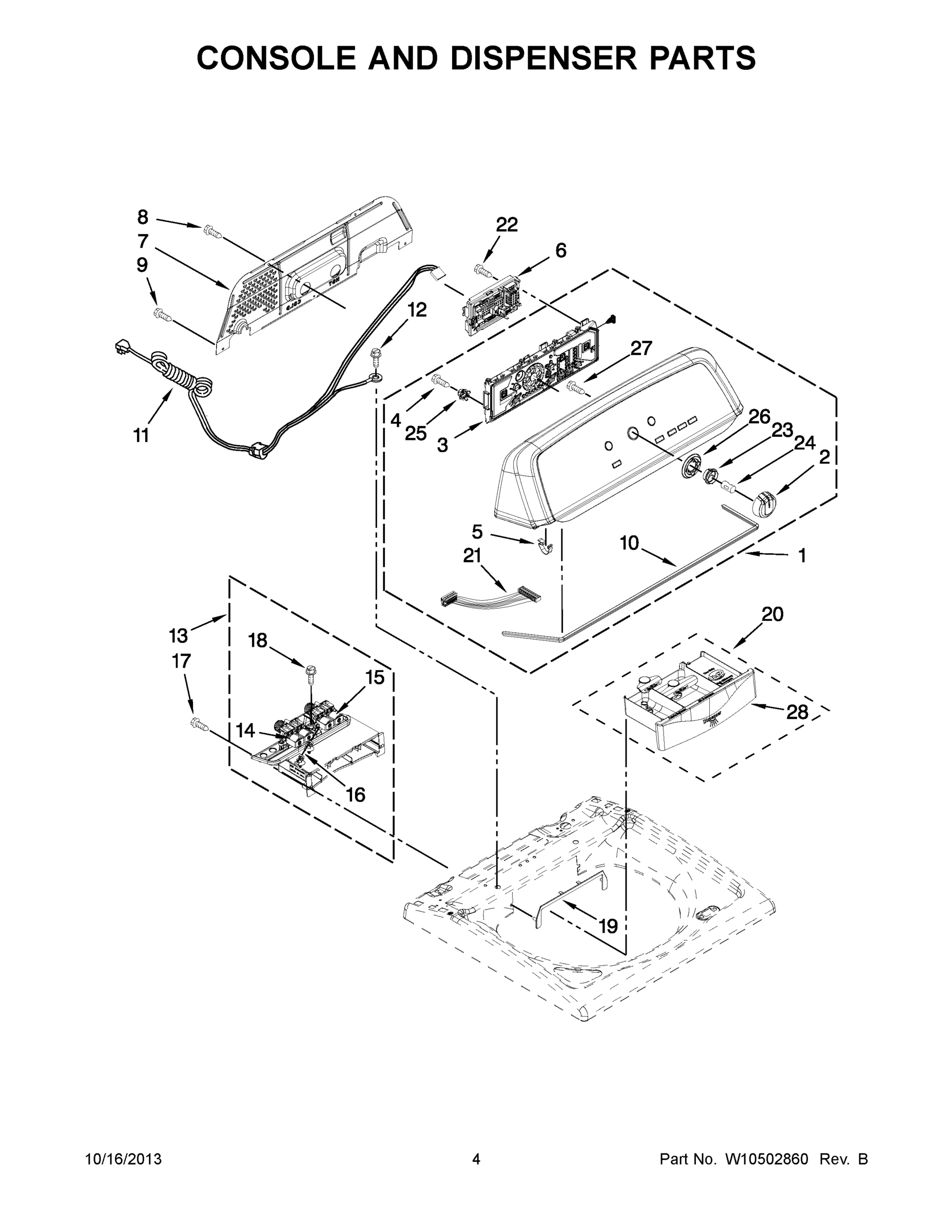

03 - CONSOLE AND DISPENSER PARTS

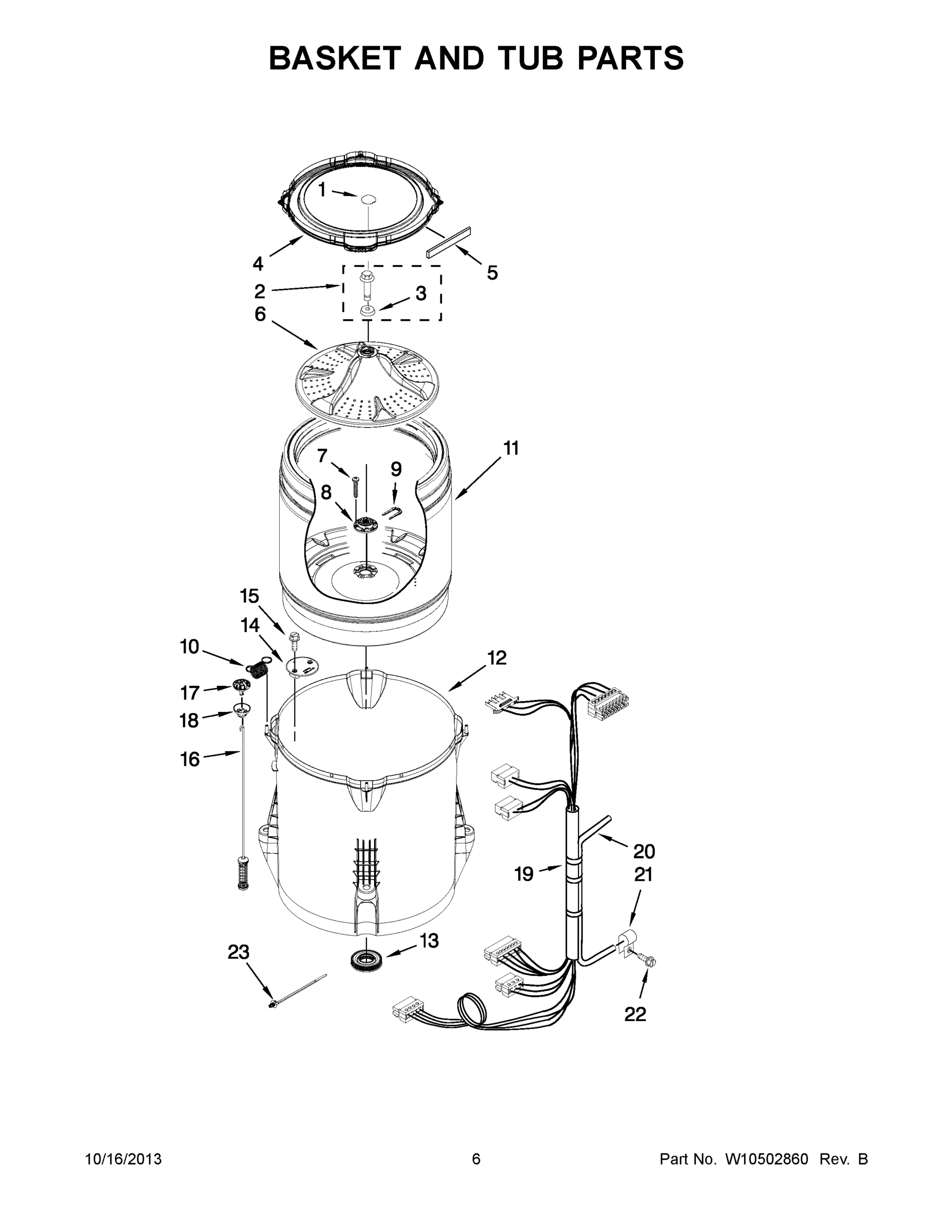

04 - BASKET AND TUB PARTS

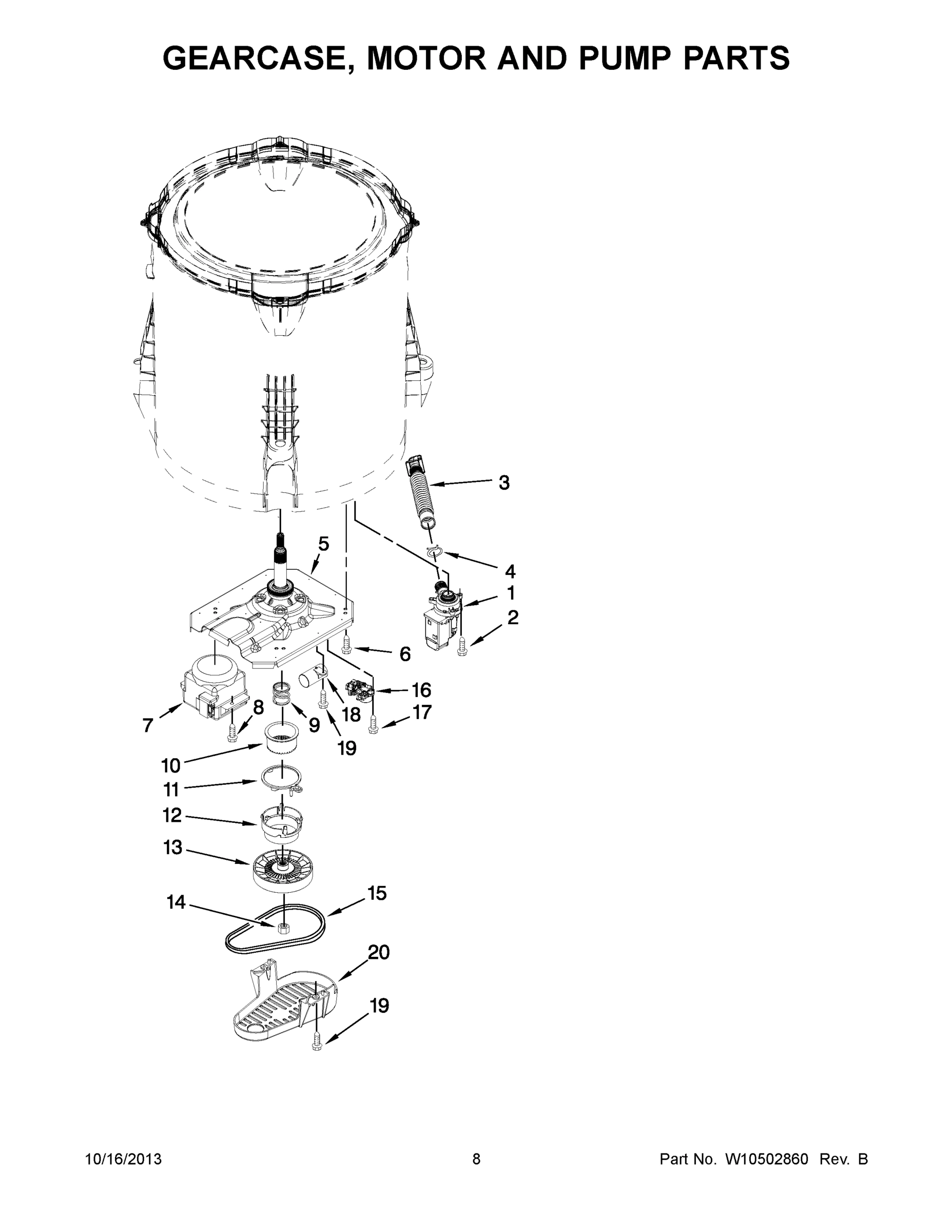

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWX700XL2 WASHER
1
MAY W10062961 MAY W10062961 Contact Us For Availability
1
MAY W10240509 MAY W10240509 Contact Us For Availability
1
MAY W10280498 MAY W10280498 Contact Us For Availability
1
MAY W10338691 MAY W10338691 Contact Us For Availability
1
MAY W10468342 MAY W10468342 Contact Us For Availability
1
MAY W10293207 MAY W10293207 Contact Us For Availability
1
MAY W10293208 MAY W10293208 Contact Us For Availability
1
MAY W10305251 MAY W10305251 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
2
TOP (WHITE) MAY W10238290 Contact Us For Availability
2
MAY W10268719 MAY W10268719 Contact Us For Availability
2
KNOB, CONTROL (INCLUDES ITEM 24) (SILVER) MAY W10251381 Contact Us For Availability
2
KNOB, CONTROL (INCLUDES ITEM 24) (CHROME) MAY W10251384 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (INCLUDES ITEMS 4 & 8) (WHITE) MAY W10296171 Contact Us For Availability
3
LID (INCLUDES ITEMS 4 & 8) (SILVER) MAY W10296172 Contact Us For Availability
3
MAY W10272638 MAY W10272638 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10219342 MAY W10219342 Contact Us For Availability
4
TUB RING MAY W10215146 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
HINGE, LID (LEFT) MAY W10270398 Contact Us For Availability
5
HINGE, LID (RIGHT) MAY W10270399 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10205824 MAY W10205824 Contact Us For Availability
5
MAY W10469846 MAY W10469846 Contact Us For Availability
6
MAY W10414221 MAY W10414221 Contact Us For Availability
6
MAY W10445345 MAY W10445345 Contact Us For Availability
6
MAY W10215119 MAY W10215119 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
Screw MAY 693995 Contact Us For Availability
7
MAY W10420984 MAY W10420984 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10416660 MAY W10416660 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10239968 Contact Us For Availability
8
MAY W10239969 MAY W10239969 Contact Us For Availability
8
SCREW MAY 3390647 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10142728 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
DISPENSER, BLEACH (WHITE) MAY W10240977 Contact Us For Availability
10
DISPENSER, BLEACH (GRAY) MAY W10304138 Contact Us For Availability
10
MAY W10280079 MAY W10280079 Contact Us For Availability
10
MAY W10348658 MAY W10348658 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
BEZEL, LID LOCK (GRAY) MAY W10392092 Contact Us For Availability
11
MAY W10266797 MAY W10266797 Contact Us For Availability
11
MAY W10469848 MAY W10469848 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE (RIGHT HAND) MAY W10293293 Contact Us For Availability
12
BEARING, LID HINGE (LEFT HAND) MAY W10293653 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10432327 MAY W10432327 Contact Us For Availability
13
MAY W10006371 MAY W10006371 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
MAY W10240949 MAY W10240949 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
15
MAY W10240948 MAY W10240948 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
MAY 356138 MAY 356138 Contact Us For Availability
16
MAY W10343675 MAY W10343675 Contact Us For Availability
16
MAY W10257085 MAY W10257085 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
CABINET (SILVER) MAY W10240528 Contact Us For Availability
17
CABINET (WHITE) MAY W10251994 Contact Us For Availability
17
SCREW MAY 3400061 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10405423 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW MAY 97787 Contact Us For Availability
18
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
18
MAY W10390446 MAY W10390446 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10240946 MAY W10240946 Contact Us For Availability
19
HARNESS, LOWER MAY W10383573 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY 1157158 MAY 1157158 Contact Us For Availability
20
MAY W10240960 MAY W10240960 Contact Us For Availability
20
MAY 8572540 MAY 8572540 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
CABLE, USER INTERFACE MAY W10285492 Contact Us For Availability
21
CLAMP, CABLE MAY W10005430 Contact Us For Availability
22
SCREW MAY 9740848 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
SCREW MAY 8533943 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10326923 MAY W10326923 Contact Us For Availability
23
MAY W10298887 MAY W10298887 Contact Us For Availability
24
MAY W10215102 MAY W10215102 Contact Us For Availability
24
CLIP, SPRING MAY 8536939 Contact Us For Availability
25
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
26
MAY W10215139 MAY W10215139 Contact Us For Availability
26
MAY W10305134 MAY W10305134 Contact Us For Availability
27
MAY 3196172 MAY 3196172 Contact Us For Availability
28
TIE, CABLE MAY W10339879 Contact Us For Availability
28
MAY W10287478 MAY W10287478 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
31
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
31
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
32
SCREW MAY W10339706 Contact Us For Availability
33
MAY W10323735 MAY W10323735 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) MAY W10268217 Contact Us For Availability
× ![]()
