Model Maytag MVWP575GW1 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

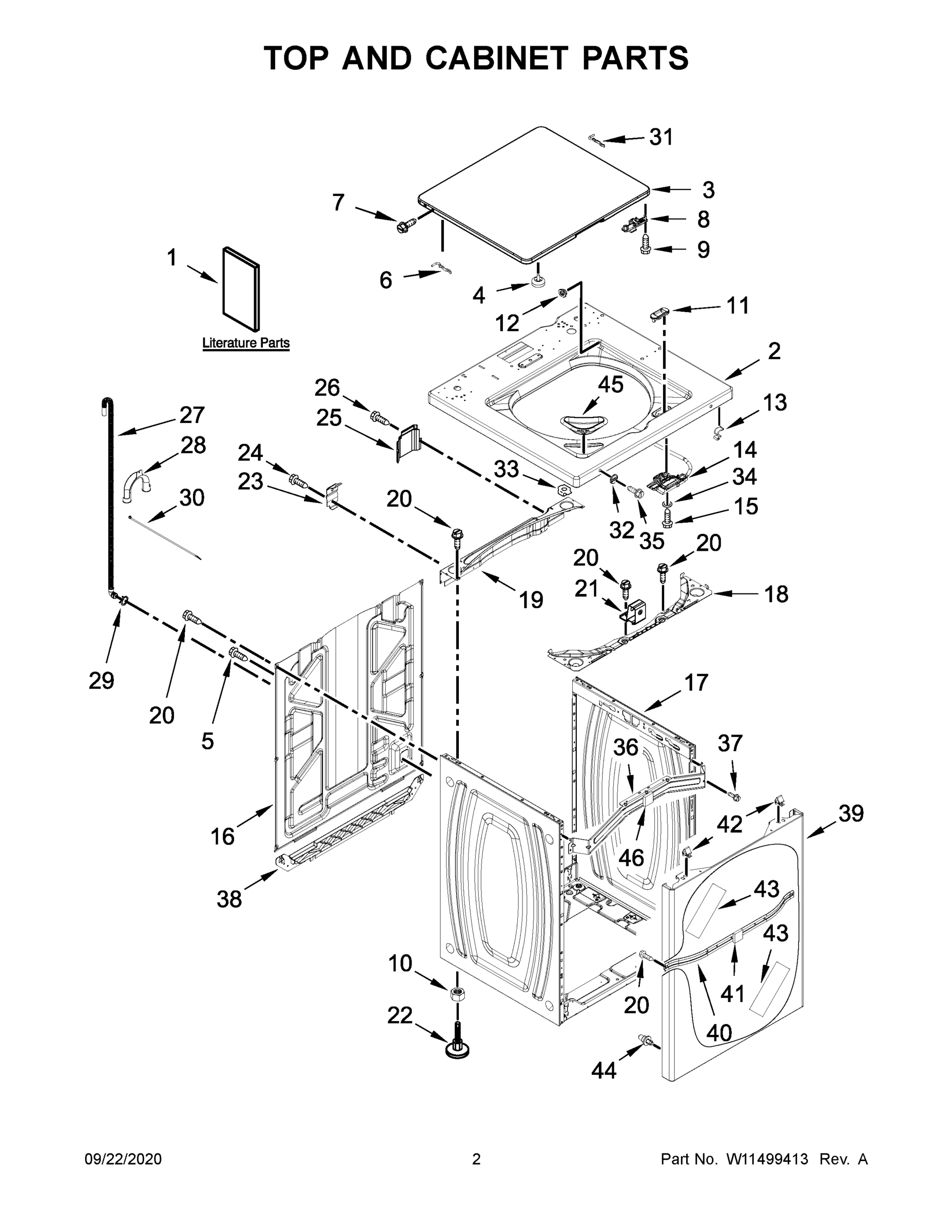

02 - TOP AND CABINET PARTS
03 - CONTROLS AND WATER INLET PARTS
04 - BASKET AND TUB PARTS
05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWP575GW1 LAUNDRY, RESIDENTIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W11045660 Contact Us For Availability
1
CONSOLE MAY W11124005 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10860509 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10276397 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11045654 Contact Us For Availability
1B
TECH SHEET MAY W11045666 Contact Us For Availability
1C
QUICK START GUIDE MAY W11045662 Contact Us For Availability
1D
ENERGY GUIDE MAY W11360574 Contact Us For Availability
2
TOP (WHITE) MAY W10461170 Contact Us For Availability
2
SCREW M4X13 MAY W10131119 Contact Us For Availability
2
SEAL, CAP MAY 358912 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10251302 Contact Us For Availability
3
MAY W11447258 MAY W11447258 Contact Us For Availability
3
SCREW AND WASHER MAY W10003790 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER, LID MAY W11241723 Contact Us For Availability
4
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
4
WASHER MAY 3949550 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
SCREW MAY W10660565 Contact Us For Availability
5
RETAINER, CAM MAY W10715784 Contact Us For Availability
5
ASSEMBLY, GEARCASE MAY W11261591 Contact Us For Availability
6
HINGE, LID (LEFT HAND) MAY 91770 Contact Us For Availability
6
SCREW MAY 90767 Contact Us For Availability
6
ASSEMBLY, CAM COMPLETE MAY W10782372 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
CORD, POWER MAY W10916256 Contact Us For Availability
7
BEARING, CAM MAY 8055141 Contact Us For Availability
7
MOTOR, DRIVE MAY W10850134 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
SCREW MAY 3400076 Contact Us For Availability
8
DOG, AGITATOR CLUTCH MAY 3366877 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
ASSEMBLY, TIMER KNOB (GRAY) MAY W10133504 Contact Us For Availability
9
AGITATOR, CAM MAY 8055142 Contact Us For Availability
9
BELT, DRIVE MAY W10850138 Contact Us For Availability
10
NUT, HEX MAY 3359452 Contact Us For Availability
10
KNOB & BUMPER ASSEMBLY (GRAY) MAY W10461097 Contact Us For Availability
10
AUGER, AGITATOR MAY W11182552 Contact Us For Availability
10
ACTUATOR, SHIFT MAY W11112160 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10285518 Contact Us For Availability
11
COUPLE, AGITATOR MAY W10715787 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
HARNESS, JUMPER MAY W11108620 Contact Us For Availability
12
SCREW MAY W10908157 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10625042 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
INLET ASSEMBLY, WATER MAY W10843663 Contact Us For Availability
13
BASE, AGITATOR MAY W10715783 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10482836 Contact Us For Availability
14
HARNESS, VALVE MAY W10843398 Contact Us For Availability
14
TUB RING MAY W10556325 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SCREW MAY W10588613 Contact Us For Availability
15
PUSH BUTTON, START MAY W10461117 Contact Us For Availability
15
MAY W11436991 MAY W11436991 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W11417173 Contact Us For Availability
16
BRACKET, BACK MAY W10918905 Contact Us For Availability
16
SCREW MAY 8533953 Contact Us For Availability
17
CABINET (WHITE) MAY W10845574 Contact Us For Availability
17
INSERT, ENCODER STOP (7 POSITION) MAY W10828903 Contact Us For Availability
17
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT (WHITE) MAY W10724131 Contact Us For Availability
18
FASCIA MAY W10918901 Contact Us For Availability
18
RETAINER, DRIVE BLOCK MAY W11284133 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W11089573 Contact Us For Availability
19
NUT, "U" MAY W10131123 Contact Us For Availability
19
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
20
SCREW MAY 8533928 Contact Us For Availability
21
LOCK, TOP MAY W10461182 Contact Us For Availability
21
HARNESS, UPPER MAY W10843661 Contact Us For Availability
21
STRAP, SNUBBER MAY W10839119 Contact Us For Availability
22
FOOT, LEVELING MAY W10245373 Contact Us For Availability
22
RELAY MAY W11032871 Contact Us For Availability
22
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821954 Contact Us For Availability
23
HINGE, TOP MAY W10461176 Contact Us For Availability
23
BEZEL - PTS MAY W10510149 Contact Us For Availability
23
TUB MAY W10238301 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
WASHER, HOSE MAY W10242307 Contact Us For Availability
24
HARNESS, LOWER (INCLUDES PRESSURE HOSE) MAY W10843660 Contact Us For Availability
25
COVER, HARNESS MAY W10461180 Contact Us For Availability
25
HOSE, WATER INLET (COLD) MAY W10852720 Contact Us For Availability
25
HOSE, PRESSURE SWITCH MAY W10531633 Contact Us For Availability
25A
HOSE, WATER INLET (HOT) MAY W10852721 Contact Us For Availability
26
CLAMP, CABLE MAY W10005430 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
27
SCREW MAY 8533943 Contact Us For Availability
28
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
29
CLAMP, HOSE MAY 356138 Contact Us For Availability
30
TIE, CABLE MAY W10339879 Contact Us For Availability
31
HINGE, LID (RIGHT HAND) MAY 54583 Contact Us For Availability
32
BUSHING-TOP, SCREW MAY W10461181 Contact Us For Availability
33
NUT, CAGE MAY 90406 Contact Us For Availability
34
O-RING MAY W10318627 Contact Us For Availability
35
SCREW MAY W10486616 Contact Us For Availability
36
BRACKET, FRONT TOP MAY W11129581 Contact Us For Availability
37
SCREW MAY W10015090 Contact Us For Availability
38
BRACKET, BASE MAY W10850379 Contact Us For Availability
39
PANEL, FRONT (WHITE) MAY W10811028 Contact Us For Availability
40
BRACKET, FRONT PANEL MAY W10866521 Contact Us For Availability
41
DAMPER, BRACE MAY 8283273 Contact Us For Availability
42
LOCK, TOP FRONT MAY W10862638 Contact Us For Availability
43
DAMPER, SOUND MAY W11096159 Contact Us For Availability
44
RIVET MAY W10866523 Contact Us For Availability
45
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
46
TOP, FOAM SEAL MAY W10161707 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE, INLET (10' ) MAY 350008 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE, INLET (6' HOSE WITH MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH? WASHER CLEANER MAY W10135699 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE FILL KIT MAY W10575888 Contact Us For Availability
NI
ACCESSORY PARTS, MAIN TOP REAR SUPPORT MAY W10576550 Contact Us For Availability
× ![]()
