Model Maytag MVWC565FW0 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET

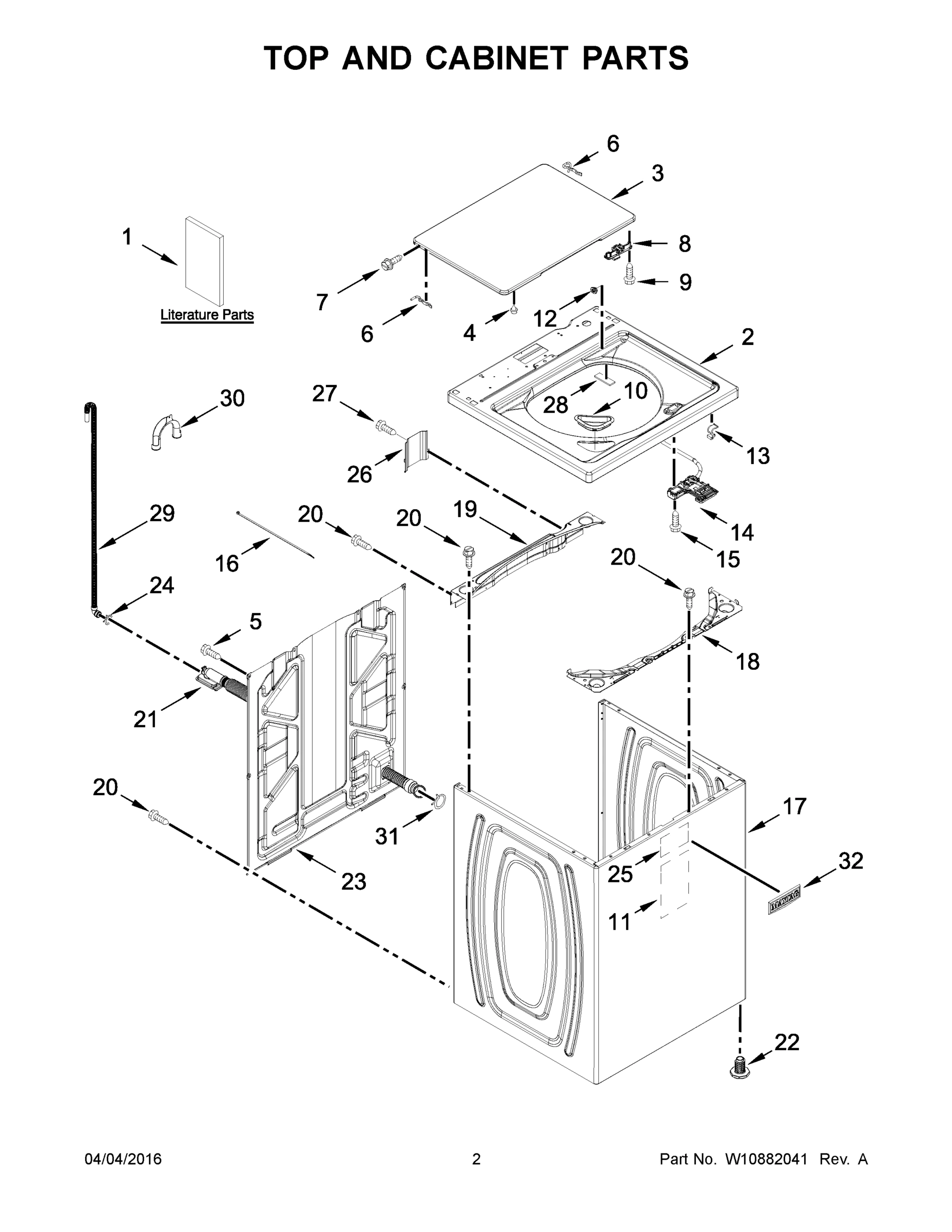

02 - TOP AND CABINET PARTS

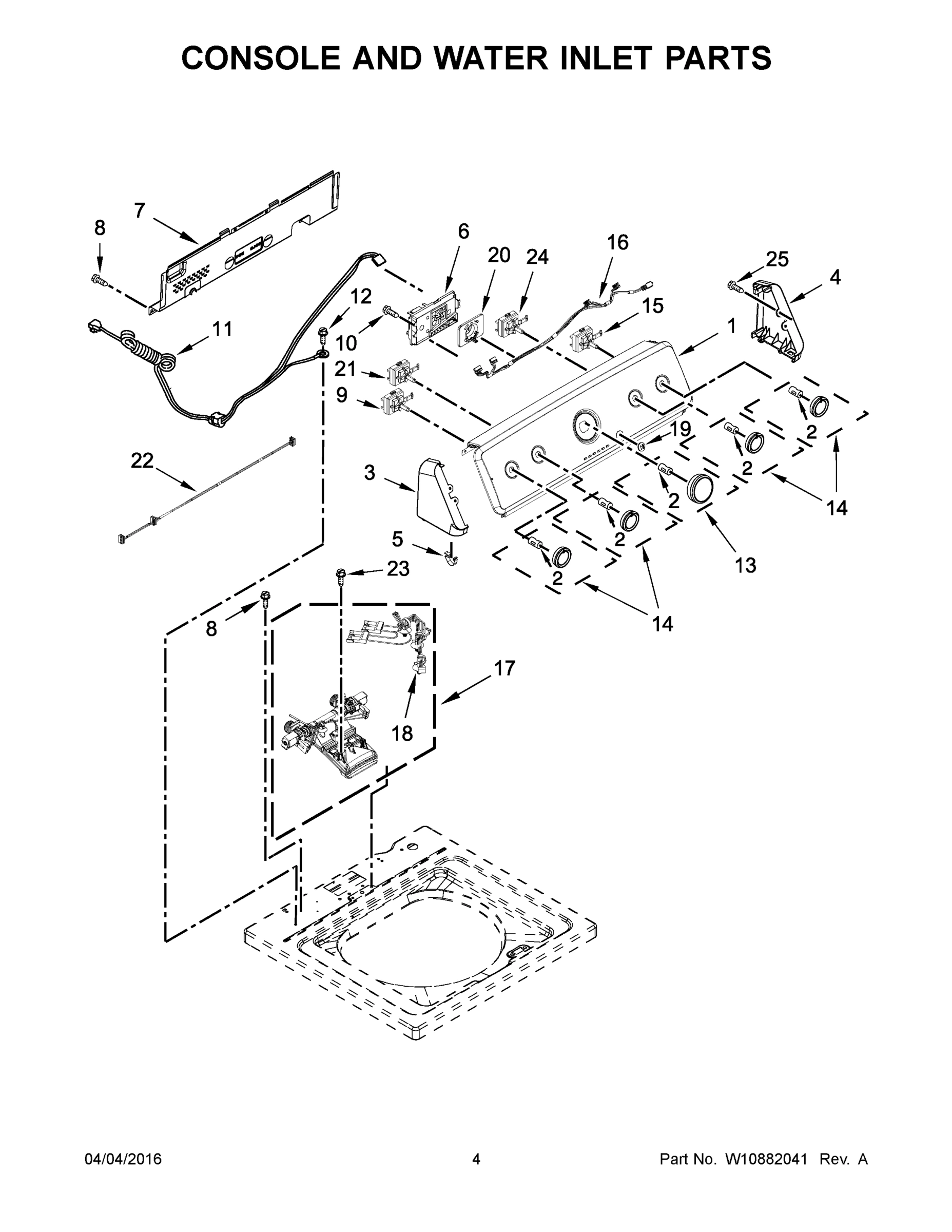

03 - CONSOLE AND WATER INLET PARTS

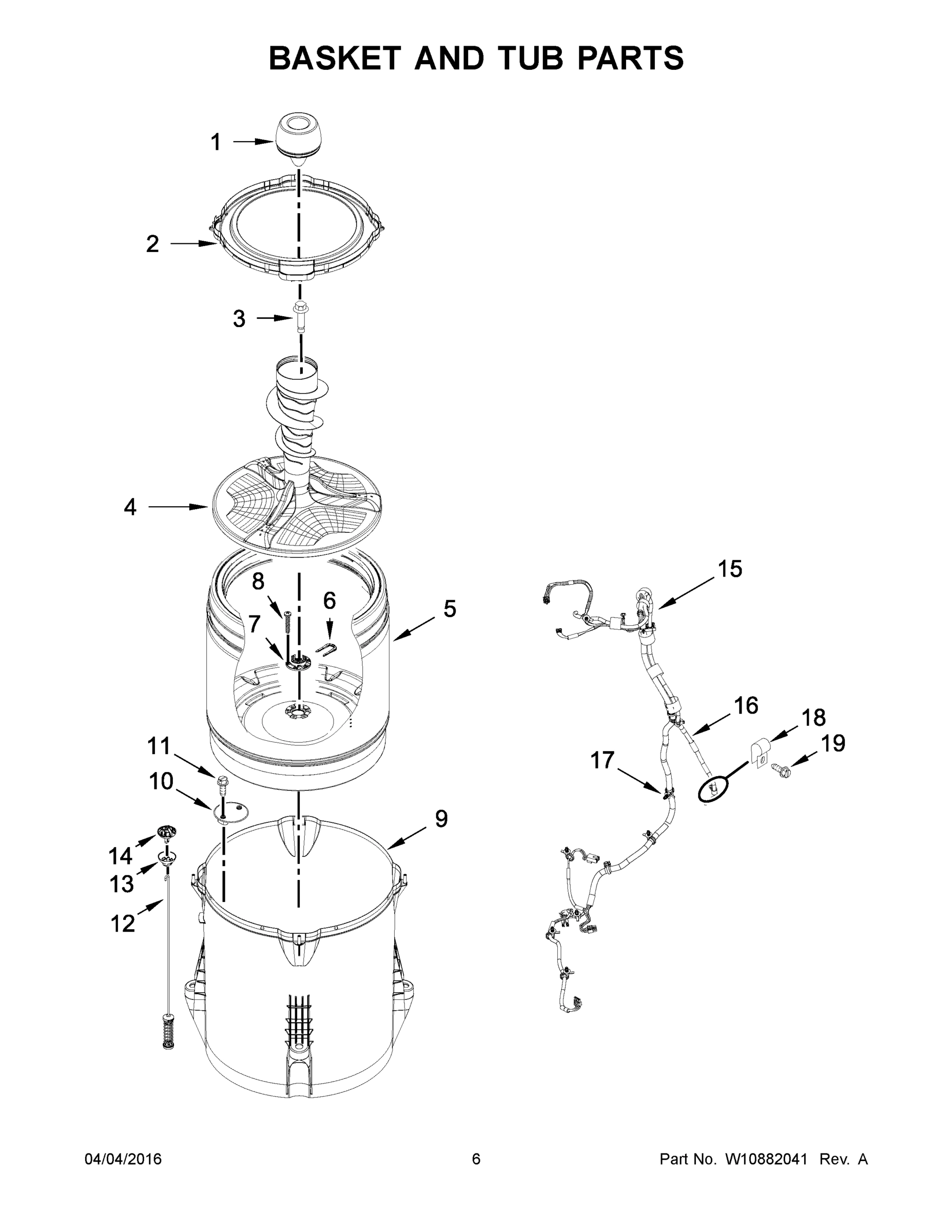

04 - BASKET AND TUB PARTS

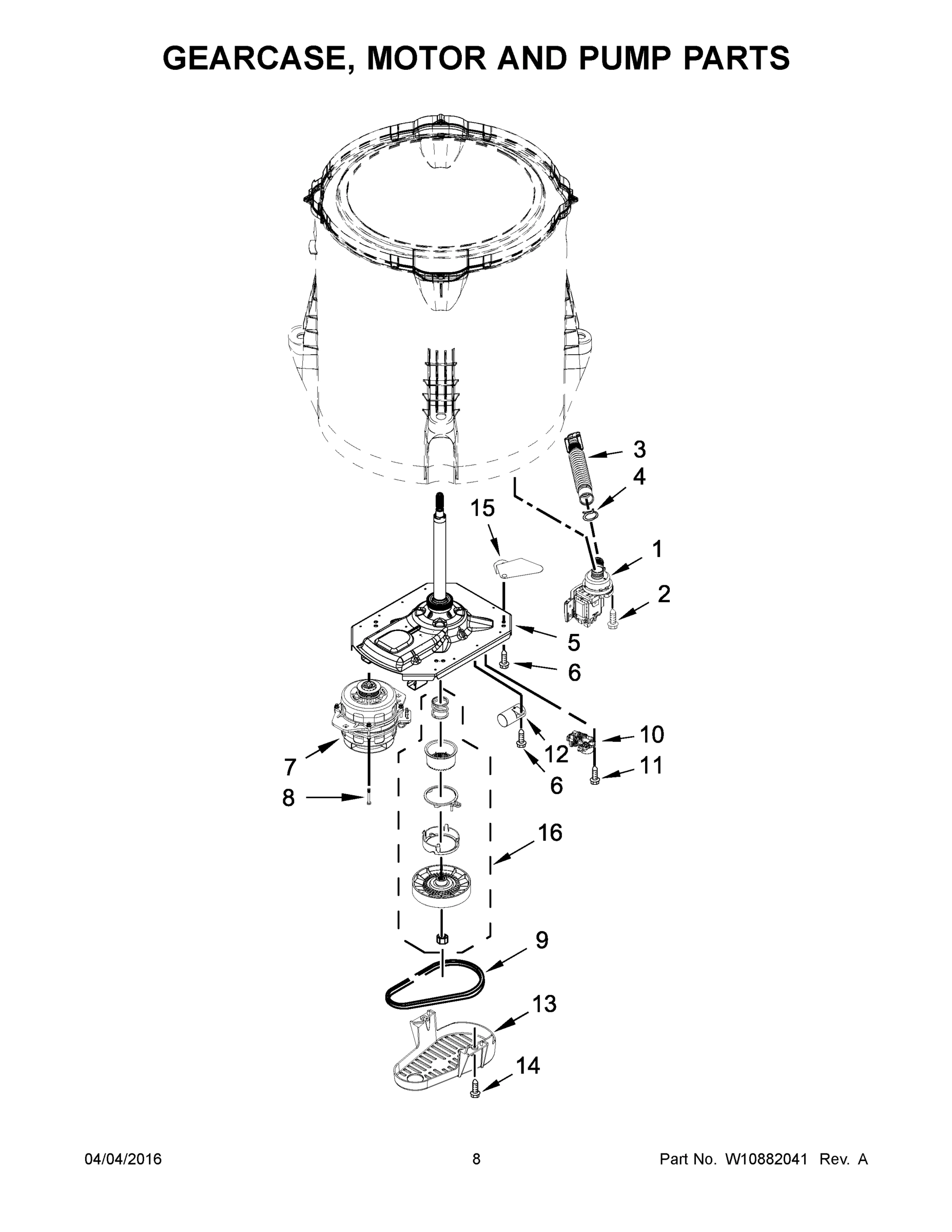

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWC565FW0 LAUNDRY, WASHER
1
MAY W10682737 MAY W10682737 Contact Us For Availability
1
MAY W10877641 MAY W10877641 Contact Us For Availability
1
MAY W10863013 MAY W10863013 Contact Us For Availability
1
MAY W10727777 MAY W10727777 Contact Us For Availability
1A
MAY W10740624 MAY W10740624 Contact Us For Availability
1B
MAY W10871756 MAY W10871756 Contact Us For Availability
1C
MAY W10864126 MAY W10864126 Contact Us For Availability
1D
MAY W10877315 MAY W10877315 Contact Us For Availability
2
MAY W10768768 MAY W10768768 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
MAY W10578859 MAY W10578859 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (WHITE) MAY W10027624 Contact Us For Availability
3
MAY W10193824 MAY W10193824 Contact Us For Availability
3
MAY W10625252 MAY W10625252 Contact Us For Availability
3
MAY W10763259 MAY W10763259 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10193821 MAY W10193821 Contact Us For Availability
4
MAY W10821990 MAY W10821990 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10586077 MAY W10586077 Contact Us For Availability
5
MAY W10006481 MAY W10006481 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
MAY W10863406 MAY W10863406 Contact Us For Availability
6
MAY W10402178 MAY W10402178 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10641362 MAY W10641362 Contact Us For Availability
7
MAY W10396887 MAY W10396887 Contact Us For Availability
7
MAY W10677723 MAY W10677723 Contact Us For Availability
8
MAY W10714899 MAY W10714899 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
SCREW MAY 8533953 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10285517 MAY W10285517 Contact Us For Availability
9
MAY W10512161 MAY W10512161 Contact Us For Availability
9
MAY W10006384 MAY W10006384 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MAY W10215093 MAY W10215093 Contact Us For Availability
10
MAY W10597177 MAY W10597177 Contact Us For Availability
11
MAY W10834527 MAY W10834527 Contact Us For Availability
11
MAY W10737739 MAY W10737739 Contact Us For Availability
11
SCREW MAY 8533928 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10748956 MAY W10748956 Contact Us For Availability
12
MAY W10625046 MAY W10625046 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
KNOB, TIMER (GREY) MAY W10558463 Contact Us For Availability
13
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
13
MAY W10427633 MAY W10427633 Contact Us For Availability
14
MAY W10682535 MAY W10682535 Contact Us For Availability
14
KNOB, CONTROL (GREY) MAY W10562155 Contact Us For Availability
14
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10583768 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
15
MAY W10777952 MAY W10777952 Contact Us For Availability
15
MAY W10637932 MAY W10637932 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
MAY W10694685 MAY W10694685 Contact Us For Availability
16
MAY W10236981 MAY W10236981 Contact Us For Availability
16
MAY W10721967 MAY W10721967 Contact Us For Availability
17
MAY W10676680 MAY W10676680 Contact Us For Availability
17
MAY W10776841 MAY W10776841 Contact Us For Availability
17
MAY W10298887 MAY W10298887 Contact Us For Availability
18
MAY W10724131 MAY W10724131 Contact Us For Availability
18
MAY W10678671 MAY W10678671 Contact Us For Availability
18
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10584360 MAY W10584360 Contact Us For Availability
19
SCREW MAY 8533943 Contact Us For Availability
20
MAY W10593638 MAY W10593638 Contact Us For Availability
21
MAY W10786886 MAY W10786886 Contact Us For Availability
21
MAY W10285518 MAY W10285518 Contact Us For Availability
22
MAY W10687506 MAY W10687506 Contact Us For Availability
22
MAY W10694669 MAY W10694669 Contact Us For Availability
23
MAY W10213953 MAY W10213953 Contact Us For Availability
23
MAY W10612644 MAY W10612644 Contact Us For Availability
24
MAY 356138 MAY 356138 Contact Us For Availability
24
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
25
MAY 8564458 MAY 8564458 Contact Us For Availability
25
MAY 359625 MAY 359625 Contact Us For Availability
26
MAY W10648853 MAY W10648853 Contact Us For Availability
28
MAY W10684258 MAY W10684258 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
31
MAY W10142630 MAY W10142630 Contact Us For Availability
32
MAY W10612925 MAY W10612925 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
MAY 285863 MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8212487 MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
× ![]()
