Model Maytag MVWC465HW3 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CABINET PARTS

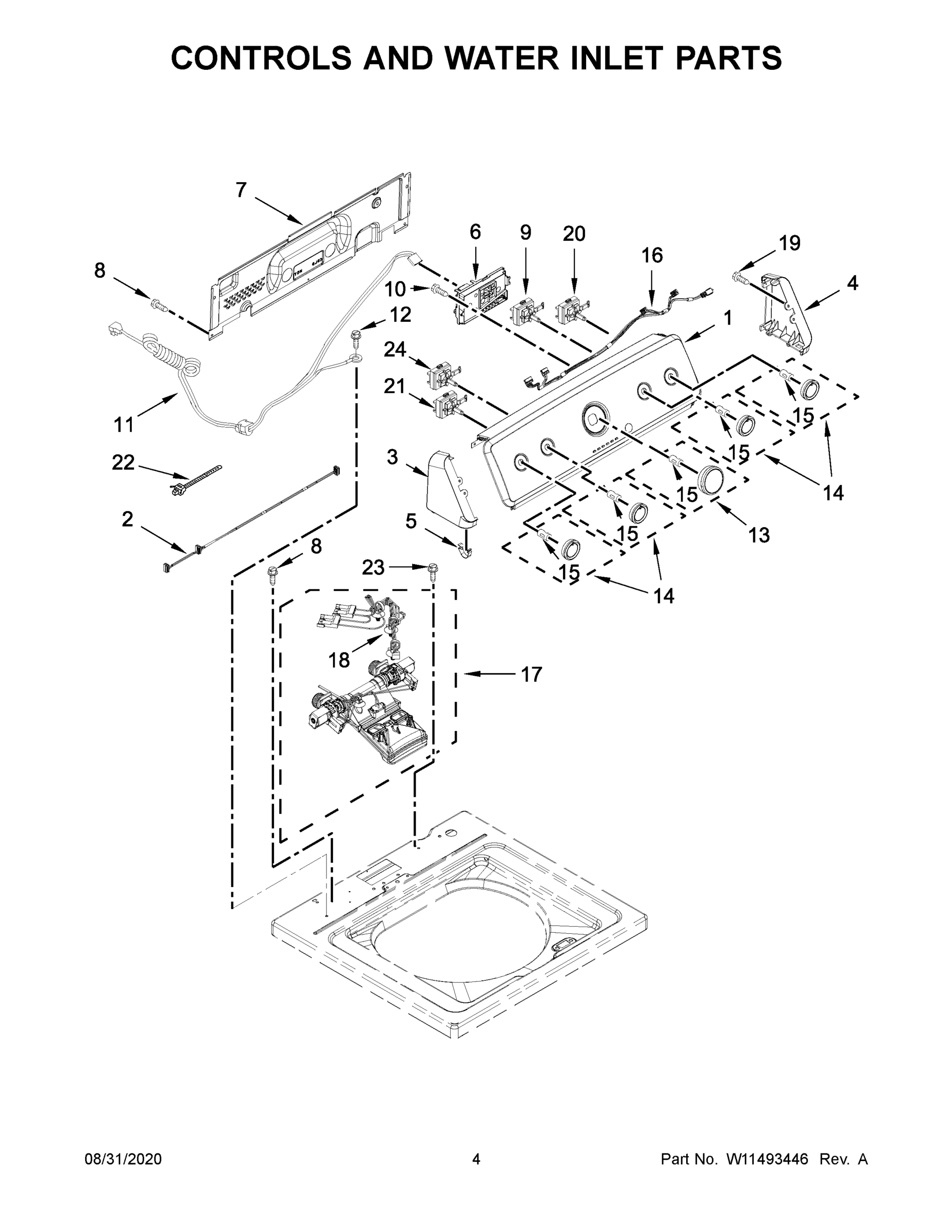

03 - CONTROLS AND WATER INLET PARTS

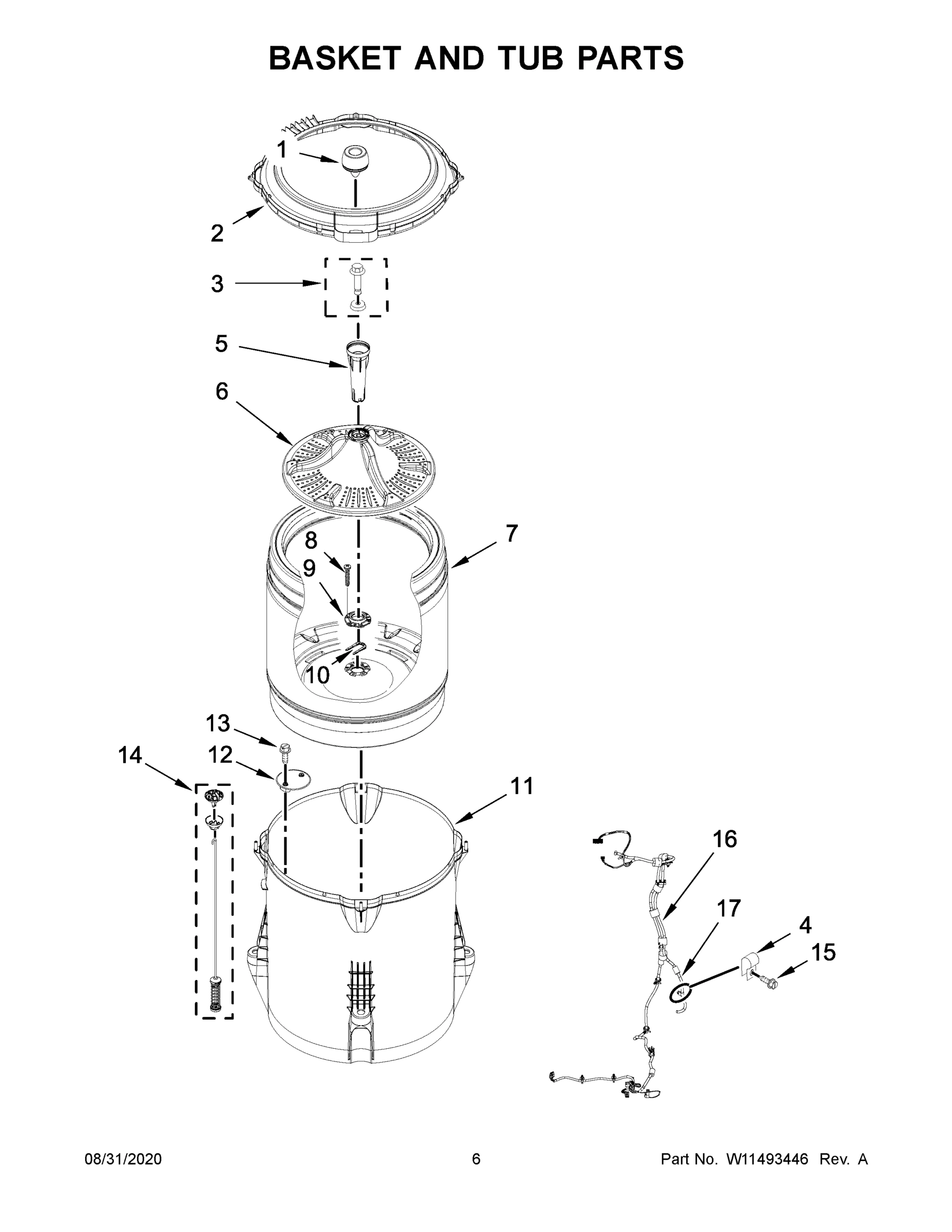

04 - BASKET AND TUB PARTS

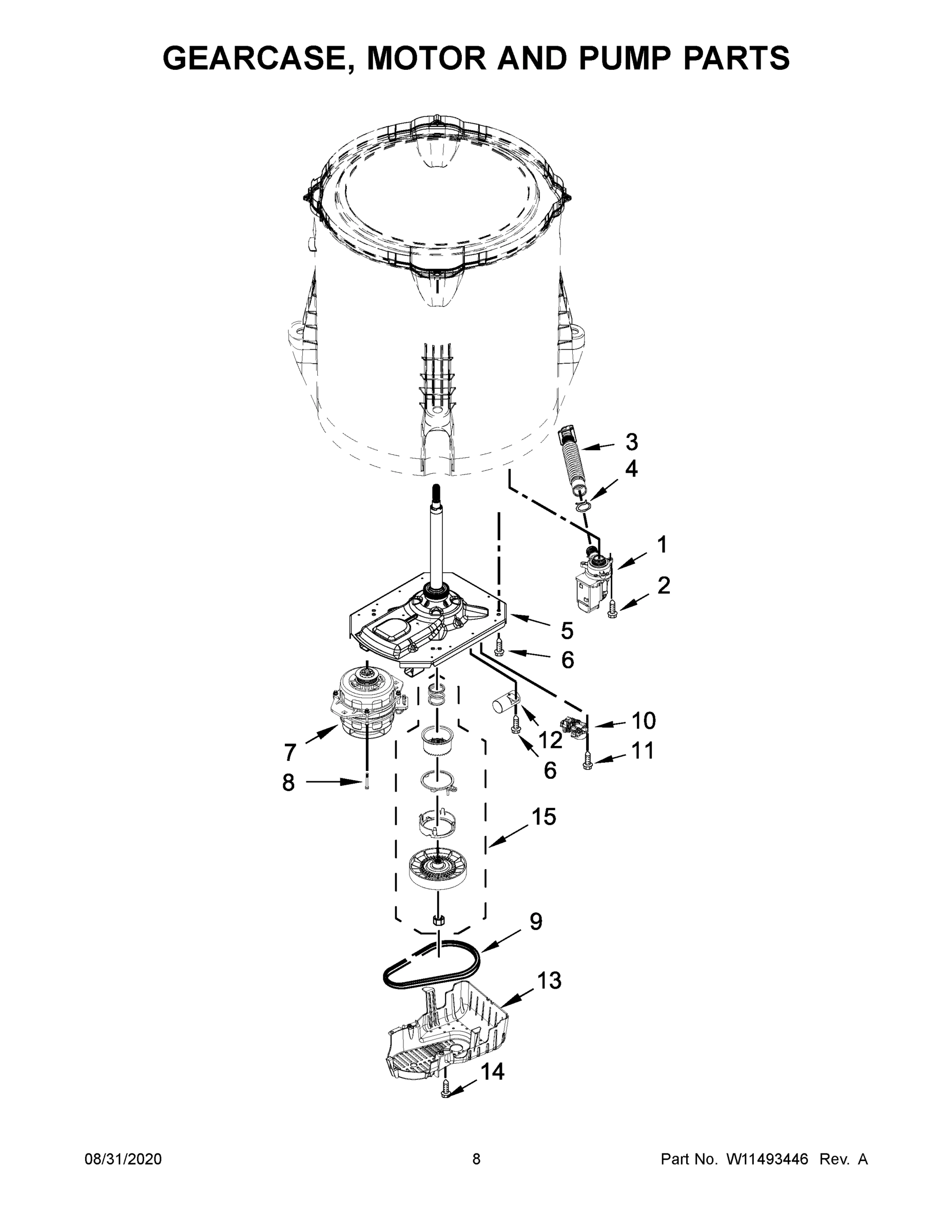

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWC465HW3 LAUNDRY, RESIDENTIAL, WASHER
1
OWNERS MANUAL MAY W11354658 Contact Us For Availability
1
PANEL, CONSOLE MAY W11227377 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10863013 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10775446 Contact Us For Availability
1A
MAY W11447418 MAY W11447418 Contact Us For Availability
1B
MAY W11354853 MAY W11354853 Contact Us For Availability
1C
MAY W11360544 MAY W11360544 Contact Us For Availability
2
TOP (WHITE) MAY W10686446 Contact Us For Availability
2
HARNESS, JUMPER MAY W10694669 Contact Us For Availability
2
TUB RING MAY W11043544 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10027624 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
3
BOLT AND WASHER MAY W11121786 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
4
CLAMP, CABLE MAY W10005430 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
BARREL, AGITATOR MAY W10680220 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10870912 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
MAY W11476587 MAY W11476587 Contact Us For Availability
6
IMPELLER (WASHPLATE) MAY W10680219 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
7
BASKET ASSEMBLY MAY W11172199 Contact Us For Availability
7
MAY W11222394 MAY W11222394 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY W10660565 Contact Us For Availability
8
SCREW MAY 8533953 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
9
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
9
BELT, DRIVE MAY W10808317 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
RETAINER, DRIVE BLOCK MAY W10402178 Contact Us For Availability
10
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
11
PAD, LID HINGE MAY W10684258 Contact Us For Availability
11
CORD, POWER MAY W10737739 Contact Us For Availability
11
TUB MAY W10238320 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10866238 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
13
SCREW MAY 8533928 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W11087188 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10682535 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11226768 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
BADGE MAY W10612925 Contact Us For Availability
15
CLIP, SPRING MAY 688805 Contact Us For Availability
15
SCREW MAY 8533943 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W11417173 Contact Us For Availability
16
HARNESS, UPPER MAY W10694685 Contact Us For Availability
16
MAY W11450611 MAY W11450611 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
INLET ASSEMBLY, WATER MAY W10869800 Contact Us For Availability
17
HOSE, PRESSURE SWITCH MAY W10236981 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W10215098 Contact Us For Availability
18
HARNESS, VALVE MAY W10868094 Contact Us For Availability
19
CHANNEL, TOP REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 359625 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
21
CLAMP, HOSE MAY 356138 Contact Us For Availability
21
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10285517 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W11179235 Contact Us For Availability
22
CABLE TIE MAY W10339680 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
23
SCREW MAY W10213953 Contact Us For Availability
24
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
24
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10285518 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
28
SCREW MAY W10567155 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
× ![]()
