Model Maytag MVWB950YW1 WASHER – Common Parts & Diagrams

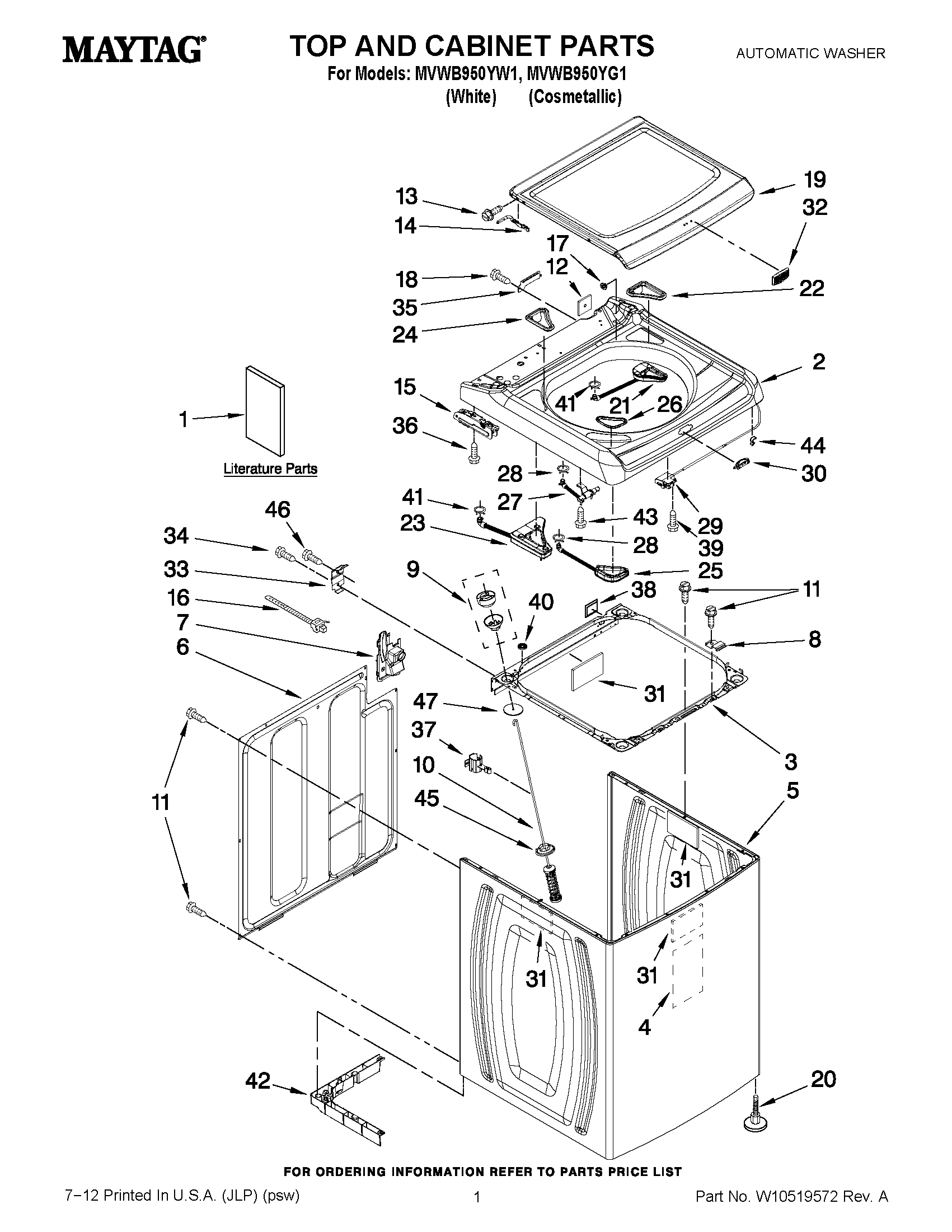

01 - TOP AND CABINET PARTS

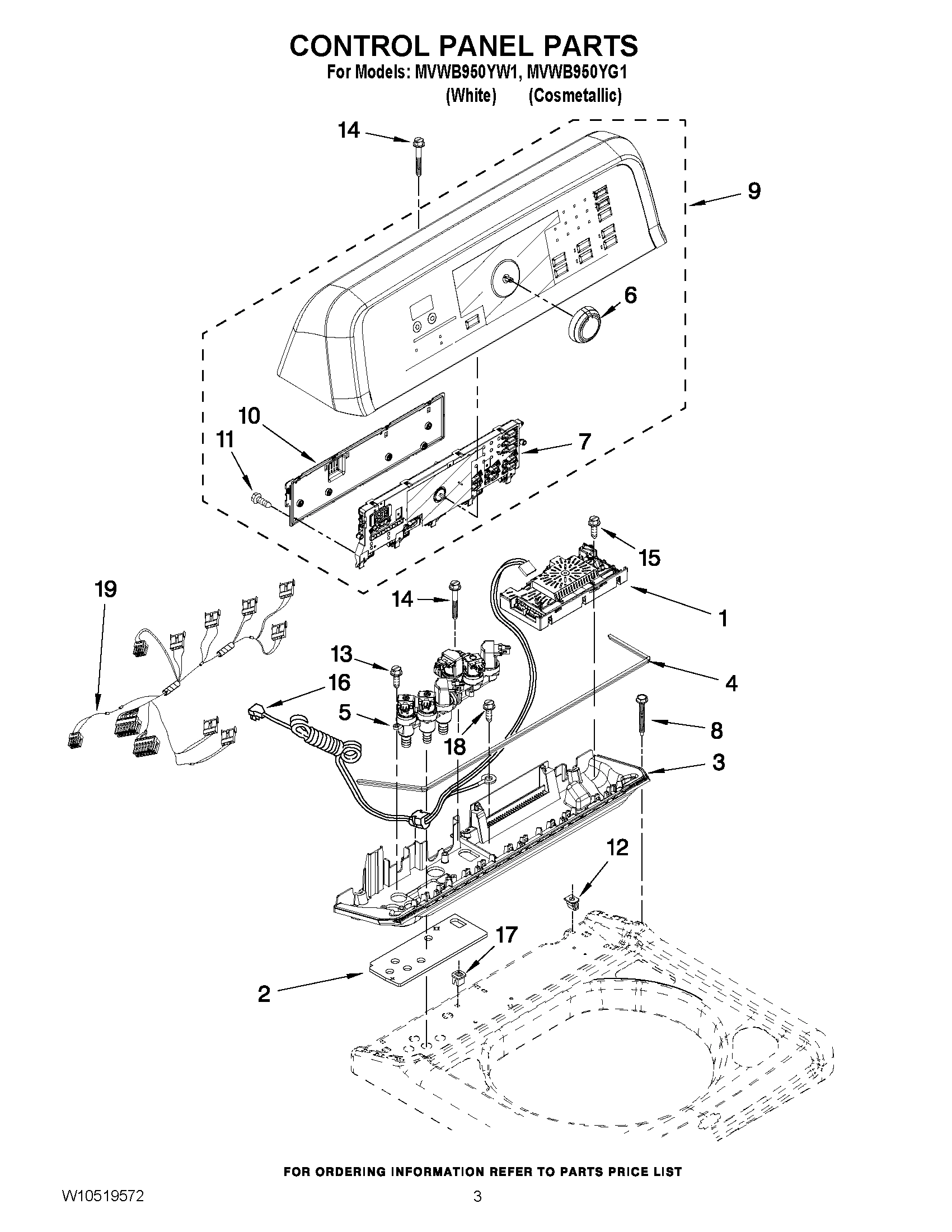

02 - CONTROL PANEL PARTS

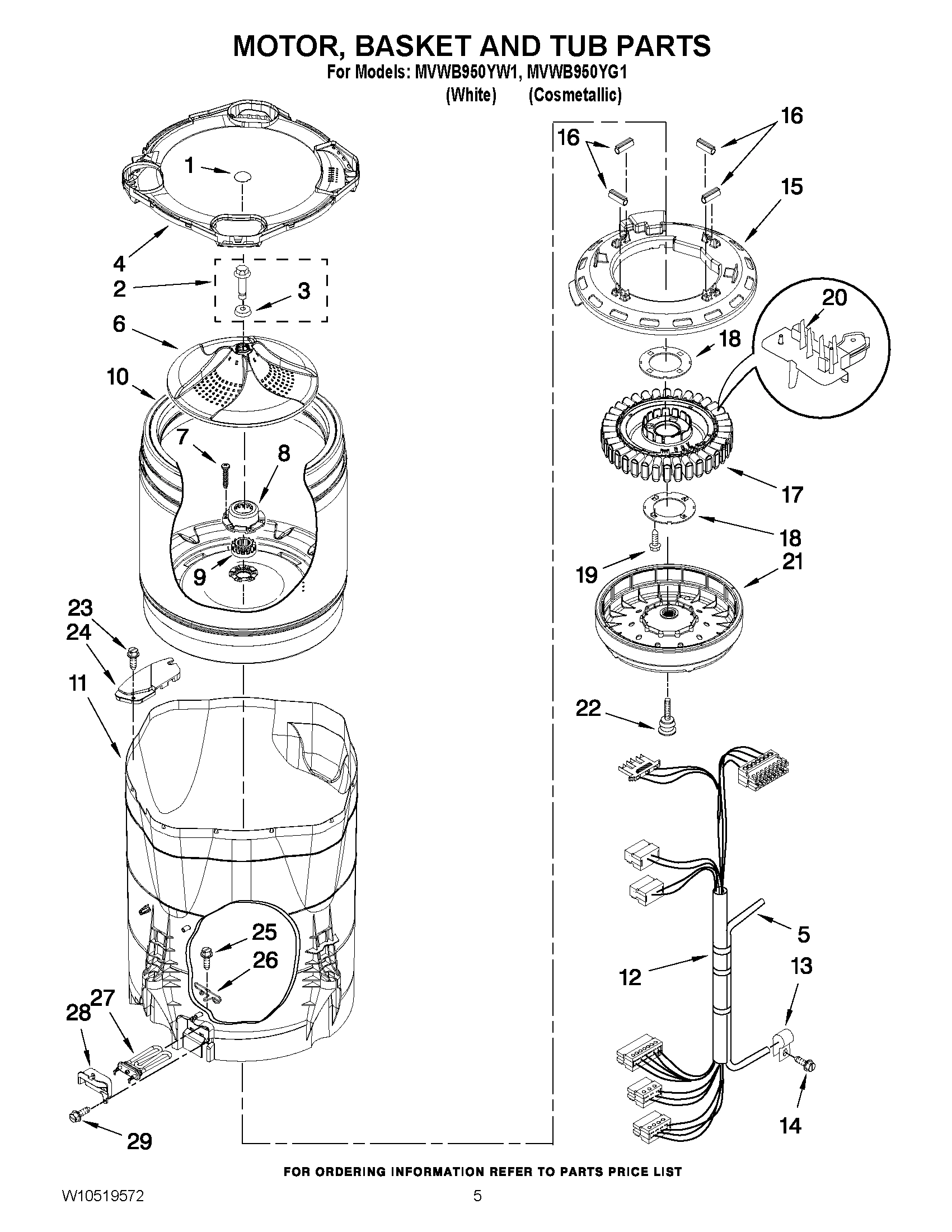

03 - MOTOR, BASKET AND TUB PARTS

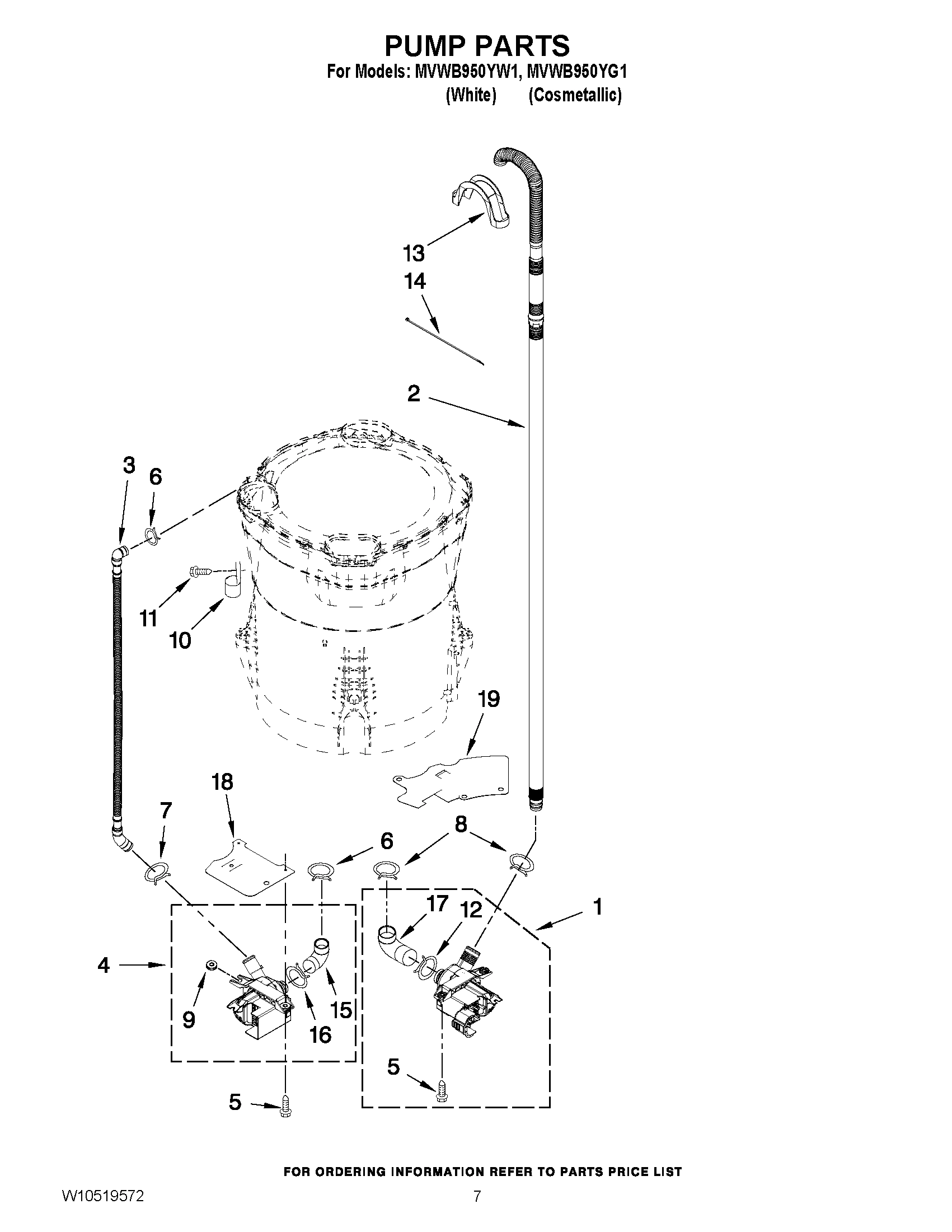

04 - PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWB950YW1 WASHER
1
USE & CARE GUIDE MAY W10399633 Contact Us For Availability
1
MAY W10403990 MAY W10403990 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10410358 Contact Us For Availability
1
MAY W10413079 MAY W10413079 Contact Us For Availability
1
MAY W10441032 MAY W10441032 Contact Us For Availability
1
MAY W10447143 MAY W10447143 Contact Us For Availability
1
MAY W10352675 MAY W10352675 Contact Us For Availability
1
MAY W10403802 MAY W10403802 Contact Us For Availability
2
TOP (WHITE) MAY W10385297 Contact Us For Availability
2
MAY W10419608 MAY W10419608 Contact Us For Availability
2
MAY W10141695 MAY W10141695 Contact Us For Availability
2
MAY W10076270 MAY W10076270 Contact Us For Availability
2
MAY W10363893 MAY W10363893 Contact Us For Availability
3
FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEMS 3 MAY W10386349 Contact Us For Availability
3
TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) MAY W10356745 Contact Us For Availability
3
TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) MAY W10356746 Contact Us For Availability
3
MAY W10076260 MAY W10076260 Contact Us For Availability
3
MAY W10363892 MAY W10363892 Contact Us For Availability
4
SOUND ABSORBER, CABINET MAY W10414221 Contact Us For Availability
4
MAY W10141693 MAY W10141693 Contact Us For Availability
4
MAY W10362224 MAY W10362224 Contact Us For Availability
4
MAY W10403803 MAY W10403803 Contact Us For Availability
5
CABINET (WHITE) MAY 8566097 Contact Us For Availability
5
MAY W10304158 MAY W10304158 Contact Us For Availability
5
MAY W10342320 MAY W10342320 Contact Us For Availability
5
MAY W10297449 MAY W10297449 Contact Us For Availability
5
SCREW MAY W10004910 Contact Us For Availability
6
MAY 8566090 MAY 8566090 Contact Us For Availability
6
KNOB, CONTROL MAY W10338554 Contact Us For Availability
6
MAY W10357576 MAY W10357576 Contact Us For Availability
6
MAY 370449 MAY 370449 Contact Us For Availability
7
MAY W10160572 MAY W10160572 Contact Us For Availability
7
MAY W10426809 MAY W10426809 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY 8269146 MAY 8269146 Contact Us For Availability
8
MAY W10248088 MAY W10248088 Contact Us For Availability
8
SCREW MAY W10004990 Contact Us For Availability
8
Hub, Basket-Driven (Includes Item 9) MAY W10118114 Contact Us For Availability
8
MAY 8317496 MAY 8317496 Contact Us For Availability
9
BALL, SUSPENSION (SET OF 4) MAY W10405423 Contact Us For Availability
9
MAY W10396164 MAY W10396164 Contact Us For Availability
9
MAY W10396165 MAY W10396165 Contact Us For Availability
9
Hub, Basket-Driver (Includes Item 8) MAY 8545953 Contact Us For Availability
9
MAY 8182771 MAY 8182771 Contact Us For Availability
10
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10368627 Contact Us For Availability
10
COVER, REAR-USER INTERFACE MAY W10051124 Contact Us For Availability
10
BASKET ASSEMBLY(INCLUDES ITEMS 7, 8, & 9) MAY W10356924 Contact Us For Availability
10
MAY 8534021 MAY 8534021 Contact Us For Availability
11
MAY 1157158 MAY 1157158 Contact Us For Availability
11
MAY W10003770 MAY W10003770 Contact Us For Availability
11
MAY W10381077 MAY W10381077 Contact Us For Availability
11
SCREW MAY 8533943 Contact Us For Availability
12
SEAL, FOAM MAY W10161707 Contact Us For Availability
12
NUT, PUSH IN MAY W10022060 Contact Us For Availability
12
HARNESS, LOWER (INCLUDES ITEM 5) MAY W10297446 Contact Us For Availability
12
MAY 8182768 MAY 8182768 Contact Us For Availability
13
MAY W10442074 MAY W10442074 Contact Us For Availability
13
SCREW MAY W10052600 Contact Us For Availability
13
MAY W10005430 MAY W10005430 Contact Us For Availability
13
MAY 8576642 MAY 8576642 Contact Us For Availability
14
HINGE ARM, LID (RIGHT) MAY W10389420 Contact Us For Availability
14
HINGE ARM, LID (LEFT) MAY W10389421 Contact Us For Availability
14
SCREW MAY 8565324 Contact Us For Availability
14
Screw MAY 8533957 Contact Us For Availability
14
MAY W10339879 MAY W10339879 Contact Us For Availability
15
HINGE, SPRING ASSEMBLY (LEFT) MAY W10492004 Contact Us For Availability
15
HINGE, SPRING ASSEMBLY (RIGHT) MAY W10492005 Contact Us For Availability
15
SCREW MAY 8281136 Contact Us For Availability
15
MAY W10137698 MAY W10137698 Contact Us For Availability
15
MAY 8182769 MAY 8182769 Contact Us For Availability
16
MAY W10155270 MAY W10155270 Contact Us For Availability
16
MAY W10420367 MAY W10420367 Contact Us For Availability
16
MAY 8565172 MAY 8565172 Contact Us For Availability
16
MAY 8182770 MAY 8182770 Contact Us For Availability
17
BEARING, LID HINGE MAY W10315174 Contact Us For Availability
17
NUT, PUSH-IN MAY 98460 Contact Us For Availability
17
STATOR, MOTOR (INCLUDES ITEM 18) MAY W10419333 Contact Us For Availability
17
MAY 8182767 MAY 8182767 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
SCREW MAY 3351614 Contact Us For Availability
18
MAY 8557836 MAY 8557836 Contact Us For Availability
18
MAY 8578572 MAY 8578572 Contact Us For Availability
19
MAY W10494878 MAY W10494878 Contact Us For Availability
19
MAY W10495961 MAY W10495961 Contact Us For Availability
19
MAY W10404419 MAY W10404419 Contact Us For Availability
19
SCREW MAY 8534042 Contact Us For Availability
19
MAY 8578925 MAY 8578925 Contact Us For Availability
20
MAY W10363890 MAY W10363890 Contact Us For Availability
20
MAY W10178988 MAY W10178988 Contact Us For Availability
21
MAY W10172146 MAY W10172146 Contact Us For Availability
21
MAY 8565177 MAY 8565177 Contact Us For Availability
22
BEZEL, FABRIC SOFTENER DISPENSER (JADE GRAY) MAY W10093807 Contact Us For Availability
22
Bezel, Fabric Softener Dispenser (White) MAY W10136371 Contact Us For Availability
22
BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIE MAY N/P Contact Us For Availability
23
MAY W10187307 MAY W10187307 Contact Us For Availability
23
Screw MAY 8533928 Contact Us For Availability
24
BEZEL, BLEACH DISPENSER (WHITE) MAY W10131523 Contact Us For Availability
24
BEZEL, BLEACH DISPENSER (JADE GRAY) MAY W10391564 Contact Us For Availability
24
MAY W10222008 MAY W10222008 Contact Us For Availability
25
MAY W10172154 MAY W10172154 Contact Us For Availability
25
MAY W10119266 MAY W10119266 Contact Us For Availability
26
Bezel, Detergent Dispenser (White) MAY 8563877 Contact Us For Availability
26
BEZEL, DETERGENT DISPENSER (JADE GRAY) MAY W10093809 Contact Us For Availability
26
Clip, Tub Heater MAY W10134571 Contact Us For Availability
27
MAY W10106990 MAY W10106990 Contact Us For Availability
27
MAY W10325894 MAY W10325894 Contact Us For Availability
28
MAY 371503 MAY 371503 Contact Us For Availability
28
MAY W10297450 MAY W10297450 Contact Us For Availability
29
MAY W10059230 MAY W10059230 Contact Us For Availability
30
Bezel, Lid Lock (White) MAY 8572019 Contact Us For Availability
30
BEZEL, LID LOCK (JADE GRAY) MAY W10093806 Contact Us For Availability
31
MAY 8564458 MAY 8564458 Contact Us For Availability
32
MEDALLION MAY W10323735 Contact Us For Availability
33
MAY W10432012 MAY W10432012 Contact Us For Availability
34
SCREW MAY 681414 Contact Us For Availability
35
MAY 8563941 MAY 8563941 Contact Us For Availability
36
Screw MAY 693995 Contact Us For Availability
37
MAY 8543784 MAY 8543784 Contact Us For Availability
38
MAY 8578386 MAY 8578386 Contact Us For Availability
40
MAY 8576476 MAY 8576476 Contact Us For Availability
41
MAY 370451 MAY 370451 Contact Us For Availability
42
RISER, WASHER (RIGHT FRONT) MAY W10370995 Contact Us For Availability
42
RISER, WASHER (LEFT FRONT) MAY W10370996 Contact Us For Availability
42
RISER, WASHER (RIGHT REAR) MAY W10378012 Contact Us For Availability
42
RISER, WASHER (LEFT REAR) MAY W10378013 Contact Us For Availability
43
Screw, 10-16 x 9/16 MAY 3400061 Contact Us For Availability
44
MAY 90016 MAY 90016 Contact Us For Availability
45
MAY 8564017 MAY 8564017 Contact Us For Availability
46
SCREW MAY 3400076 Contact Us For Availability
47
MAY 8577896 MAY 8577896 Contact Us For Availability
NI
MAY 1903WH MAY 1903WH Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIG MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10318650 MAY W10318650 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
