Model Maytag MVWB865GC1 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CABINET PARTS

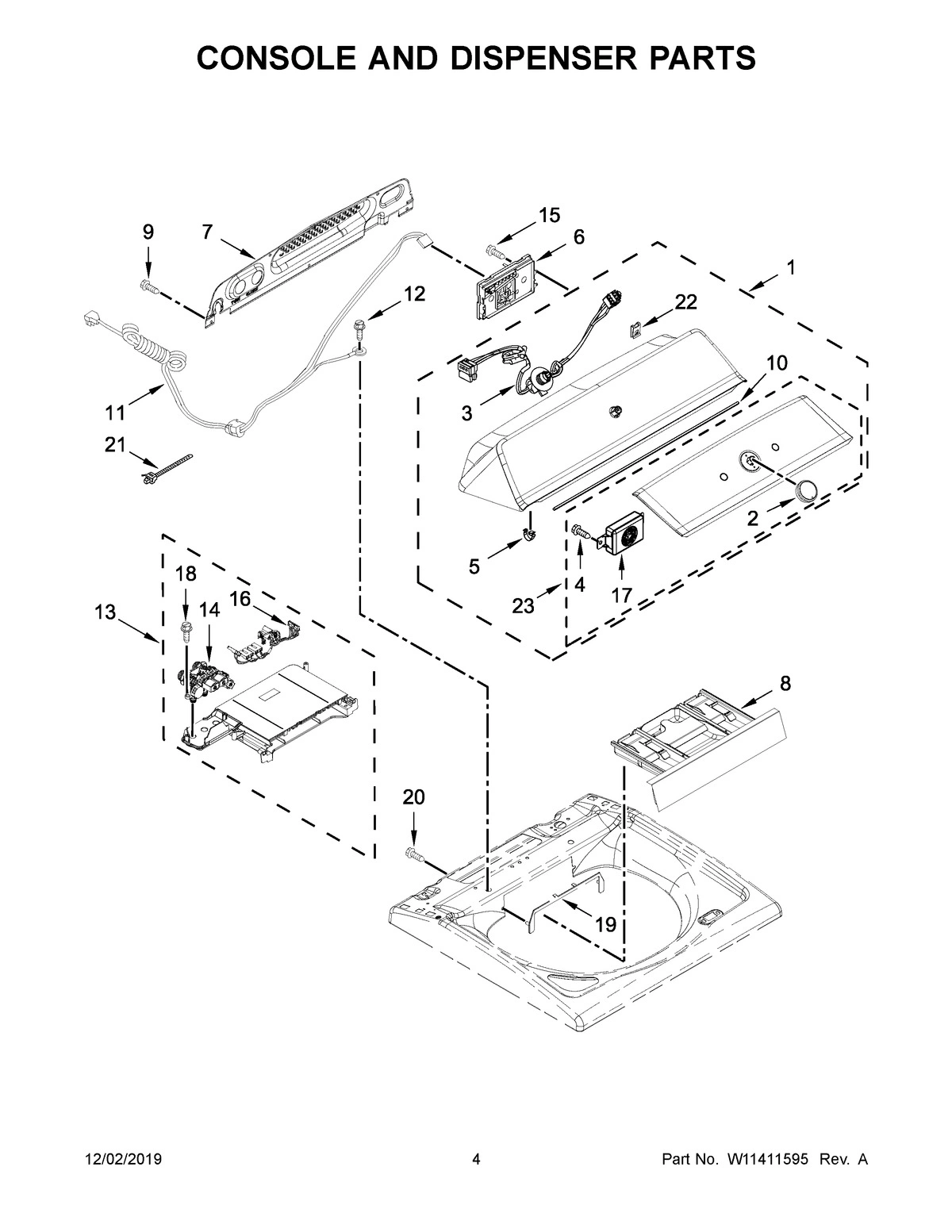

03 - CONSOLE AND DISPENSER PARTS

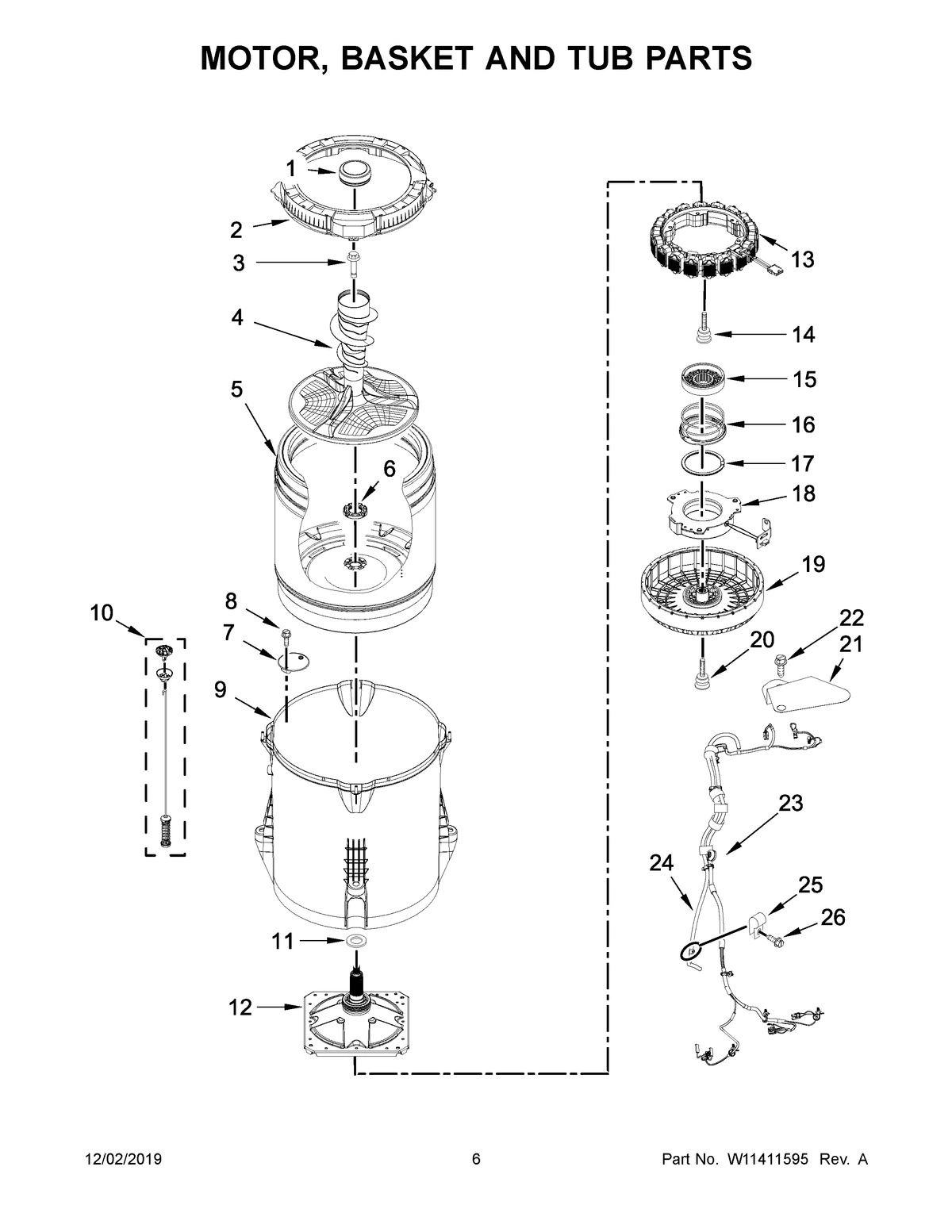

04 - MOTOR, BASKET AND TUB PARTS

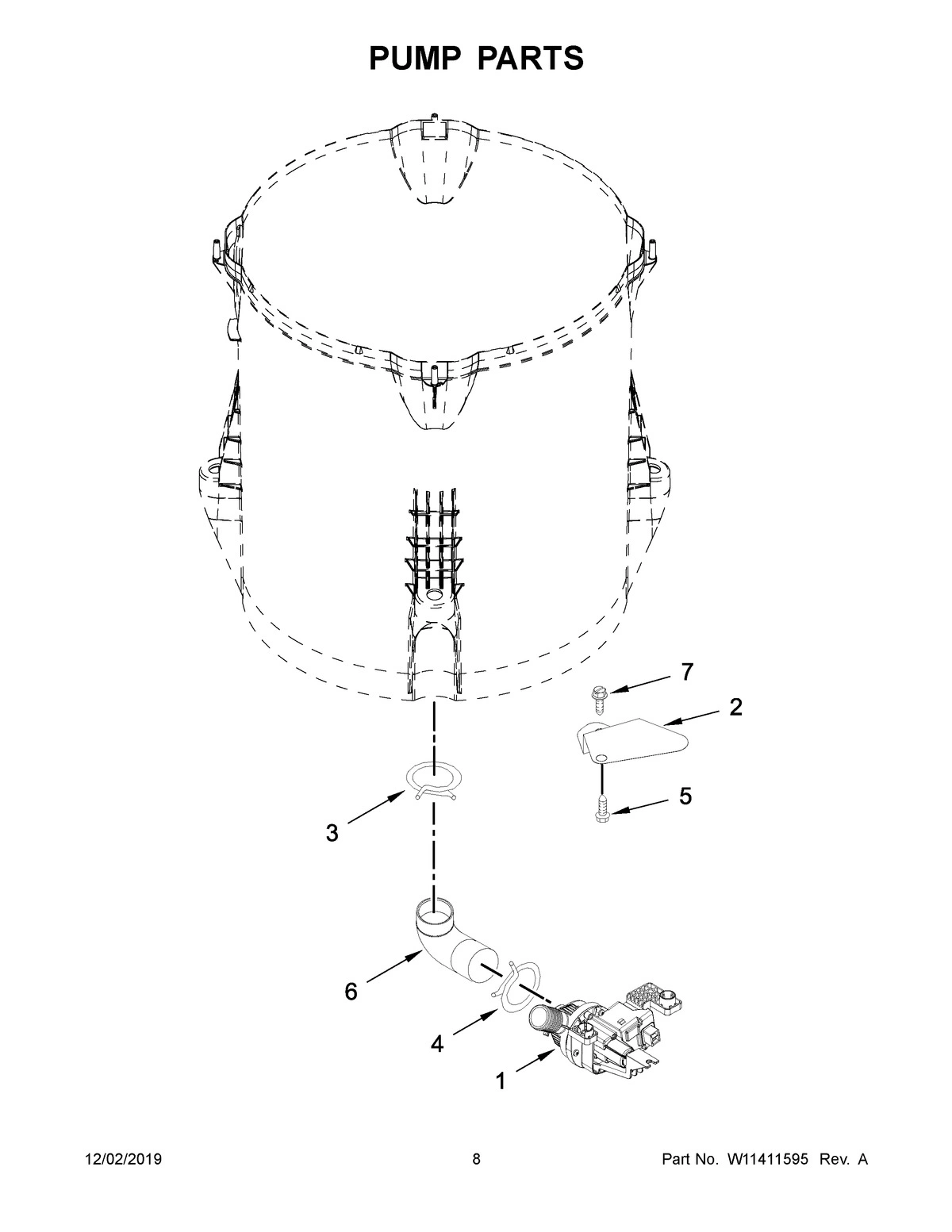

05 - PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWB865GC1 LAUNDRY, RESIDENTIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W10682742 Contact Us For Availability
1
CONSOLE (CHROME SHADOW) MAY W11109974 Contact Us For Availability
1
CAP, AGITATOR MAY W11111466 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10727777 Contact Us For Availability
1A
USE & CARE GUIDE MAY W11099670 Contact Us For Availability
1B
MAY W11360575 MAY W11360575 Contact Us For Availability
1C
QUICK START GUIDE MAY W11101069 Contact Us For Availability
2
TOP (CHROME SHADOW) MAY W10649674 Contact Us For Availability
2
ASSEMBLY, TIMER KNOB (CHROME) MAY W10727011 Contact Us For Availability
2
TUB RING MAY W10578863 Contact Us For Availability
2
SHIELD, HEAT MAY W10894129 Contact Us For Availability
3
ASSEMBLY, LID (GLASS) (CHROME SHADOW) MAY W11082611 Contact Us For Availability
3
CLAMP, HOSE MAY W10142630 Contact Us For Availability
3
HARNESS, UI MAY W10771770 Contact Us For Availability
3
SCREW MAY W10625252 Contact Us For Availability
4
BUMPER, LID MAY W10631074 Contact Us For Availability
4
SCREW MAY 9740849 Contact Us For Availability
4
AGITATOR (COMPLETE) MAY W10821990 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
BASKET ASSEMBLY MAY W10586079 Contact Us For Availability
5
SCREW MAY W10004910 Contact Us For Availability
6
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
6
MAY W11266624 MAY W11266624 Contact Us For Availability
6
NUT, SPIN TUBE MAY W10564013 Contact Us For Availability
6
HOSE, TUB TO PUMP MAY W10763259 Contact Us For Availability
7
SCREW MAY W10339706 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10611544 Contact Us For Availability
7
FILTER, DRAIN PUMP MAY W11089264 Contact Us For Availability
7
SCREW MAY W10238319 Contact Us For Availability
8
ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW) MAY W10601876 Contact Us For Availability
8
SCREW MAY 8533928 Contact Us For Availability
9
HINGE, LID (LEFT) MAY W10594153 Contact Us For Availability
9
SCREW MAY W10660565 Contact Us For Availability
9
TUB MAY W10512161 Contact Us For Availability
9A
HINGE, LID (RIGHT) MAY W10594154 Contact Us For Availability
10
DISPENSER, BLEACH (CHROME SHADOW) MAY W11171187 Contact Us For Availability
10
SEAL, CONSOLE MAY W10618933 Contact Us For Availability
10
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11033601 Contact Us For Availability
11
BEZEL, LID LOCK (CHROME SHADOW) MAY W11187059 Contact Us For Availability
11
CORD, POWER MAY W10479821 Contact Us For Availability
11
WASHER, THRUST MAY W10665342 Contact Us For Availability
12
SPACER, LID HINGE (CHROME SHADOW) MAY W10708966 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
ASSEMBLY, DRIVE MAY W11134159 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, HOUSING MAY W11096285 Contact Us For Availability
13
STATOR, MOTOR MAY W10006483 Contact Us For Availability
14
ASSEMBLY, LID LOCK (CHROME SHADOW) MAY W10787880 Contact Us For Availability
14
VALVE, WATER INLET MAY W11096267 Contact Us For Availability
14
SCREW MAY W10644129 Contact Us For Availability
15
SCREW MAY W10273971 Contact Us For Availability
15
SCREW MAY 9740848 Contact Us For Availability
15
SLIDER MAY W10447975 Contact Us For Availability
16
SCREW MAY 693995 Contact Us For Availability
16
HARNESS, VALVE MAY W10849297 Contact Us For Availability
16
ASSEMBLY, SPRING MAY W10006494 Contact Us For Availability
17
CABINET (CHROME SHADOW) MAY W10677266 Contact Us For Availability
17
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
17
RING, SNAP MAY W10275082 Contact Us For Availability
18
CHANNEL, TOP FRONT (CHROME SHADOW) MAY W10724132 Contact Us For Availability
18
SCREW MAY 97787 Contact Us For Availability
18
ASSEMBLY, CLUTCH MAY W10905022 Contact Us For Availability
19
CHANNEL, TOP REAR MAY W10512626 Contact Us For Availability
19
ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW) MAY W10795361 Contact Us For Availability
19
ROTOR, MOTOR MAY W10006482 Contact Us For Availability
20
SCREW MAY 3400061 Contact Us For Availability
20
SCREW MAY W10636382 Contact Us For Availability
21
BADGE MAY W10612925 Contact Us For Availability
21
CABLE TIE MAY W10298887 Contact Us For Availability
21
HARNESS SHIELD - MOTOR MAY W10673062 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W10687506 Contact Us For Availability
22
NUT, "U" MAY W10298336 Contact Us For Availability
22
SCREW MAY 90767 Contact Us For Availability
23
PANEL, REAR MAY W10612644 Contact Us For Availability
23
FASCIA MAY W11035067 Contact Us For Availability
23
HARNESS, LOWER MAY W10777955 Contact Us For Availability
24
ABSORBER, IMPACT MAY 8564458 Contact Us For Availability
24
HOSE PRESSURE SWITCH MAY W10748451 Contact Us For Availability
25
HOSE, INTERNAL DRAIN MAY W10786890 Contact Us For Availability
25
CLAMP, CABLE MAY W10005430 Contact Us For Availability
26
COVER, HARNESS MAY W10676061 Contact Us For Availability
26
SCREW MAY 8533943 Contact Us For Availability
28
TIE, CABLE MAY W10339879 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
30
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
31
CLAMP, HOSE MAY 356138 Contact Us For Availability
33
SCREW MAY 311932 Contact Us For Availability
34
ABSORBER, IMPACT MAY W10688364 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
× ![]()
