Model Maytag MVWB835DW1 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CABINET PARTS

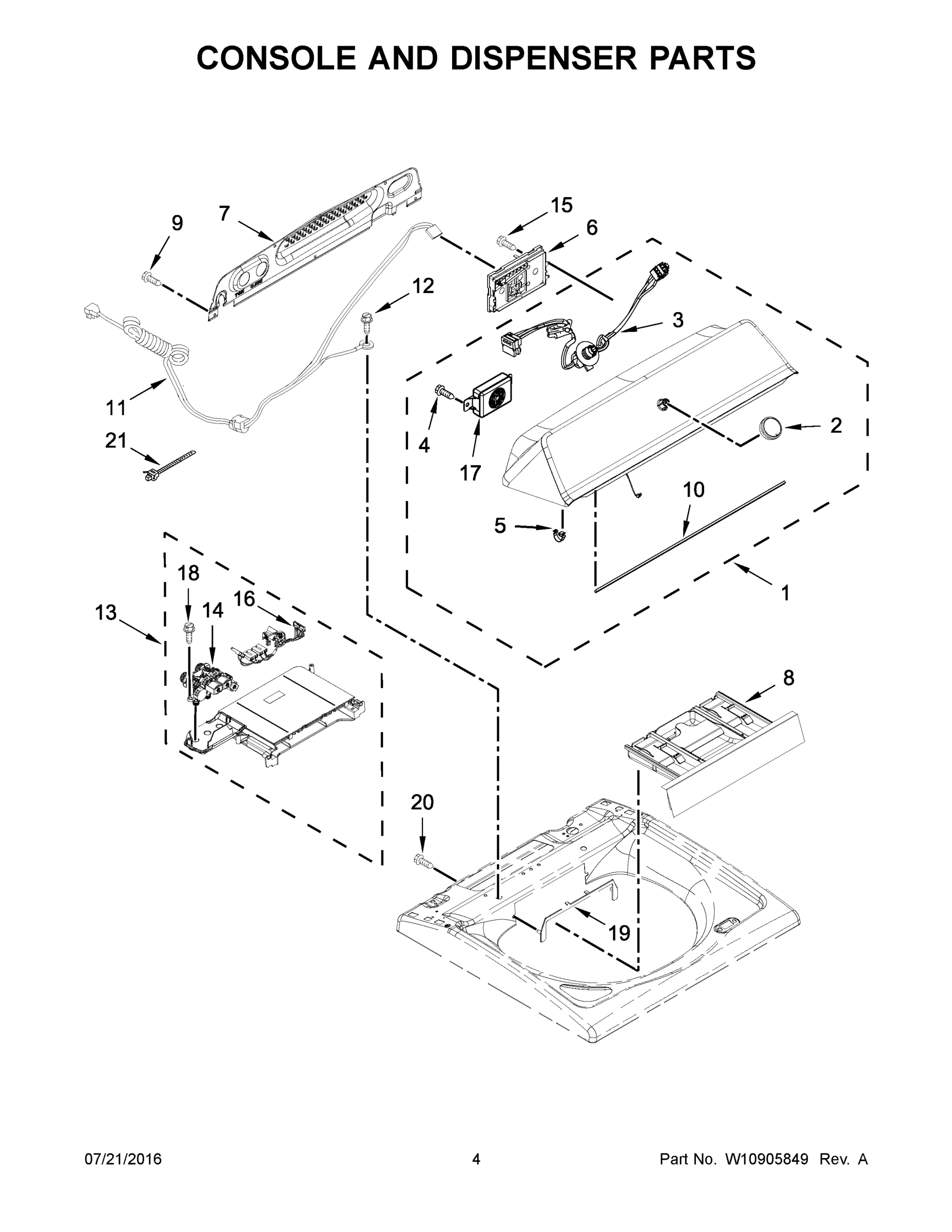

03 - CONSOLE AND DISPENSER PARTS

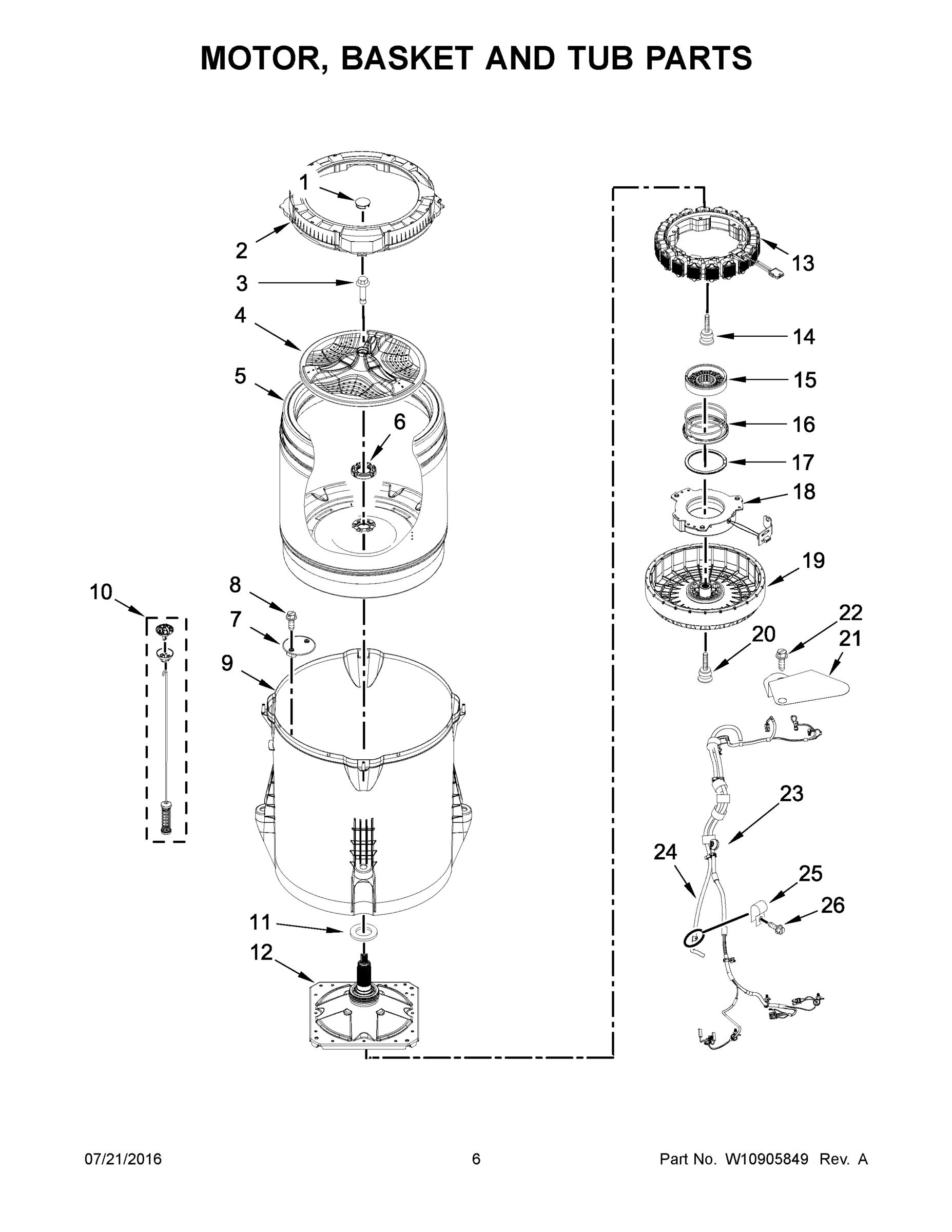

04 - MOTOR, BASKET AND TUB PARTS

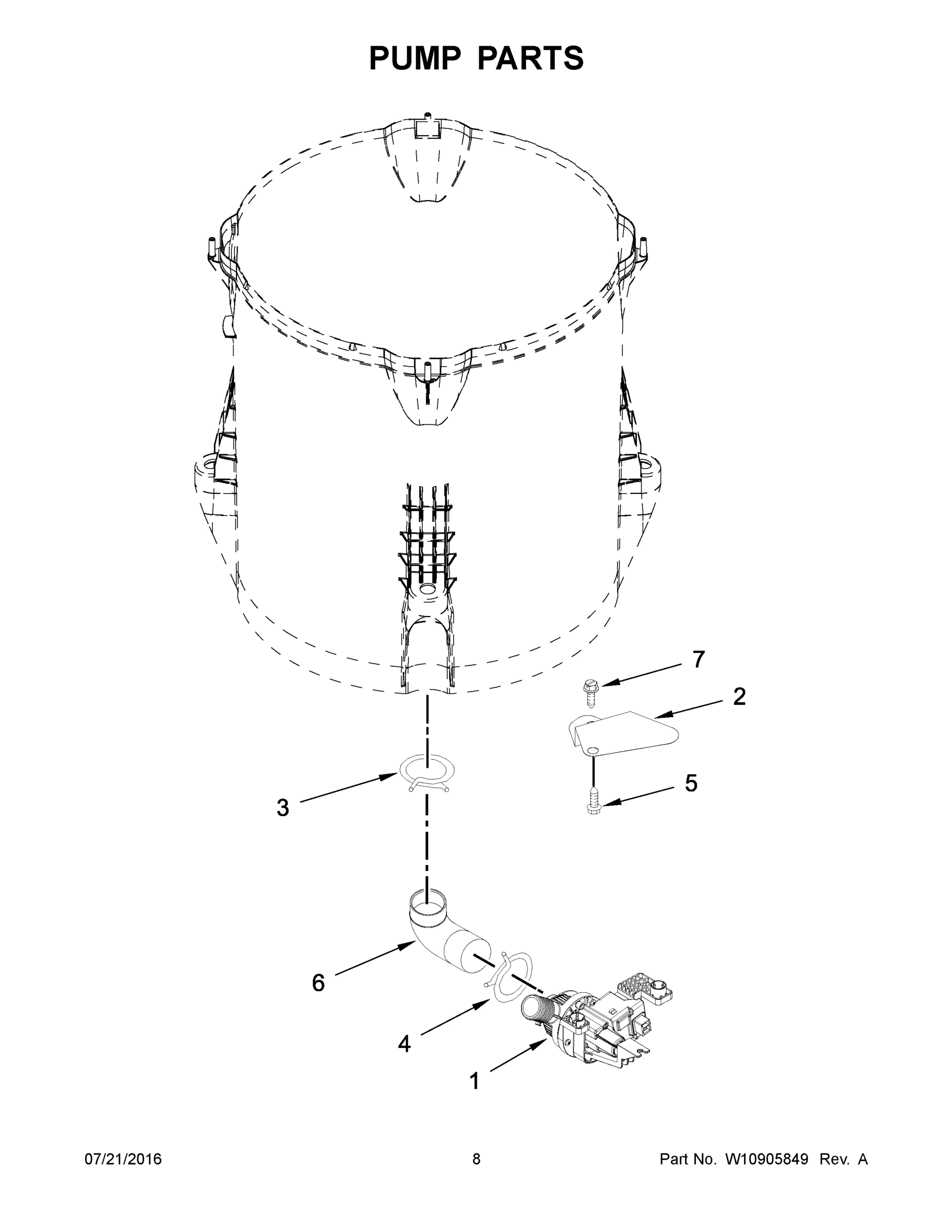

05 - PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWB835DW1 LAUNDRY, WASHER
1
MAY W10682742 MAY W10682742 Contact Us For Availability
1
MAY W10650404 MAY W10650404 Contact Us For Availability
1
MAY W10609549 MAY W10609549 Contact Us For Availability
1
MAY W10727777 MAY W10727777 Contact Us For Availability
1A
MAY W10607439 MAY W10607439 Contact Us For Availability
1B
MAY W10607408 MAY W10607408 Contact Us For Availability
1C
MAY W10062923 MAY W10062923 Contact Us For Availability
1D
MAY W10740599 MAY W10740599 Contact Us For Availability
1E
MAY W10854698 MAY W10854698 Contact Us For Availability
2
MAY W10635913 MAY W10635913 Contact Us For Availability
2
ASSEMBLY, TIMER KNOB (CHROME) MAY W10727011 Contact Us For Availability
2
MAY W10578863 MAY W10578863 Contact Us For Availability
2
MAY W10637932 MAY W10637932 Contact Us For Availability
3
MAY W10714900 MAY W10714900 Contact Us For Availability
3
MAY W10142630 MAY W10142630 Contact Us For Availability
3
MAY W10771770 MAY W10771770 Contact Us For Availability
3
MAY W10625252 MAY W10625252 Contact Us For Availability
4
MAY W10631074 MAY W10631074 Contact Us For Availability
4
SCREW MAY 9740849 Contact Us For Availability
4
MAY W10834917 MAY W10834917 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10586079 MAY W10586079 Contact Us For Availability
5
SCREW MAY W10004910 Contact Us For Availability
6
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
6
MAY W10858075 MAY W10858075 Contact Us For Availability
6
MAY W10564013 MAY W10564013 Contact Us For Availability
6
MAY W10763259 MAY W10763259 Contact Us For Availability
7
SCREW MAY W10339706 Contact Us For Availability
7
MAY W10611544 MAY W10611544 Contact Us For Availability
7
MAY W10215093 MAY W10215093 Contact Us For Availability
7
SCREW MAY W10238319 Contact Us For Availability
8
MAY W10794835 MAY W10794835 Contact Us For Availability
8
SCREW MAY 8533928 Contact Us For Availability
9
MAY W10594153 MAY W10594153 Contact Us For Availability
9
MAY 1157158 MAY 1157158 Contact Us For Availability
9
MAY W10512161 MAY W10512161 Contact Us For Availability
9A
MAY W10594154 MAY W10594154 Contact Us For Availability
10
MAY W10601839 MAY W10601839 Contact Us For Availability
10
MAY W10618933 MAY W10618933 Contact Us For Availability
10
MAY W10821706 MAY W10821706 Contact Us For Availability
11
MAY W10630254 MAY W10630254 Contact Us For Availability
11
MAY W10479821 MAY W10479821 Contact Us For Availability
11
MAY W10665342 MAY W10665342 Contact Us For Availability
12
MAY W10708964 MAY W10708964 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10868473 MAY W10868473 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10854688 MAY W10854688 Contact Us For Availability
13
MAY W10006483 MAY W10006483 Contact Us For Availability
14
MAY W10787878 MAY W10787878 Contact Us For Availability
14
MAY W10758828 MAY W10758828 Contact Us For Availability
14
MAY W10644129 MAY W10644129 Contact Us For Availability
15
SCREW MAY W10273971 Contact Us For Availability
15
SCREW MAY 9740848 Contact Us For Availability
15
MAY W10447975 MAY W10447975 Contact Us For Availability
16
SCREW MAY 693995 Contact Us For Availability
16
MAY W10849297 MAY W10849297 Contact Us For Availability
16
MAY W10006494 MAY W10006494 Contact Us For Availability
17
MAY W10675025 MAY W10675025 Contact Us For Availability
17
MAY W10568405 MAY W10568405 Contact Us For Availability
17
MAY W10275082 MAY W10275082 Contact Us For Availability
18
MAY W10724131 MAY W10724131 Contact Us For Availability
18
SCREW MAY 97787 Contact Us For Availability
18
MAY W10447973 MAY W10447973 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10601845 MAY W10601845 Contact Us For Availability
19
MAY W10006482 MAY W10006482 Contact Us For Availability
20
SCREW MAY 3400061 Contact Us For Availability
20
MAY W10636382 MAY W10636382 Contact Us For Availability
21
MAY W10612925 MAY W10612925 Contact Us For Availability
21
MAY W10298887 MAY W10298887 Contact Us For Availability
21
MAY W10673062 MAY W10673062 Contact Us For Availability
22
MAY W10687506 MAY W10687506 Contact Us For Availability
22
SCREW MAY 90767 Contact Us For Availability
23
MAY W10612644 MAY W10612644 Contact Us For Availability
23
MAY W10777955 MAY W10777955 Contact Us For Availability
24
MAY W10414221 MAY W10414221 Contact Us For Availability
24
MAY W10748451 MAY W10748451 Contact Us For Availability
25
MAY W10821245 MAY W10821245 Contact Us For Availability
25
CLAMP, CABLE MAY W10005430 Contact Us For Availability
26
MAY W10676061 MAY W10676061 Contact Us For Availability
26
SCREW MAY 8533943 Contact Us For Availability
28
TIE, CABLE MAY W10339879 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
31
MAY 356138 MAY 356138 Contact Us For Availability
33
SCREW MAY 311932 Contact Us For Availability
34
MAY W10688364 MAY W10688364 Contact Us For Availability
35
MAY 8564458 MAY 8564458 Contact Us For Availability
36
MAY W10786890 MAY W10786890 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8212487 MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PARTS, CL MAY W10355010 Contact Us For Availability
× ![]()
