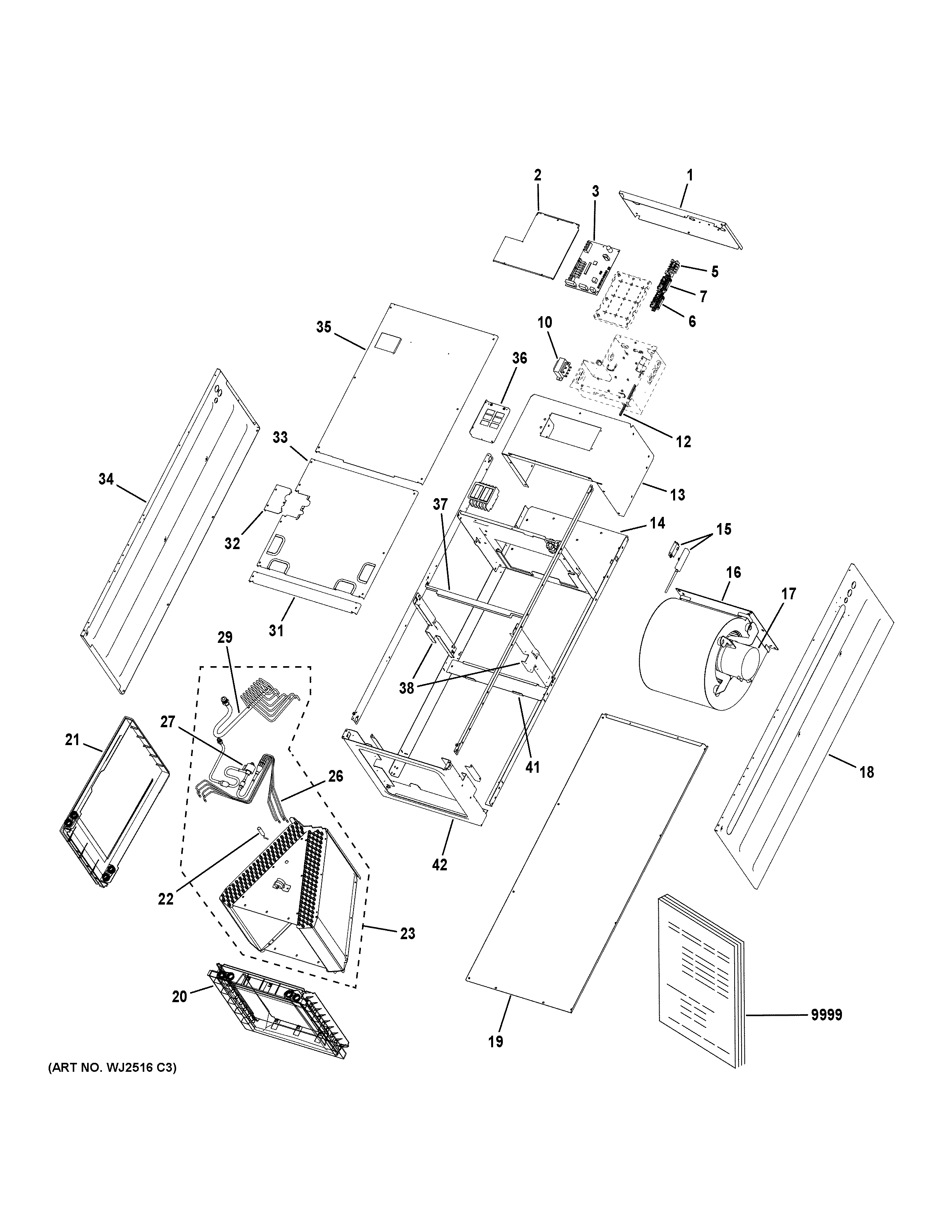

Model GE MVAX030ME2AA1 – Common Parts & Diagrams
ROOM AIR CONDITIONER
Common parts from model GE MVAX030ME2AA1
1
TOP COVER PANEL GEN WP71X32513 Contact Us For Availability
3
POWER CONTROL BOARD GEN WP26X31525 Contact Us For Availability
7
JUNCTION BLOCK GEN WJ26X24443 Contact Us For Availability
10
TRANSFORMER GEN WP27X31517 Contact Us For Availability
12
WIRE HARNESS BUNDLE GEN WP35X32075 Contact Us For Availability
15
WIFI MODULE GEN WP26X32395 Contact Us For Availability
17
MOTOR GEN WP94X31514 Contact Us For Availability
18
RIGHT SIDE PANEL GEN WP71X32357 Contact Us For Availability
19
REAR PANEL GEN WP71X32358 Contact Us For Availability
22
AMBIENT TEMP. SENSOR TAI GEN WP26X32076 Contact Us For Availability
23
EVAPORATOR ASSEMBLY GEN WP87X31523 Contact Us For Availability
27
ELECTRONIC EXPANSION VALVE GEN WJ35X22622 Contact Us For Availability
31
FILTER BAFFLE GEN WP65X32355 Contact Us For Availability
32
COVER PLATE GEN WP76X32363 Contact Us For Availability
33
FRONT LOWER PANEL GEN WP71X32360 Contact Us For Availability
34
LEFT SIDE PANEL GEN WP71X32356 Contact Us For Availability
35
FRONT UPPER PANEL GEN WP71X32361 Contact Us For Availability
36
SWITCH BRACKET GEN WP65X32070 Contact Us For Availability
37
FRONT SUPPORT RAIL GEN WP65X32066 Contact Us For Availability
38
MIDDLE SUPPORT RAIL GEN WP65X32072 Contact Us For Availability
41
REAR SUPPORT RAIL GEN WP65X32065 Contact Us For Availability
42
BOTTOM SUPPORT RAIL GEN WP65X32362 Contact Us For Availability
9999
PM INSTALL INSTRUCTIONS GEN 315000755 Contact Us For Availability
× ![]()
