Model Haier MVAX009ME2AA1 Room Air Conditioner Built In – Common Parts & Diagrams

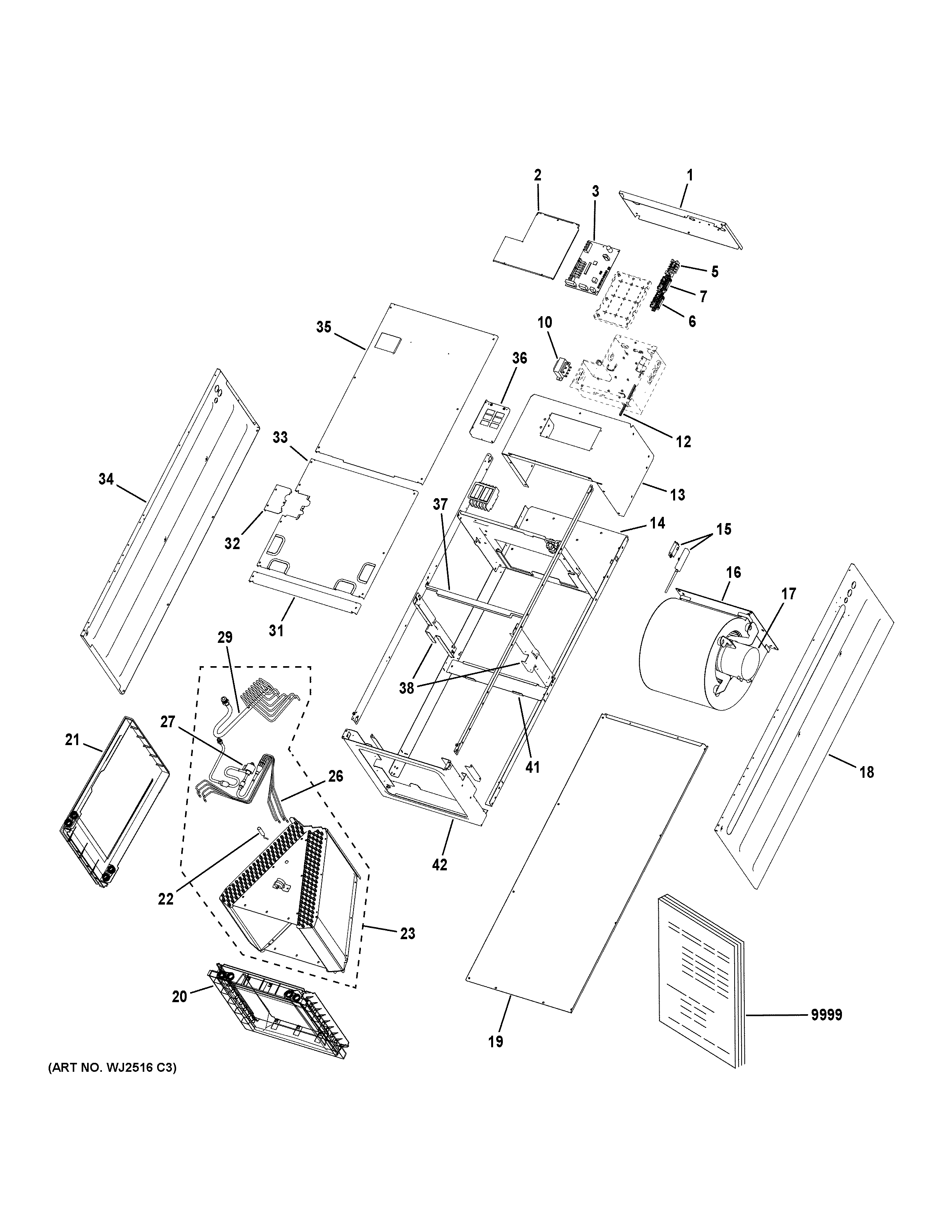

Common parts from model Haier MVAX009ME2AA1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

TOP COVER PANEL GEN WP71X32513 Contact Us For Availability

View on Model

2

WP76X31511 GE Electric Box Cover Backorder GEN WP76X31511 View Details $16.84

View on Model

3

POWER CONTROL BOARD GEN WP26X31525 Contact Us For Availability

View on Model

5

WP26X26735 GE Terminal Block Backorder GEN WP26X26735 View Details $5.00

View on Model

6

WP26X26734 GE Terminal Block Communication Backorder GEN WP26X26734 View Details $7.12

View on Model

7

JUNCTION BLOCK GEN WJ26X24443 Contact Us For Availability

View on Model

10

TRANSFORMER GEN WP27X31517 Contact Us For Availability

View on Model

12

WIRE HARNESS BUNDLE GEN WP35X32075 Contact Us For Availability

View on Model

13

WP71X31510 GE Access Panel Backorder GEN WP71X31510 View Details $55.02

View on Model

14

WP76X32392 GE Motor Mounting Plate Backorder GEN WP76X32392 View Details $52.89

View on Model

15

WIFI MODULE GEN WP26X32395 Contact Us For Availability

View on Model

16

WP94X32087 GE Motor Assembly Backorder GEN WP94X32087 View Details $162.34

View on Model

17

MOTOR GEN WP94X31514 Contact Us For Availability

View on Model

18

RIGHT SIDE PANEL GEN WP71X32357 Contact Us For Availability

View on Model

19

REAR PANEL GEN WP71X32358 Contact Us For Availability

View on Model

20

WP76X32378 GE Water Tray Backorder GEN WP76X32378 View Details $70.59

View on Model

21

WP76X31512 GE Water Tray Side Backorder GEN WP76X31512 View Details $76.93

View on Model

22

AMBIENT TEMP. SENSOR TAI GEN WP26X32076 Contact Us For Availability

View on Model

23

EVAPORATOR ASSEMBLY GEN WP87X31524 Contact Us For Availability

View on Model

26

WP26X32078 GE Tube Temperature Sensor Backorder GEN WP26X32078 View Details $33.49

View on Model

27

ELECTRONIC EXPANSION VALVE GEN WJ35X22622 Contact Us For Availability

View on Model

29

WP26X32077 GE Temperature Sensor Tube Backorder GEN WP26X32077 View Details $33.49

View on Model

31

FILTER BAFFLE GEN WP65X32355 Contact Us For Availability

View on Model

32

COVER PLATE GEN WP76X32363 Contact Us For Availability

View on Model

33

FRONT LOWER PANEL GEN WP71X32360 Contact Us For Availability

View on Model

34

LEFT SIDE PANEL GEN WP71X32356 Contact Us For Availability

View on Model

35

FRONT UPPER PANEL GEN WP71X32361 Contact Us For Availability

View on Model

36

SWITCH BRACKET GEN WP65X32070 Contact Us For Availability

View on Model

37

FRONT SUPPORT RAIL GEN WP65X32066 Contact Us For Availability

View on Model

38

MIDDLE SUPPORT RAIL GEN WP65X32072 Contact Us For Availability

View on Model

41

REAR SUPPORT RAIL GEN WP65X32065 Contact Us For Availability

View on Model

42

BOTTOM SUPPORT RAIL GEN WP65X32362 Contact Us For Availability

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 315000755 Contact Us For Availability

View on Model

×
