Model Haier MVAW030MV2AA Room Air Conditioner Built In – Common Parts & Diagrams

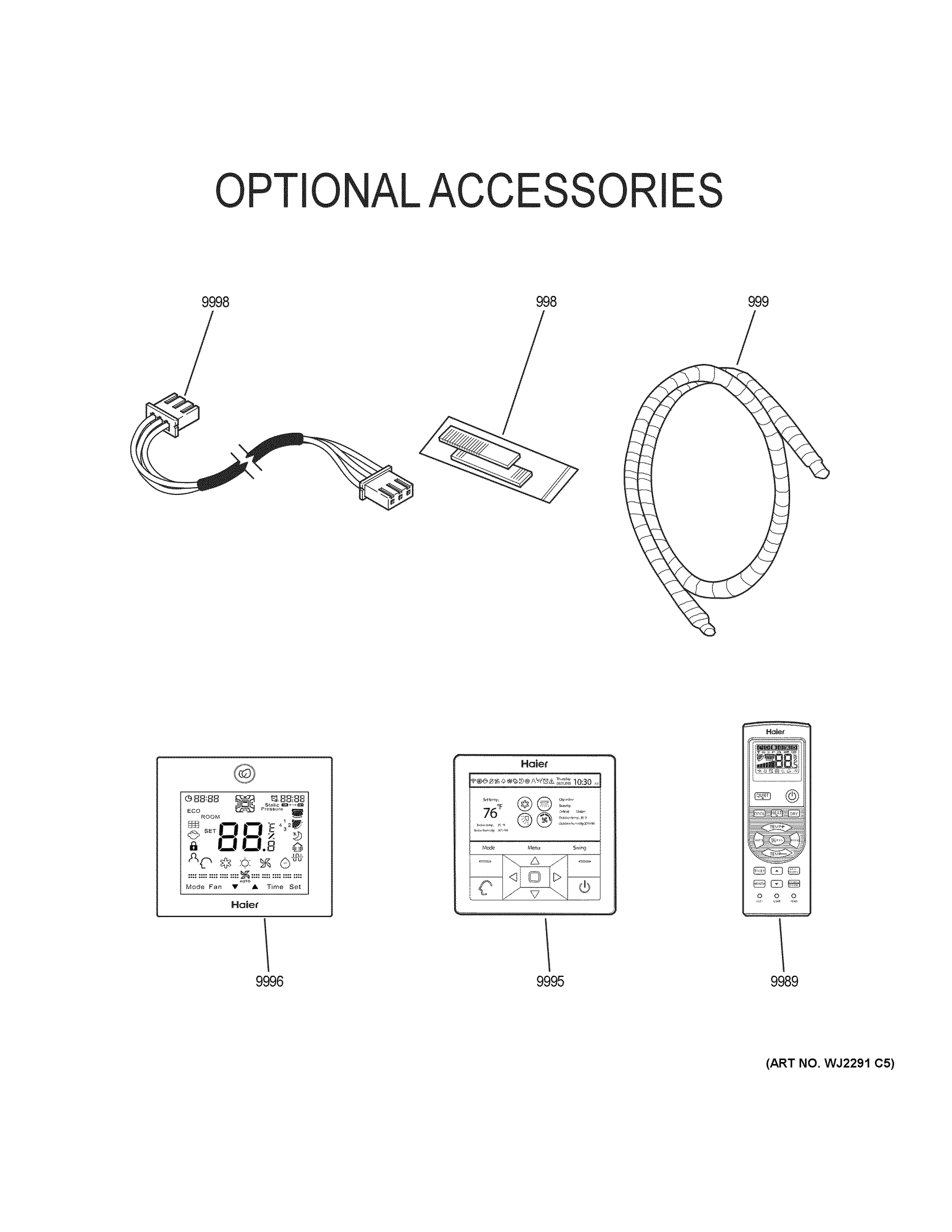

OPTIONAL ACCESSORIES

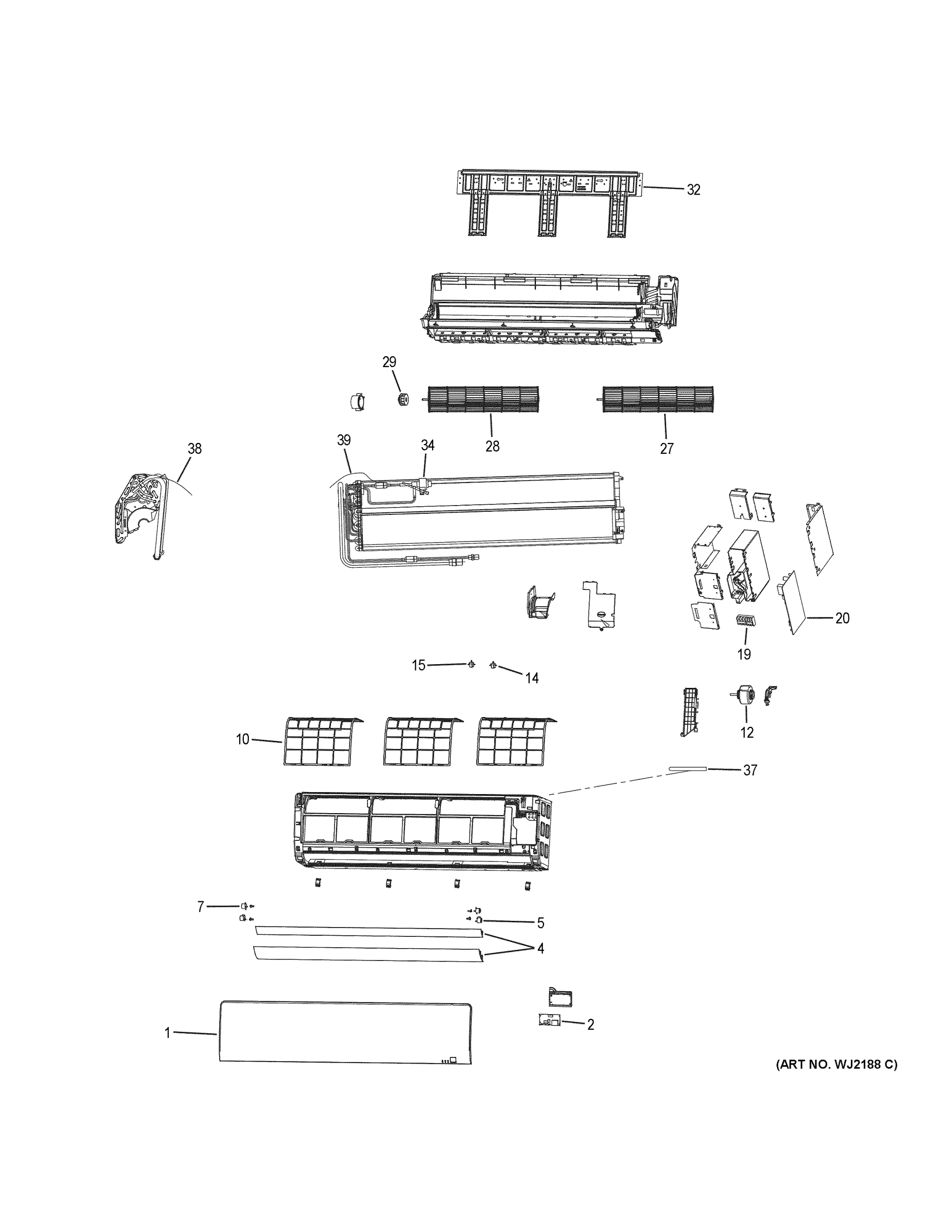

ROOM AIR CONDITIONER
Common parts from model Haier MVAW030MV2AA Room Air Conditioner Built In
1
FRONT COVER GEN WJ76X22783 Contact Us For Availability
2
DISPLAY BOARD GEN WJ26X22750 Contact Us For Availability
4
AIR LOUVRE GEN WJ71X22779 Contact Us For Availability
7
LH HORIZONTAL LOUVER MOTOR GEN WJ94X22786 Contact Us For Availability
10
AIR FILTER GEN WJ85X22778 Contact Us For Availability
12
INDOOR MOTOR GEN WJ94X22784 Contact Us For Availability
19
TERMINAL BLOCK GEN WJ26X22761 Contact Us For Availability
20
INDOOR POWER CONTROL BOARD GEN WJ26X22756 Contact Us For Availability
27
CROSS FLOW FAN RIGHT GEN WJ73X22781 Contact Us For Availability
28
CROSS FLOW FAN LEFT GEN WJ73X22780 Contact Us For Availability
29
CROSS FLOW FAN BEARING GEN WJ73X22749 Contact Us For Availability
32
MOUNTING BRACKET GEN WJ65X22785 Contact Us For Availability
34
ELECTRONIC EXPANSION VALVE GEN WJ35X22768 Contact Us For Availability
37
AMBIENT TEMPERATURE SENSOR GEN WJ26X22747 Contact Us For Availability
38
VAPOR PIPE TEMPERATURE SENSOR GEN WJ26X22763 Contact Us For Availability
39
LIQUID PIPE TEMPERATURE SENSOR GEN WJ26X22757 Contact Us For Availability
999
DRAIN HOSE GEN WJ53X23032 Contact Us For Availability
9989
REMOTE CONTROL GEN YRHD Contact Us For Availability
9995
REMOTE CONTROL GEN YRE16B Contact Us For Availability
9996
REMOTE CONTROL GEN YRE17 Contact Us For Availability
× ![]()
