Model Haier MVAH036MV2AA Room Air Conditioner Built In – Common Parts & Diagrams

Common parts from model Haier MVAH036MV2AA Room Air Conditioner Built In

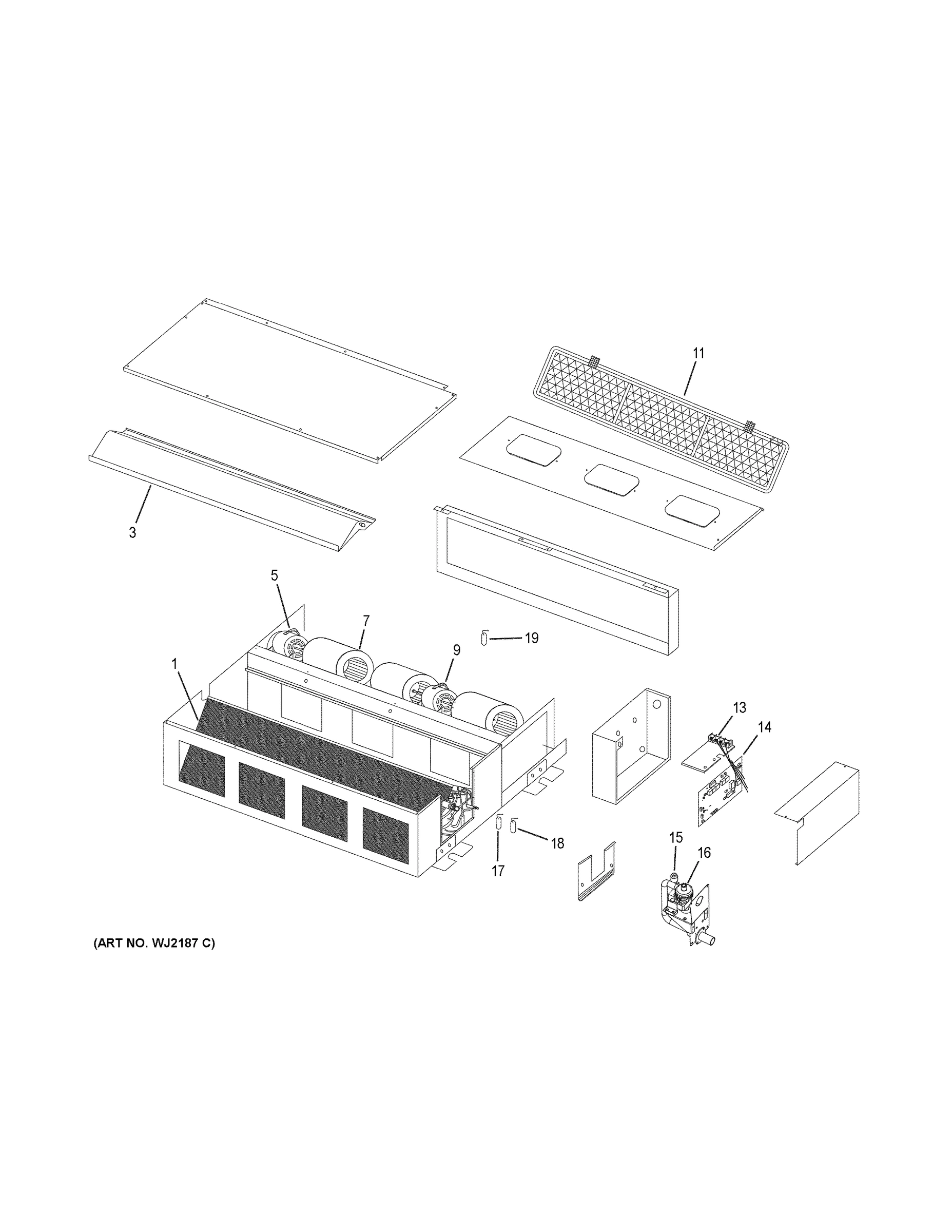

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

EVAPORATOR GEN WJ87X22812 Contact Us For Availability

View on Model

3

DRAIN PAN GEN WJ76X22811 Contact Us For Availability

View on Model

5

FAN MOTOR GEN WJ94X22813 Contact Us For Availability

View on Model

7

FAN GEN WJ73X22803 Contact Us For Availability

View on Model

9

FAN MOTOR GEN WJ94X22814 Contact Us For Availability

View on Model

11

AIR FILTER GEN WJ85X22807 Contact Us For Availability

View on Model

13

POWER SUPPLY BOARD GEN WJ26X22816 Contact Us For Availability

View on Model

14

POWER CONTROL BOARD GEN WJ26X22815 Contact Us For Availability

View on Model

15

FLOAT SWITCH GEN WJ26X22805 Contact Us For Availability

View on Model

16

WATER PUMP GEN WJ76X22817 Contact Us For Availability

View on Model

17

VAPOR PIPE TEMPERATURE SENSOR GEN WJ26X22537 Contact Us For Availability

View on Model

18

WJ26X22533 GE Liquid Pipe Temperature Sensor Backorder GEN WJ26X22533 View Details $8.45

View on Model

19

AMBIENT TEMPERATURE SENSOR GEN WJ26X22520 Contact Us For Availability

View on Model

×
