Model Maytag MTF1842EEQ01 REFRIGERATOR – Common Parts & Diagrams

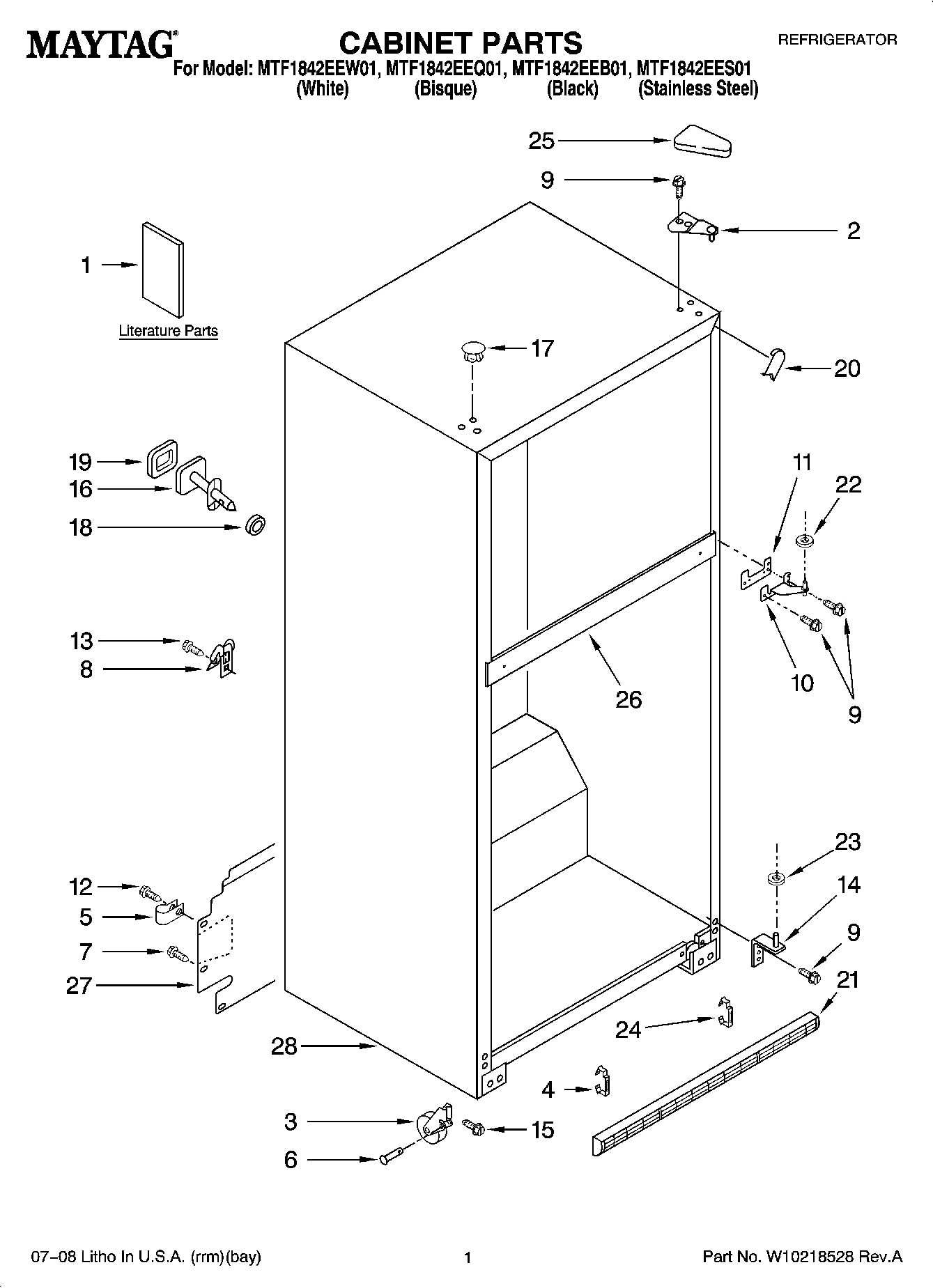

01 - CABINET PARTS

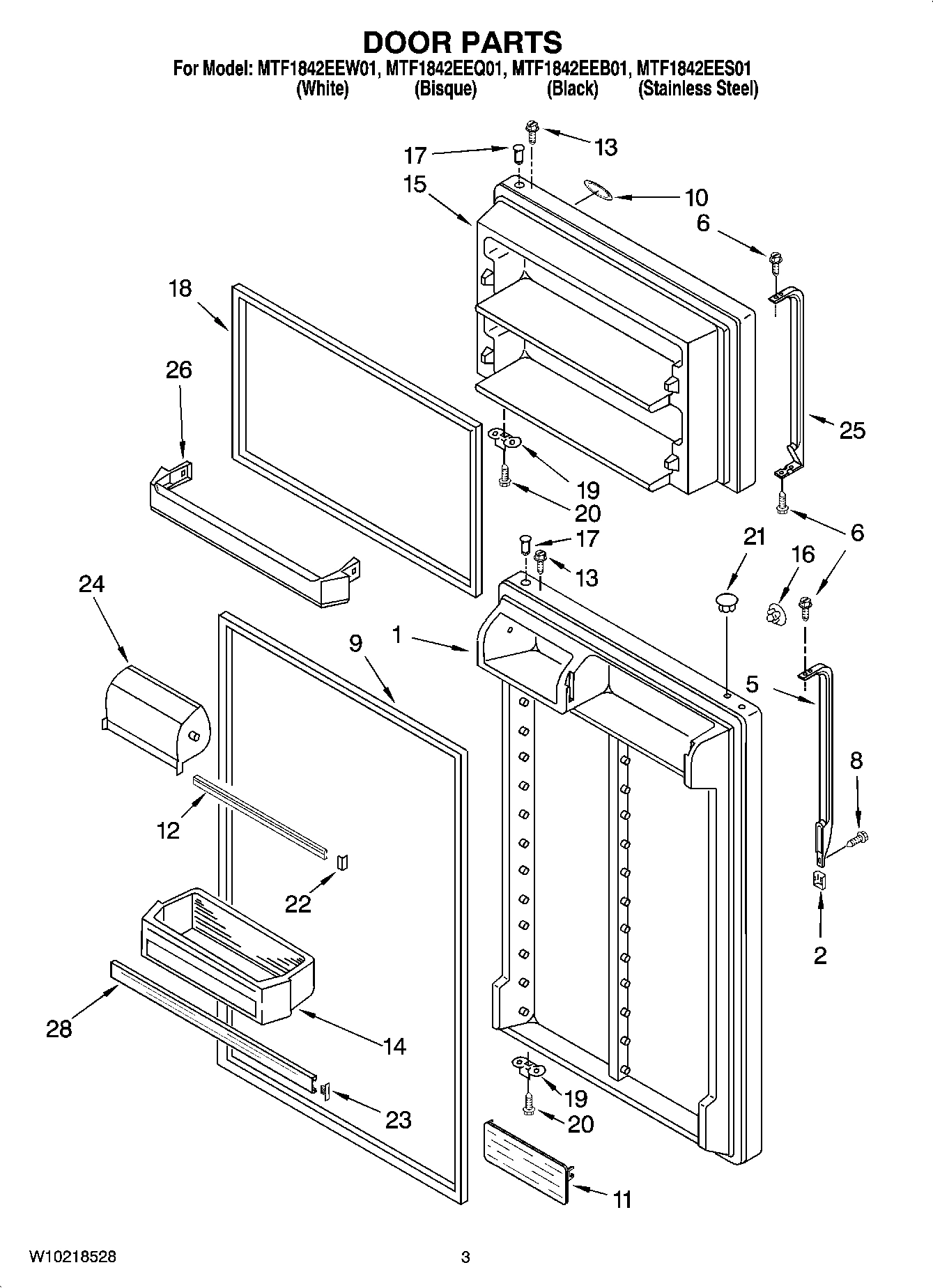

02 - DOOR PARTS

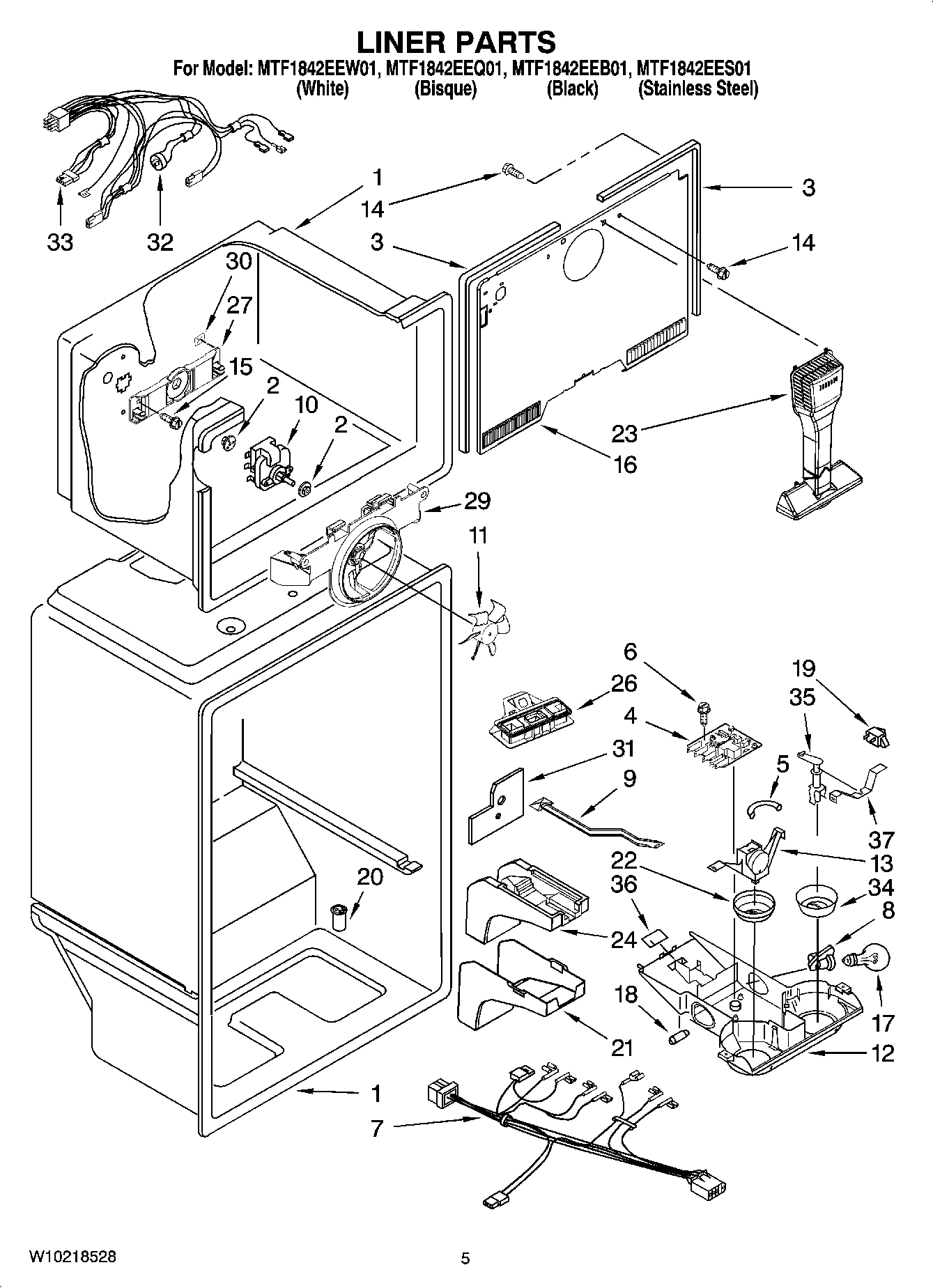

03 - LINER PARTS

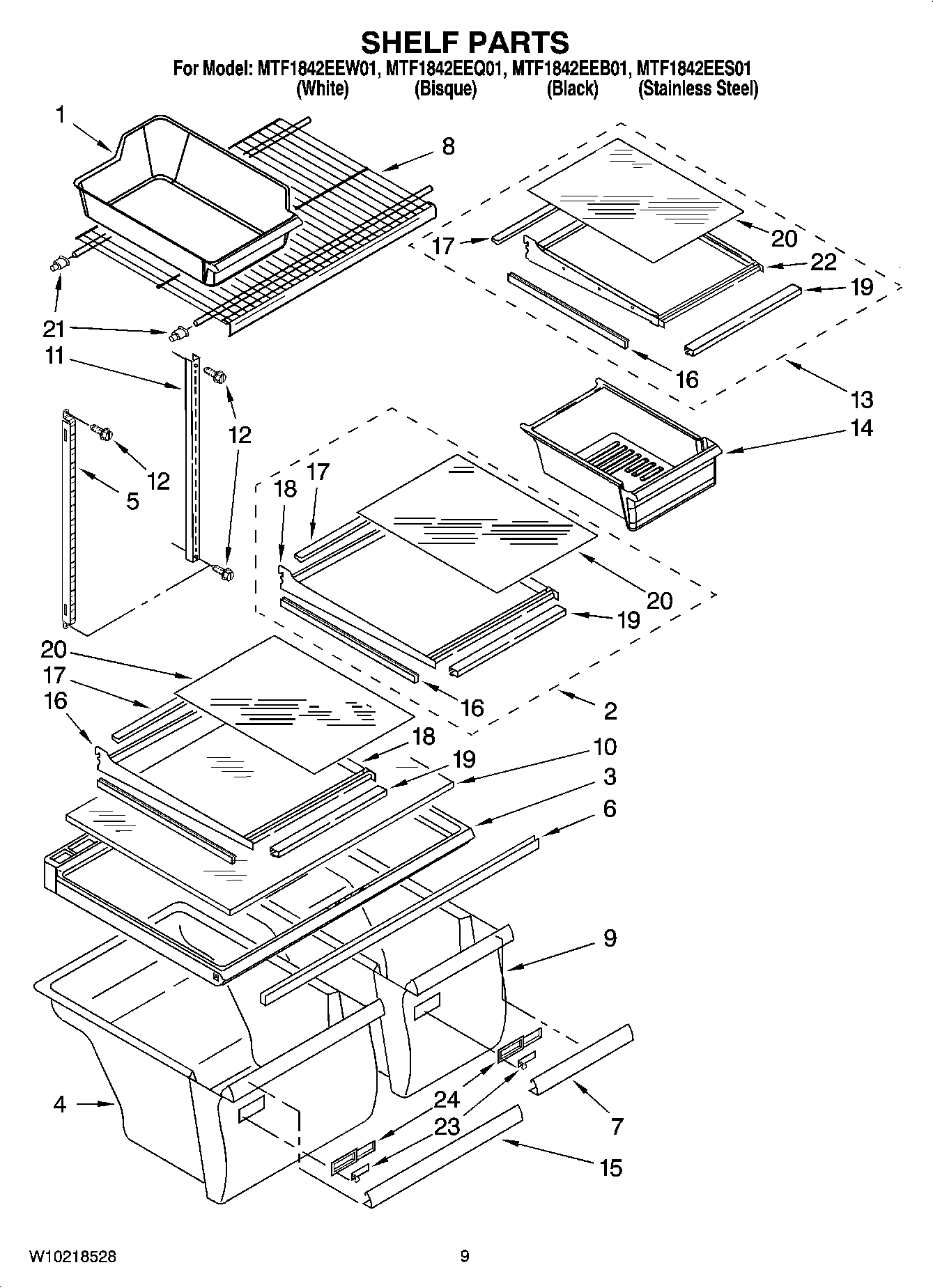

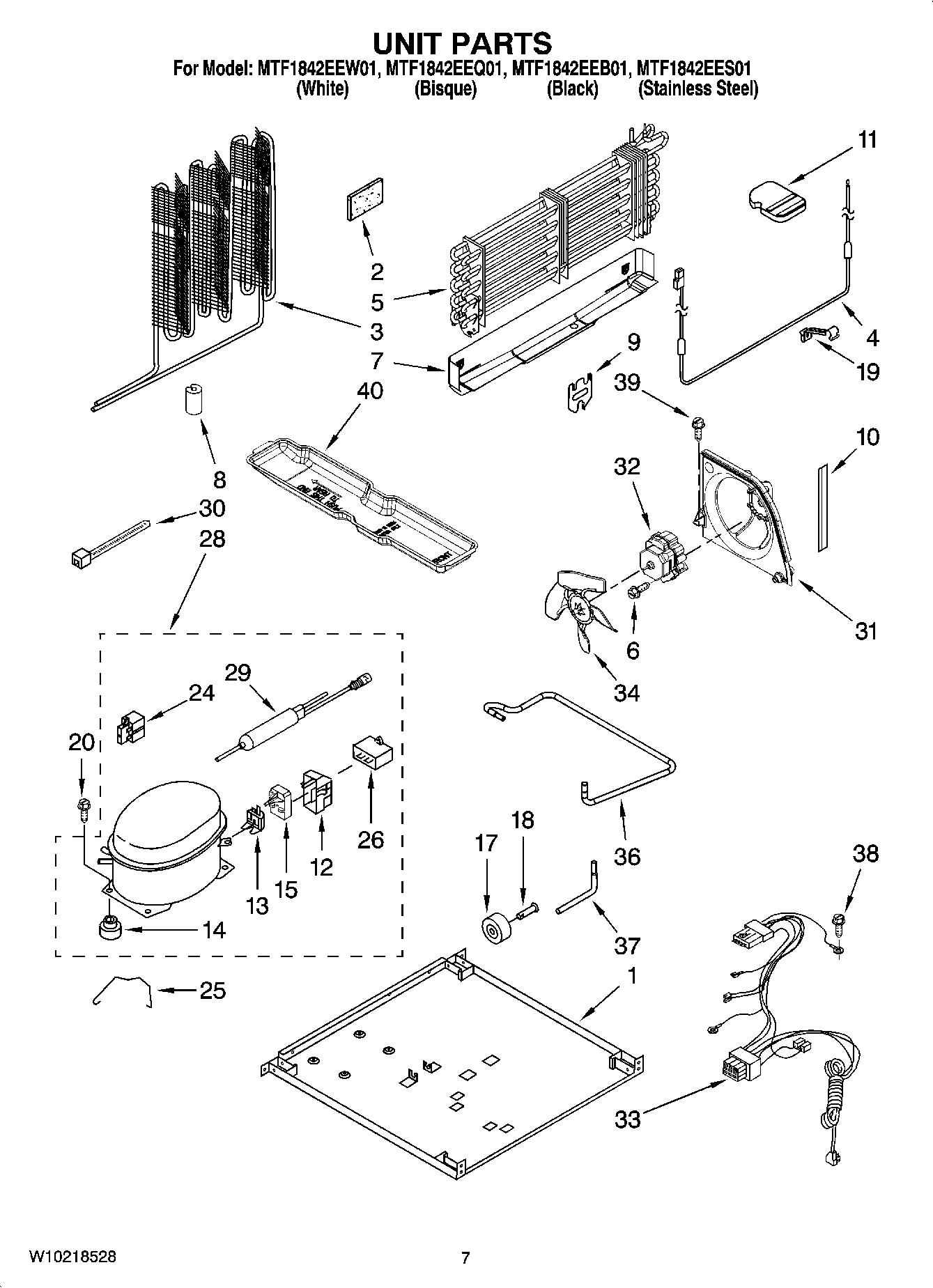

04 - UNIT PARTS
05 - SHELF PARTS

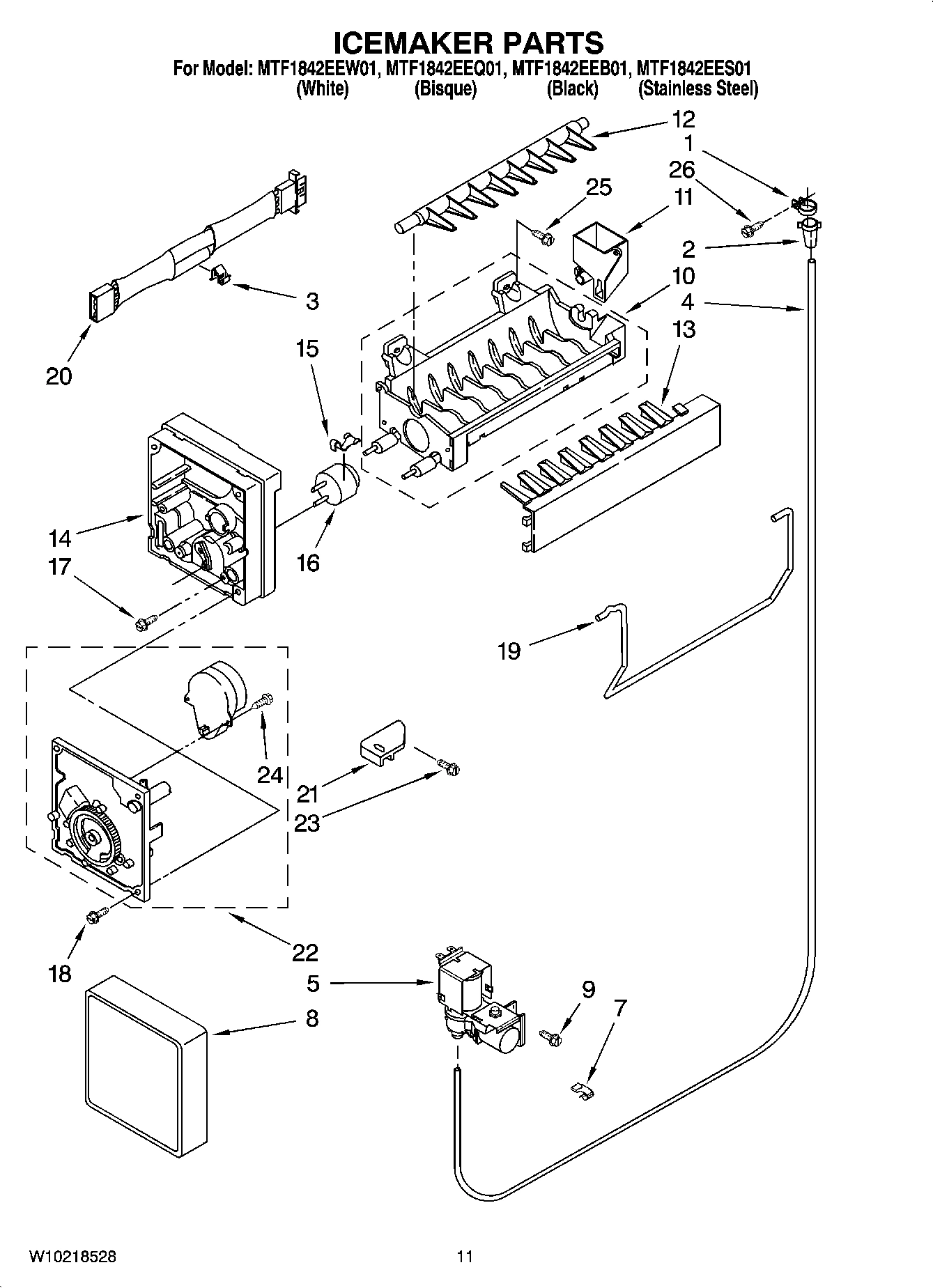

06 - ICEMAKER PARTS, OPTIONAL PARTS
Common parts from model Maytag MTF1842EEQ01 REFRIGERATOR
1
MAY 2225623 MAY 2225623 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10142143 MAY W10142143 Contact Us For Availability
1
MAY W10178139 MAY W10178139 Contact Us For Availability
1
MAY W10208845 MAY W10208845 Contact Us For Availability
1
MAY W10208846 MAY W10208846 Contact Us For Availability
1
Refrigerator Door (Includes Illus 9 & 17) (Wh MAY 2183898 Contact Us For Availability
1
Refrigerator Door (Includes Illus 9 & 17) (Bl MAY 2200712 Contact Us For Availability
1
Refrigerator Door (Includes Illus 9 & 17) (Bi MAY 2205281 Contact Us For Availability
1
MAY 2225433 MAY 2225433 Contact Us For Availability
1
MAY 2320188 MAY 2320188 Contact Us For Availability
1
MAY 2254352 MAY 2254352 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
2
MAY 2189410 MAY 2189410 Contact Us For Availability
2
Cover, Trim (Black) MAY 2193143B Contact Us For Availability
2
Cover, Trim (Bisque) MAY 2193143T Contact Us For Availability
2
Cover, Trim (White) MAY 2193143W Contact Us For Availability
2
Grommet (2) MAY 2197380 Contact Us For Availability
2
MAY 2169104 MAY 2169104 Contact Us For Availability
2
Shelf, Cantilever (Complete) MAY 2201109 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
3
MAY 2166108 MAY 2166108 Contact Us For Availability
3
Gasket, Evaporator Cover (2) MAY 2254359 Contact Us For Availability
3
MAY W10159808 MAY W10159808 Contact Us For Availability
3
Cover, Crisper MAY 2314548 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY 2189356 MAY 2189356 Contact Us For Availability
4
MAY 2304099 MAY 2304099 Contact Us For Availability
4
MAY 2315531 MAY 2315531 Contact Us For Availability
4
Crisper Pan (13-Inch) (Includes Illus. 23 & 2 MAY 2218130 Contact Us For Availability
4
MAY 2181943 MAY 2181943 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
MAY 2254533B MAY 2254533B Contact Us For Availability
5
Handle, Refrigerator (Bisque) MAY 2254533T Contact Us For Availability
5
MAY 2254533W MAY 2254533W Contact Us For Availability
5
MAY 2212485 MAY 2212485 Contact Us For Availability
5
MAY 2254250 MAY 2254250 Contact Us For Availability
5
MAY 2300520 MAY 2300520 Contact Us For Availability
5
MAY 2315576 MAY 2315576 Contact Us For Availability
6
MAY 2179826 MAY 2179826 Contact Us For Availability
6
MAY 489357 MAY 489357 Contact Us For Availability
6
MAY 8534009 MAY 8534009 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
Support, Crisper Cover MAY 2314477 Contact Us For Availability
7
MAY 489427 MAY 489427 Contact Us For Availability
7
Wire Assy. Control Box MAY 2310057 Contact Us For Availability
7
MAY 2254294 MAY 2254294 Contact Us For Availability
7
Trim-Crisper Pan-10`` MAY 2320366 Contact Us For Availability
7
MAY 2210495 MAY 2210495 Contact Us For Availability
8
MAY 549193 MAY 549193 Contact Us For Availability
8
MAY 8281146 MAY 8281146 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
8
Shelf MAY 2176275 Contact Us For Availability
8
MAY 79191001 MAY 79191001 Contact Us For Availability
9
MAY 489497 MAY 489497 Contact Us For Availability
9
MAY 2202874 MAY 2202874 Contact Us For Availability
9
MAY 2202881 MAY 2202881 Contact Us For Availability
9
MAY 2179858 MAY 2179858 Contact Us For Availability
9
MAY 2176301 MAY 2176301 Contact Us For Availability
9
Crisper Pan (10-Inch) (Includes Illus. 23 & 2 MAY 2218129 Contact Us For Availability
10
MAY 2254618 MAY 2254618 Contact Us For Availability
10
MAY 13035001 MAY 13035001 Contact Us For Availability
10
MAY 2214986 MAY 2214986 Contact Us For Availability
10
MAY 2300638 MAY 2300638 Contact Us For Availability
10
MAY 2221693 MAY 2221693 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
11
MAY 2183852 MAY 2183852 Contact Us For Availability
11
Shelf, Flip-Up MAY 2188234 Contact Us For Availability
11
Fan Blade MAY 2163777 Contact Us For Availability
11
MAY 2201184 MAY 2201184 Contact Us For Availability
11
MAY 2210522 MAY 2210522 Contact Us For Availability
11
CUP, WATER FILL MAY 628515 Contact Us For Availability
12
SCREW MAY 488886 Contact Us For Availability
12
MAY 2180027 MAY 2180027 Contact Us For Availability
12
MAY 2212982 MAY 2212982 Contact Us For Availability
12
Cover (Service) MAY 4387731 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
MAY 8281265 MAY 8281265 Contact Us For Availability
13
MAY 8281206 MAY 8281206 Contact Us For Availability
13
Thermostat Assy. (Includes Illus. 5 & 18) MAY 2210489 Contact Us For Availability
13
Overload (Service (Includes Relay)) MAY 4390624 Contact Us For Availability
13
Shelf, Cantilever Meat Pan (Complete) MAY 2201111 Contact Us For Availability
13
Ice Striper MAY 2182124 Contact Us For Availability
14
MAY 2254473 MAY 2254473 Contact Us For Availability
14
MAY 2204810 MAY 2204810 Contact Us For Availability
14
MAY 1100826 MAY 1100826 Contact Us For Availability
14
MAY 4387558 MAY 4387558 Contact Us For Availability
14
Meat Pan MAY 2218127K Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 3400504 MAY 3400504 Contact Us For Availability
15
Freezer Door (Includes Illus. 17 & 18) (White MAY 2182487 Contact Us For Availability
15
Freezer Door (Includes Illus. 17 & 18) (Black MAY 2200710 Contact Us For Availability
15
Freezer Door (Includes Illus. 17 & 18) (Bisqu MAY 2205279 Contact Us For Availability
15
MAY 2225434 MAY 2225434 Contact Us For Availability
15
Start-Device (Production Compressor Only) MAY 2320150 Contact Us For Availability
15
Trim-Crisper Pan-13`` MAY 2320357 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
Hole Plug, Handle (White) MAY 2189000 Contact Us For Availability
16
Hole Plug, Handle (Black) MAY 2189009 Contact Us For Availability
16
Hole Plug, Handle (Bisque) MAY 2200936 Contact Us For Availability
16
MAY 2320192 MAY 2320192 Contact Us For Availability
16
Trim Shelf, Side MAY 2188711 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
17
MAY 2183998 MAY 2183998 Contact Us For Availability
17
Hole Plug (6) (Bisque) MAY 2200924 Contact Us For Availability
17
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
17
MAY 2314293 MAY 2314293 Contact Us For Availability
17
Light Bulb (2) MAY 527949 Contact Us For Availability
17
MAY 2150304 MAY 2150304 Contact Us For Availability
17
Trim, Shelf Rear MAY 2188688 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY 2214966 MAY 2214966 Contact Us For Availability
18
MAY 2214968 MAY 2214968 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
MAY 2200831 MAY 2200831 Contact Us For Availability
18
MAY 2221797 MAY 2221797 Contact Us For Availability
18
Frame Assembly MAY 2201103E Contact Us For Availability
19
Bracket, Door Stop (2) MAY 2189202 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2182338 MAY 2182338 Contact Us For Availability
19
TRIM,SHELF FRONT MAY 2188690 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
Corner Filler (2) (Bisque) MAY 2200926 Contact Us For Availability
20
Corner Filler (2) (White) MAY 2201014 Contact Us For Availability
20
MAY 2201017 MAY 2201017 Contact Us For Availability
20
Valve MAY 2171931 Contact Us For Availability
20
Screw, Compressor MAY 489373 Contact Us For Availability
20
Glass, Half Shelf MAY 2200986 Contact Us For Availability
20
MAY 2187464 MAY 2187464 Contact Us For Availability
21
Grille (Includes Illus. 4 & 24) (White) MAY 2254386 Contact Us For Availability
21
Grille (Includes Illus. 4 & 24) (Black) MAY 2254388 Contact Us For Availability
21
Grille (Includes Illus. 4 & 24) (Bisque) MAY 2254389 Contact Us For Availability
21
Hole Plug (White) MAY 2212648 Contact Us For Availability
21
Hole Plug (Bisque) MAY 2212649 Contact Us For Availability
21
Hole Plug (Black) MAY 2212651 Contact Us For Availability
21
MAY 2176281 MAY 2176281 Contact Us For Availability
21
Cup, Shelf Mtg. MAY 2163762 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
MAY 489341 MAY 489341 Contact Us For Availability
22
Plug-Trim MAY 2156007 Contact Us For Availability
22
MAY 2200863 MAY 2200863 Contact Us For Availability
22
Shelf-Cantilever Meat Pan MAY 2201105 Contact Us For Availability
22
Module Assembly (Includes Item 24) MAY 626680 Contact Us For Availability
23
MAY 487576 MAY 487576 Contact Us For Availability
23
MAY 2156006 MAY 2156006 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
23
MAY 2254354 MAY 2254354 Contact Us For Availability
23
Slide, Humidity Control MAY 2176222 Contact Us For Availability
24
MAY 2254385 MAY 2254385 Contact Us For Availability
24
MAY 2218113 MAY 2218113 Contact Us For Availability
24
MAY 2189452 MAY 2189452 Contact Us For Availability
24
Relay (Service Only) MAY 2183454 Contact Us For Availability
24
MAY 2212446 MAY 2212446 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
25
MAY 2213363 MAY 2213363 Contact Us For Availability
25
Cover, Hinge (Bisque) MAY 2213364 Contact Us For Availability
25
MAY 2320412B MAY 2320412B Contact Us For Availability
25
Handle, Freezer (Bisque) MAY 2320412T Contact Us For Availability
25
MAY 2320412W MAY 2320412W Contact Us For Availability
25
Screw MAY 488208 Contact Us For Availability
25
Strap MAY 2223314 Contact Us For Availability
26
Trivet-Door (FC) MAY 2159291 Contact Us For Availability
26
MAY 2210390 MAY 2210390 Contact Us For Availability
26
Capacitor (Service) MAY 1118576 Contact Us For Availability
26
MAY 2169373 MAY 2169373 Contact Us For Availability
26
Screw, 8-18 x 1/2 MAY 489442 Contact Us For Availability
27
MAY 2254578 MAY 2254578 Contact Us For Availability
27
MAY 2254454 MAY 2254454 Contact Us For Availability
28
MAY 2195949 MAY 2195949 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 14 & 29) MAY W10171785 Contact Us For Availability
29
MAY 2254453 MAY 2254453 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
30
MAY 2320183 MAY 2320183 Contact Us For Availability
30
MAY 2155774 MAY 2155774 Contact Us For Availability
31
MAY 2204639 MAY 2204639 Contact Us For Availability
31
MAY 2315541 MAY 2315541 Contact Us For Availability
32
MAY 2321800 MAY 2321800 Contact Us For Availability
32
MAY 2188728 MAY 2188728 Contact Us For Availability
33
Wire Assembly Freezer Compt. (Includes Item 3 MAY W10129799 Contact Us For Availability
33
MAY 2310433 MAY 2310433 Contact Us For Availability
34
MAY 2302536 MAY 2302536 Contact Us For Availability
34
MAY 2225834 MAY 2225834 Contact Us For Availability
35
MAY 2179859 MAY 2179859 Contact Us For Availability
36
MAY 2205079 MAY 2205079 Contact Us For Availability
36
MAY 2214924 MAY 2214924 Contact Us For Availability
37
MAY 2163810 MAY 2163810 Contact Us For Availability
37
MAY 2154109 MAY 2154109 Contact Us For Availability
38
MAY 488500 MAY 488500 Contact Us For Availability
39
MAY 3400518 MAY 3400518 Contact Us For Availability
40
Evaporator Tray MAY 2254574 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 31462 MAY 31462 Contact Us For Availability
NI
Enamel, White (12 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
Enamel, Black (12 Oz. Spray Can) MAY 350939 Contact Us For Availability
NI
Primer, White (12 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
Brush Touch-Up Kit (Biscuit) MAY 4392899 Contact Us For Availability
NI
Enamel, Biscuit (1 Qt. Uncut) MAY 4392900 Contact Us For Availability
NI
Enamel, Biscuit (12 Oz. Spray Can) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
