Model Maytag MTB1954EES03 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

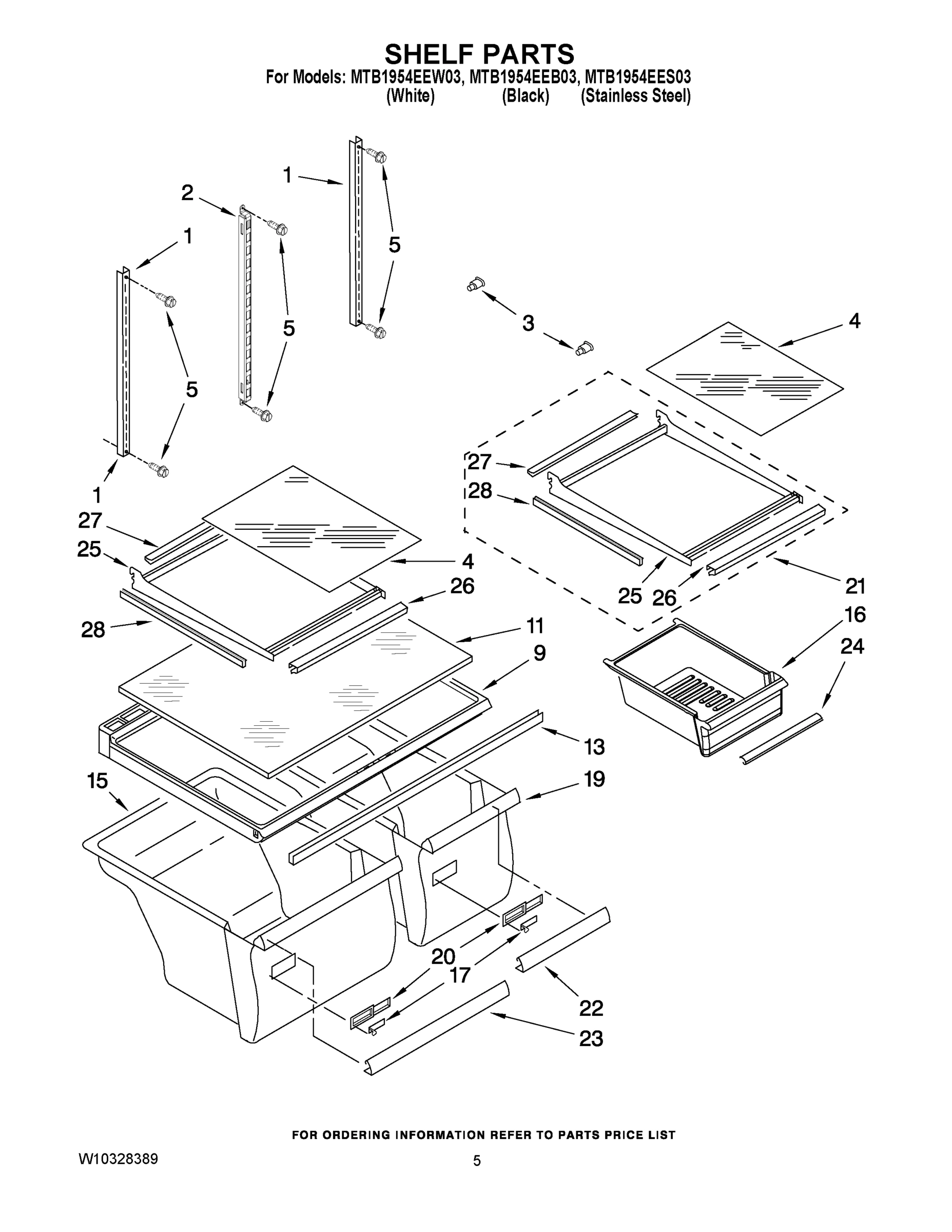

03 - SHELF PARTS

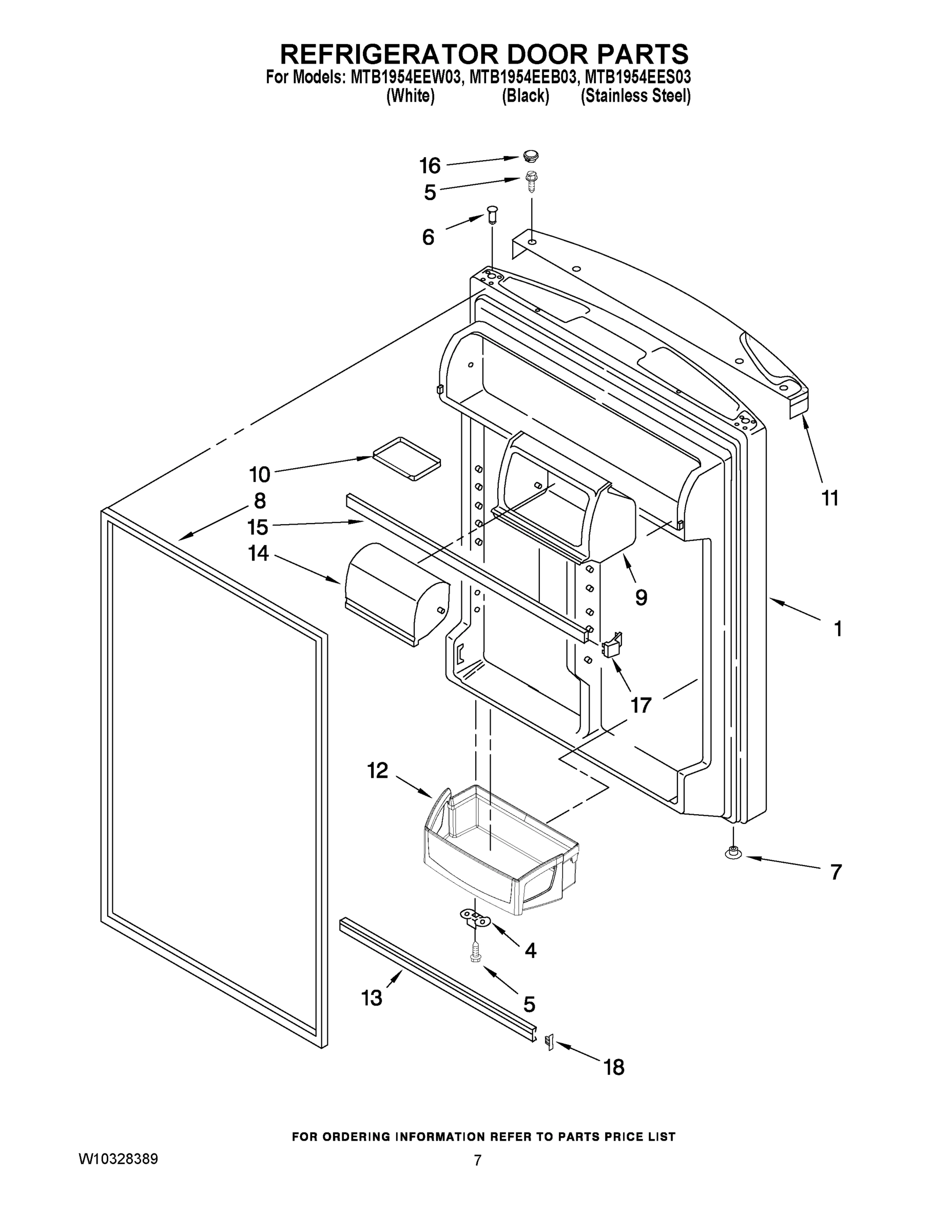

04 - REFRIGERATOR DOOR PARTS

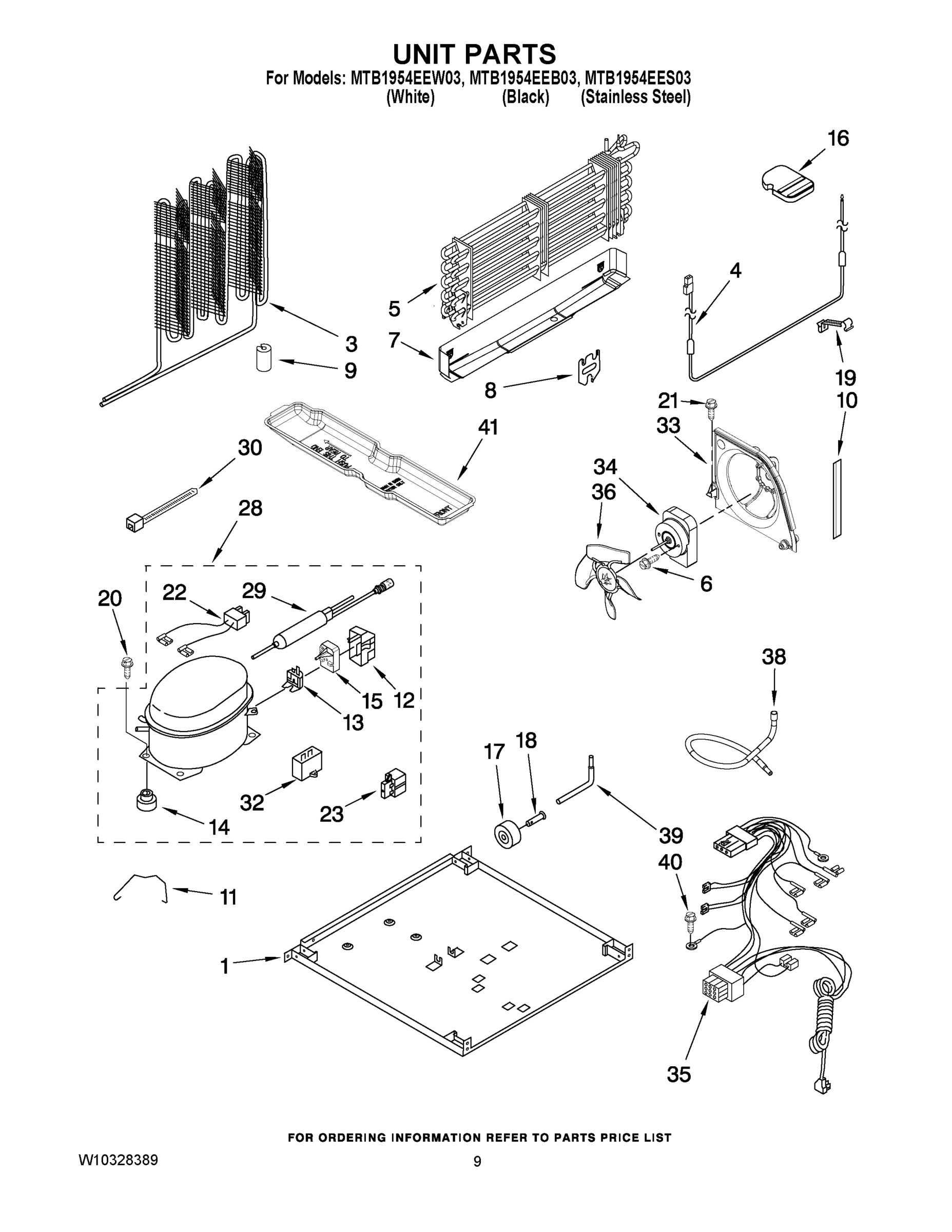

05 - UNIT PARTS

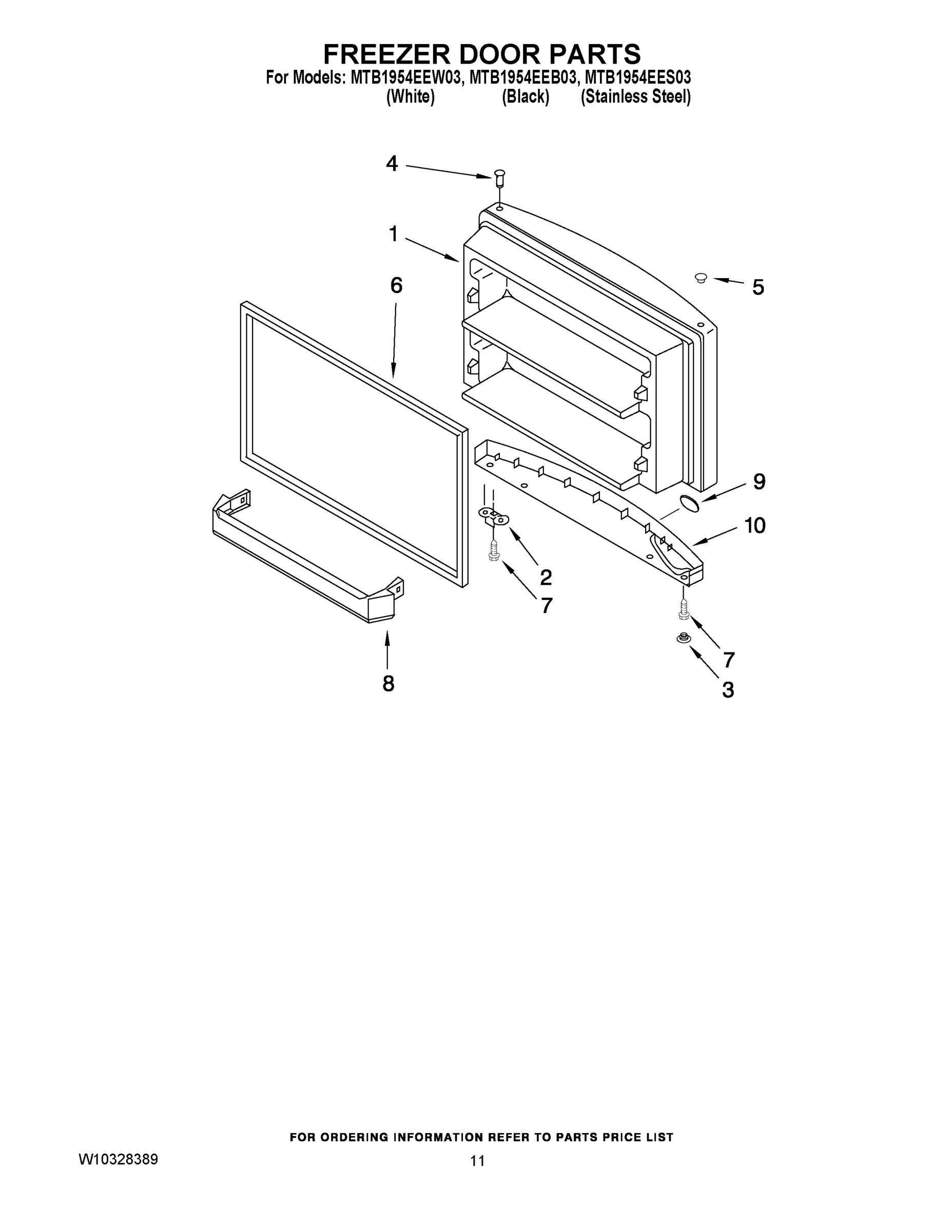

06 - FREEZER DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MTB1954EES03 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
BILINGUAL MAY W10249206 Contact Us For Availability
1
TRILINGUAL MAY W10249207 Contact Us For Availability
1
MAY W10251541 MAY W10251541 Contact Us For Availability
1
MAY W10312254 MAY W10312254 Contact Us For Availability
1
MAY 2210522 MAY 2210522 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 8) (Wh MAY 2205395 Contact Us For Availability
1
MAY 2205398 MAY 2205398 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (ST MAY W10271892 Contact Us For Availability
1
MAY 2320188 MAY 2320188 Contact Us For Availability
1
Freezer Door (Includes Illus. 4 & 6) (White) MAY 2205399 Contact Us For Availability
1
MAY 2205402 MAY 2205402 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (STAINLE MAY W10271893 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
Grommet (2) MAY 2197380 Contact Us For Availability
2
MAY 2300520 MAY 2300520 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
3
MAY 2166108 MAY 2166108 Contact Us For Availability
3
Gasket, Evaporator Cover (2) MAY 2254359 Contact Us For Availability
3
MAY 2163762 MAY 2163762 Contact Us For Availability
3
MAY 2204837 MAY 2204837 Contact Us For Availability
3
MAY 2204840 MAY 2204840 Contact Us For Availability
3
MAY W10159808 MAY W10159808 Contact Us For Availability
4
MAY 2189356 MAY 2189356 Contact Us For Availability
4
Timer, Defrost MAY 2304099 Contact Us For Availability
4
MAY 2200985 MAY 2200985 Contact Us For Availability
4
MAY 2183003 MAY 2183003 Contact Us For Availability
4
MAY 2315531 MAY 2315531 Contact Us For Availability
5
MAY 2212485 MAY 2212485 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
Hole Plug, Hinge Sleeve (White) MAY 2212648 Contact Us For Availability
5
MAY 2212651 MAY 2212651 Contact Us For Availability
5
MAY 2254250 MAY 2254250 Contact Us For Availability
6
MAY 2221797 MAY 2221797 Contact Us For Availability
6
MAY 8534009 MAY 8534009 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY 2214966 MAY 2214966 Contact Us For Availability
6
MAY 2214968 MAY 2214968 Contact Us For Availability
7
MAY 3400504 MAY 3400504 Contact Us For Availability
7
MAY 2310057 MAY 2310057 Contact Us For Availability
7
MAY 489276 MAY 489276 Contact Us For Availability
7
MAY 2254294 MAY 2254294 Contact Us For Availability
8
Tube Clamp MAY 489385 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2202874 MAY 2202874 Contact Us For Availability
8
MAY 2202881 MAY 2202881 Contact Us For Availability
8
MAY 2176301 MAY 2176301 Contact Us For Availability
8
Trivet MAY 2159291 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
MAY 2179858 MAY 2179858 Contact Us For Availability
9
MAY 2314548 MAY 2314548 Contact Us For Availability
9
MAY 2210566 MAY 2210566 Contact Us For Availability
9
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
9
MAY 13035001 MAY 13035001 Contact Us For Availability
10
MAY 549193 MAY 549193 Contact Us For Availability
10
Fan Motor MAY 2315539 Contact Us For Availability
10
MAY 2159302 MAY 2159302 Contact Us For Availability
10
MAY 2300638 MAY 2300638 Contact Us For Availability
10
MAY 2300583B MAY 2300583B Contact Us For Availability
10
MAY 2300583W MAY 2300583W Contact Us For Availability
11
MAY 489497 MAY 489497 Contact Us For Availability
11
Fan Blade MAY 2163777 Contact Us For Availability
11
MAY 2221693 MAY 2221693 Contact Us For Availability
11
MAY 2300579B MAY 2300579B Contact Us For Availability
11
MAY 2300579W MAY 2300579W Contact Us For Availability
11
Strap MAY 2255113 Contact Us For Availability
12
MAY 2254618 MAY 2254618 Contact Us For Availability
12
MAY 2212982 MAY 2212982 Contact Us For Availability
12
Bin, Door (3) MAY 2179605 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
13
MAY 2183852 MAY 2183852 Contact Us For Availability
13
Thermostat Assembly (Includes Illus. 5 & 18) MAY 2200830 Contact Us For Availability
13
MAY 2314477 MAY 2314477 Contact Us For Availability
13
Trim, Door Shelf MAY 2195949 Contact Us For Availability
13
OVERLOAD ((SERVICE ONLY)) MAY 4390624 Contact Us For Availability
14
MAY 8281265 MAY 8281265 Contact Us For Availability
14
MAY 2218109 MAY 2218109 Contact Us For Availability
14
MAY 1100826 MAY 1100826 Contact Us For Availability
14
MAY 4387558 MAY 4387558 Contact Us For Availability
15
MAY 2254473 MAY 2254473 Contact Us For Availability
15
MAY 487996 MAY 487996 Contact Us For Availability
15
Pan, Crisper (13-Inch) (Includes 17 20 & 23) MAY 2218130 Contact Us For Availability
15
MAY 2159312 MAY 2159312 Contact Us For Availability
15
START-DEVICE COMBINATION (START RELAY AND OVE MAY W10249964 Contact Us For Availability
16
MAY 2320191 MAY 2320191 Contact Us For Availability
16
MAY 2218127 MAY 2218127 Contact Us For Availability
16
MAY 2201184 MAY 2201184 Contact Us For Availability
17
MAY 2183998 MAY 2183998 Contact Us For Availability
17
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
17
Light Bulb (2) MAY 527949 Contact Us For Availability
17
Slide, Humidity Control MAY 2176222 Contact Us For Availability
17
MAY 2177340 MAY 2177340 Contact Us For Availability
17
MAY 2150304 MAY 2150304 Contact Us For Availability
18
CORNER FILLER (2) (WHITE) MAY W10283959 Contact Us For Availability
18
MAY W10283960 MAY W10283960 Contact Us For Availability
18
MAY 2200831 MAY 2200831 Contact Us For Availability
18
MAY 2156006 MAY 2156006 Contact Us For Availability
18
MAY 2179826 MAY 2179826 Contact Us For Availability
19
Grille (Includes Illus. 4 & 22) (White) MAY 2254386 Contact Us For Availability
19
Grille (Includes Illus. 4 & 22) (Black) MAY 2254388 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
Pan, Crisper (10-Inch) (Includes 17 20 & 22) MAY 2218129 Contact Us For Availability
19
MAY 2182338 MAY 2182338 Contact Us For Availability
20
Washer, Plain MAY 489341 Contact Us For Availability
20
MAY W10129791 MAY W10129791 Contact Us For Availability
20
MAY 2212446 MAY 2212446 Contact Us For Availability
20
MAY 489373 MAY 489373 Contact Us For Availability
21
Washer, Nylon MAY 487576 Contact Us For Availability
21
MAY 2176281 MAY 2176281 Contact Us For Availability
21
SHELF ASSEMBLY MAY 2189453 Contact Us For Availability
21
MAY 3400518 MAY 3400518 Contact Us For Availability
22
MAY 2254385 MAY 2254385 Contact Us For Availability
22
MAY 2200863 MAY 2200863 Contact Us For Availability
22
MAY 2320366 MAY 2320366 Contact Us For Availability
22
Wire Assembly (Service Only) MAY 4387765 Contact Us For Availability
23
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
23
MAY 2213363 MAY 2213363 Contact Us For Availability
23
MAY 2254354 MAY 2254354 Contact Us For Availability
23
MAY 2320357 MAY 2320357 Contact Us For Availability
23
Relay (Service Only) MAY 2183454 Contact Us For Availability
24
MAY 2189452 MAY 2189452 Contact Us For Availability
24
MAY 2176356 MAY 2176356 Contact Us For Availability
25
MAY 2254578 MAY 2254578 Contact Us For Availability
25
MAY 2205003 MAY 2205003 Contact Us For Availability
25
FRAME ASSEMBLY MAY 2201105 Contact Us For Availability
26
AIR SEPARATOR, ASSEMBLY MAY 2179877 Contact Us For Availability
26
Trim-Shelf, Front MAY 2188684 Contact Us For Availability
27
MAY 489442 MAY 489442 Contact Us For Availability
27
Screw MAY 488208 Contact Us For Availability
27
Trim-Shelf, Rear MAY 2188686 Contact Us For Availability
28
MAY 2321800 MAY 2321800 Contact Us For Availability
28
Trim Shelf, Side MAY 2188711 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 12,13,14,22,23, 29 MAY W10252075 Contact Us For Availability
29
MAY 2254453 MAY 2254453 Contact Us For Availability
29
Drier (Service) MAY W10177049 Contact Us For Availability
30
MAY 2155774 MAY 2155774 Contact Us For Availability
31
MAY 2204639 MAY 2204639 Contact Us For Availability
32
Capacitor (Service) MAY 1118576 Contact Us For Availability
32
Capacitor (Production) MAY 2264017 Contact Us For Availability
33
MAY 2315541 MAY 2315541 Contact Us For Availability
34
MAY 2302536 MAY 2302536 Contact Us For Availability
34
MAY 2188874 MAY 2188874 Contact Us For Availability
35
MAY 2254454 MAY 2254454 Contact Us For Availability
35
Wire Assembly Unit MAY 2187382 Contact Us For Availability
36
MAY 2205079 MAY 2205079 Contact Us For Availability
36
MAY 2225834 MAY 2225834 Contact Us For Availability
37
Hole Plug (Icemaker) MAY 941839 Contact Us For Availability
38
MAY 2225237 MAY 2225237 Contact Us For Availability
39
MAY 2300417 MAY 2300417 Contact Us For Availability
39
MAY 2154109 MAY 2154109 Contact Us For Availability
40
MAY 488500 MAY 488500 Contact Us For Availability
41
MAY 2187601 MAY 2187601 Contact Us For Availability
41
Evaporator Tray MAY 2254574 Contact Us For Availability
42
Electrical Shield, Freezer Light MAY 2193491 Contact Us For Availability
43
Light Bulb MAY 850166 Contact Us For Availability
44
MAY 2179859 MAY 2179859 Contact Us For Availability
45
MAY 2163810 MAY 2163810 Contact Us For Availability
46
MAY 2166284 MAY 2166284 Contact Us For Availability
47
Valve MAY 2210509 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.0 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF94) MAY 2155469 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
