Model Whirlpool MT9160XYQ1 – Common Parts & Diagrams
03 - MAGNETRON AND AIR FLOW
05 - DOOR AND LATCH

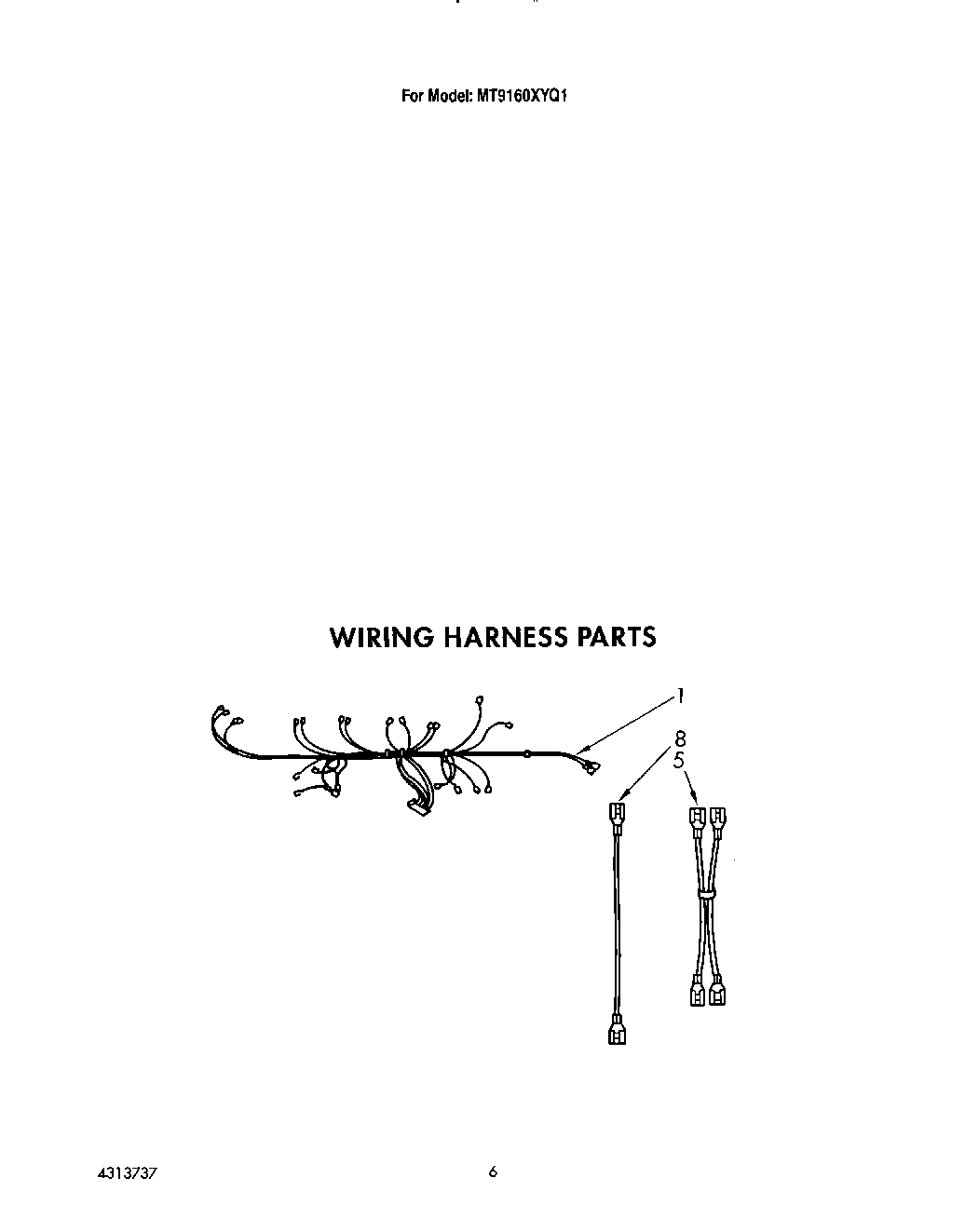

07 - WIRING HARNESS

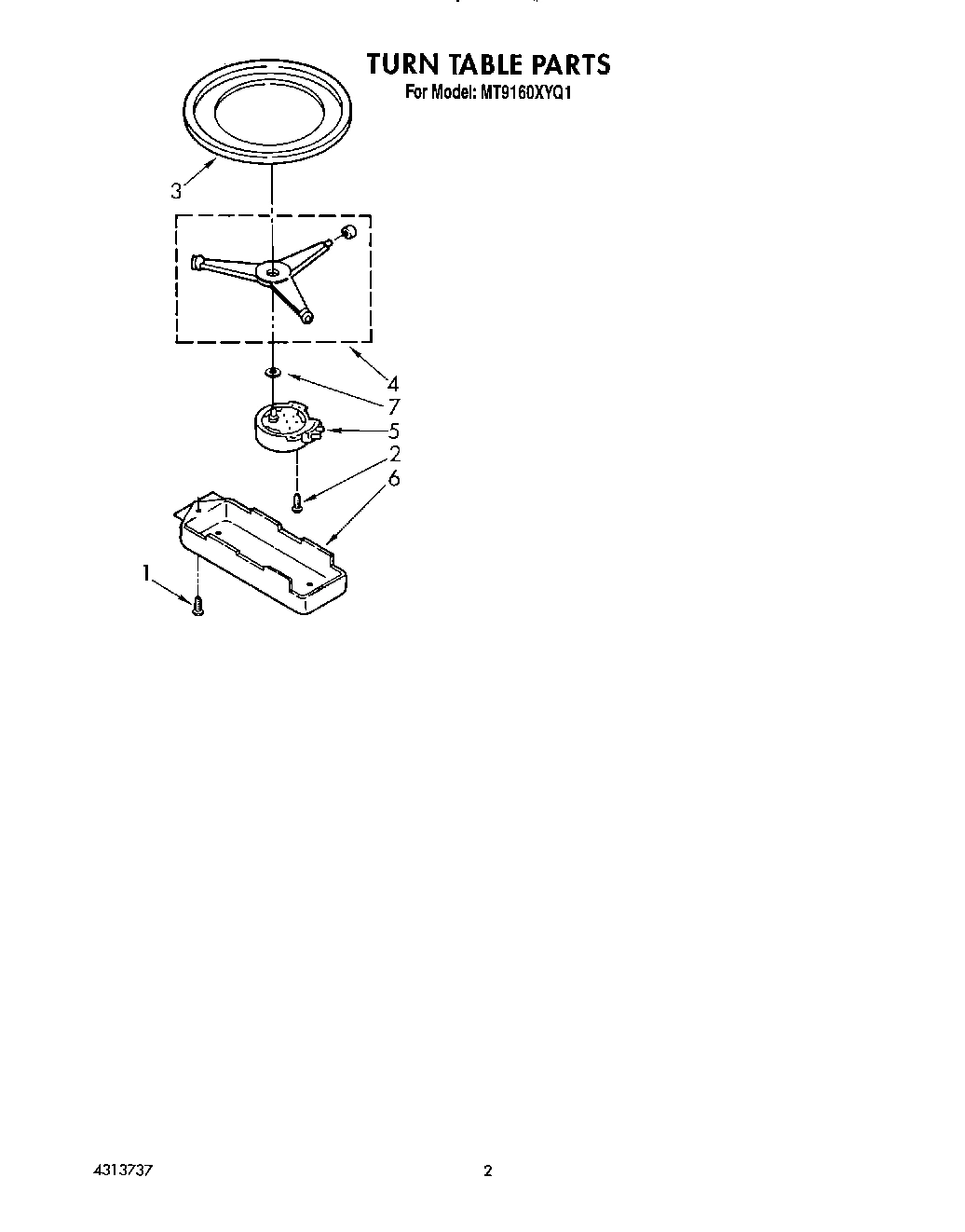

02 - TURNTABLE, LIT/OPTIONAL

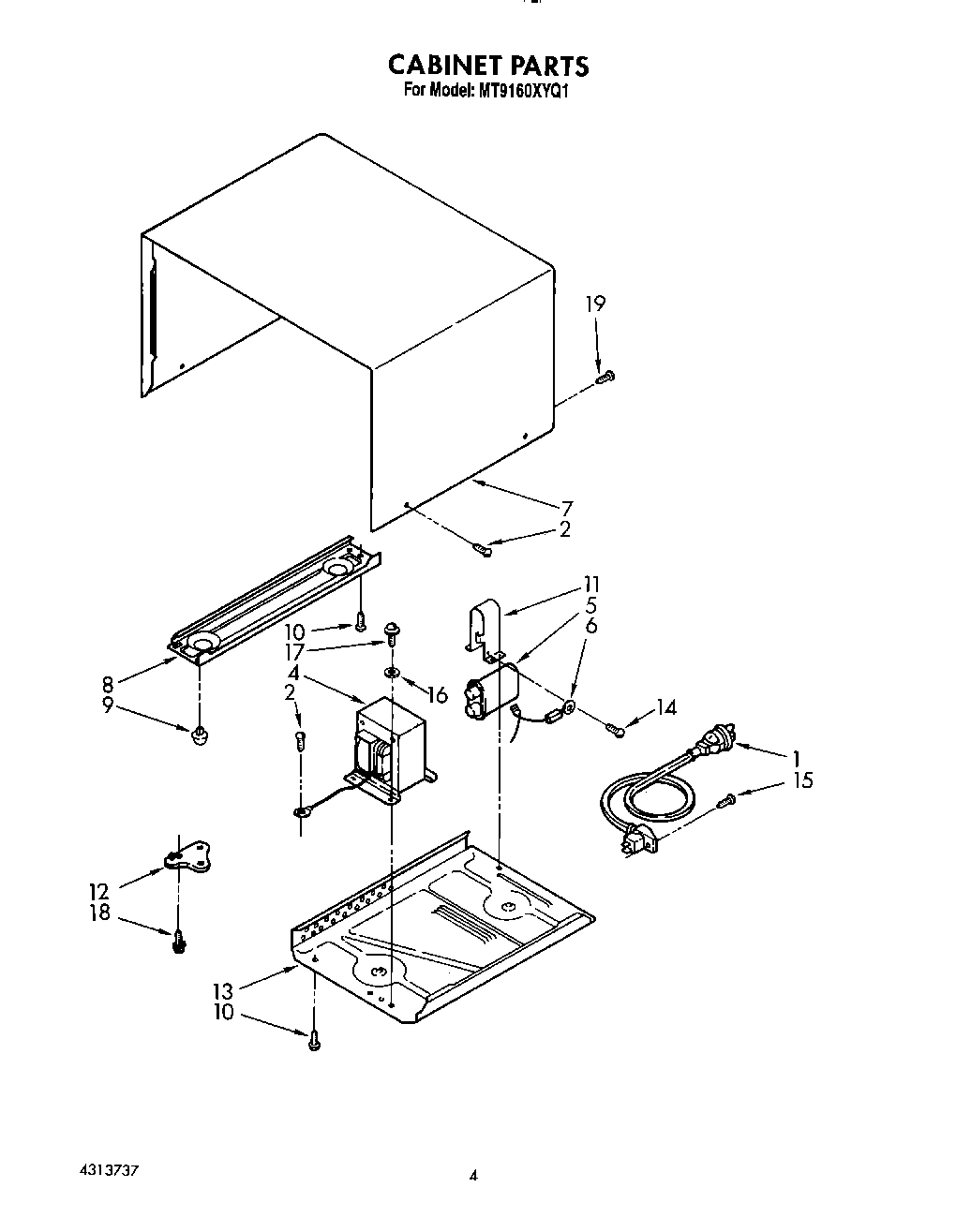

04 - CABINET

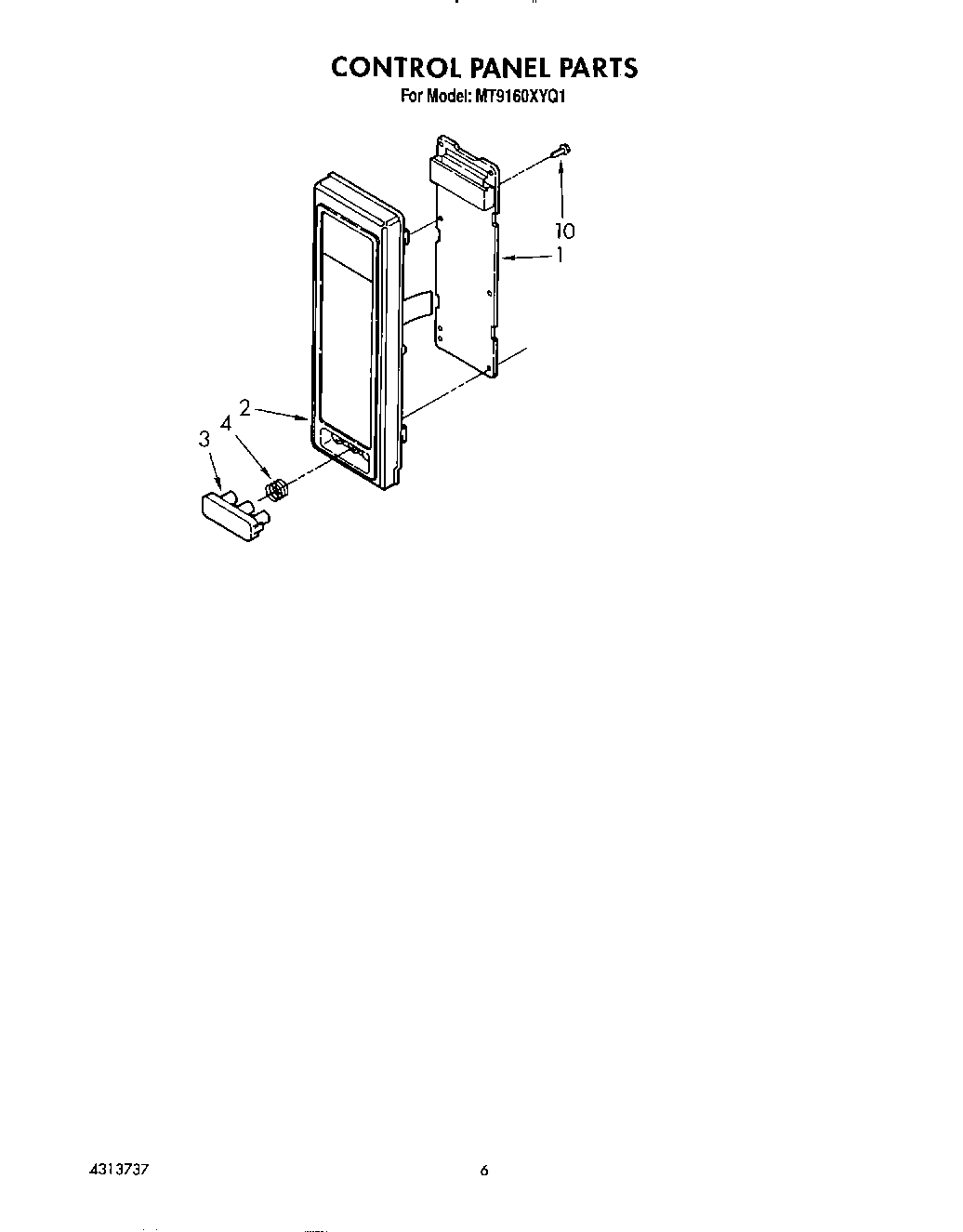

06 - CONTROL PANEL AND LATCH
Common parts from model Whirlpool MT9160XYQ1
Built In Kit (For Use Over Non Heat Source) ( WPL 4319162 Contact Us For Availability
Built In Kit (For Use Over Non Heat Source) ( WPL 4319163 Contact Us For Availability
Built-In Kit (For Use Over Non-Heat Source) ( WPL 4386536 Contact Us For Availability
White WPL 4386538 Contact Us For Availability
Manual, Operation WPL LIT4313709 Contact Us For Availability
Tech Sheet WPL LIT4313732 Contact Us For Availability
List, Repair Parts WPL LIT4313737 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4365521 Contact Us For Availability
1
Harness, Main WPL 4365524 Contact Us For Availability
1
Screw, 4 x 8 mm WPL 4313661 Contact Us For Availability
1
Power Cord WPL 4313617 Contact Us For Availability
1
Microcomputer WPL 4365527 Contact Us For Availability
2
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
2
Screw, 4 x 12 mm (Black) WPL 4174821 Contact Us For Availability
2
Screw, 4 x 12 mm (White) WPL 4313669 Contact Us For Availability
2
Control Panel (Black) WPL 4365528 Contact Us For Availability
2
Control Panel (White) WPL 4365529 Contact Us For Availability
3
Tray, Glass WPL 4313690 Contact Us For Availability
3
Push Button (White) WPL 4313695 Contact Us For Availability
3
Push Button (Black) WPL 4313696 Contact Us For Availability
4
Magnetron WPL 4313675 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
4
Support, Turntable WPL 4365526 Contact Us For Availability
4
Transformer WPL 4313677 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
5
Harness, Thermal Protection WPL 4365523 Contact Us For Availability
5
Motor, Turntable WPL 4313676 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
6
Cover, Motor WPL 4313685 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
7
Gasket, Turntable WPL 4313642 Contact Us For Availability
7
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
7
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
7
Outer Cabinet (White) WPL 4313688 Contact Us For Availability
7
Outer Cabinet (Black) WPL 4313689 Contact Us For Availability
8
Thermostat, Oven WPL 4313674 Contact Us For Availability
8
H.V. Wire Transformer To Capacitor WPL 4313679 Contact Us For Availability
8
Base Plate, Left Side WPL 4313683 Contact Us For Availability
9
Screw, 4 x 12 mm WPL 4313701 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI119066A Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
10
Spacer, Cavity WPL 4313691 Contact Us For Availability
10
Screw, 4 x 16 mm WPL 4357320 Contact Us For Availability
10
Panel, Door (Not Serviceable) WPL ARI119067A Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
11
Choke Cover (White) WPL 4313699 Contact Us For Availability
11
Choke Cover (Black) WPL 4313700 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
12
Screw No.4 x 12mm WPL 4313663 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI119068A Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
13
Cushion, Motor WPL 4174824 Contact Us For Availability
13
Base Plate, Right Side WPL 4365525 Contact Us For Availability
14
Latch, Door (Black) WPL 4313652 Contact Us For Availability
14
Latch, Door (White) WPL 4313653 Contact Us For Availability
14
Screw, No.4 x 8 mm WPL 4174811 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
15
Screw WPL 4313666 Contact Us For Availability
16
Cavity, Oven (Not a Serviceable Part) WPL ARI119069A Contact Us For Availability
16
Washer, Ground WPL 4365501 Contact Us For Availability
17
Screw WPL 4313662 Contact Us For Availability
18
Holder, Fuse WPL 4174899 Contact Us For Availability
18
Screw WPL 4313664 Contact Us For Availability
19
Hinge, Upper WPL 4313638 Contact Us For Availability
19
Screw WPL 4313665 Contact Us For Availability
20
Screw WPL 4174826 Contact Us For Availability
20
Door, Complete (White) WPL 4313697 Contact Us For Availability
20
Door, Complete (Black) WPL 4313698 Contact Us For Availability
21
Screw WPL 4365530 Contact Us For Availability
23
Duct, Magnetron WPL 4313633 Contact Us For Availability
24
Cover, Wave Guide WPL 4313687 Contact Us For Availability
25
Shield, Magnetron WPL 4313643 Contact Us For Availability
× ![]()
