Model Whirlpool MT9160XEB0 – Common Parts & Diagrams
01 - CABINET
03 - DOOR AND LATCH

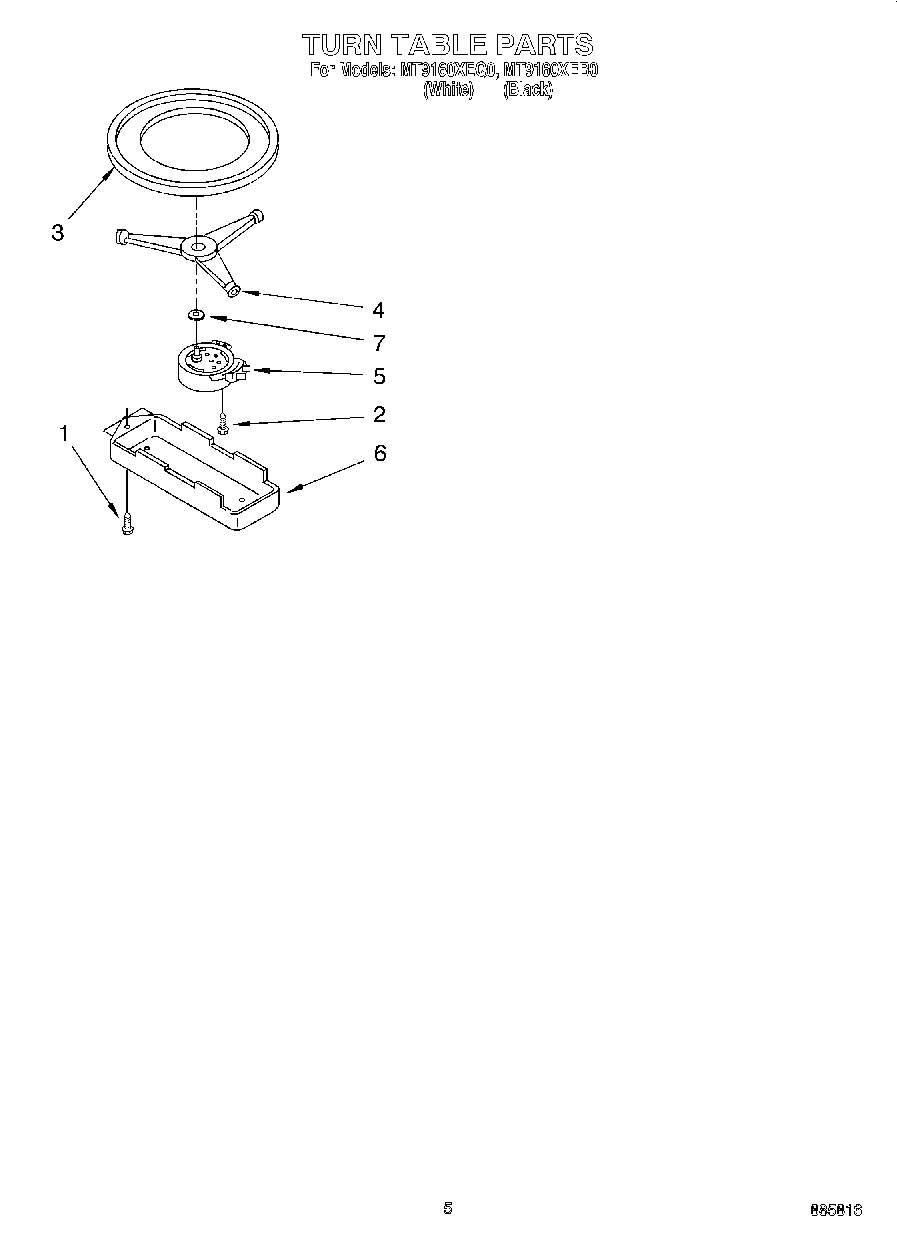

05 - TURN TABLE, LIT/OPTIONAL

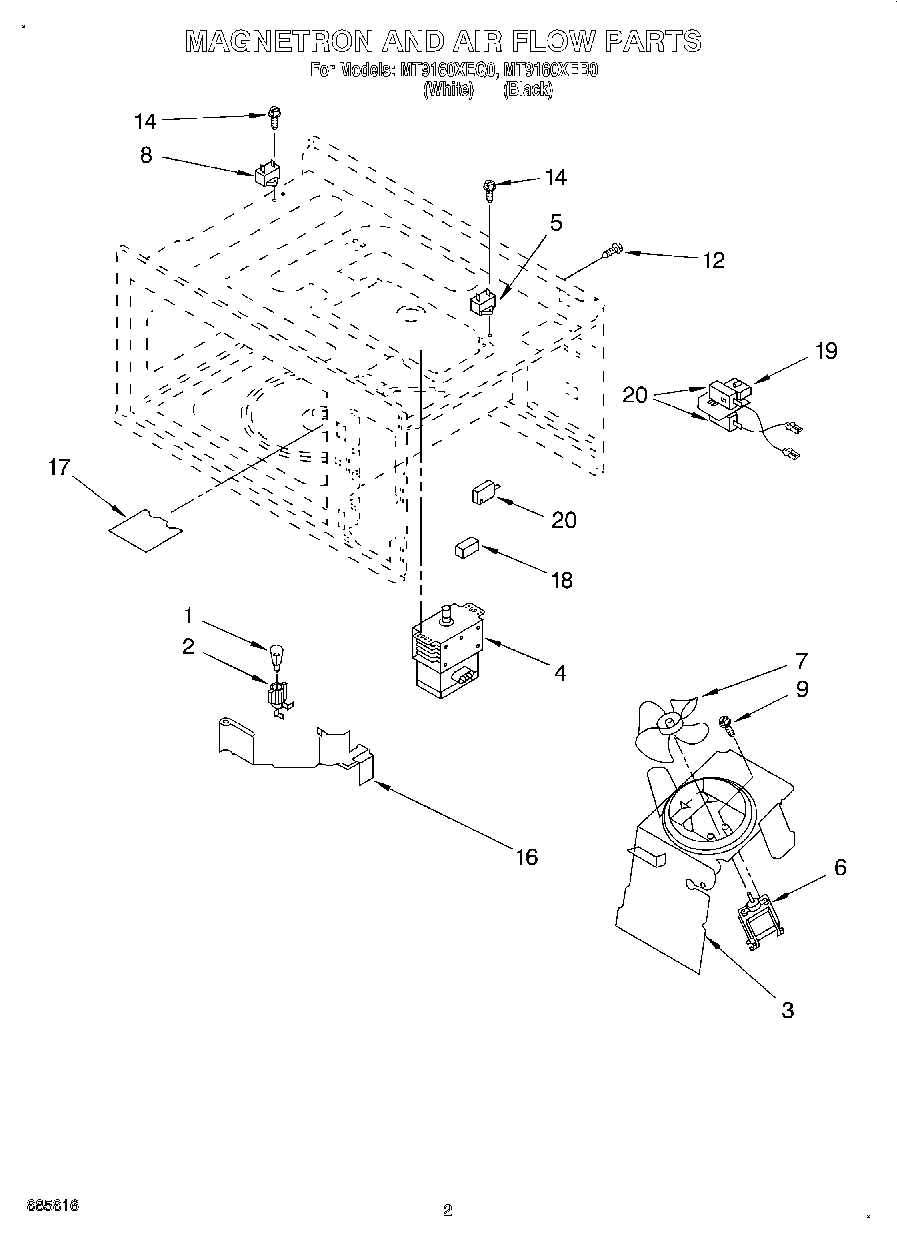

02 - MAGNETRON AND AIR FLOW

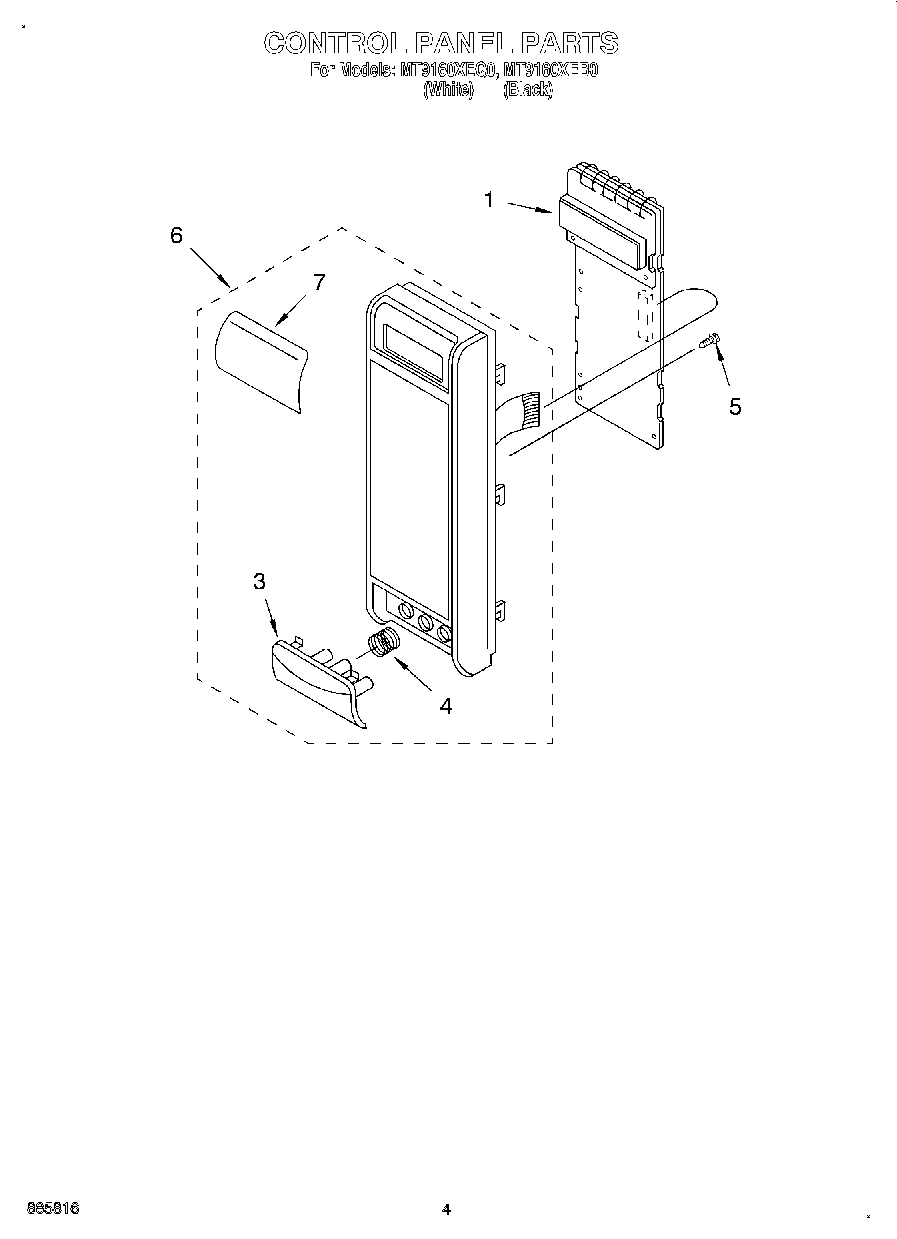

04 - CONTROL PANEL
Common parts from model Whirlpool MT9160XEB0
Harness, Fuse WPL 4313148 Contact Us For Availability
Harness, Main WPL 4313149 Contact Us For Availability
Harness, L.V. WPL 4313150 Contact Us For Availability
Harness, HV WPL 4313679 Contact Us For Availability
Cooking Guide WPL LIT4365609 Contact Us For Availability
Use & Care Guide WPL LIT4365611 Contact Us For Availability
Tech Sheet WPL LIT4365612 Contact Us For Availability
1
Screw, 4 x 8 mm WPL 4313661 Contact Us For Availability
1
Lamp, Oven WPL 4313608 Contact Us For Availability
1
Microcomputer WPL 4313157 Contact Us For Availability
2
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
2
Socket, Lamp WPL 4313102 Contact Us For Availability
3
Tray, Glass WPL 4313690 Contact Us For Availability
3
Duct, Fan WPL 4313686 Contact Us For Availability
3
Push Button (Black) WPL 4313160 Contact Us For Availability
3
Push Button (White) WPL 4313168 Contact Us For Availability
4
Support, Turntable WPL 4313156 Contact Us For Availability
4
Magnetron WPL 4313675 Contact Us For Availability
5
Latch Lever WPL 4313118 Contact Us For Availability
5
Motor, Turntable WPL 4313146 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Screw WPL 4313632 Contact Us For Availability
6
Latch Hook WPL 4313116 Contact Us For Availability
6
Cover, Motor WPL 4365573 Contact Us For Availability
6
Motor, Fan WPL 4313145 Contact Us For Availability
6
Control Panel Assembly (Black Model) WPL 4313158 Contact Us For Availability
6
Control Panel Assembly (White Model) WPL 4313166 Contact Us For Availability
7
Outer Cabinet (Black) WPL 4313155 Contact Us For Availability
7
Outer Cabinet (White) WPL 4313165 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
7
Gasket, Turntable WPL 4313125 Contact Us For Availability
7
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
7
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Window WPL 4313130 Contact Us For Availability
8
Base Plate, Left Side WPL 4313152 Contact Us For Availability
8
Thermostat, Oven WPL 4313051 Contact Us For Availability
9
Foot (4) WPL 4365606 Contact Us For Availability
9
Door Panel WPL 4313163 Contact Us For Availability
9
Screw, 4 x 12 mm WPL 4313701 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Choke Cover (Black) WPL 4313164 Contact Us For Availability
11
Choke Cover (White) WPL 4313699 Contact Us For Availability
12
Screw No.4 x 12mm WPL 4313663 Contact Us For Availability
12
Frame, Door (Black Model) WPL 4313162 Contact Us For Availability
12
Frame, Door (White Model) WPL 4313170 Contact Us For Availability
13
Base Plate, Right Side WPL 4365525 Contact Us For Availability
14
Screw WPL 4174826 Contact Us For Availability
14
Latch, Door (Black) WPL 4313137 Contact Us For Availability
14
Latch, Door (White) WPL 4313653 Contact Us For Availability
15
Screw WPL 4312922 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
16
Cavity, Oven (Not a Serviceable Part) WPL ARI119048A Contact Us For Availability
16
Duct, Magnetron WPL 4313153 Contact Us For Availability
17
Cover, Wave Guide WPL 4313151 Contact Us For Availability
18
Holder, Fuse WPL 4313104 Contact Us For Availability
18
Shield, Magnetron WPL 4313643 Contact Us For Availability
19
Screw WPL 4357320 Contact Us For Availability
19
Adapter, Service WPL 4313113 Contact Us For Availability
20
Cushion, Wire WPL 4313644 Contact Us For Availability
20
Door, Complete (Black) WPL 4313161 Contact Us For Availability
20
Door, Complete (White) WPL 4313169 Contact Us For Availability
× ![]()
