Model Whirlpool MT9114SFQ0 – Common Parts & Diagrams
04 - INTERIOR
02 - DOOR

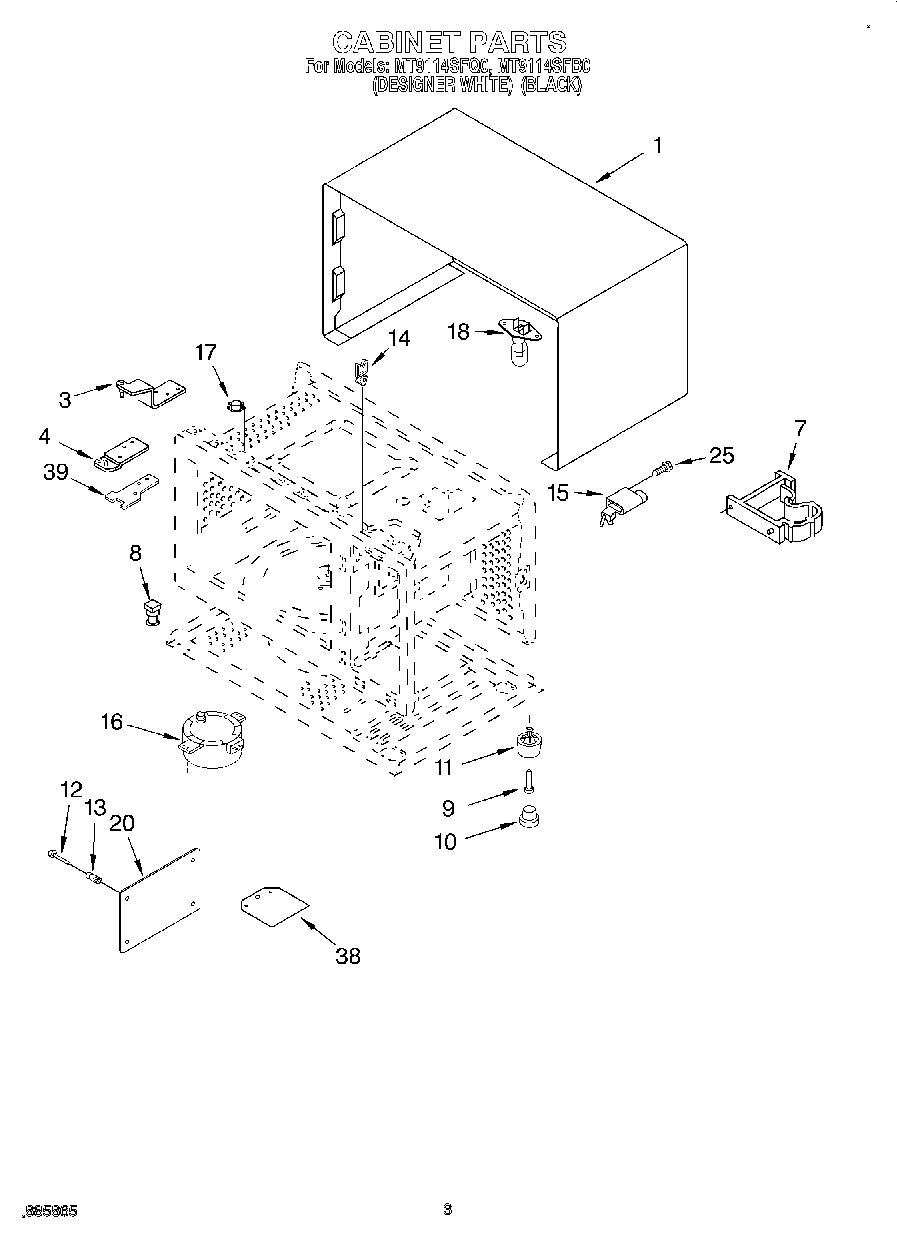

03 - CABINET, LITERATURE

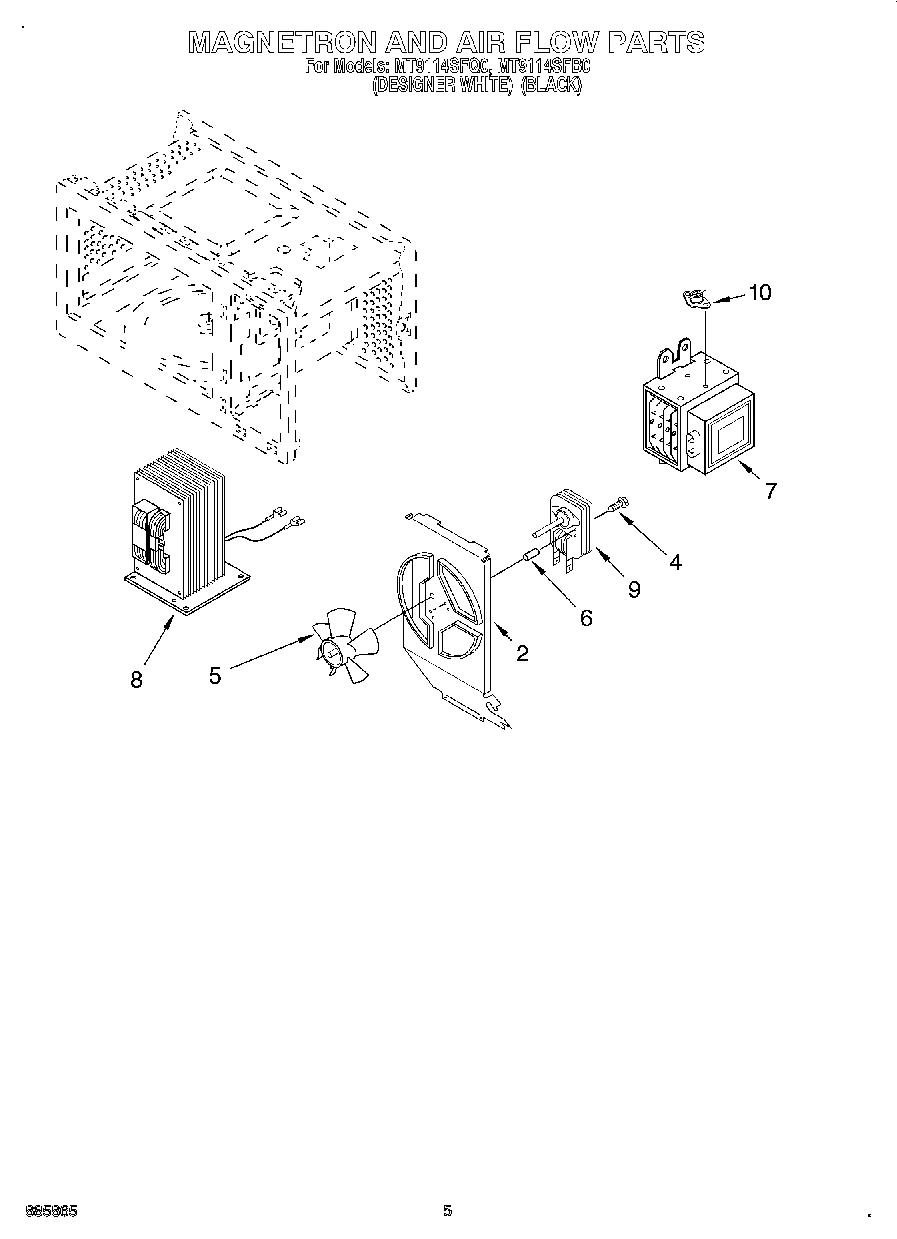

05 - MAGNETRON AND AIR FLOW

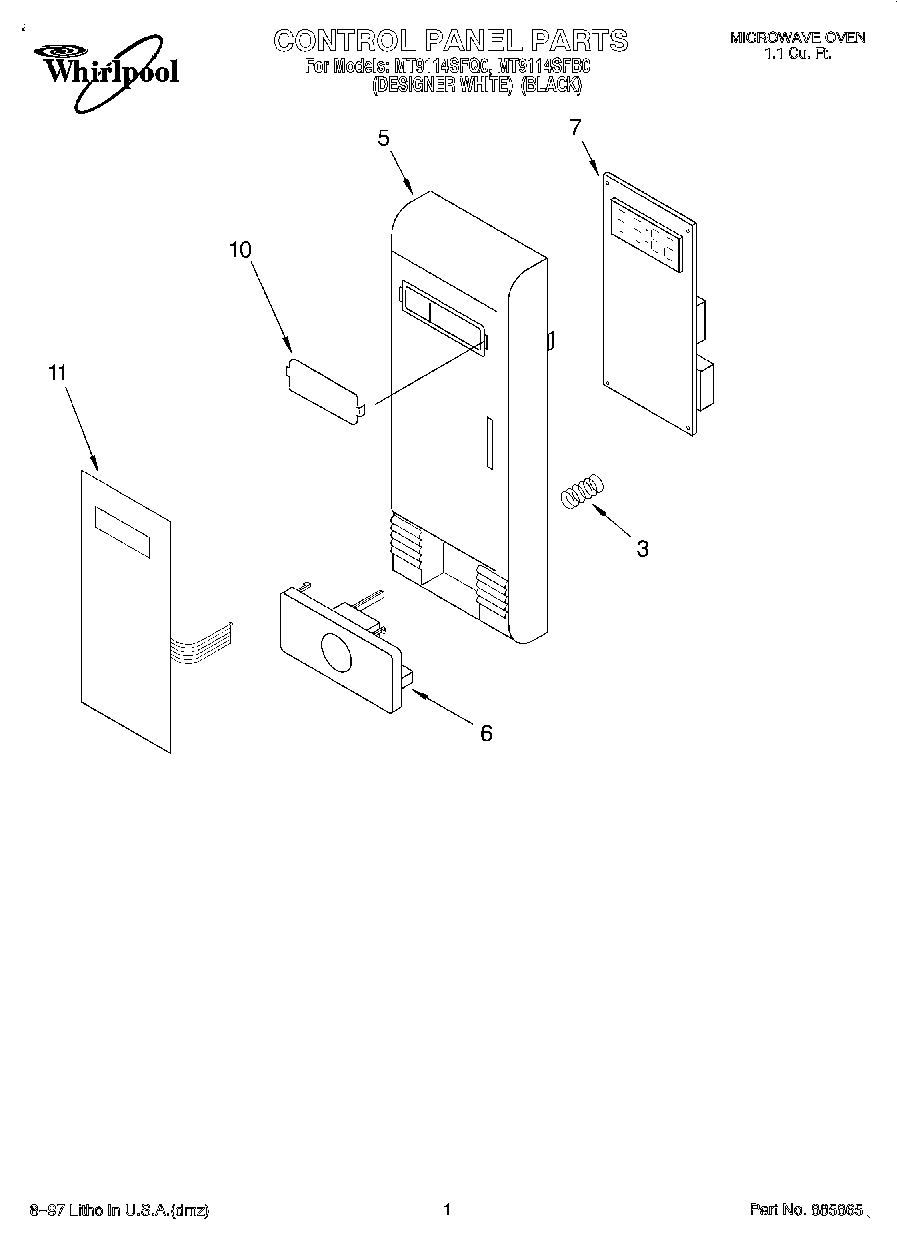

01 - CONTROL PANEL
Common parts from model Whirlpool MT9114SFQ0
Use & Care Guide WPL LIT4393440 Contact Us For Availability
Cooking Guide Label WPL LIT4393544 Contact Us For Availability
Tech Sheet WPL LIT4393640 Contact Us For Availability
1
Lever WPL 4393315 Contact Us For Availability
1
Plate, Front WPL 4393636 Contact Us For Availability
1
Cover, Oven (White Model) WPL 4393356 Contact Us For Availability
1
Cover, Oven (Black Model) WPL 4393357 Contact Us For Availability
2
Door Assembly WPL 4393380 Contact Us For Availability
2
Support, Fan Motor WPL 4393368 Contact Us For Availability
3
Cover, Door (Black) WPL 4393635 Contact Us For Availability
3
Cover, Door (White) WPL 4393641 Contact Us For Availability
3
Hinge, Upper WPL 4393361 Contact Us For Availability
3
Spring, Button WPL 4393349 Contact Us For Availability
4
Spring WPL 4393314 Contact Us For Availability
4
Film, Back WPL 4393578 Contact Us For Availability
4
Hinge, Lower WPL 4393360 Contact Us For Availability
4
Screw WPL 4393270 Contact Us For Availability
5
Latch Pivot WPL 4393344 Contact Us For Availability
5
Blade, Fan WPL 4393333 Contact Us For Availability
5
Cover, Panel (White Model) WPL 4393644 Contact Us For Availability
5
Cover, Panel (Black Model) WPL 4393645 Contact Us For Availability
6
Guide, Air WPL 4393362 Contact Us For Availability
6
Spring WPL 4393343 Contact Us For Availability
6
Sleeve WPL 4393329 Contact Us For Availability
6
Push Button (Black Model) WPL 4393638 Contact Us For Availability
6
Push Button (White Model) WPL 4393642 Contact Us For Availability
7
Turntable Ring WPL 4393319 Contact Us For Availability
7
Hook Connector WPL 4393377 Contact Us For Availability
7
Spacer, Back WPL 4393273 Contact Us For Availability
7
Magnetron WPL 4393326 Contact Us For Availability
7
Microcomputer WPL 4393637 Contact Us For Availability
8
Case, Fuse WPL 4393538 Contact Us For Availability
8
Shaft, Turntable WPL 4393317 Contact Us For Availability
8
Transformer WPL 4393370 Contact Us For Availability
9
Wheel WPL 4393494 Contact Us For Availability
9
Nail, Foot WPL 4393281 Contact Us For Availability
9
Motor, Fan WPL 4393540 Contact Us For Availability
10
Support, Interlock WPL 4393571 Contact Us For Availability
10
Frame, Door WPL 4393572 Contact Us For Availability
10
Pan Foot WPL 4393282 Contact Us For Availability
10
Thermostat WPL 4393325 Contact Us For Availability
10
Lens WPL 4393543 Contact Us For Availability
11
Capacitor WPL 4393320 Contact Us For Availability
11
Oven Foot WPL 4393280 Contact Us For Availability
11
Membrane (Black Model) WPL 4393639 Contact Us For Availability
11
Membrane (White Model) WPL 4393643 Contact Us For Availability
12
Diode WPL 4393485 Contact Us For Availability
12
Nail, Plastic WPL 4393291 Contact Us For Availability
13
Latch, Upper WPL 4393341 Contact Us For Availability
13
Bushing, Nail WPL 4393290 Contact Us For Availability
14
Latch, Lower WPL 4393340 Contact Us For Availability
14
Clip, Wire WPL 4393276 Contact Us For Availability
15
Pin, Door WPL 4393339 Contact Us For Availability
15
Strain Relief WPL 4393271 Contact Us For Availability
16
Power Cord WPL 4393304 Contact Us For Availability
16
Motor, Turntable WPL 4393285 Contact Us For Availability
17
Thermostat WPL 4393299 Contact Us For Availability
18
Switch, Secondary WPL 4393311 Contact Us For Availability
18
Light Assy. WPL 4393633 Contact Us For Availability
19
Tray, Glass WPL 4393367 Contact Us For Availability
20
Cover WPL 4393359 Contact Us For Availability
24
Switch, Monitor WPL 4393363 Contact Us For Availability
26
Lid WPL 4393497 Contact Us For Availability
28
Cover WPL 4393445 Contact Us For Availability
29
Rocker WPL 4393446 Contact Us For Availability
38
Plate, Rubber WPL 4393287 Contact Us For Availability
39
Plate, Spacer WPL 4393429 Contact Us For Availability
× ![]()
