Model Whirlpool MT9102SFB0 – Common Parts & Diagrams

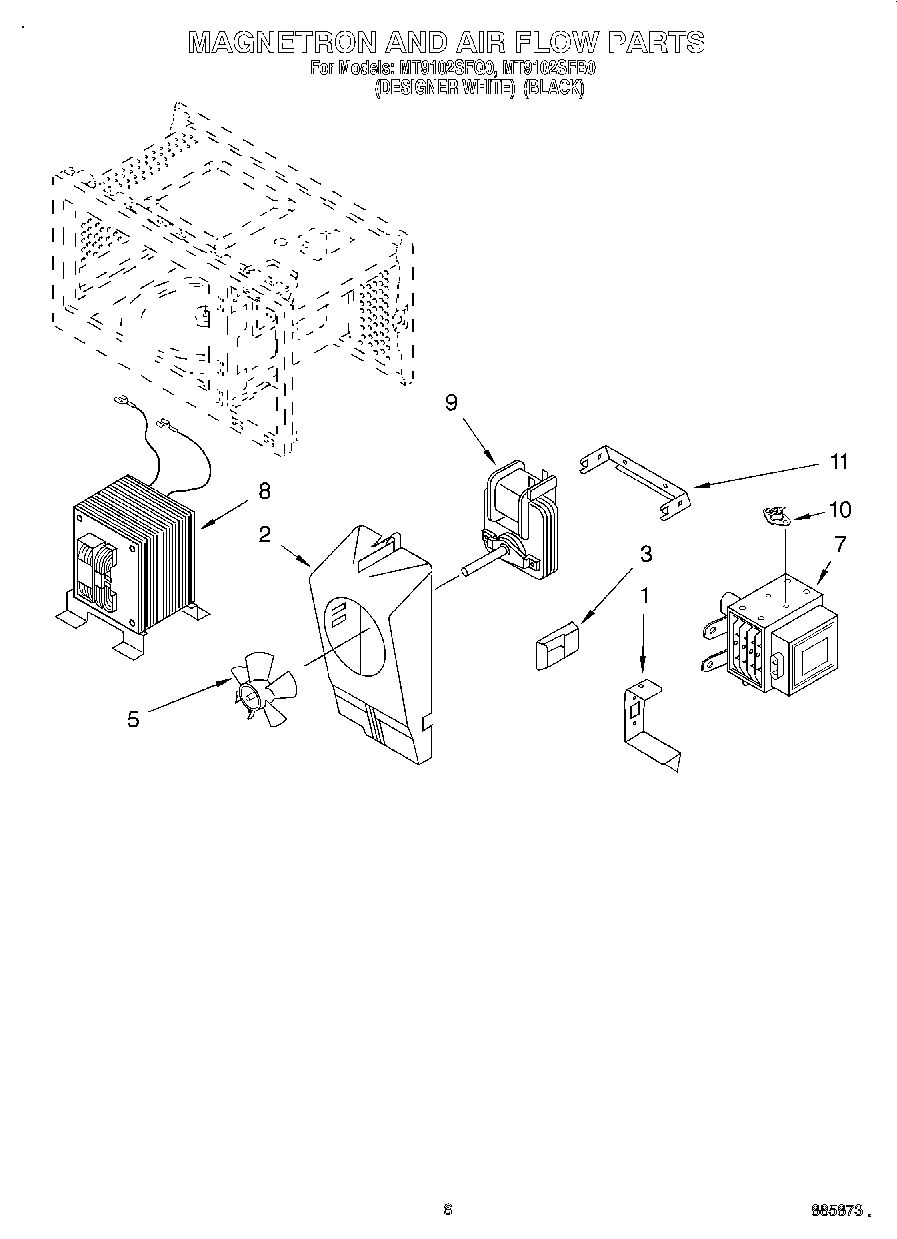

05 - MAGNETRON AND AIR FLOW

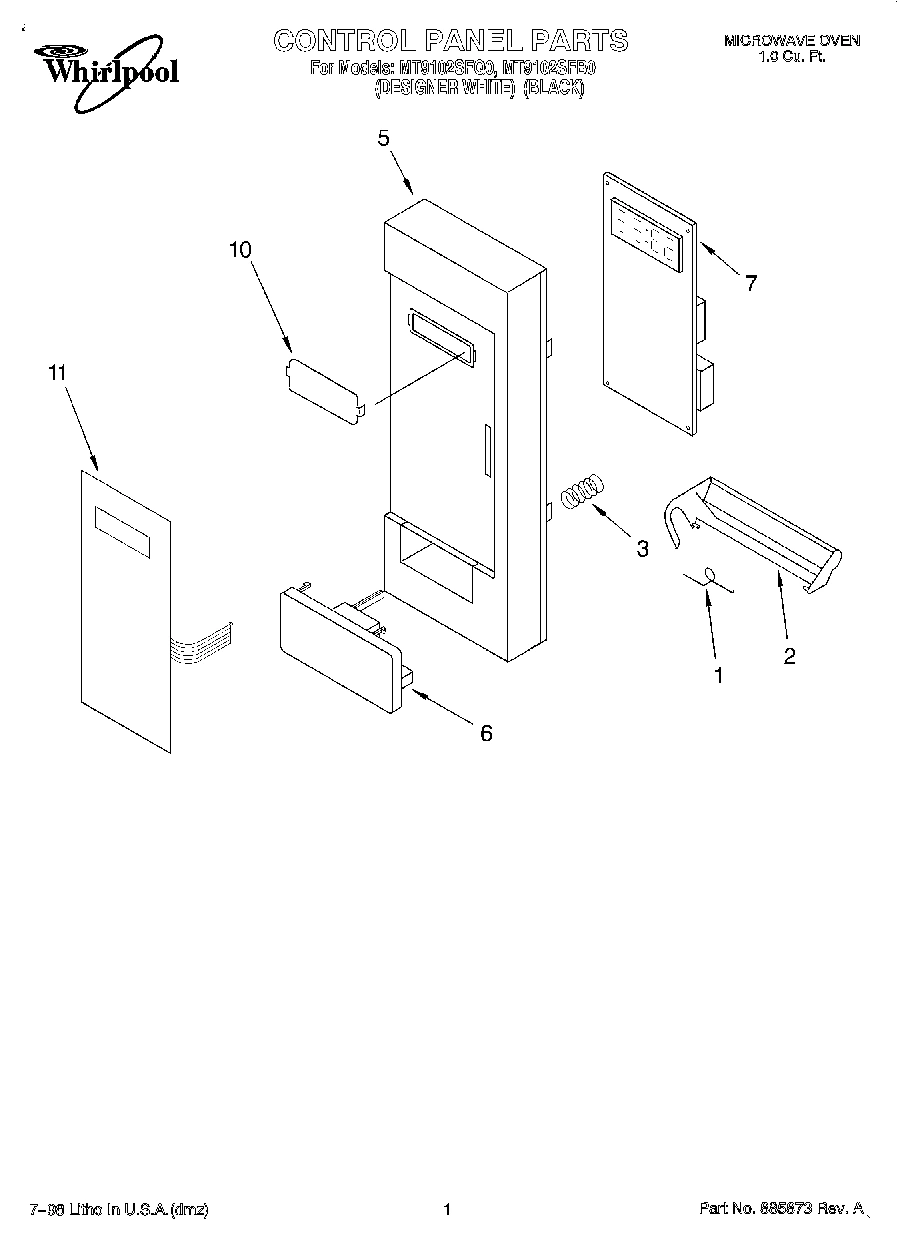

01 - CONTROL PANEL

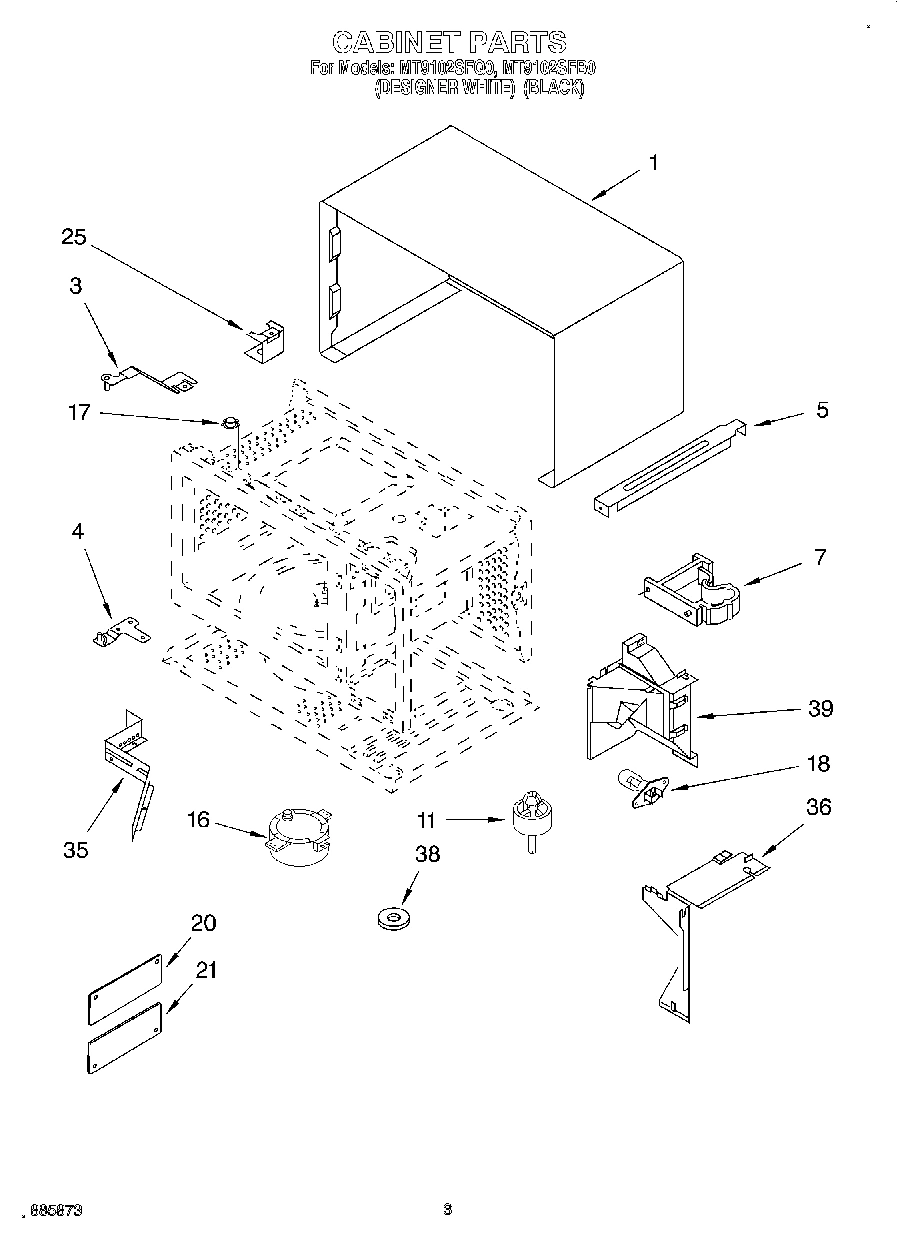

03 - CABINET, LITERATURE

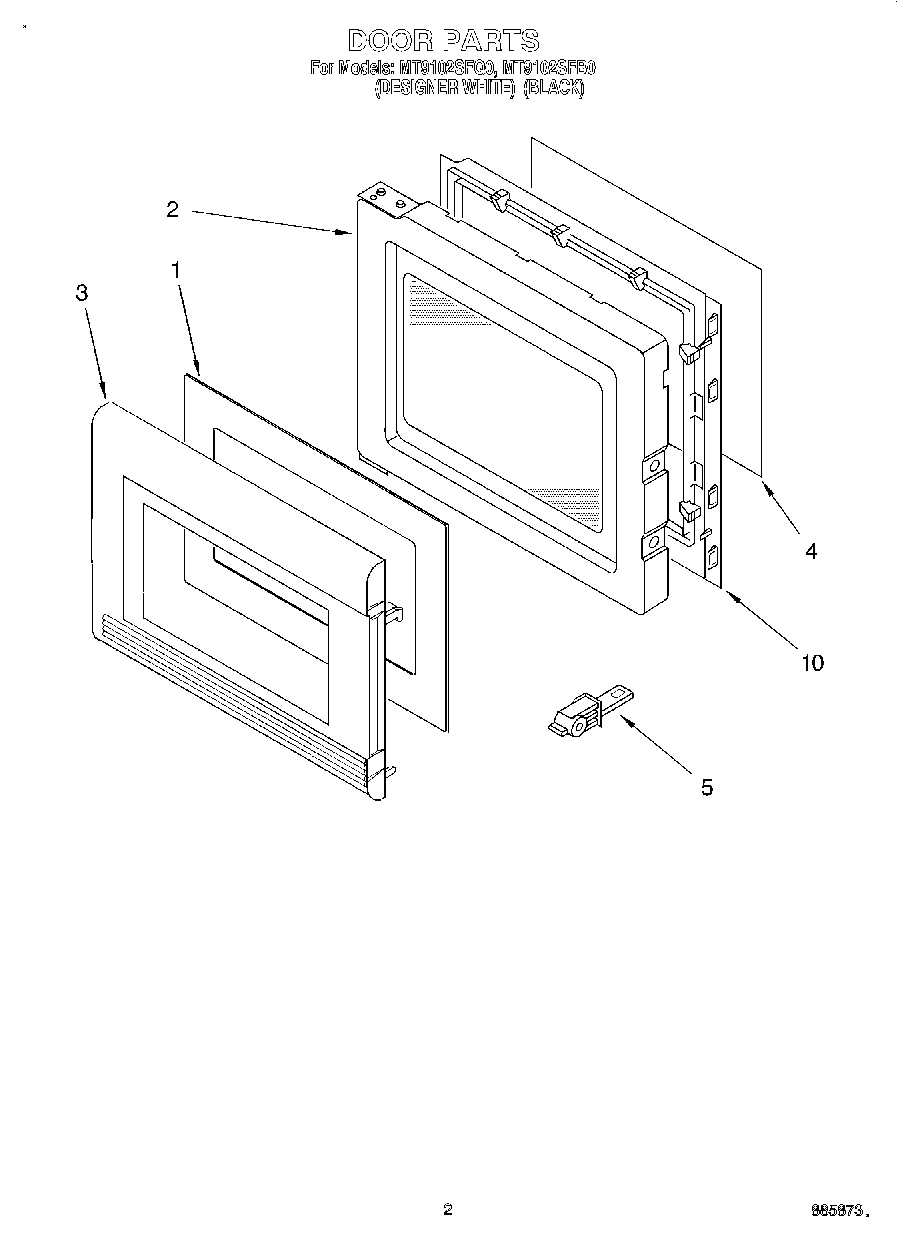

02 - DOOR

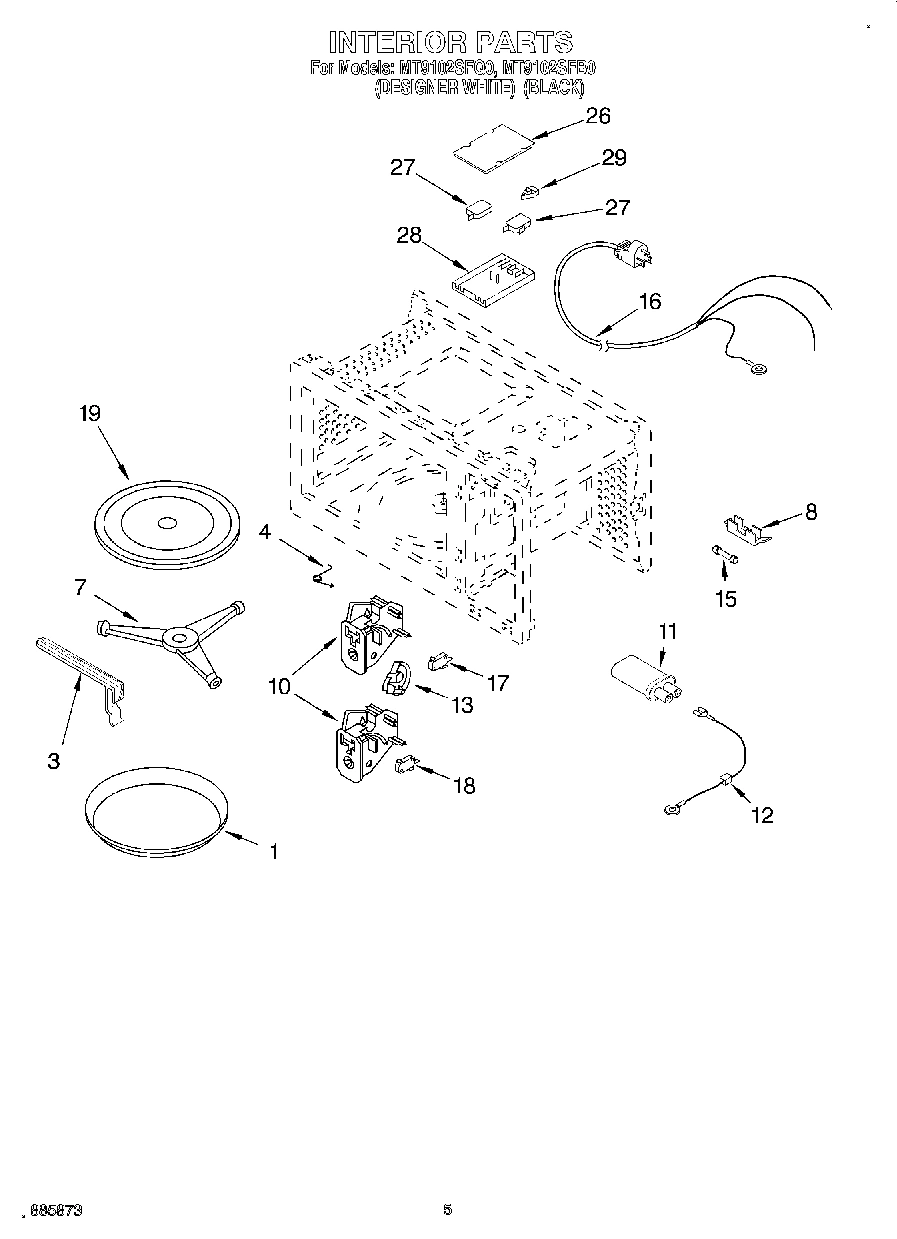

04 - INTERIOR
Common parts from model Whirlpool MT9102SFB0
Use & Care Guide WPL LIT4393438 Contact Us For Availability
Cooking Guide Label WPL LIT4393439 Contact Us For Availability
Tech Sheet WPL LIT4393892 Contact Us For Availability
1
Guide, Magnetron WPL 4393882 Contact Us For Availability
1
Spring, Lever WPL 4393948 Contact Us For Availability
1
Cover, Oven (White Model) WPL 4393579 Contact Us For Availability
1
Cover, Oven (Black Model) WPL 4393624 Contact Us For Availability
1
Glass, Outer WPL 8169636 Contact Us For Availability
2
Guide, Air WPL 4393883 Contact Us For Availability
2
Rotary, Lever WPL 4393800 Contact Us For Availability
2
Door Assembly (White) WPL 4393612 Contact Us For Availability
2
Door Assembly (Black) WPL 4393885 Contact Us For Availability
3
Magnetron, Terminal Cover WPL 4393605 Contact Us For Availability
3
Spring, Button WPL 4393889 Contact Us For Availability
3
Hinge, Upper WPL 4393876 Contact Us For Availability
3
Cover, Door (White) WPL 4393613 Contact Us For Availability
3
Cover, Door (Black) WPL 4393886 Contact Us For Availability
3
Handle, Pan WPL 4393900 Contact Us For Availability
4
Hinge, Lower WPL 4393877 Contact Us For Availability
4
Film, Back WPL 4393947 Contact Us For Availability
4
Spring WPL 4393596 Contact Us For Availability
5
Blade, Fan WPL 4393607 Contact Us For Availability
5
Cover, Panel (Black Model) WPL 4393891 Contact Us For Availability
5
Cover, Panel (White Model) WPL 4393894 Contact Us For Availability
5
Support WPL 4393592 Contact Us For Availability
5
Latch, Door WPL 4393614 Contact Us For Availability
6
Push Button (Black Model) WPL 4393890 Contact Us For Availability
6
Push Button (White Model) WPL 4393893 Contact Us For Availability
7
Microcomputer WPL 4393895 Contact Us For Availability
7
Spacer, Back WPL 4393273 Contact Us For Availability
7
Turntable WPL 4393594 Contact Us For Availability
8
Transformer WPL 4393884 Contact Us For Availability
8
Case, Fuse WPL 4393538 Contact Us For Availability
9
Motor, Fan WPL 4393609 Contact Us For Availability
10
Thermostat WPL 4393603 Contact Us For Availability
10
Lens WPL 4393543 Contact Us For Availability
10
Frame, Door WPL 4393887 Contact Us For Availability
11
Support, Fan Motor WPL 4393610 Contact Us For Availability
11
Membrane (White Model) WPL 4393620 Contact Us For Availability
11
Membrane (Black Model) WPL 4393627 Contact Us For Availability
11
Oven Foot WPL 4393879 Contact Us For Availability
11
Capacitor WPL 4393601 Contact Us For Availability
13
Plate, Cam WPL 4393597 Contact Us For Availability
16
Motor, Turntable WPL 4393587 Contact Us For Availability
16
Power Cord WPL 4393602 Contact Us For Availability
17
Thermostat WPL 4393580 Contact Us For Availability
18
Light Assy. WPL 4393633 Contact Us For Availability
19
Tray, Glass WPL 4393593 Contact Us For Availability
20
Cover, Upper WPL 4393585 Contact Us For Availability
21
Cover, Lower WPL 4393878 Contact Us For Availability
25
Support, Thermostat WPL 4393581 Contact Us For Availability
26
Lid WPL 4393497 Contact Us For Availability
28
Cover WPL 4393445 Contact Us For Availability
29
Rocker WPL 4393446 Contact Us For Availability
35
Guide, Air WPL 4393584 Contact Us For Availability
36
Guide, Air WPL 4393880 Contact Us For Availability
39
Guide, Air WPL 4393591 Contact Us For Availability
× ![]()
