Model Whirlpool MT8116XEB2 – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DOOR

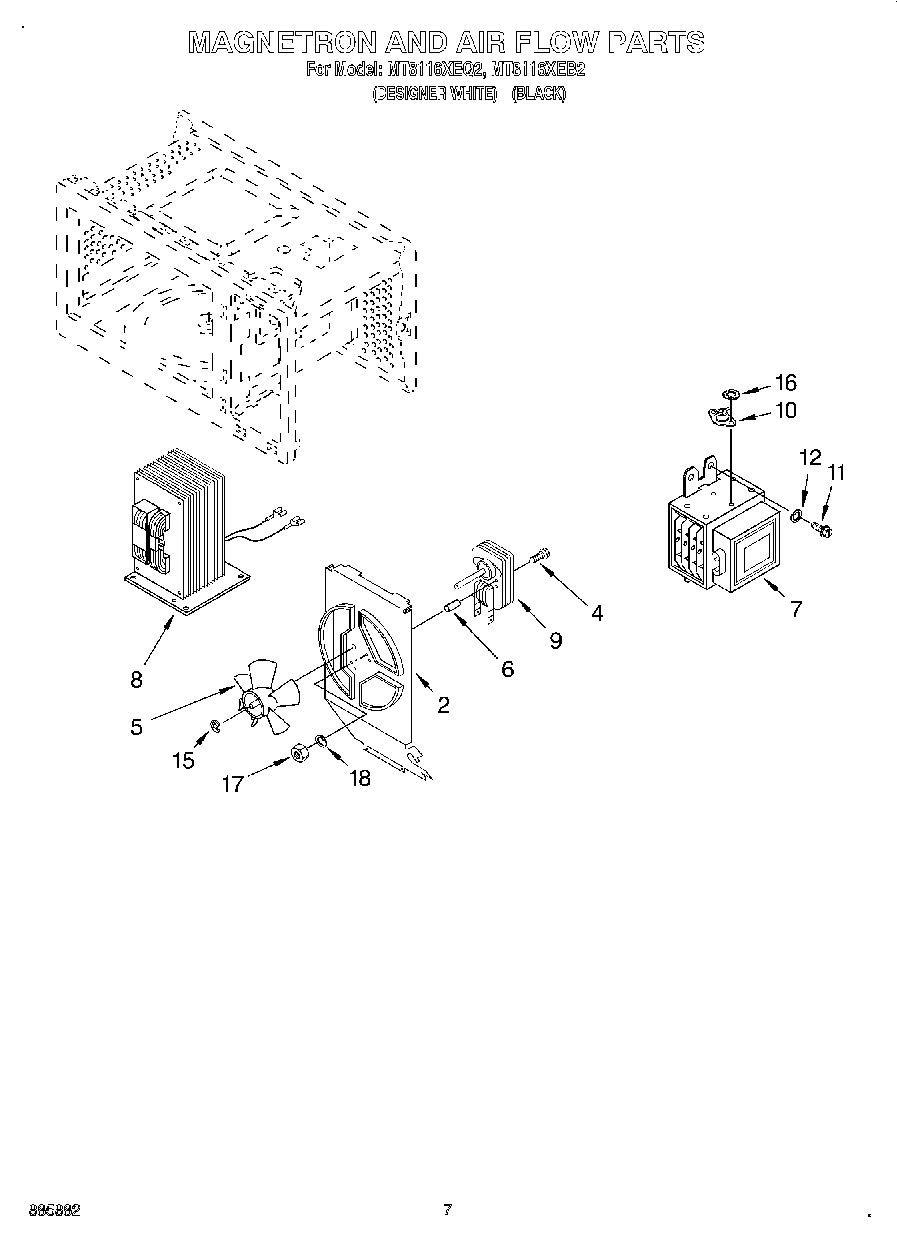

05 - MAGNETRON AND AIR FLOW

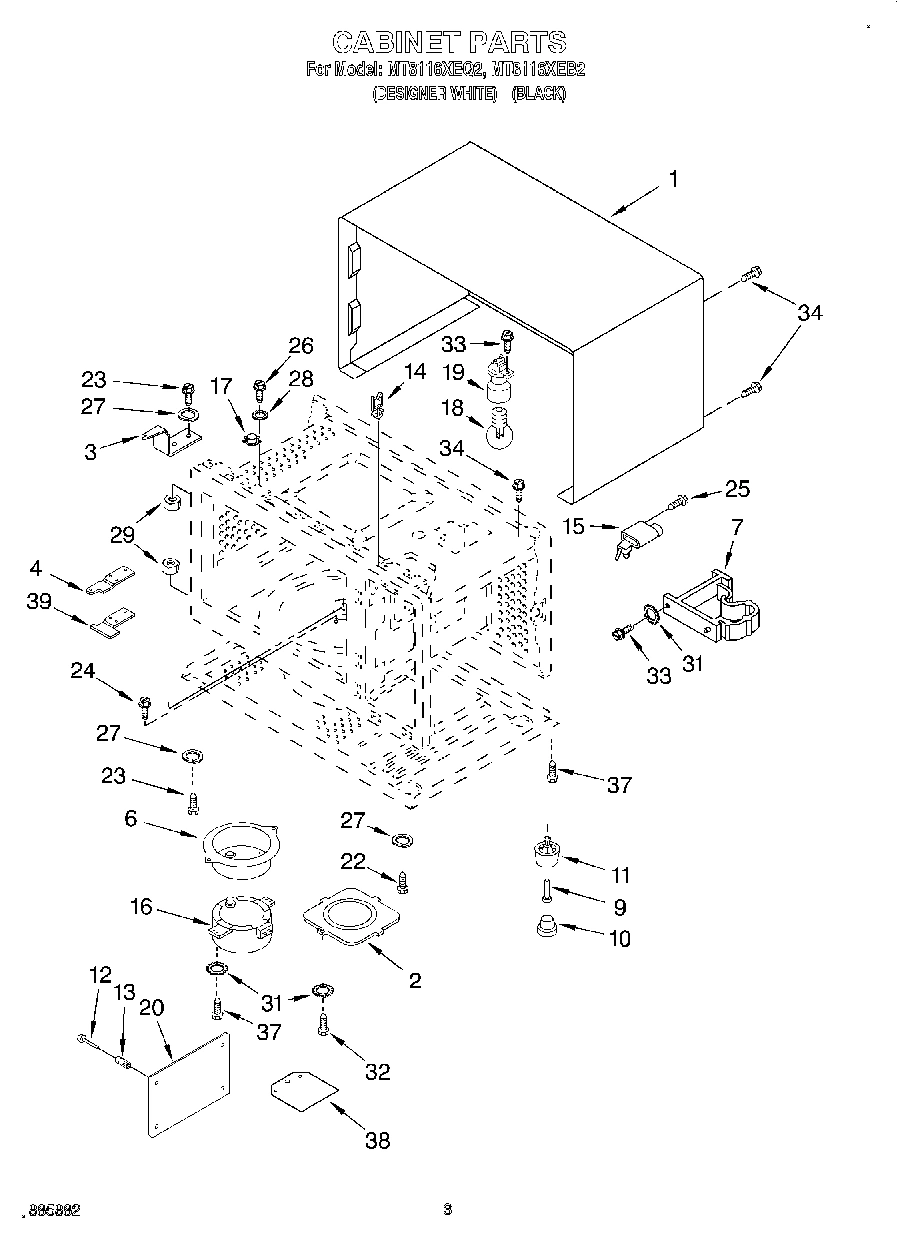

03 - CABINET, LITERATURE

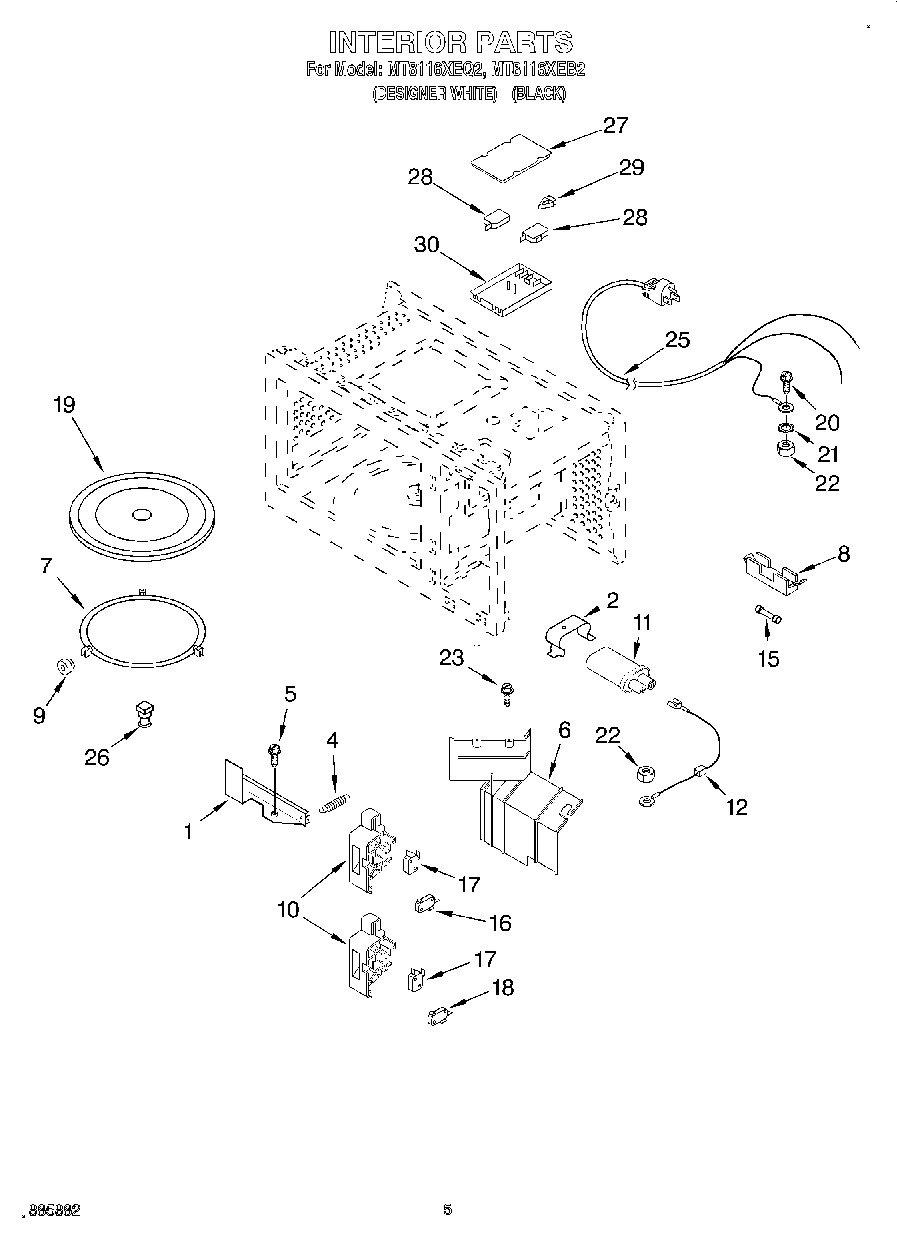

04 - INTERIOR
Common parts from model Whirlpool MT8116XEB2
Use & Care Guide WPL LIT4393442 Contact Us For Availability
Cooking Guide Label WPL LIT4393544 Contact Us For Availability
Tech Sheet WPL LIT4393545 Contact Us For Availability
1
Plate, Front (White Model) WPL 4393375 Contact Us For Availability
1
Plate, Front (Black Model) WPL 4393376 Contact Us For Availability
1
Cover, Oven (White Model) WPL 4393356 Contact Us For Availability
1
Cover, Oven (Black Model) WPL 4393357 Contact Us For Availability
1
Lever WPL 4393315 Contact Us For Availability
2
Door Assembly (White Model) WPL 4393371 Contact Us For Availability
2
Door Assembly (Black Model) WPL 4393372 Contact Us For Availability
2
Support, Fan Motor WPL 4393368 Contact Us For Availability
2
Cover, Motor WPL 4393358 Contact Us For Availability
2
Bracket, Capacitor WPL 4393539 Contact Us For Availability
3
Spring, Button WPL 4393349 Contact Us For Availability
3
Hinge, Upper WPL 4393295 Contact Us For Availability
4
Screw WPL 4393541 Contact Us For Availability
4
Hinge, Lower WPL 4393297 Contact Us For Availability
4
Spring WPL 4393314 Contact Us For Availability
5
Cover, Panel (White Model) WPL 4393398 Contact Us For Availability
5
Cover, Panel (Black Model) WPL 4393399 Contact Us For Availability
5
Latch Pivot WPL 4393344 Contact Us For Availability
5
Blade, Fan WPL 4393333 Contact Us For Availability
5
Screw WPL 4393316 Contact Us For Availability
6
Push Button (White Model) WPL 4393351 Contact Us For Availability
6
Push Button (Black Model) WPL 4393395 Contact Us For Availability
6
Spring WPL 4393343 Contact Us For Availability
6
Sleeve WPL 4393329 Contact Us For Availability
6
Motor Case WPL 4393288 Contact Us For Availability
6
Guide, Air WPL 4393362 Contact Us For Availability
7
Microcomputer WPL 4393542 Contact Us For Availability
7
Hook Connector WPL 4393377 Contact Us For Availability
7
Magnetron WPL 4393326 Contact Us For Availability
7
Spacer, Back WPL 4393273 Contact Us For Availability
7
Turntable Ring WPL 4393319 Contact Us For Availability
8
Screw WPL 4393350 Contact Us For Availability
8
Transformer WPL 4393370 Contact Us For Availability
8
Case, Fuse WPL 4393538 Contact Us For Availability
9
Motor, Fan WPL 4393540 Contact Us For Availability
9
Nail, Foot WPL 4393281 Contact Us For Availability
9
Wheel WPL 4393494 Contact Us For Availability
10
Lens WPL 4393543 Contact Us For Availability
10
Frame, Door (White Model) WPL 4393378 Contact Us For Availability
10
Frame, Door (Black Model) WPL 4393379 Contact Us For Availability
10
Thermostat WPL 4393325 Contact Us For Availability
10
Pan Foot WPL 4393282 Contact Us For Availability
10
Support, Interlock WPL 4393312 Contact Us For Availability
11
Membrane (White Model) WPL 4393354 Contact Us For Availability
11
Membrane (Black Model) WPL 4393406 Contact Us For Availability
11
Oven Foot WPL 4393280 Contact Us For Availability
11
Capacitor WPL 4393320 Contact Us For Availability
12
Nail, Plastic WPL 4393291 Contact Us For Availability
12
Diode WPL 4393485 Contact Us For Availability
13
Latch, Upper WPL 4393341 Contact Us For Availability
13
Bushing, Nail WPL 4393290 Contact Us For Availability
14
Latch, Lower WPL 4393340 Contact Us For Availability
14
Clip, Wire WPL 4393276 Contact Us For Availability
15
Pin, Door WPL 4393339 Contact Us For Availability
15
E-Ring WPL 4393334 Contact Us For Availability
15
Strain Relief WPL 4393271 Contact Us For Availability
16
Motor, Turntable WPL 4393285 Contact Us For Availability
17
Nut WPL 4393332 Contact Us For Availability
17
Thermostat WPL 4393299 Contact Us For Availability
17
Switch, Monitor WPL 4393363 Contact Us For Availability
18
Washer WPL 4393331 Contact Us For Availability
18
Lamp WPL 4393298 Contact Us For Availability
18
Switch, Primary WPL 4393311 Contact Us For Availability
19
Holder, Lamp WPL 4393302 Contact Us For Availability
19
Tray, Glass WPL 4393367 Contact Us For Availability
20
Cover WPL 4393359 Contact Us For Availability
20
Screw WPL 4393305 Contact Us For Availability
21
Washer WPL 4393274 Contact Us For Availability
22
Nut WPL 4393306 Contact Us For Availability
23
Screw WPL 4393292 Contact Us For Availability
23
Screw WPL 4393275 Contact Us For Availability
24
Screw WPL 4393294 Contact Us For Availability
25
Screw WPL 4393270 Contact Us For Availability
25
Power Cord WPL 4393304 Contact Us For Availability
26
Screw WPL 4393346 Contact Us For Availability
26
Shaft, Turntable WPL 4393317 Contact Us For Availability
26
Shaft Cap WPL 4393492 Contact Us For Availability
27
Lid WPL 4393497 Contact Us For Availability
28
Washer WPL 4393300 Contact Us For Availability
29
Nut WPL 4393296 Contact Us For Availability
29
Rocker WPL 4393446 Contact Us For Availability
30
Cover WPL 4393445 Contact Us For Availability
32
Screw WPL 4393284 Contact Us For Availability
34
Screw WPL 4393269 Contact Us For Availability
37
Screw WPL 4393277 Contact Us For Availability
38
Plate, Rubber WPL 4393287 Contact Us For Availability
39
Plate, Spacer WPL 4393293 Contact Us For Availability
× ![]()
