Model Whirlpool MT8078XEB0 – Common Parts & Diagrams
01 - CONTROL PANEL
03 - CABINET, LITERATURE

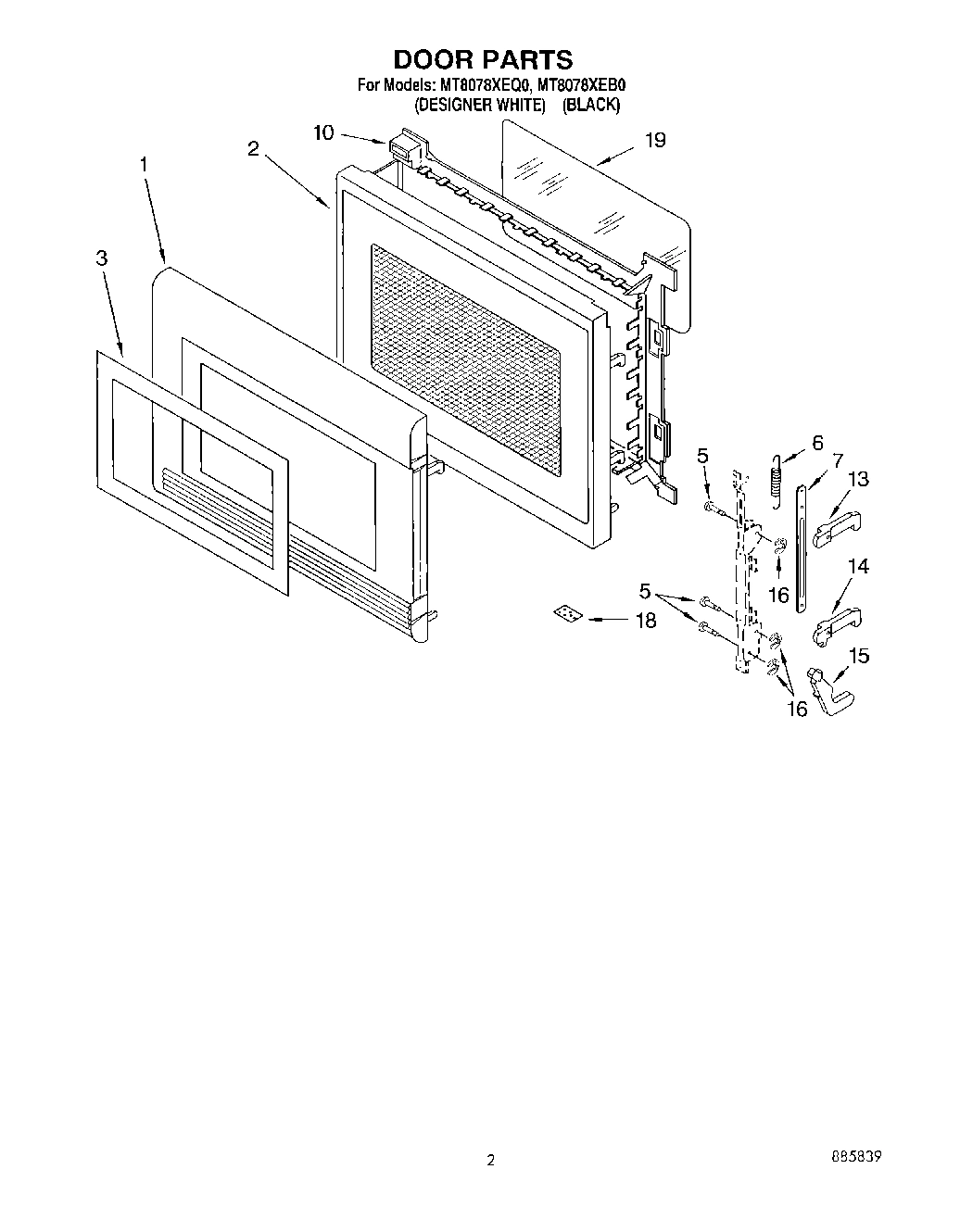

02 - DOOR

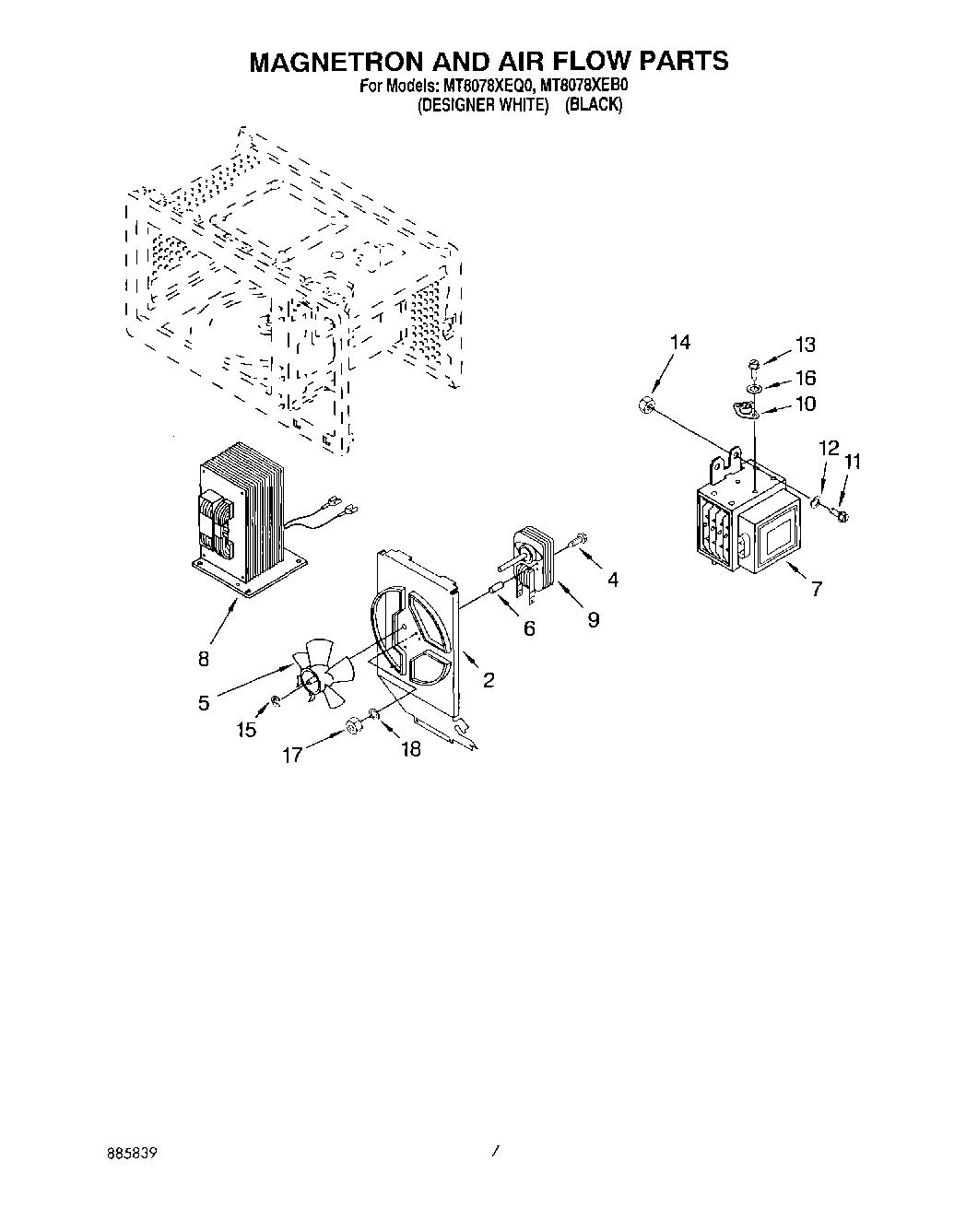

05 - MAGNETRON AND AIR FLOW

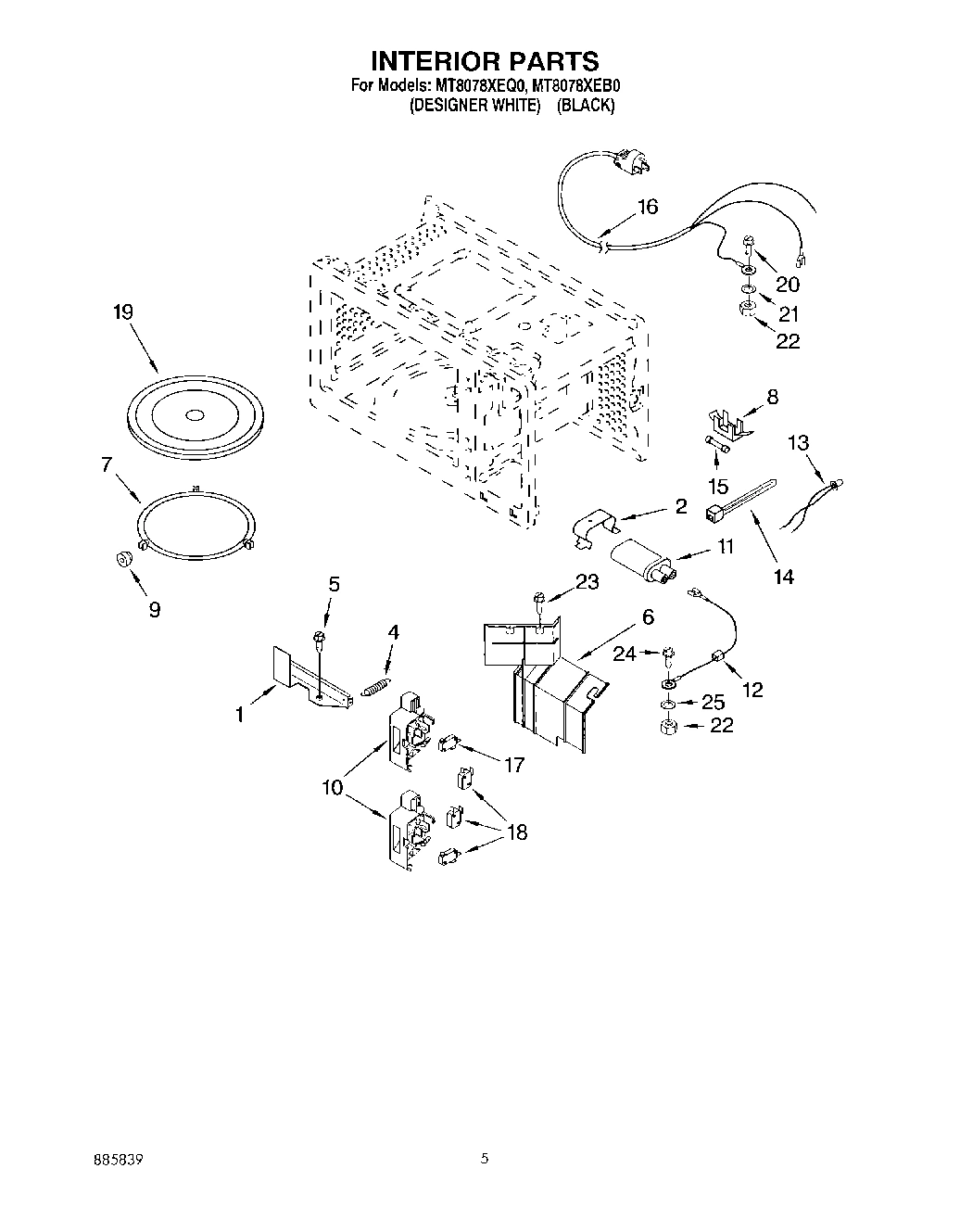

04 - INTERIOR
Common parts from model Whirlpool MT8078XEB0
Use & Care Guide WPL LIT4393140 Contact Us For Availability
Tech Sheet WPL LIT4393142 Contact Us For Availability
1
Cover, Oven (White) WPL 4393230 Contact Us For Availability
1
Cover, Oven (Black) WPL 4393248 Contact Us For Availability
1
Door Body Assy (White) WPL 4393250 Contact Us For Availability
1
Door Body Assy (Black) WPL 4393251 Contact Us For Availability
1
Lever WPL 4393167 Contact Us For Availability
2
PCB Sub Assy. WPL 4393256 Contact Us For Availability
2
Cover, Motor WPL 4393231 Contact Us For Availability
2
Plastic Door Cover (White) WPL 4393096 Contact Us For Availability
2
Plastic Door Cover (Black) WPL 4393252 Contact Us For Availability
2
Support, Fan Motor WPL 4393175 Contact Us For Availability
2
Bracket, Capacitor WPL 4393171 Contact Us For Availability
3
Spring, Button WPL 4393185 Contact Us For Availability
3
Hinge, Upper WPL 4393082 Contact Us For Availability
3
Front PC Plate (White) WPL 4393254 Contact Us For Availability
3
Front PC Plate (Black) WPL 4393255 Contact Us For Availability
4
Membrane (White) WPL 4393181 Contact Us For Availability
4
Membrane (Black) WPL 4393199 Contact Us For Availability
4
Hinge, Lower WPL 4393083 Contact Us For Availability
4
Screw WPL 4392985 Contact Us For Availability
4
Spring WPL 4392982 Contact Us For Availability
5
Cover, Panel (White) WPL 4393106 Contact Us For Availability
5
Cover, Panel (Black) WPL 4393258 Contact Us For Availability
5
Door Pivot WPL 4392967 Contact Us For Availability
5
Latch Pivot WPL 4392970 Contact Us For Availability
5
Blade, Fan WPL 4393176 Contact Us For Availability
5
Screw WPL 4392984 Contact Us For Availability
6
Push Button (White) WPL 4393192 Contact Us For Availability
6
Push Button (Black) WPL 4393193 Contact Us For Availability
6
Motor Case WPL 4393161 Contact Us For Availability
6
Spring WPL 4393084 Contact Us For Availability
6
Sleeve WPL 4393010 Contact Us For Availability
6
Guide, Air WPL 4392986 Contact Us For Availability
7
Spacer, Back WPL 4393064 Contact Us For Availability
7
Hook Connector WPL 4393243 Contact Us For Availability
7
Magnetron WPL 4393016 Contact Us For Availability
7
Turntable Ring WPL 4392996 Contact Us For Availability
8
Screw WPL 4393103 Contact Us For Availability
8
Shaft, Turntable WPL 4393168 Contact Us For Availability
8
Transformer WPL 4393239 Contact Us For Availability
8
Fuse Saddle WPL 4393147 Contact Us For Availability
9
Nail, Foot WPL 4393005 Contact Us For Availability
9
Motor, Fan WPL 4393174 Contact Us For Availability
9
Wheel WPL 4393000 Contact Us For Availability
10
Indicator WPL 4393222 Contact Us For Availability
10
Pan Foot WPL 4393006 Contact Us For Availability
10
Frame, Door WPL 4393244 Contact Us For Availability
10
Thermostat WPL 4393173 Contact Us For Availability
10
Support, Interlock WPL 4393001 Contact Us For Availability
11
Oven Foot WPL 4393007 Contact Us For Availability
11
Capacitor WPL 4393020 Contact Us For Availability
12
Plastic Nail WPL 4393008 Contact Us For Availability
12
Diode WPL 4393022 Contact Us For Availability
13
Bushing, Nail WPL 4393009 Contact Us For Availability
13
Latch, Upper WPL 4392993 Contact Us For Availability
13
Screw WPL 4393102 Contact Us For Availability
13
Connector WPL 4393031 Contact Us For Availability
14
Clip, Wire WPL 4393014 Contact Us For Availability
14
Latch, Lower WPL 4392994 Contact Us For Availability
14
Nut WPL 4393056 Contact Us For Availability
14
Cable Tie WPL 4393032 Contact Us For Availability
15
Strain Relief WPL 4393015 Contact Us For Availability
15
Pin, Door WPL 4392995 Contact Us For Availability
15
E-Ring WPL 4393060 Contact Us For Availability
16
Motor, Turntable WPL 4393249 Contact Us For Availability
16
Washer WPL 4393061 Contact Us For Availability
16
Power Cord WPL 4393164 Contact Us For Availability
17
Thermostat WPL 4393206 Contact Us For Availability
17
Nut WPL 4393054 Contact Us For Availability
17
Switch, Monitor WPL 4393035 Contact Us For Availability
18
Lamp WPL 4393030 Contact Us For Availability
18
Plate, Lower WPL 4393190 Contact Us For Availability
18
Washer WPL 4393058 Contact Us For Availability
18
Switch, Primary WPL 4393036 Contact Us For Availability
19
Holder, Lamp WPL 4393038 Contact Us For Availability
19
Film, Back WPL 4392992 Contact Us For Availability
19
Tray, Glass WPL 4393237 Contact Us For Availability
20
Cover WPL 4393041 Contact Us For Availability
21
Tape, Lamp WPL 4393154 Contact Us For Availability
21
Washer WPL 4393062 Contact Us For Availability
23
Screw WPL 4393044 Contact Us For Availability
23
Screw WPL 4393050 Contact Us For Availability
24
Screw WPL 4393046 Contact Us For Availability
24
Screw WPL 4393048 Contact Us For Availability
25
Screw WPL 4393045 Contact Us For Availability
25
Nut WPL 4393057 Contact Us For Availability
26
Screw WPL 4393049 Contact Us For Availability
29
Nut WPL 4393055 Contact Us For Availability
30
Screw WPL 4393053 Contact Us For Availability
32
Screw WPL 4393047 Contact Us For Availability
34
Screw WPL 4393109 Contact Us For Availability
× ![]()
