Model Whirlpool MT8066SEB0 – Common Parts & Diagrams

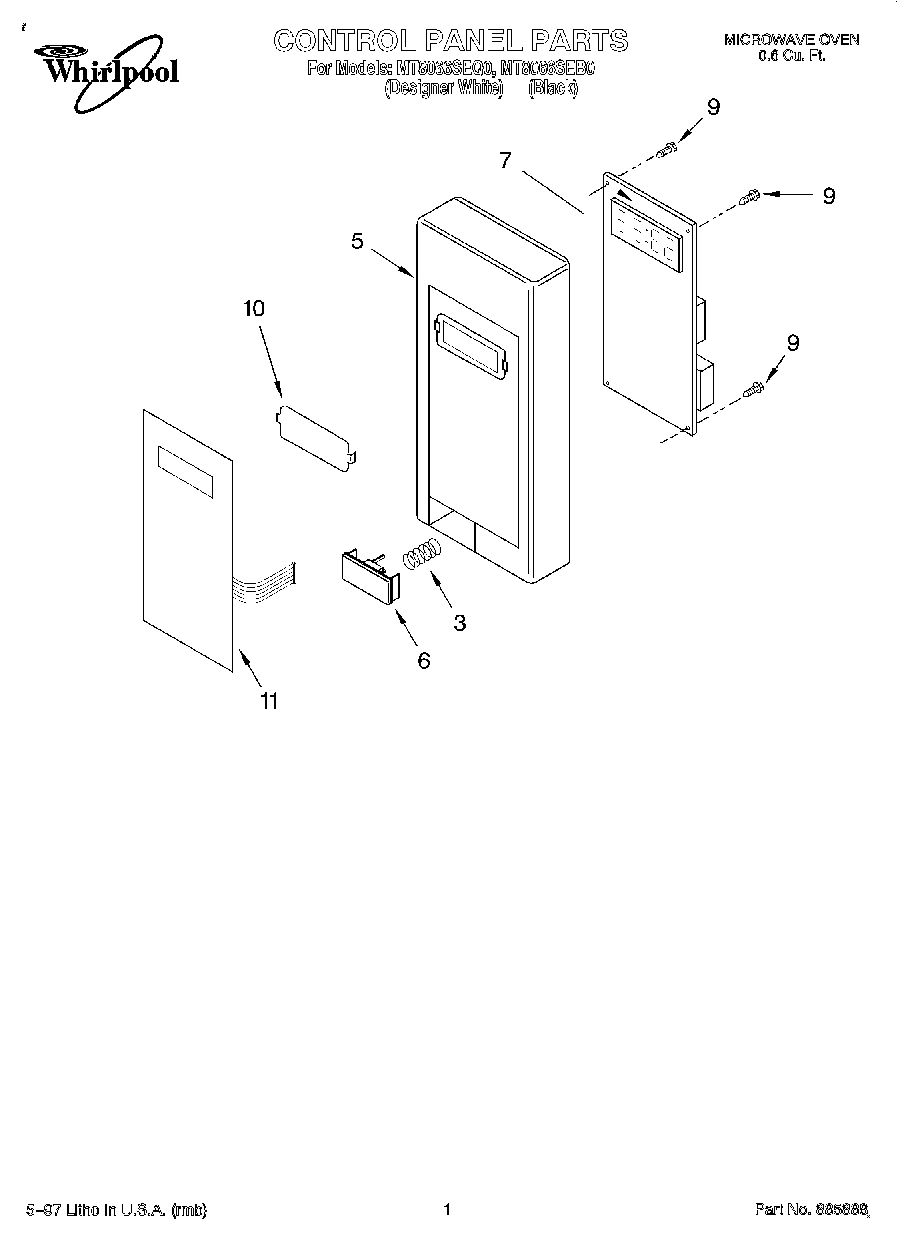

01 - CONTROL PANEL

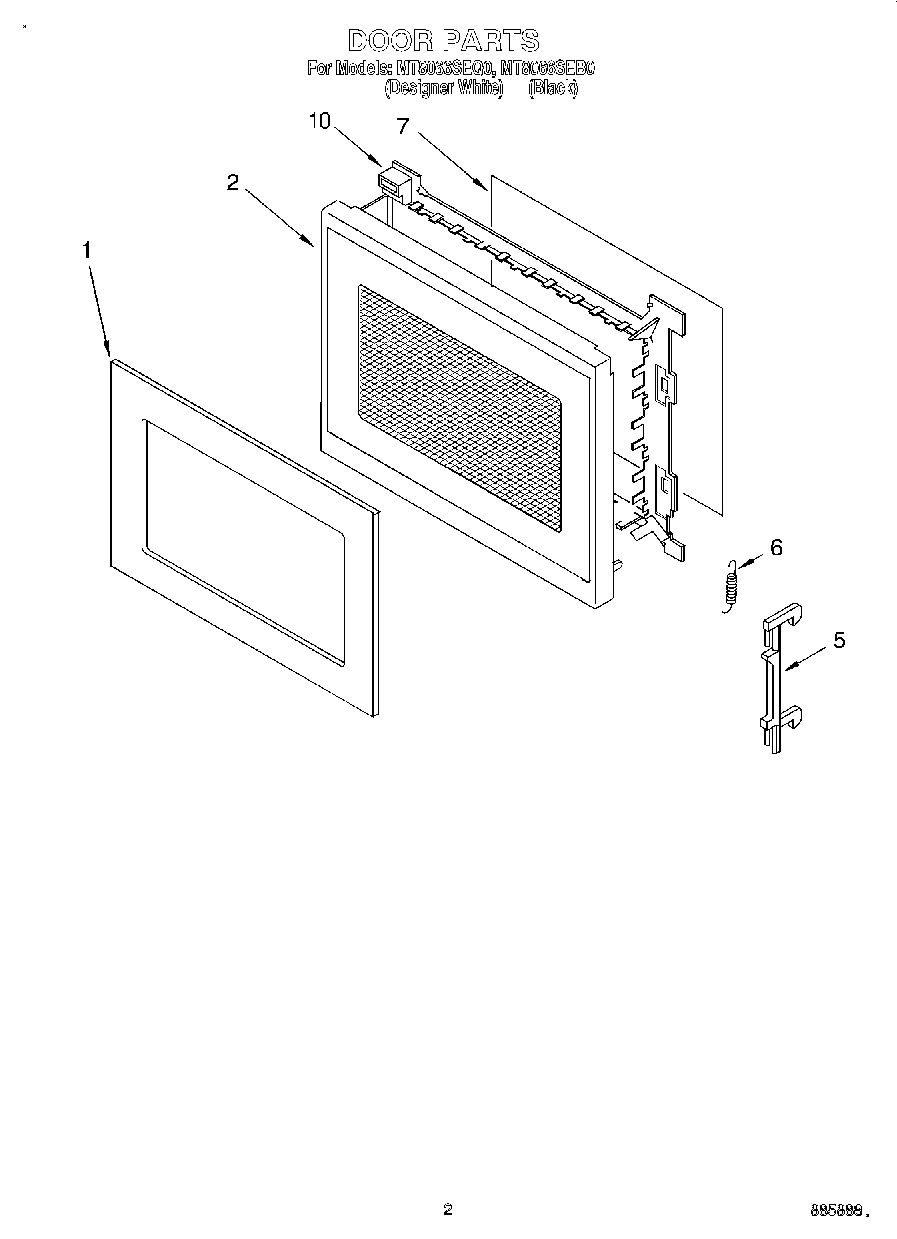

02 - DOOR

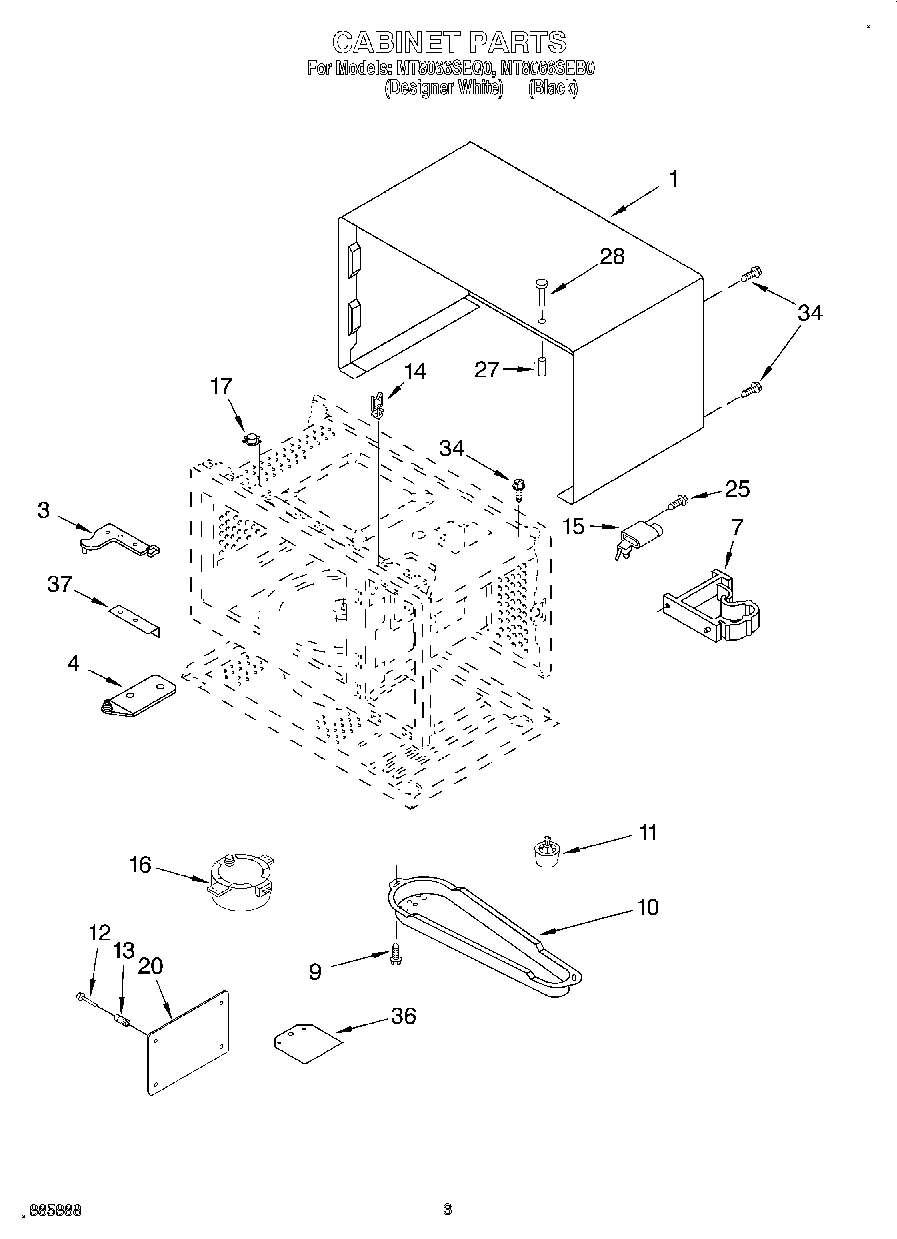

03 - CABINET, LITERATURE

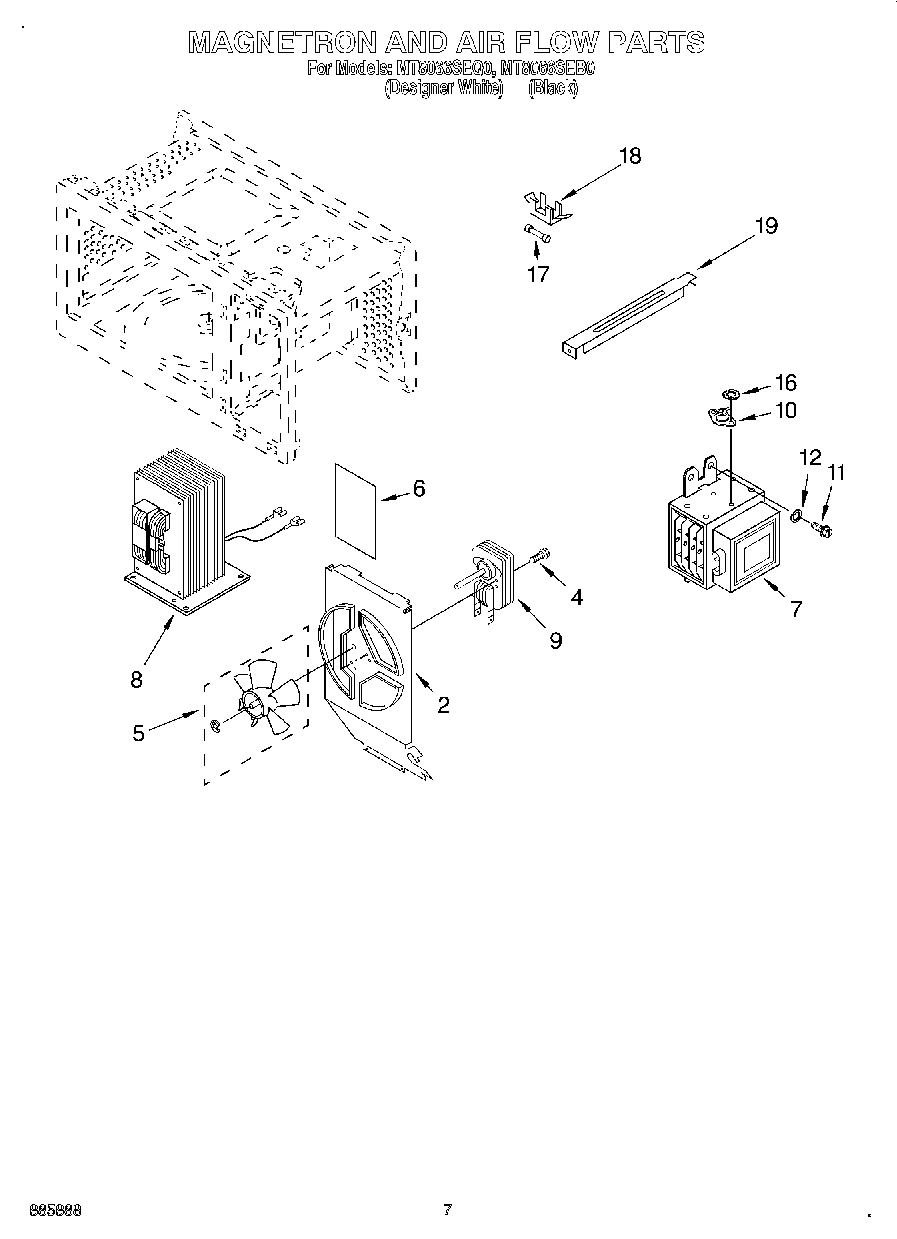

05 - MAGNETRON AND AIR FLOW

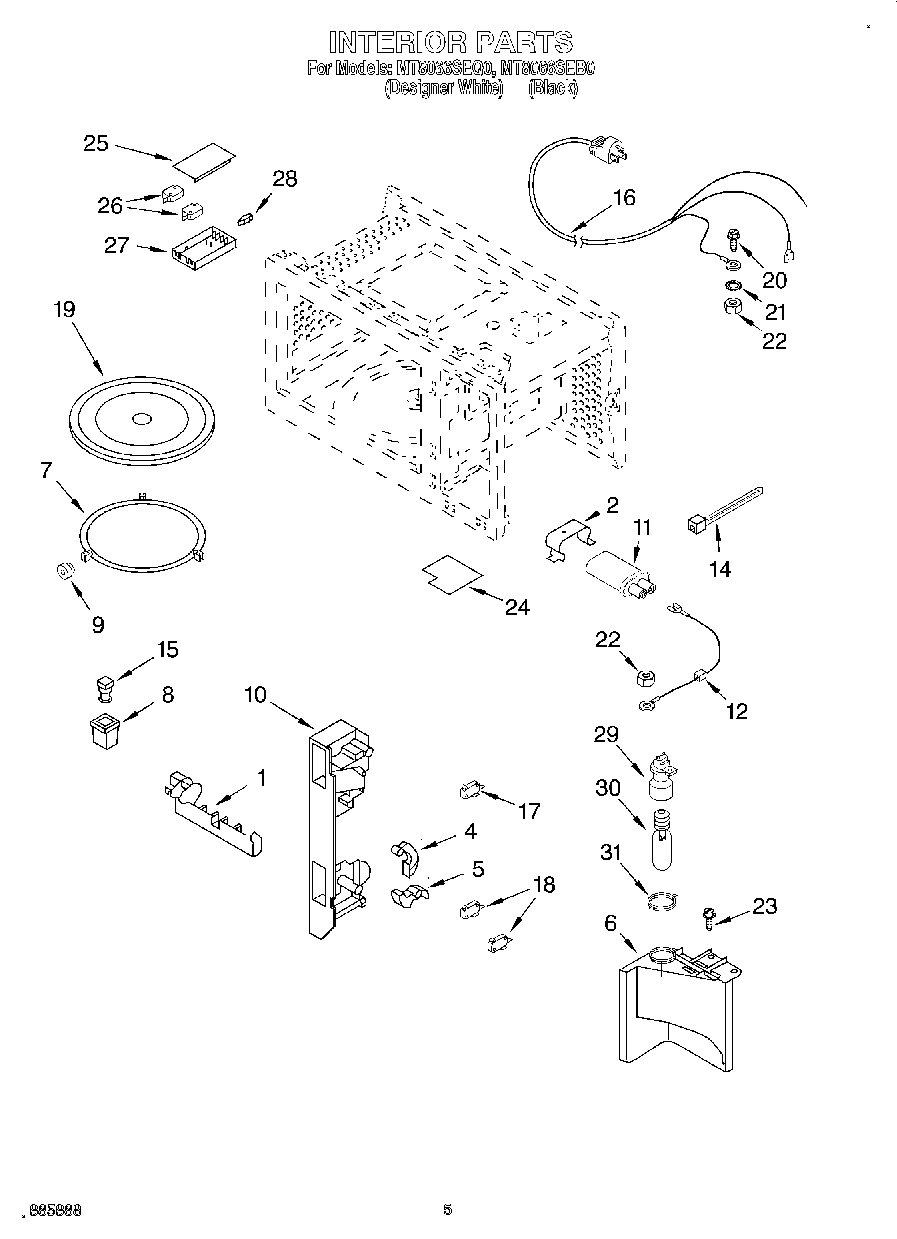

04 - INTERIOR
Common parts from model Whirlpool MT8066SEB0
Cooking Guide Label WPL LIT4392951 Contact Us For Availability
Use & Care Guide WPL LIT4393202 Contact Us For Availability
Tech Sheet WPL LIT4393565 Contact Us For Availability
1
Plate, Front (White) WPL 4393511 Contact Us For Availability
1
Plate, Front (Black) WPL 4393512 Contact Us For Availability
1
Cover, Oven (White) WPL 4393467 Contact Us For Availability
1
Cover, Oven (Black) WPL 4393468 Contact Us For Availability
1
Lever, Rotating WPL 4393488 Contact Us For Availability
2
Door Body (White) WPL 4393509 Contact Us For Availability
2
Door Body (Black) WPL 4393510 Contact Us For Availability
2
Support, Fan Motor WPL 4393503 Contact Us For Availability
2
Bracket, Capacitor WPL 4393484 Contact Us For Availability
3
Spring, Button WPL 4393524 Contact Us For Availability
3
Hinge, Upper WPL 4393476 Contact Us For Availability
4
Hinge, Lower WPL 4393474 Contact Us For Availability
4
Screw WPL 4393502 Contact Us For Availability
4
Button, Rotating WPL 4393490 Contact Us For Availability
5
Cover, Panel (White) WPL 4393518 Contact Us For Availability
5
Cover, Panel (Black) WPL 4393519 Contact Us For Availability
5
Latch, Door WPL 4393513 Contact Us For Availability
5
Blade, Fan (Includes Nut) WPL 4393504 Contact Us For Availability
5
Button, Rotating WPL 4393489 Contact Us For Availability
6
Push Button (White) WPL 4393522 Contact Us For Availability
6
Push Button (Black) WPL 4393523 Contact Us For Availability
6
Spring WPL 4393414 Contact Us For Availability
6
Paper, Isolating WPL 4393505 Contact Us For Availability
6
Guide, Air WPL 4393486 Contact Us For Availability
7
Microcomputer WPL 4393525 Contact Us For Availability
7
Film, Back WPL 4393515 Contact Us For Availability
7
Spacer, Back WPL 4393273 Contact Us For Availability
7
Magnetron WPL 4393500 Contact Us For Availability
7
Turntable Ring WPL 4393495 Contact Us For Availability
8
Transformer WPL 4393564 Contact Us For Availability
8
Cap, Shaft WPL 4393492 Contact Us For Availability
9
Screw WPL 4393346 Contact Us For Availability
9
Motor, Fan WPL 4393501 Contact Us For Availability
9
Wheel WPL 4393494 Contact Us For Availability
10
Lens WPL 4393355 Contact Us For Availability
10
Frame, Door WPL 4393345 Contact Us For Availability
10
Frame, Door (White) WPL 4393516 Contact Us For Availability
10
Frame, Door (Black) WPL 4393517 Contact Us For Availability
10
Cover, Bottom WPL 4393471 Contact Us For Availability
10
Thermostat WPL 4393499 Contact Us For Availability
10
Support, Interlock WPL 4393491 Contact Us For Availability
11
Membrane (White) WPL 4393566 Contact Us For Availability
11
Membrane (Black) WPL 4393567 Contact Us For Availability
11
Foot, Oven WPL 4393469 Contact Us For Availability
12
Nail, Plastic WPL 4393291 Contact Us For Availability
12
Diode WPL 4393485 Contact Us For Availability
13
Bushing, Nail WPL 4393290 Contact Us For Availability
14
Clip, Wire WPL 4393276 Contact Us For Availability
14
Cable Tie WPL 4393310 Contact Us For Availability
15
Strain Relief WPL 4393271 Contact Us For Availability
15
Shaft, Turntable WPL 4393493 Contact Us For Availability
16
Motor, Turntable WPL 4393470 Contact Us For Availability
16
Washer WPL 4393300 Contact Us For Availability
16
Power Cord WPL 4393481 Contact Us For Availability
17
Thermostat WPL 4393477 Contact Us For Availability
17
Switch, Monitor WPL 4393363 Contact Us For Availability
18
Holder, Fuse WPL 4393507 Contact Us For Availability
18
Switch, Primary WPL 4393311 Contact Us For Availability
19
Support WPL 4393508 Contact Us For Availability
19
Tray, Glass WPL 4393496 Contact Us For Availability
20
Cover WPL 4393473 Contact Us For Availability
20
Screw WPL 4393305 Contact Us For Availability
21
Washer WPL 4393274 Contact Us For Availability
22
Nut WPL 4393306 Contact Us For Availability
23
Screw WPL 4393269 Contact Us For Availability
24
Paper, Isolating WPL 4393482 Contact Us For Availability
25
Screw WPL 4393270 Contact Us For Availability
25
Lid WPL 4393497 Contact Us For Availability
27
Bushing, Rivet WPL 4393478 Contact Us For Availability
27
Cover, Switch WPL 4393445 Contact Us For Availability
28
Rivet, Plastic (White) WPL 4393562 Contact Us For Availability
28
Rivet, Plastic (Black) WPL 4393563 Contact Us For Availability
28
Rocker WPL 4393446 Contact Us For Availability
29
Socket, Lamp WPL 4393302 Contact Us For Availability
30
Lamp WPL 4393298 Contact Us For Availability
31
Cushion, Lamp WPL 4393487 Contact Us For Availability
36
Plate, Rubber WPL 4393287 Contact Us For Availability
37
Plate, Spacer WPL 4393475 Contact Us For Availability
× ![]()
