Model Whirlpool MT7078XDQ3 – Common Parts & Diagrams

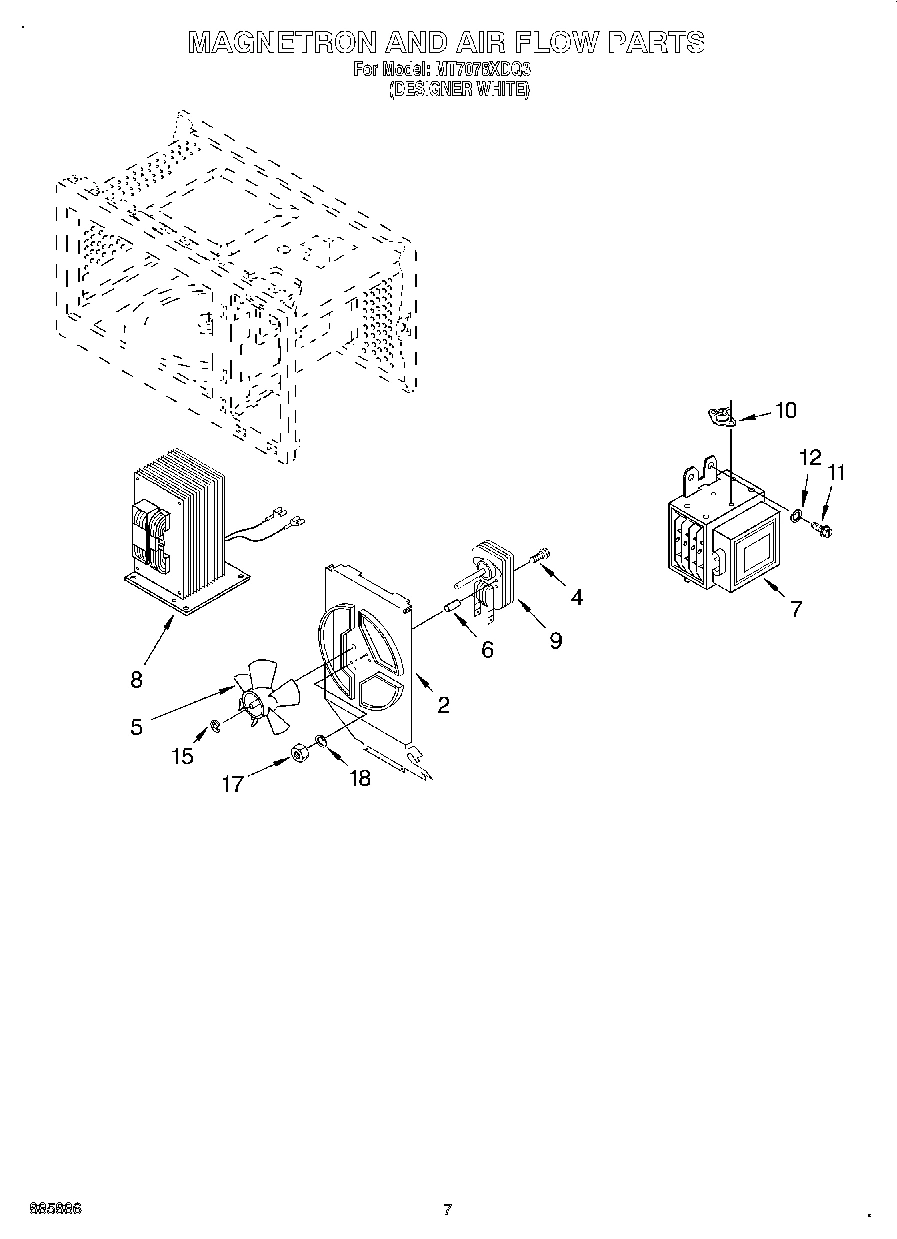

05 - MAGNETRON AND AIRFLOW

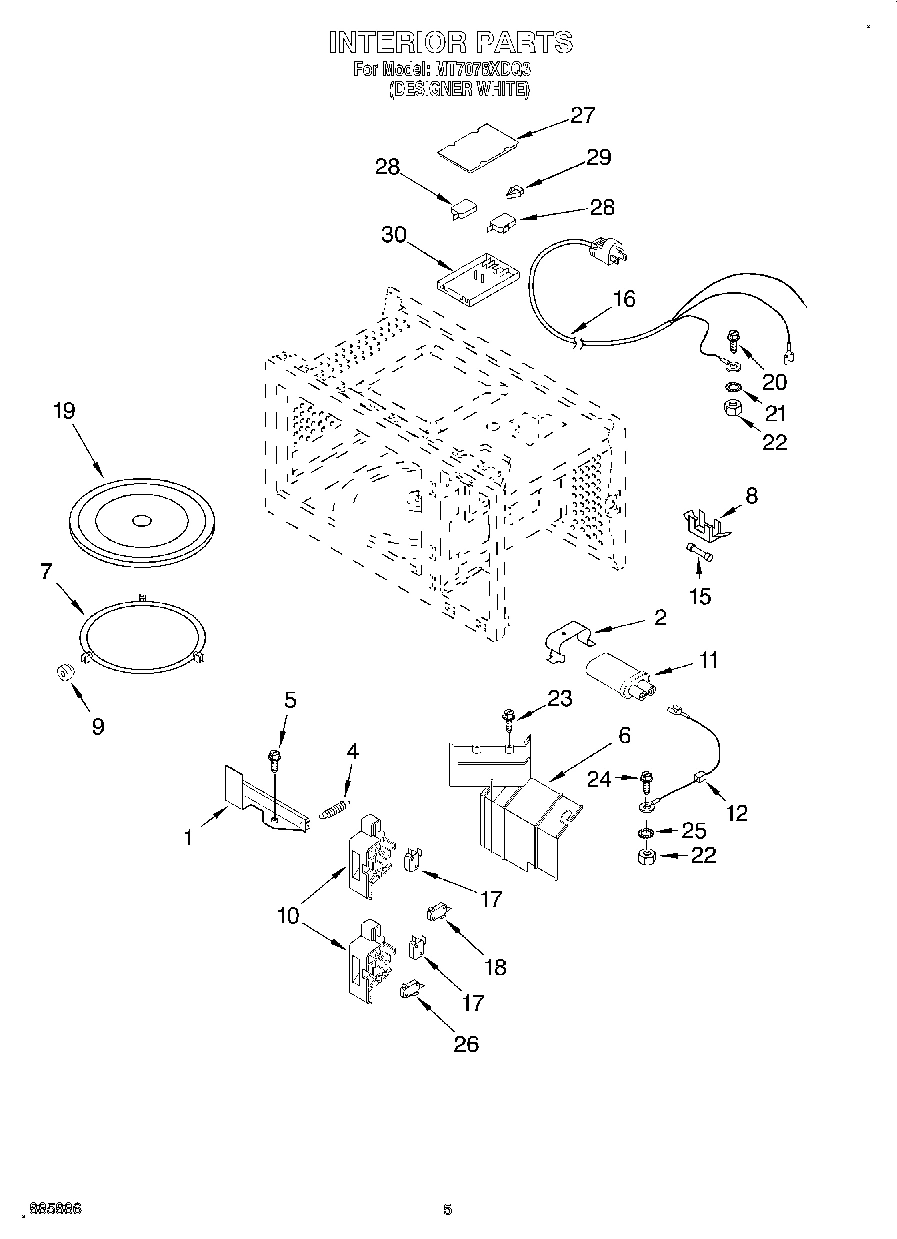

04 - INTERIOR
02 - DOOR
01 - CONTROL PANEL
03 - CABINET, LITERATURE
Common parts from model Whirlpool MT7078XDQ3
Use & Care Guide WPL LIT4393441 Contact Us For Availability
Tech Sheet WPL LIT4393444 Contact Us For Availability
Cooking Guide Label WPL LIT4393552 Contact Us For Availability
1
Lever WPL 4393315 Contact Us For Availability
1
Door Body Assy WPL 4393250 Contact Us For Availability
1
Cover, Oven WPL 4393267 Contact Us For Availability
2
Support, Fan Motor WPL 4393330 Contact Us For Availability
2
Bracket, Capacitor WPL 4393539 Contact Us For Availability
2
Plastic Door Cover WPL 4393561 Contact Us For Availability
2
PCB Sub Assy. WPL 4393347 Contact Us For Availability
2
Cover, Motor WPL 4393283 Contact Us For Availability
3
Front Plate WPL 4393557 Contact Us For Availability
3
Spring, Button WPL 4393349 Contact Us For Availability
3
Hinge, Upper WPL 4393361 Contact Us For Availability
4
Screw WPL 4393541 Contact Us For Availability
4
Spring WPL 4393314 Contact Us For Availability
4
Membrane WPL 4393551 Contact Us For Availability
4
Hinge, Lower WPL 4393360 Contact Us For Availability
5
Blade, Fan WPL 4393333 Contact Us For Availability
5
Screw WPL 4392984 Contact Us For Availability
5
Latch Pivot WPL 4393344 Contact Us For Availability
5
Cover, Panel WPL 4393558 Contact Us For Availability
5
Plate, Spacer WPL 4393429 Contact Us For Availability
6
Sleeve WPL 4393329 Contact Us For Availability
6
Guide, Air WPL 4393309 Contact Us For Availability
6
Spring WPL 4393343 Contact Us For Availability
6
Push Button WPL 4393388 Contact Us For Availability
6
Motor Case WPL 4393228 Contact Us For Availability
7
Magnetron WPL 4393326 Contact Us For Availability
7
Turntable Ring WPL 4393319 Contact Us For Availability
7
Hook Connector WPL 4393342 Contact Us For Availability
7
Spacer, Back WPL 4393273 Contact Us For Availability
8
Transformer WPL 4393553 Contact Us For Availability
8
Fuse Saddle WPL 4393538 Contact Us For Availability
8
Screw WPL 4393103 Contact Us For Availability
8
Shaft, Turntable WPL 4393317 Contact Us For Availability
8
Shaft Cap WPL 4393492 Contact Us For Availability
9
Motor, Fan WPL 4393540 Contact Us For Availability
9
Wheel WPL 4393494 Contact Us For Availability
9
Nail, Foot WPL 4393281 Contact Us For Availability
10
Thermostat WPL 4393325 Contact Us For Availability
10
Support, Interlock WPL 4393312 Contact Us For Availability
10
Frame, Door WPL 4393345 Contact Us For Availability
10
Indicator WPL 4393543 Contact Us For Availability
10
Pan Foot WPL 4393282 Contact Us For Availability
11
Capacitor WPL 4393320 Contact Us For Availability
11
Oven Foot WPL 4393280 Contact Us For Availability
12
Diode WPL 4393485 Contact Us For Availability
12
Nail, Plastic WPL 4393291 Contact Us For Availability
13
Latch, Upper WPL 4393341 Contact Us For Availability
13
Bushing, Nail WPL 4393290 Contact Us For Availability
14
Latch, Lower WPL 4393340 Contact Us For Availability
14
Clip, Wire WPL 4393276 Contact Us For Availability
15
Pin, Door WPL 4393339 Contact Us For Availability
15
Strain Relief WPL 4393271 Contact Us For Availability
16
E-Ring WPL 4393060 Contact Us For Availability
16
Power Cord WPL 4393304 Contact Us For Availability
16
Motor, Turntable WPL 4393285 Contact Us For Availability
17
Nut WPL 4393054 Contact Us For Availability
17
Switch, Monitor WPL 4393363 Contact Us For Availability
17
Thermostat WPL 4393299 Contact Us For Availability
18
Washer WPL 4393058 Contact Us For Availability
18
Lamp WPL 4393298 Contact Us For Availability
19
Tray, Glass WPL 4393428 Contact Us For Availability
19
Holder, Lamp WPL 4393302 Contact Us For Availability
20
Cover WPL 4393289 Contact Us For Availability
23
Screw WPL 4393044 Contact Us For Availability
24
Screw WPL 4393046 Contact Us For Availability
25
Nut WPL 4393057 Contact Us For Availability
25
Screw WPL 4393045 Contact Us For Availability
26
Switch, Interlock WPL 4393311 Contact Us For Availability
26
Screw WPL 4393049 Contact Us For Availability
27
Lid WPL 4393497 Contact Us For Availability
28
Washer WPL 4393061 Contact Us For Availability
29
Rocker WPL 4393446 Contact Us For Availability
29
Nut WPL 4393055 Contact Us For Availability
30
Cover WPL 4393445 Contact Us For Availability
30
Screw WPL 4393053 Contact Us For Availability
31
Washer WPL 4393062 Contact Us For Availability
32
Screw WPL 4393269 Contact Us For Availability
33
Screw WPL 4393050 Contact Us For Availability
35
Screw WPL 4393048 Contact Us For Availability
× ![]()
