Model Whirlpool MT7070XDQ0 – Common Parts & Diagrams

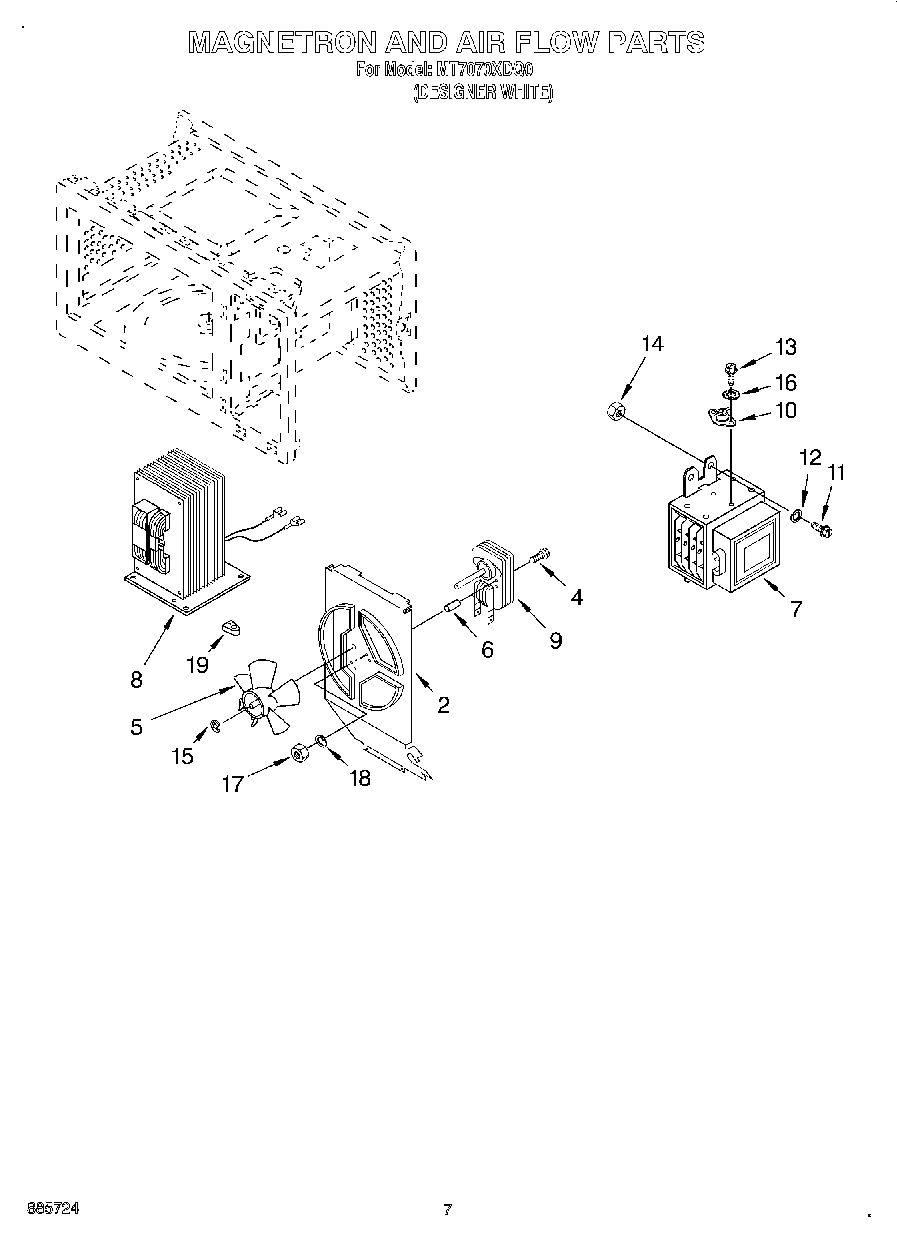

05 - MAGNETRON & AIR FLOW

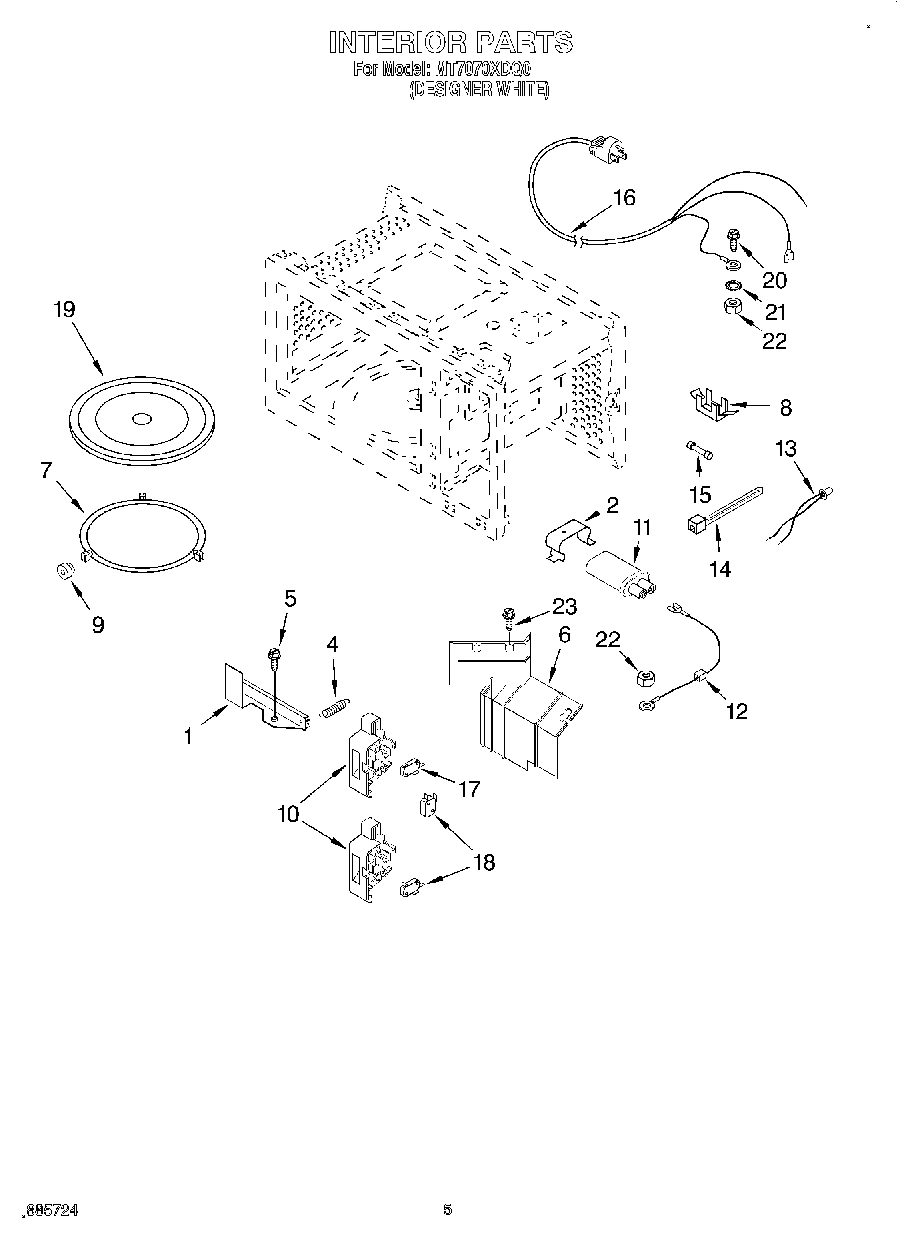

04 - INTERIOR

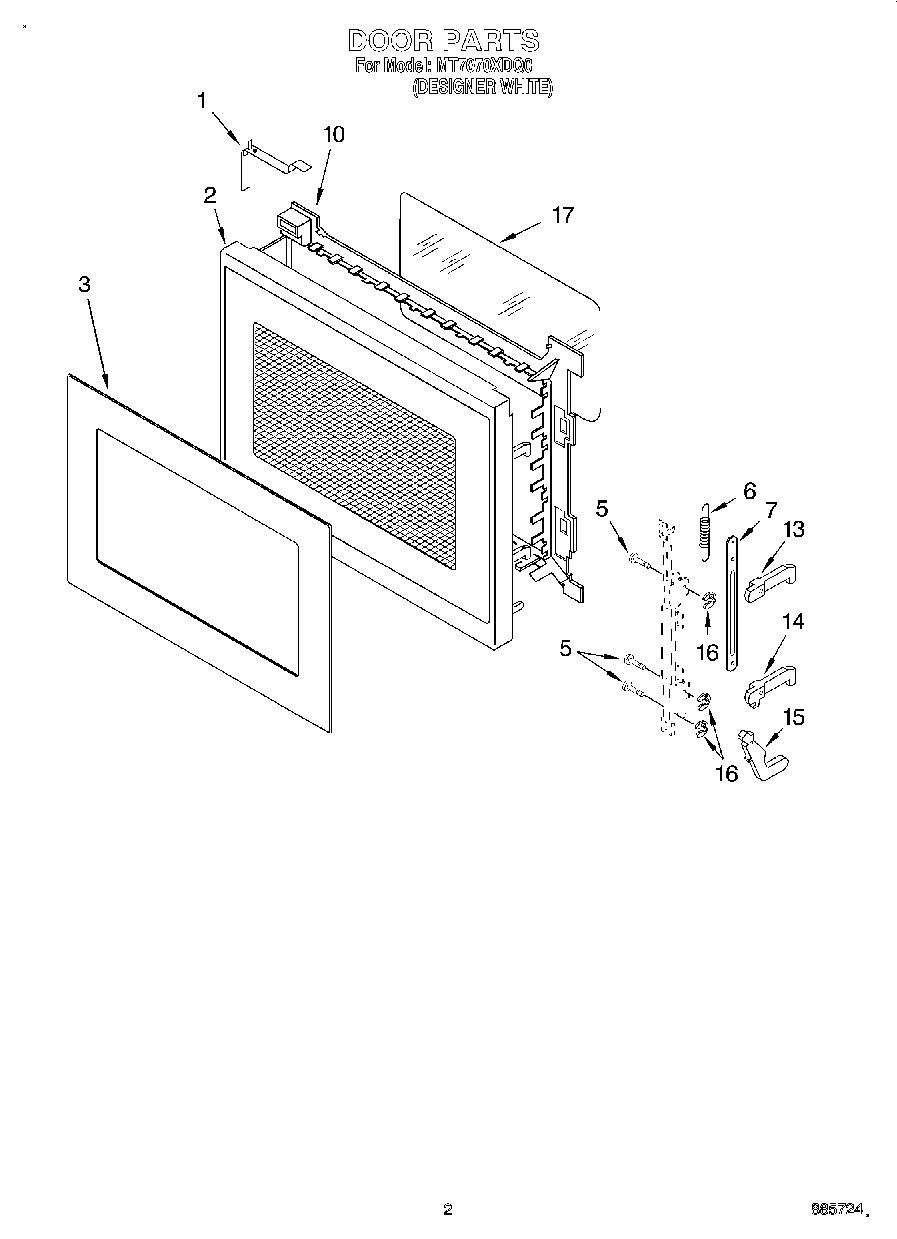

02 - DOOR

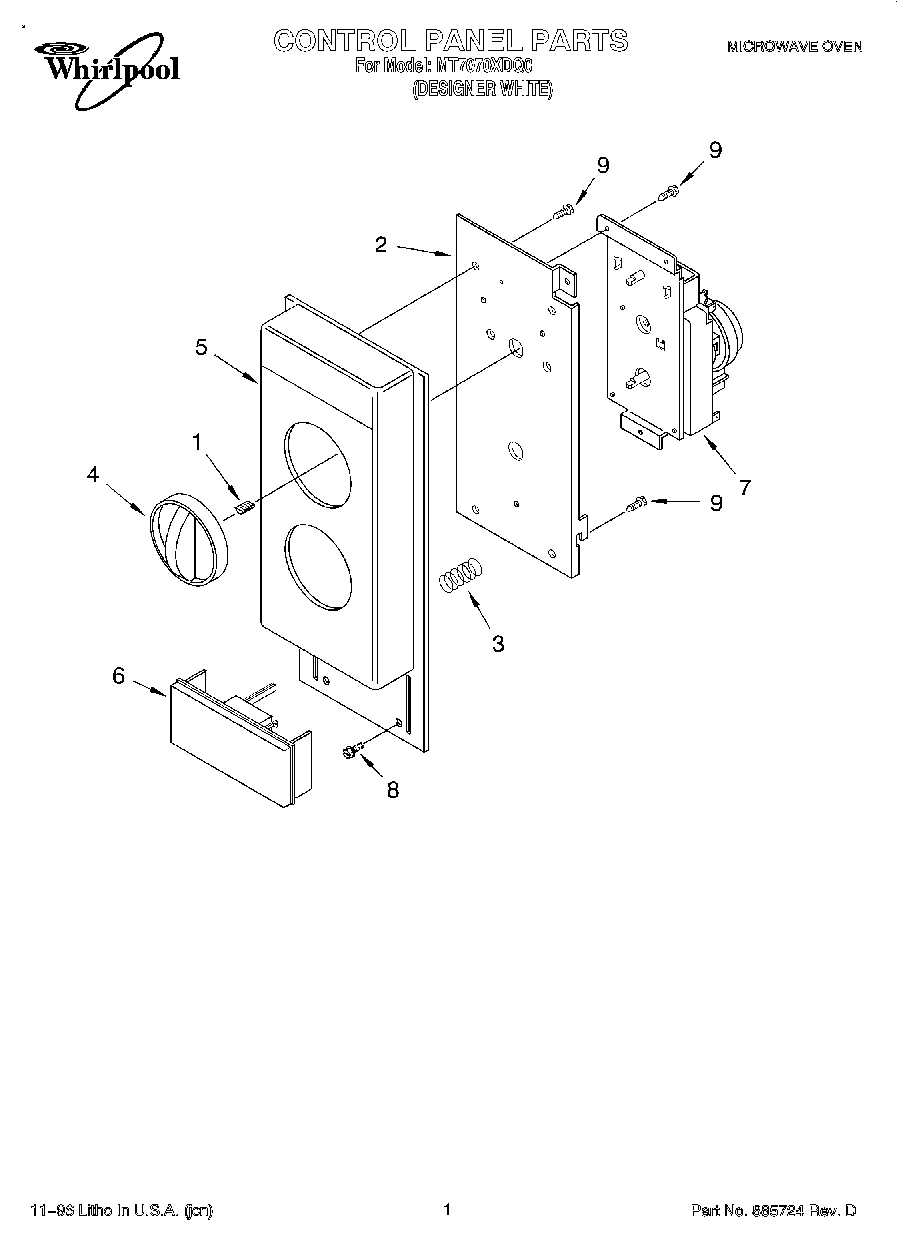

01 - CONTROL PANEL

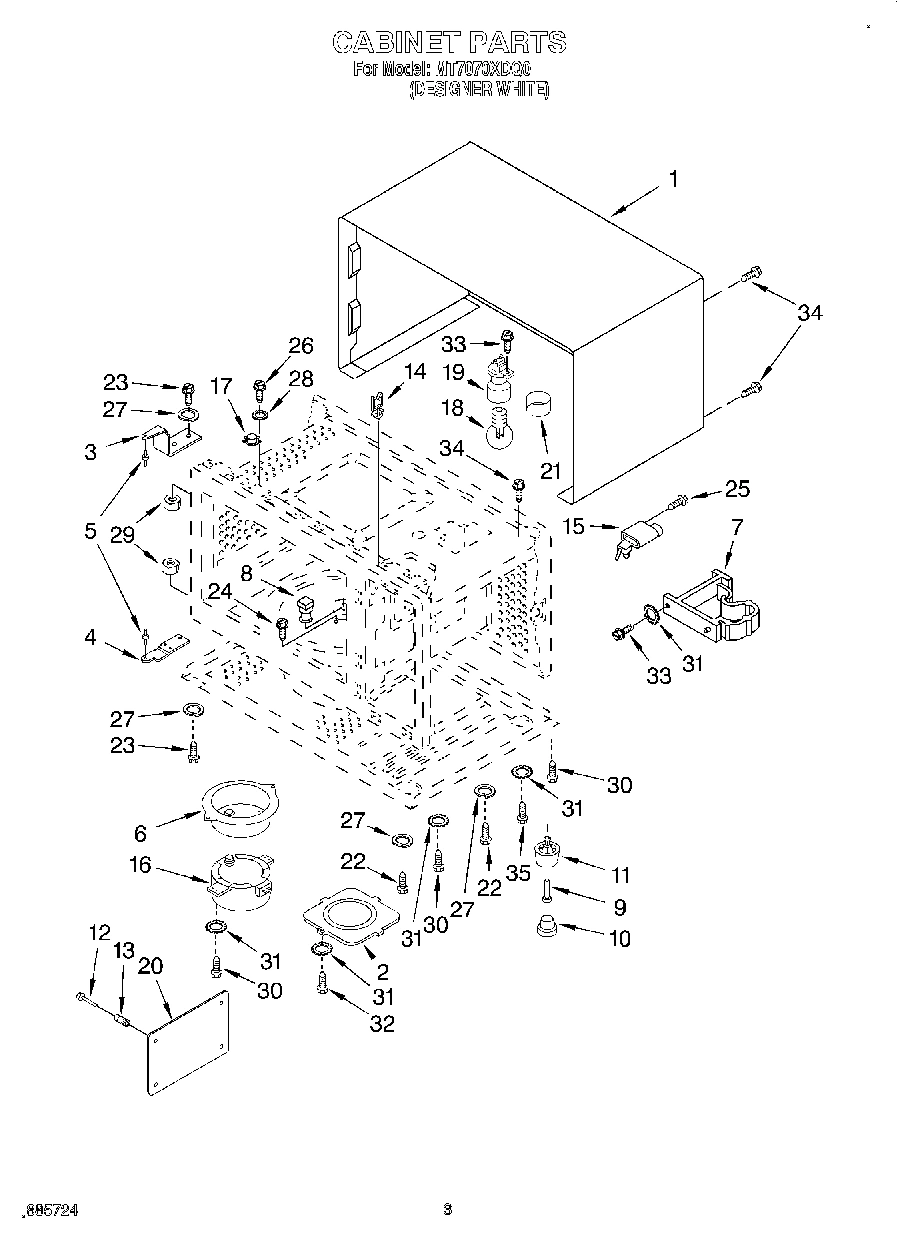

03 - CABINET, LITERATURE
Common parts from model Whirlpool MT7070XDQ0
Use & Care Guide WPL LIT4392952 Contact Us For Availability
Tech Sheet WPL LIT4393261 Contact Us For Availability
1
Lever WPL 4392973 Contact Us For Availability
1
Door Stopper WPL 4392959 Contact Us For Availability
1
Bushing, Spring WPL 4393245 Contact Us For Availability
1
Cover, Oven WPL 4393230 Contact Us For Availability
2
Support, Fan Motor WPL 4392975 Contact Us For Availability
2
Bracket, Capacitor WPL 4392974 Contact Us For Availability
2
Door Body Assy WPL 4393240 Contact Us For Availability
2
Panel Support WPL 4393247 Contact Us For Availability
2
Cover, Motor WPL 4393231 Contact Us For Availability
3
Front PC Plate WPL 4393241 Contact Us For Availability
3
Spring, Button WPL 4392983 Contact Us For Availability
3
Hinge, Upper WPL 4392965 Contact Us For Availability
4
Screw WPL 4392985 Contact Us For Availability
4
Spring WPL 4392982 Contact Us For Availability
4
Knob WPL 4393246 Contact Us For Availability
4
Hinge, Lower WPL 4392966 Contact Us For Availability
5
Blade, Fan WPL 4393002 Contact Us For Availability
5
Screw WPL 4392984 Contact Us For Availability
5
Latch Pivot WPL 4392970 Contact Us For Availability
5
Cover, Panel WPL 4393012 Contact Us For Availability
5
Door Pivot WPL 4392967 Contact Us For Availability
6
Sleeve WPL 4393010 Contact Us For Availability
6
Guide, Air WPL 4393235 Contact Us For Availability
6
Spring WPL 4392971 Contact Us For Availability
6
Push Button WPL 4393013 Contact Us For Availability
6
Motor Case WPL 4392979 Contact Us For Availability
7
Magnetron WPL 4393016 Contact Us For Availability
7
Turntable Ring WPL 4392996 Contact Us For Availability
7
Hook Connector WPL 4393243 Contact Us For Availability
7
Timer WPL 4393024 Contact Us For Availability
7
Spacer, Back WPL 4392988 Contact Us For Availability
8
Transformer WPL 4393239 Contact Us For Availability
8
Fuse Saddle WPL 4393147 Contact Us For Availability
8
Screw WPL 4393052 Contact Us For Availability
8
Shaft, Turntable WPL 4392997 Contact Us For Availability
9
Motor, Fan WPL 4393027 Contact Us For Availability
9
Wheel WPL 4393000 Contact Us For Availability
9
Nail, Foot WPL 4393005 Contact Us For Availability
10
Thermostat WPL 4393029 Contact Us For Availability
10
Support, Interlock WPL 4393001 Contact Us For Availability
10
Frame, Door WPL 4393244 Contact Us For Availability
10
Pan Foot WPL 4393006 Contact Us For Availability
11
Capacitor WPL 4393236 Contact Us For Availability
11
Oven Foot WPL 4393007 Contact Us For Availability
12
Diode WPL 4393022 Contact Us For Availability
12
Plastic Nail WPL 4393008 Contact Us For Availability
13
Screw WPL 4393049 Contact Us For Availability
13
Connector WPL 4393031 Contact Us For Availability
13
Latch, Upper WPL 4392993 Contact Us For Availability
13
Bushing, Nail WPL 4393009 Contact Us For Availability
14
Nut WPL 4393056 Contact Us For Availability
14
Cable Tie WPL 4393032 Contact Us For Availability
14
Latch, Lower WPL 4392994 Contact Us For Availability
14
Clip, Wire WPL 4393014 Contact Us For Availability
15
Fuse WPL 4393033 Contact Us For Availability
15
Pin, Door WPL 4392995 Contact Us For Availability
15
Strain Relief WPL 4393015 Contact Us For Availability
16
E-Ring WPL 4393060 Contact Us For Availability
16
Power Cord WPL 4393034 Contact Us For Availability
16
Motor, Turntable WPL 4393025 Contact Us For Availability
17
Nut WPL 4393054 Contact Us For Availability
17
Switch, Monitor WPL 4393035 Contact Us For Availability
17
Film, Back WPL 4392992 Contact Us For Availability
17
Thermostat WPL 4393233 Contact Us For Availability
18
Washer WPL 4393058 Contact Us For Availability
18
Switch, Primary WPL 4393036 Contact Us For Availability
18
Lamp WPL 4393232 Contact Us For Availability
19
Rubber Spacer WPL 4393238 Contact Us For Availability
19
Tray, Glass WPL 4393237 Contact Us For Availability
19
Holder, Lamp WPL 4393038 Contact Us For Availability
20
Cover WPL 4393041 Contact Us For Availability
21
Tape, Lamp WPL 4393042 Contact Us For Availability
22
Nut WPL 4393057 Contact Us For Availability
23
Screw WPL 4393044 Contact Us For Availability
24
Screw WPL 4393046 Contact Us For Availability
25
Screw WPL 4393045 Contact Us For Availability
26
Screw WPL 4393234 Contact Us For Availability
28
Washer WPL 4393061 Contact Us For Availability
29
Nut WPL 4393055 Contact Us For Availability
30
Screw WPL 4393053 Contact Us For Availability
31
Washer WPL 4393062 Contact Us For Availability
32
Screw WPL 4393047 Contact Us For Availability
33
Screw WPL 4393050 Contact Us For Availability
34
Screw WPL 4393051 Contact Us For Availability
35
Screw WPL 4393048 Contact Us For Availability
× ![]()
