Model Whirlpool MT6120XYB0 – Common Parts & Diagrams

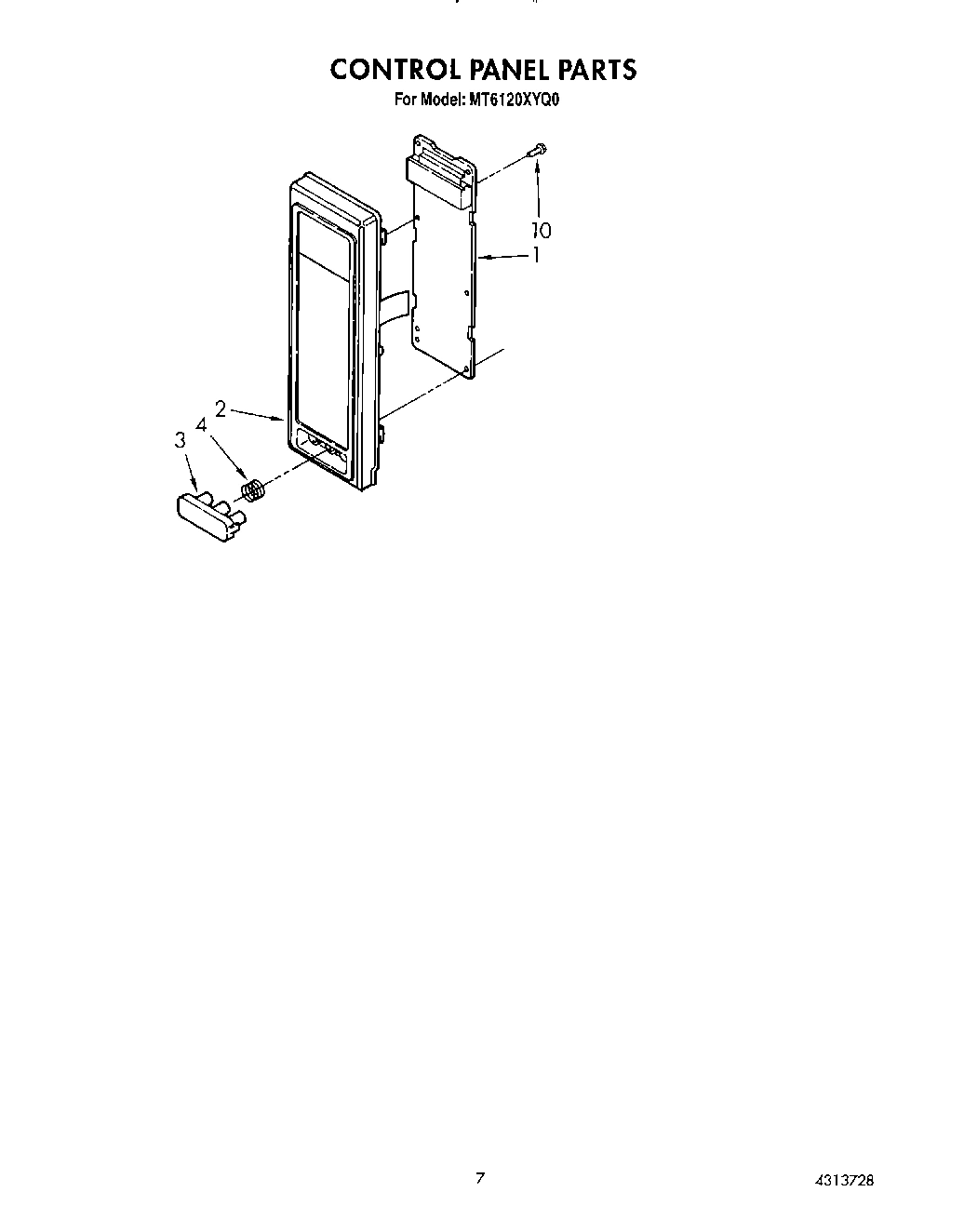

06 - CONTROL PANEL

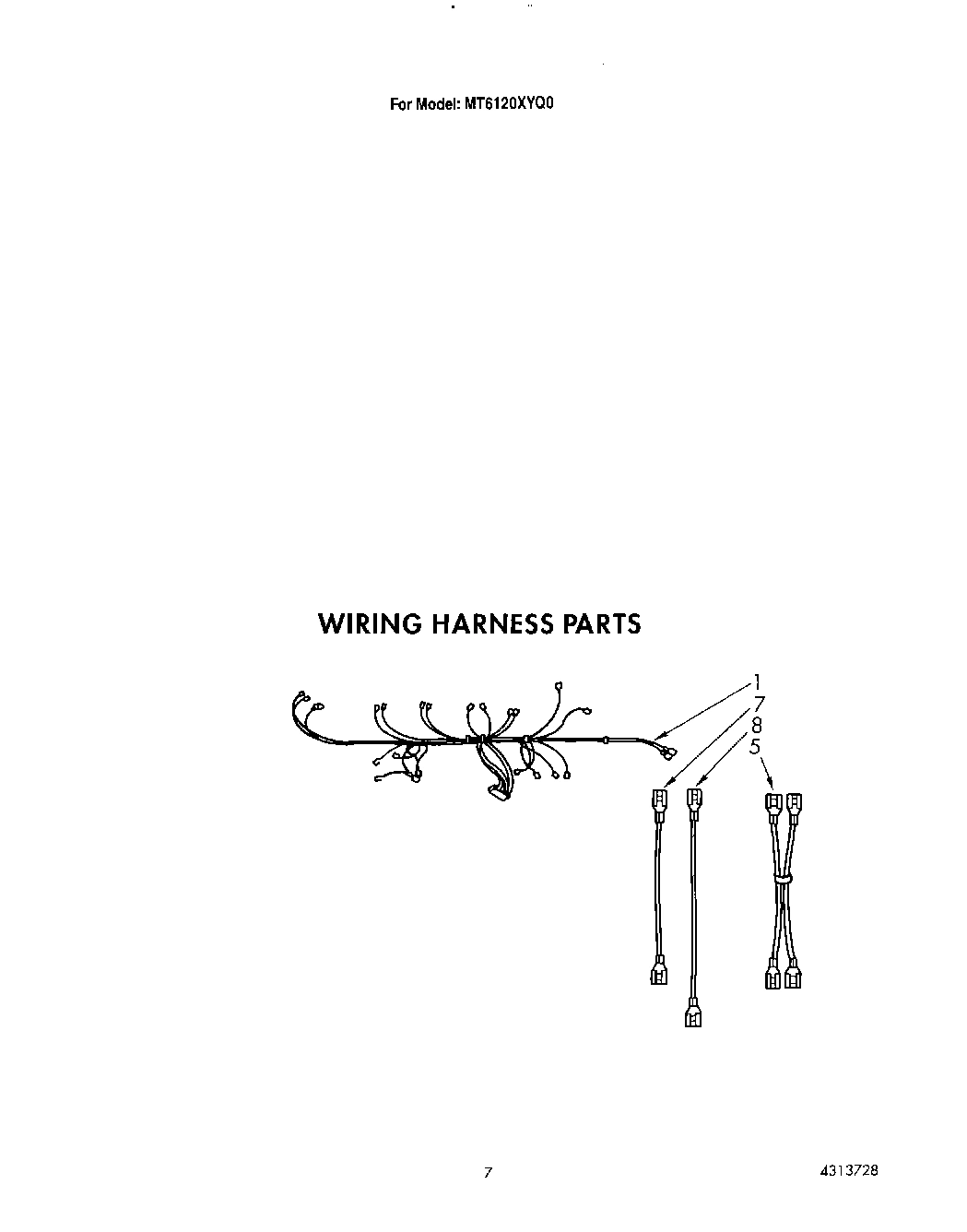

07 - WIRING HARNESS

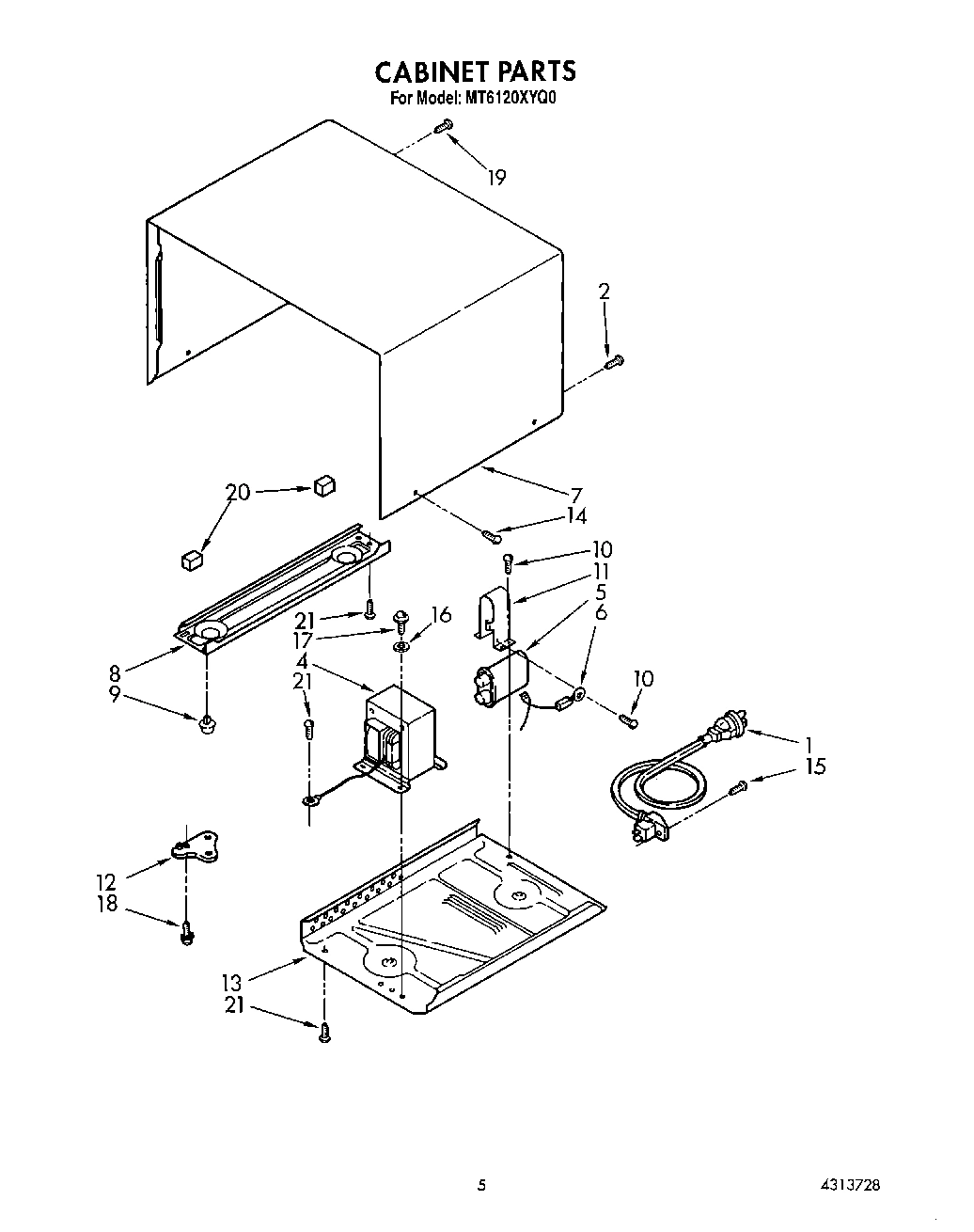

04 - CABINET

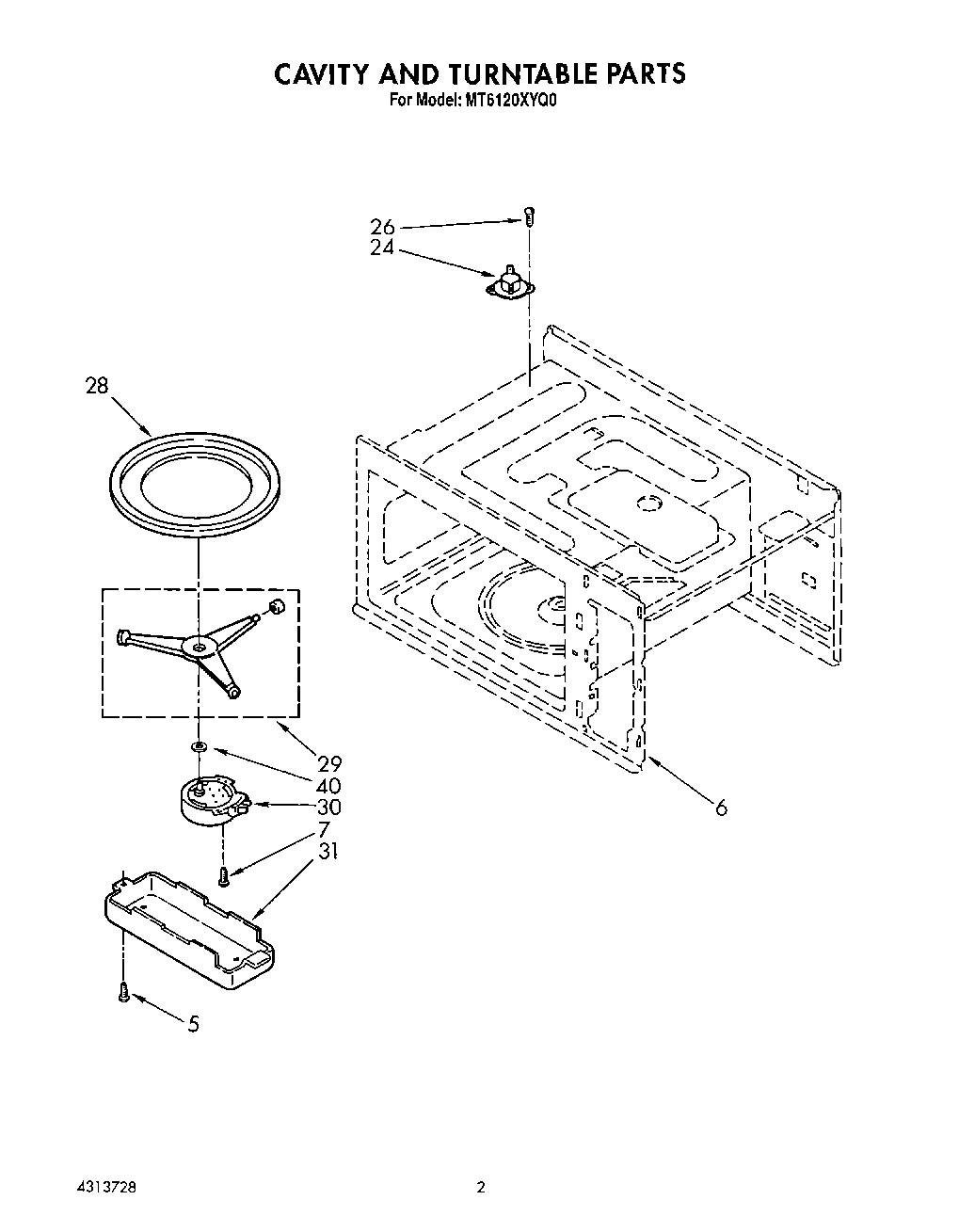

02 - CAVITY AND TURNTABLE, LIT/OPTIONAL

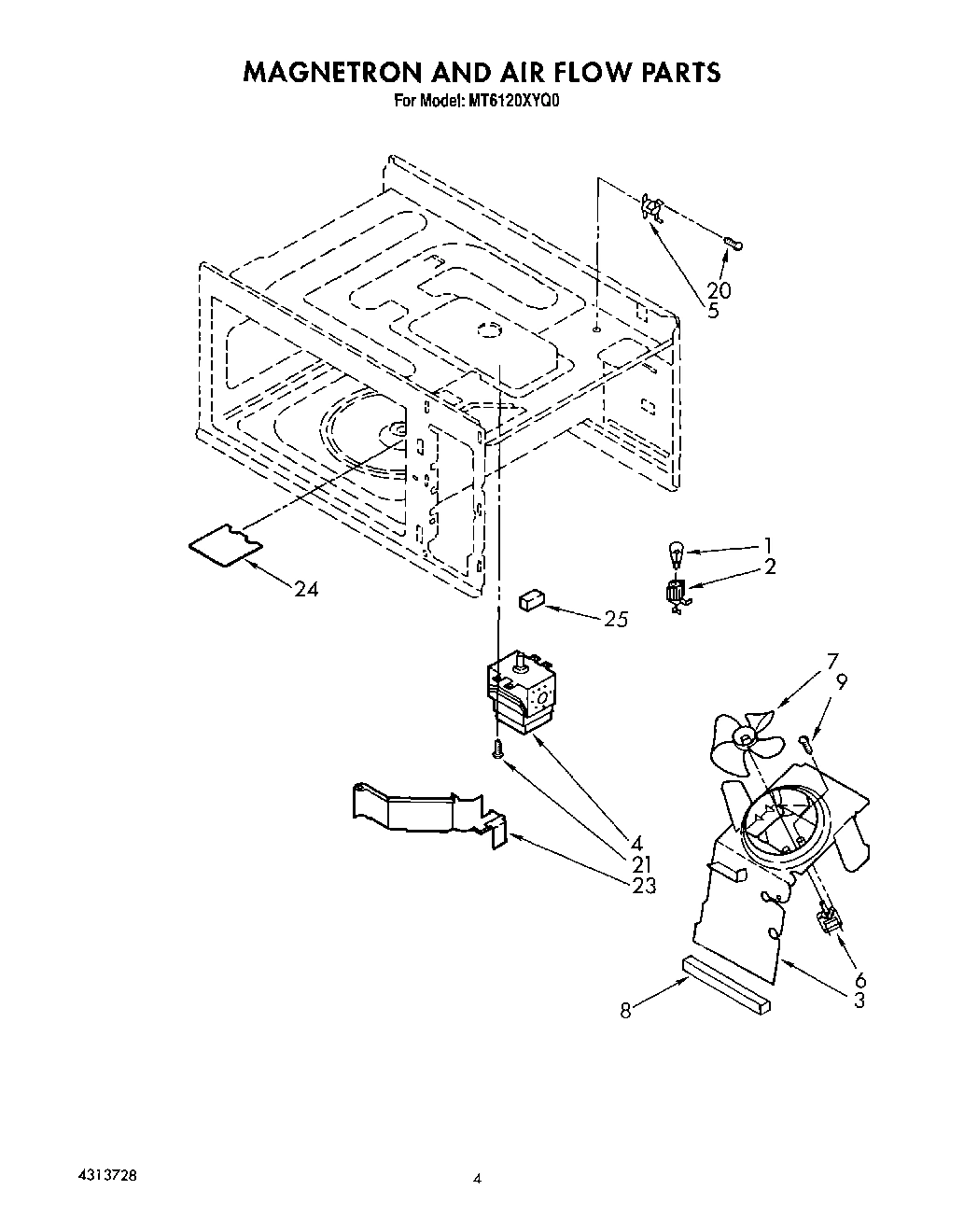

03 - MAGNETRON AND AIR FLOW

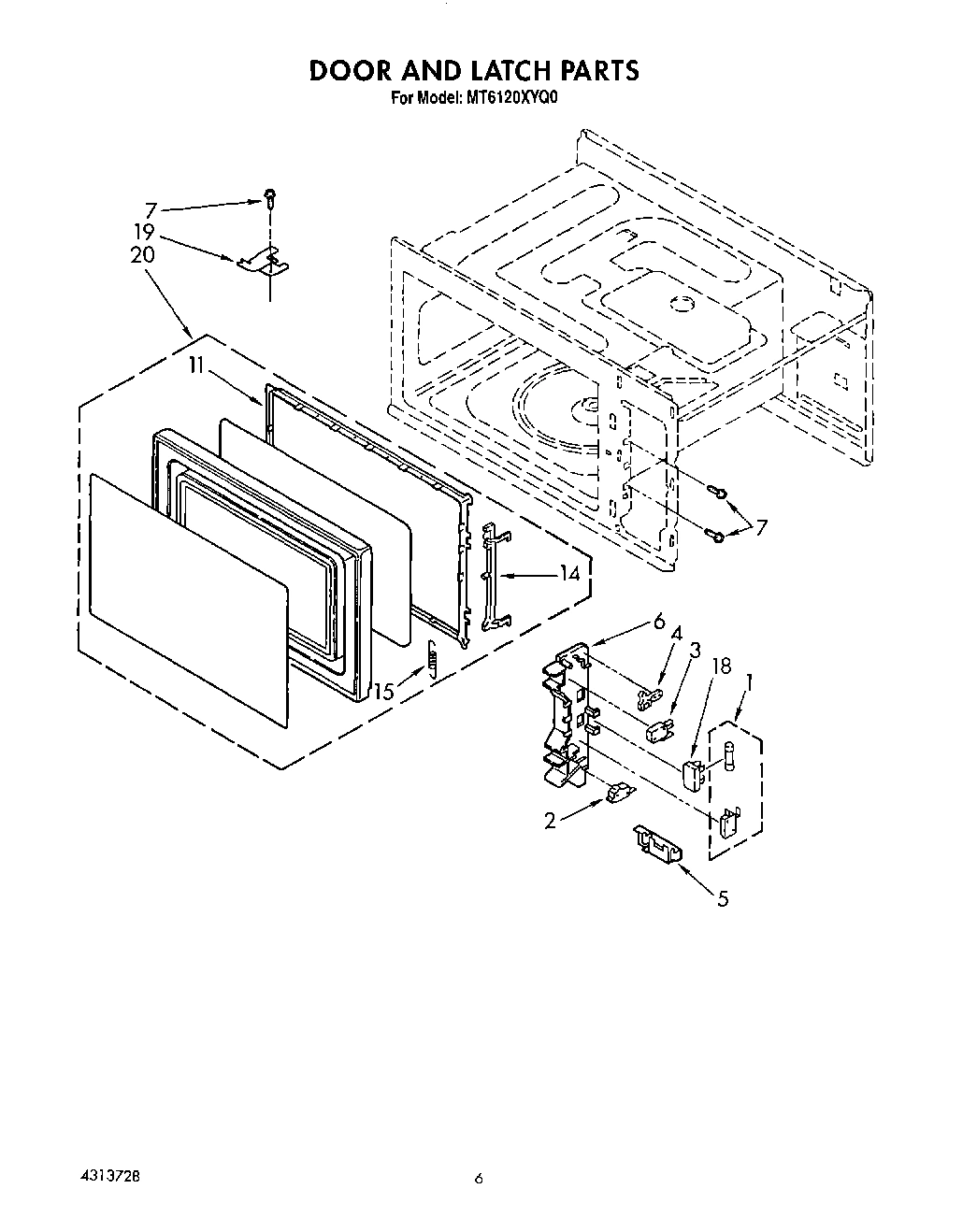

05 - DOOR AND LATCH
Common parts from model Whirlpool MT6120XYB0
Built In Kit (For Use Over Non-Heat Source) ( WPL 4319161 Contact Us For Availability
White WPL 4386532 Contact Us For Availability
Black WPL 4386533 Contact Us For Availability
Manual, Operation WPL LIT4313714 Contact Us For Availability
Tech Sheet WPL LIT4313715 Contact Us For Availability
1
Harness, Main WPL 4357342 Contact Us For Availability
1
Power Cord WPL 4313617 Contact Us For Availability
1
Lamp, Oven WPL 4313608 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4313673 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
3
Push Button (Black) WPL 4313629 Contact Us For Availability
3
Push Button (White) WPL 4313630 Contact Us For Availability
3
Duct, Fan WPL 4357346 Contact Us For Availability
4
Transformer WPL 4313615 Contact Us For Availability
4
Magnetron WPL 4365503 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
5
Harness, Wiring Thermal Protection WPL 4365506 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Screw WPL 4313661 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
6
Rectifier WPL 4313606 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI119022A Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
7
H.V. Wire Magnetron To Capacitor WPL 4313657 Contact Us For Availability
7
Outer Cabinet (White) WPL 4313637 Contact Us For Availability
7
Outer Cabinet (Black) WPL 4365507 Contact Us For Availability
7
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
8
H.V. Wire Transformer To Capacitor WPL 4313658 Contact Us For Availability
8
Base Plate, Left Side WPL 4313622 Contact Us For Availability
8
Seal, Fan Duct WPL 4174824 Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
10
Screw WPL 4313663 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Choke Cover (Black) WPL 4313650 Contact Us For Availability
11
Choke Cover (White) WPL 4313651 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
13
Base Plate, Right Side WPL 4313621 Contact Us For Availability
14
Screw, Cabinet (White) WPL 4313668 Contact Us For Availability
14
Screw, Cabinet (Black) WPL 4313669 Contact Us For Availability
14
Latch, Door (Black) WPL 4313652 Contact Us For Availability
14
Latch, Door (White) WPL 4313653 Contact Us For Availability
15
Screw WPL 4313666 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
16
Washer, Ground WPL 4357327 Contact Us For Availability
17
Screw WPL 4313662 Contact Us For Availability
18
Screw WPL 4357326 Contact Us For Availability
18
Holder, Fuse WPL 4174899 Contact Us For Availability
19
Screw WPL 4313665 Contact Us For Availability
19
Hinge, Upper WPL 4313638 Contact Us For Availability
20
Shield, Wire (2) WPL 4313644 Contact Us For Availability
20
Screw WPL 4174826 Contact Us For Availability
20
Door, Complete (Black) WPL 4365519 Contact Us For Availability
20
Door, Complete (White) WPL 4365520 Contact Us For Availability
21
Screw WPL 4357320 Contact Us For Availability
23
Duct, Magnetron WPL 4313633 Contact Us For Availability
24
Thermostat, Oven WPL 4313674 Contact Us For Availability
24
Cover, Wave Guide WPL 4313635 Contact Us For Availability
25
Shield, Magnetron WPL 4313643 Contact Us For Availability
29
Support, Turntable WPL 4313639 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
31
Cover, Motor WPL 4365508 Contact Us For Availability
40
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
40
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
40
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
40
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
40
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
40
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
40
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
40
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
40
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
40
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
40
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
40
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
40
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
40
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
× ![]()
