Model Whirlpool MT6120XBQ0 – Common Parts & Diagrams
06 - WIRING HARNESS
01 - CAVITY AND TURNTABLE, LIT/OPTIONAL

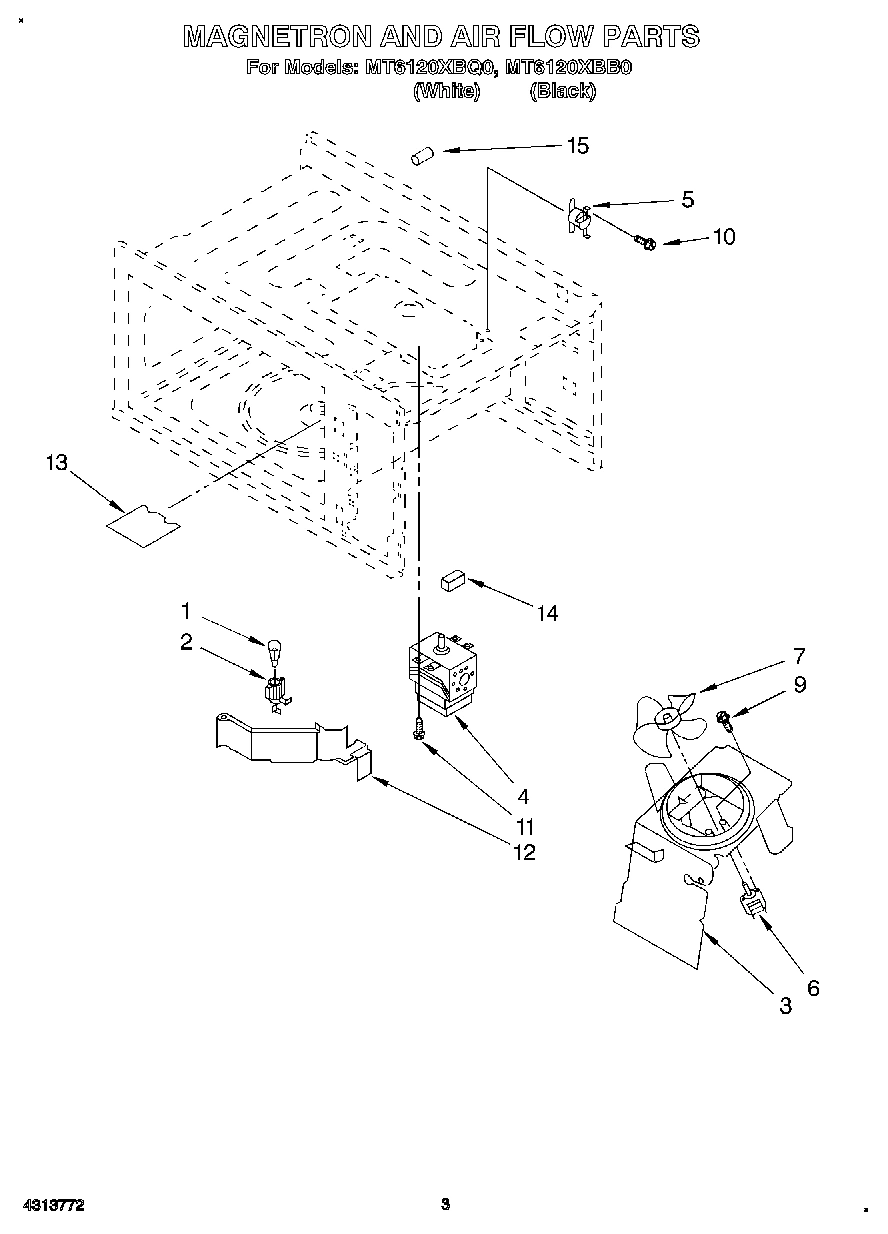

02 - MAGNETRON AND AIR FLOW

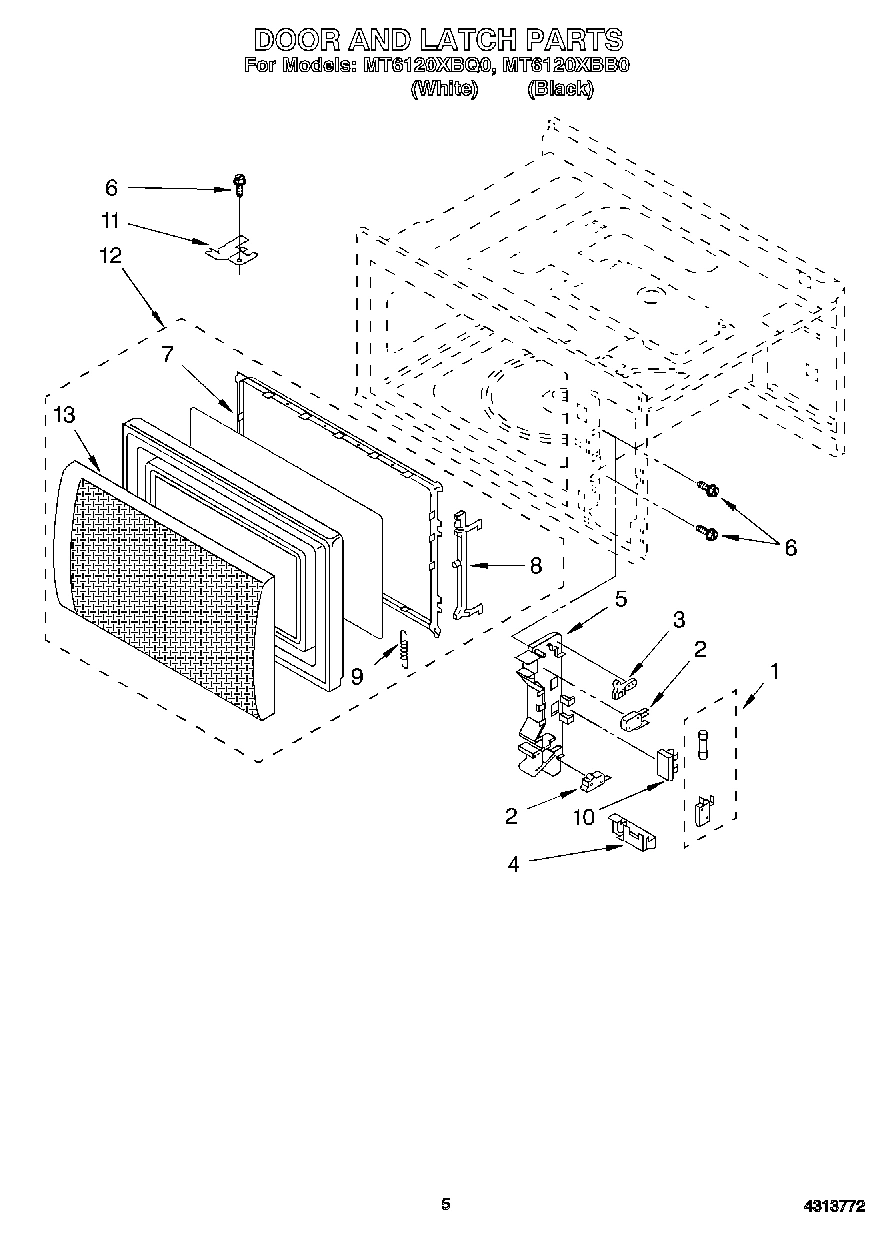

04 - DOOR AND LATCH

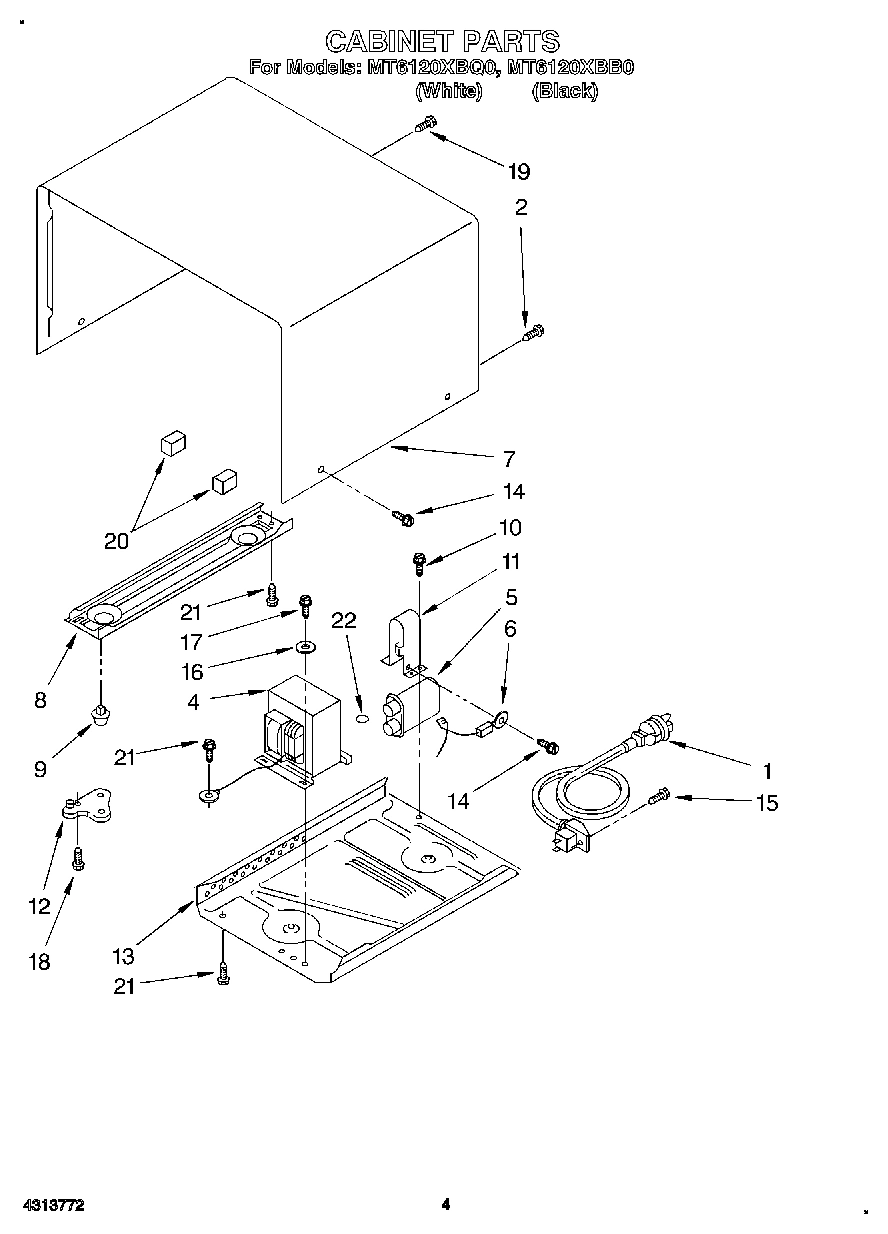

03 - CABINET

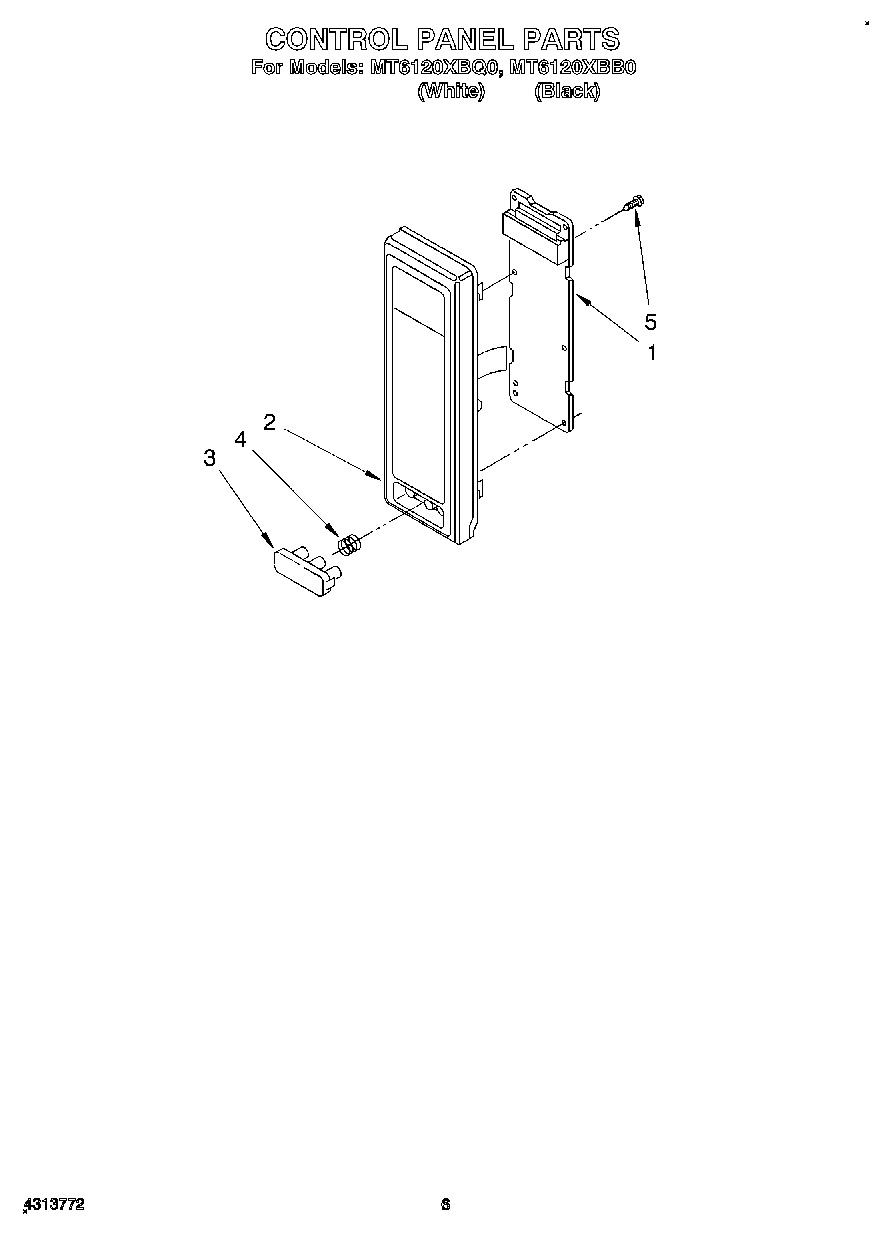

05 - CONTROL PANEL
Common parts from model Whirlpool MT6120XBQ0
Black (For Use Over Non Heat Source) WPL 4319161 Contact Us For Availability
Manual, Operation WPL LIT4313756 Contact Us For Availability
Tech Sheet WPL LIT4313757 Contact Us For Availability
1
Lamp, Oven WPL 4313608 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4313673 Contact Us For Availability
1
Power Cord WPL 4174647 Contact Us For Availability
1
Microcomputer WPL 4365578 Contact Us For Availability
2
Cavity, Oven (Not a Serviceable Part) WPL ARI119019A Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
2
Screw WPL 4357320 Contact Us For Availability
2
Control Panel (Black) WPL 4365579 Contact Us For Availability
2
Control Panel (White) WPL 4365580 Contact Us For Availability
3
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
3
Duct, Fan WPL 4357346 Contact Us For Availability
3
Hook, Lever WPL 4312877 Contact Us For Availability
3
Push Button (Black) WPL 4365581 Contact Us For Availability
3
Push Button (White) WPL 4365582 Contact Us For Availability
4
H.V. Wire Transformer To Capacitor WPL 4313658 Contact Us For Availability
4
Thermostat, Oven WPL 4313674 Contact Us For Availability
4
Magnetron WPL 4365503 Contact Us For Availability
4
Latch Lever WPL 4313624 Contact Us For Availability
4
Transformer WPL 4313677 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Latch Hook WPL 4313620 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Screw WPL 4313632 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
7
Support, Turntable WPL 4365526 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Choke Cover (Black) WPL 4313650 Contact Us For Availability
7
Choke Cover (White) WPL 4313651 Contact Us For Availability
7
Outer Cabinet (White) WPL 4365572 Contact Us For Availability
7
Outer Cabinet (Black) WPL 4365583 Contact Us For Availability
8
Motor, Turntable WPL 4357340 Contact Us For Availability
8
Seal, Fan Duct WPL 4174824 Contact Us For Availability
8
Latch, Door (Black) WPL 4313652 Contact Us For Availability
8
Latch, Door (White) WPL 4313653 Contact Us For Availability
8
Base Plate, Left Side WPL 4357345 Contact Us For Availability
9
Cover, Motor WPL 4313028 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
9
Spring, Latch WPL 4174992 Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
10
Screw WPL 4174826 Contact Us For Availability
10
Gasket, Turntable WPL 4313642 Contact Us For Availability
10
Holder, Fuse WPL 4174899 Contact Us For Availability
10
Screw WPL 4313663 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
11
Hinge, Upper WPL 4313030 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
12
Duct, Magnetron WPL 4313029 Contact Us For Availability
12
Door, Complete (Black) WPL 4365584 Contact Us For Availability
12
Door, Complete (White) WPL 4365585 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
13
Cover, Wave Guide WPL 4313635 Contact Us For Availability
13
Assembly, Door Screen (Black) WPL 4365586 Contact Us For Availability
13
Assembly, Door Screen (White) WPL 4365587 Contact Us For Availability
13
Base Plate, Right Side WPL 4313621 Contact Us For Availability
14
Shield, Magnetron WPL 4313643 Contact Us For Availability
14
Screw, Cabinet (Black) WPL 4174821 Contact Us For Availability
14
Screw, Cabinet (White) WPL 4313668 Contact Us For Availability
15
Spacer WPL 4313691 Contact Us For Availability
15
Screw WPL 4312922 Contact Us For Availability
16
Washer, Ground WPL 4357327 Contact Us For Availability
17
Screw WPL 4313662 Contact Us For Availability
18
Screw WPL 4313034 Contact Us For Availability
19
Screw WPL 4313665 Contact Us For Availability
20
Shield, Wire (2) WPL 4313644 Contact Us For Availability
21
Screw WPL 4313661 Contact Us For Availability
22
Washer WPL 4365501 Contact Us For Availability
× ![]()
