Model Whirlpool MT5151XDZ0 – Common Parts & Diagrams
01 - DOOR
02 - CONTROL PANEL

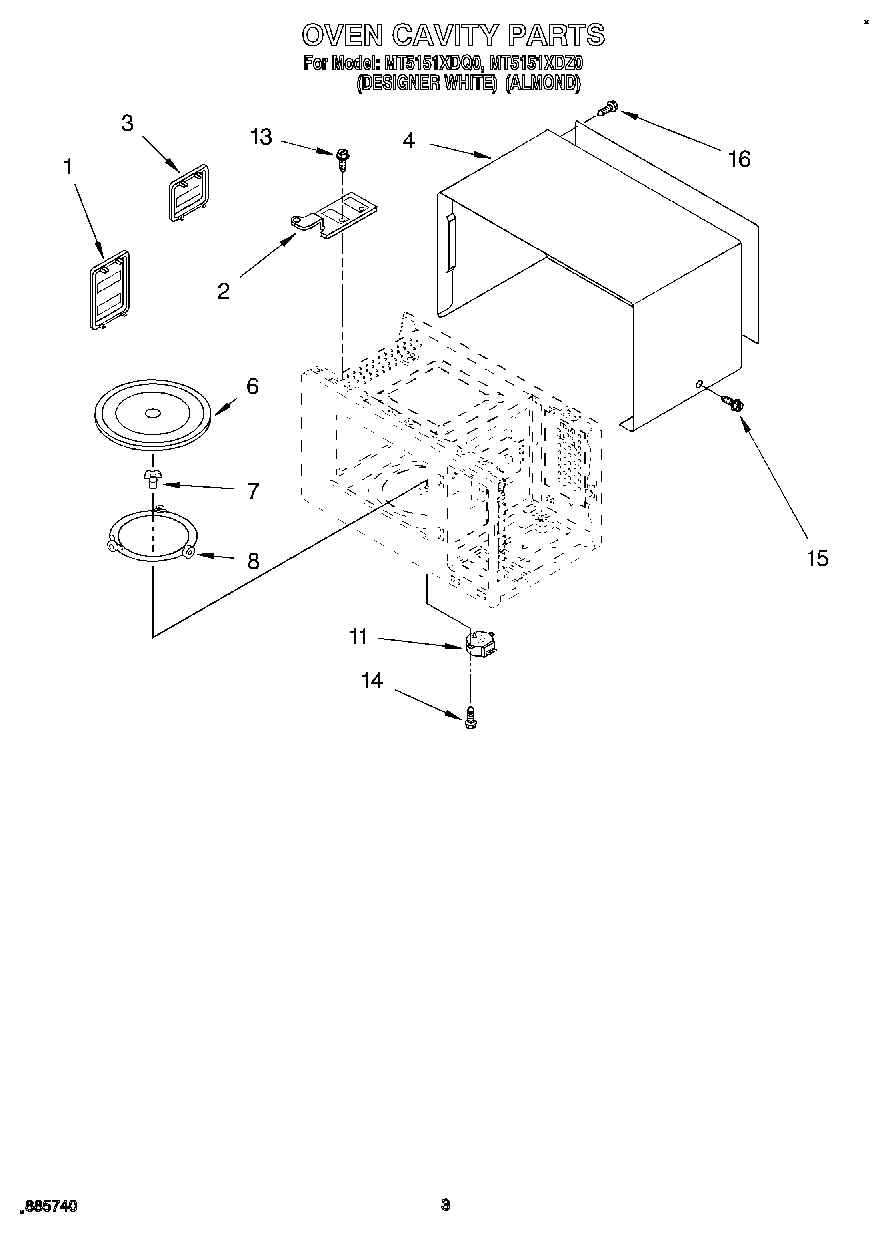

03 - OVEN CAVITY

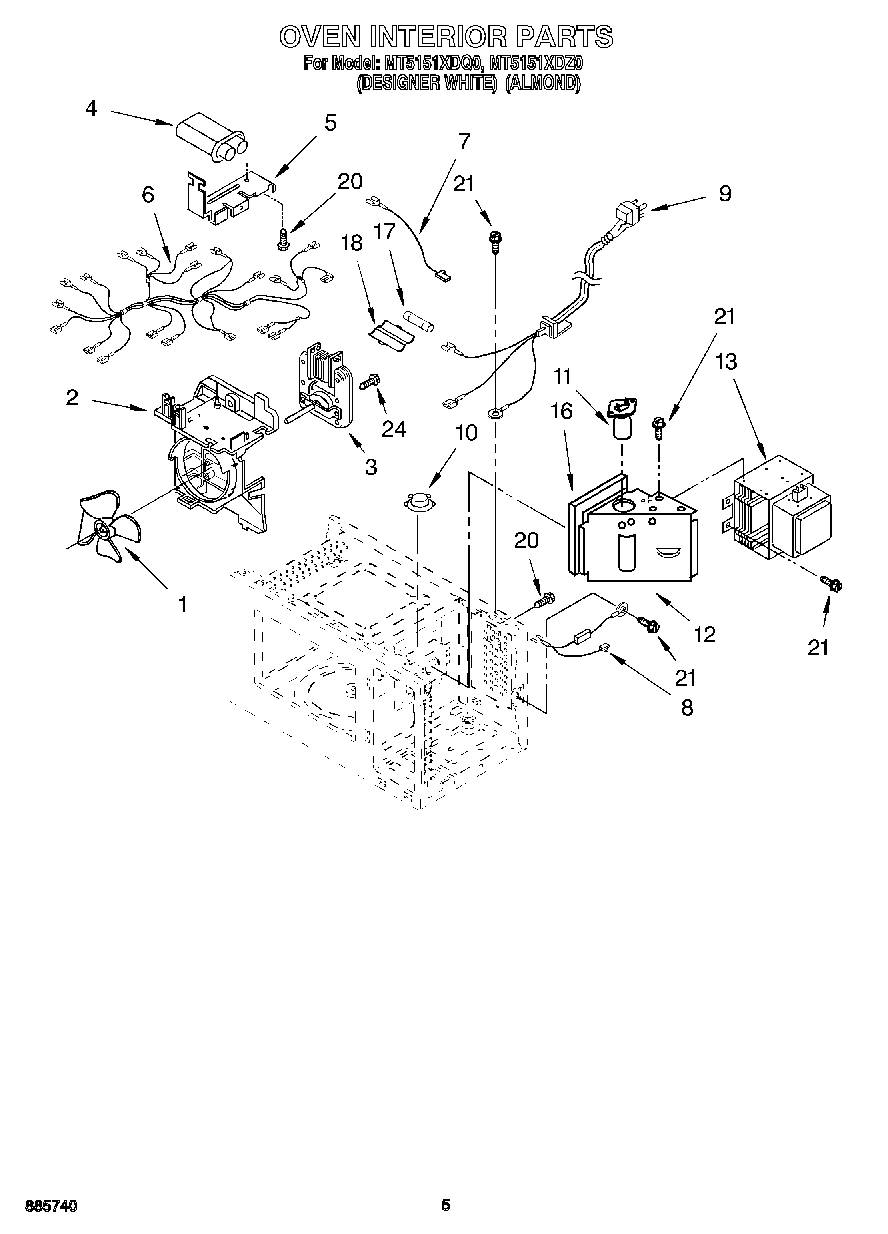

05 - OVEN INTERIOR, LITERATURE

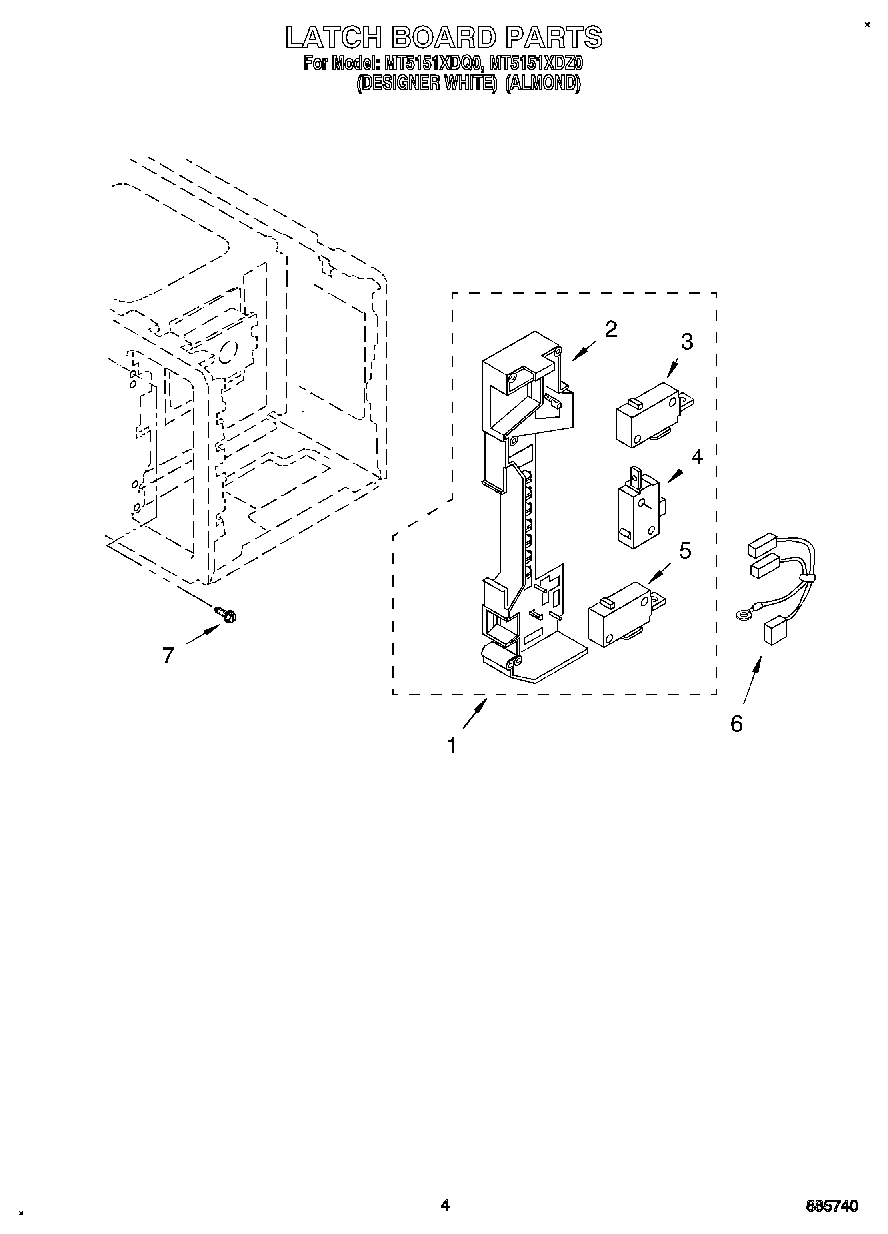

04 - LATCH BOARD

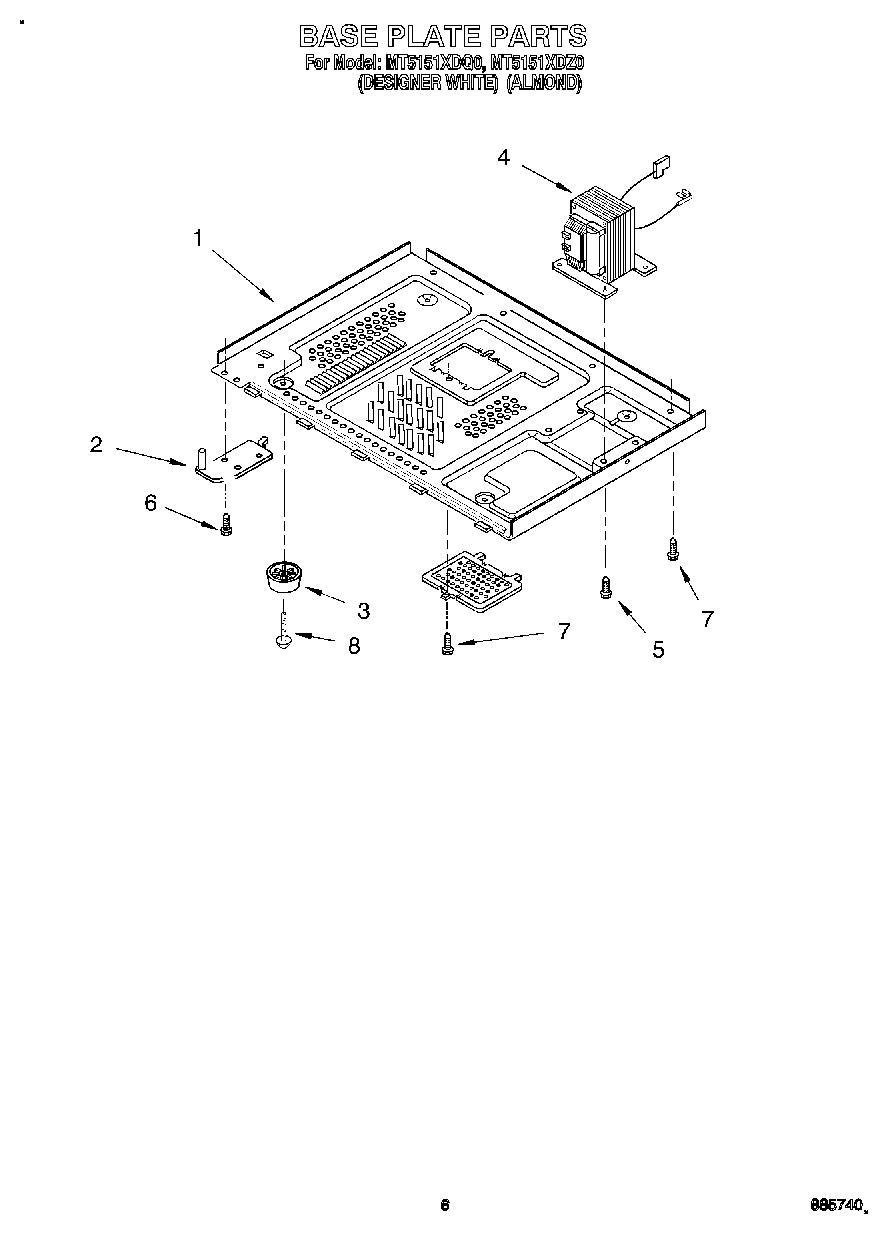

06 - BASE PLATE
Common parts from model Whirlpool MT5151XDZ0
Tech Sheet WPL LIT4359043 Contact Us For Availability
Cook Guide Label WPL LIT4359044 Contact Us For Availability
Use & Care Guide WPL LIT4359215 Contact Us For Availability
1
Controller Assembly (Not Serviceable) White M WPL ARI119014A Contact Us For Availability
1
Canopy, Lower WPL 4359148 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI119015A Contact Us For Availability
1
Base Plate WPL 4359259 Contact Us For Availability
2
Front Screen (Almond Model) WPL 4359174 Contact Us For Availability
2
Release Button (White Model) WPL 4359143 Contact Us For Availability
2
Release Button (Almond Model) WPL 4359176 Contact Us For Availability
2
Plate, Hinge WPL 4359149 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Hinge Plate WPL 4359169 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359262 Contact Us For Availability
3
Door Frame Assembly (Almond Model) WPL 4359269 Contact Us For Availability
3
Canopy, Upper WPL 4359150 Contact Us For Availability
3
Motor, Fan WPL 4358643 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
4
Choke Cover WPL 4359140 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359144 Contact Us For Availability
4
Key Membrane (Almond Model) WPL 4359177 Contact Us For Availability
4
Outer Case (White Model) WPL 4359151 Contact Us For Availability
4
Outer Case (Almond Model) WPL 4359180 Contact Us For Availability
4
H.V. Capacitor WPL 4359159 Contact Us For Availability
4
Transformer WPL 4359170 Contact Us For Availability
5
Tape, Seal WPL 4359141 Contact Us For Availability
5
Control Panel (Almond Model) WPL 4359178 Contact Us For Availability
5
Control Panel (White Model) WPL 4359263 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
6
Latch WPL 4359142 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359260 Contact Us For Availability
6
Tray, Glass WPL 4158823 Contact Us For Availability
6
Leadwire Assembly WPL 4359162 Contact Us For Availability
6
Leadwire Assembly WPL 4359157 Contact Us For Availability
6
Screw WPL 4359172 Contact Us For Availability
7
Screw (2) WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
7
Lever, Release WPL 4358636 Contact Us For Availability
7
Shaft, Turn Table WPL 4359152 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
8
Tape, Toyo WPL 4358608 Contact Us For Availability
8
Controller Sub Assembly (White Model) WPL 4359147 Contact Us For Availability
8
Controller Sub Assembly (Almond Model) WPL 4359179 Contact Us For Availability
8
Rotating Ring Ass`y WPL 4359153 Contact Us For Availability
8
H.V. Diode Cable WPL 4158828 Contact Us For Availability
8
Screw WPL 4358381 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
10
Screw (3) WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
11
Motor, Synchronous WPL 4359154 Contact Us For Availability
11
Lamp, Baseless WPL 4359165 Contact Us For Availability
12
Duct, Air WPL 4359166 Contact Us For Availability
13
Magnetron WPL 4158798 Contact Us For Availability
14
Screw (2) WPL 4358188 Contact Us For Availability
16
Cushion WPL 4359167 Contact Us For Availability
17
Fuse WPL 4358704 Contact Us For Availability
18
Cap, Fuse WPL 4358659 Contact Us For Availability
24
Screw (2) WPL 4358190 Contact Us For Availability
× ![]()
