Model Whirlpool MT5120XAQ0 – Common Parts & Diagrams

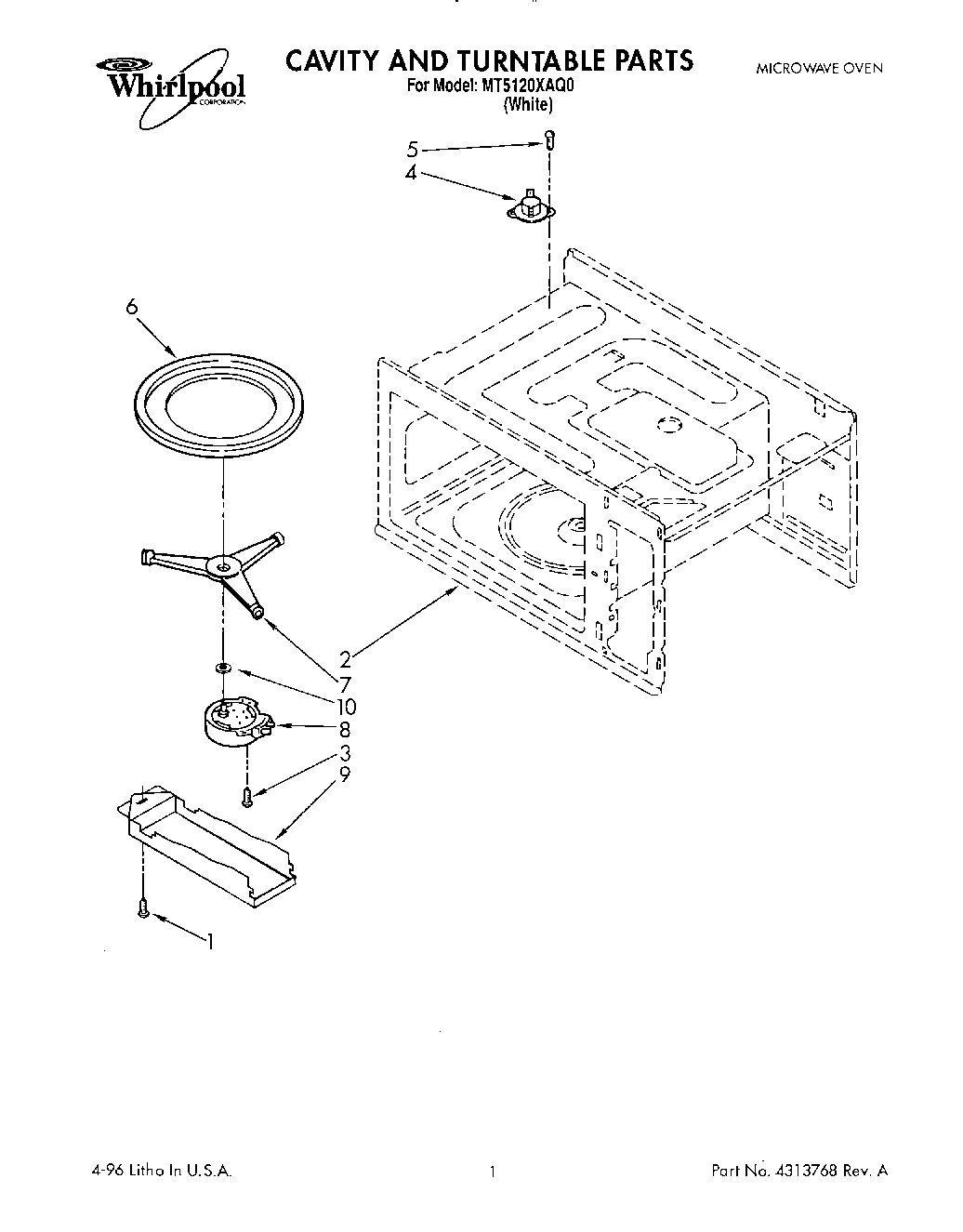

01 - CAVITY AND TURNTABLE, LIT/OPTIONAL

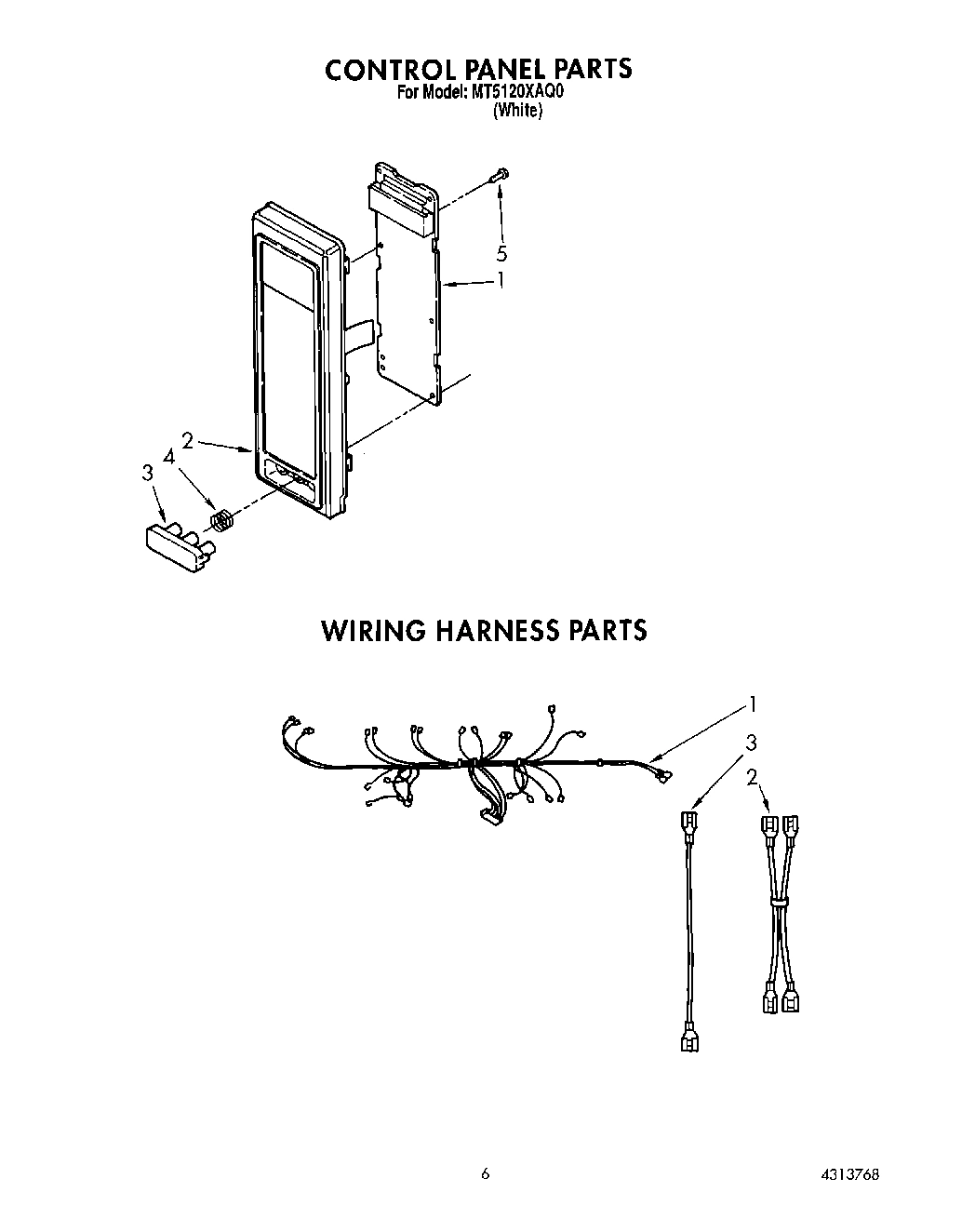

05 - CONTROL PANEL, WIRING HARNESS

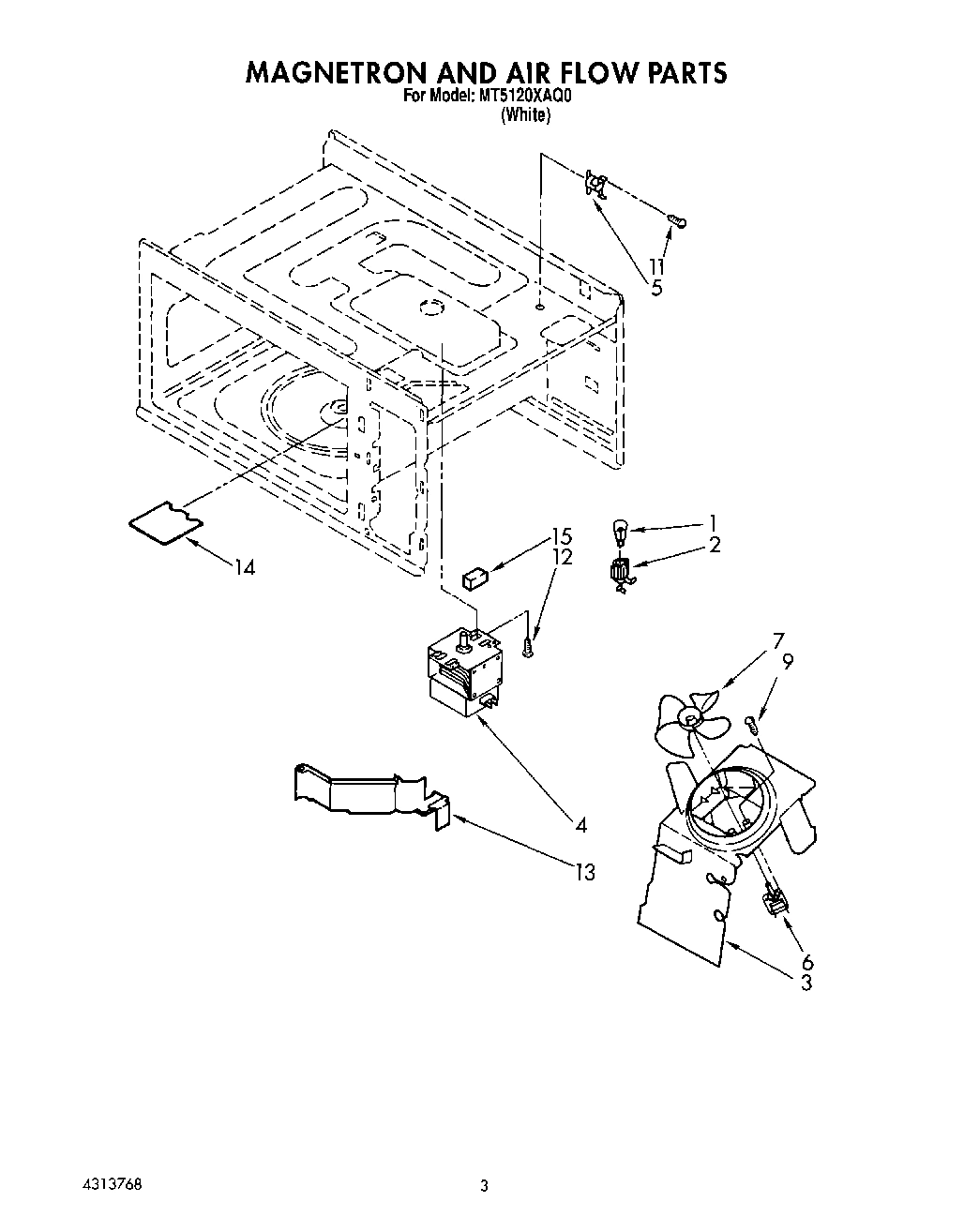

02 - MAGNETRON AND AIR FLOW

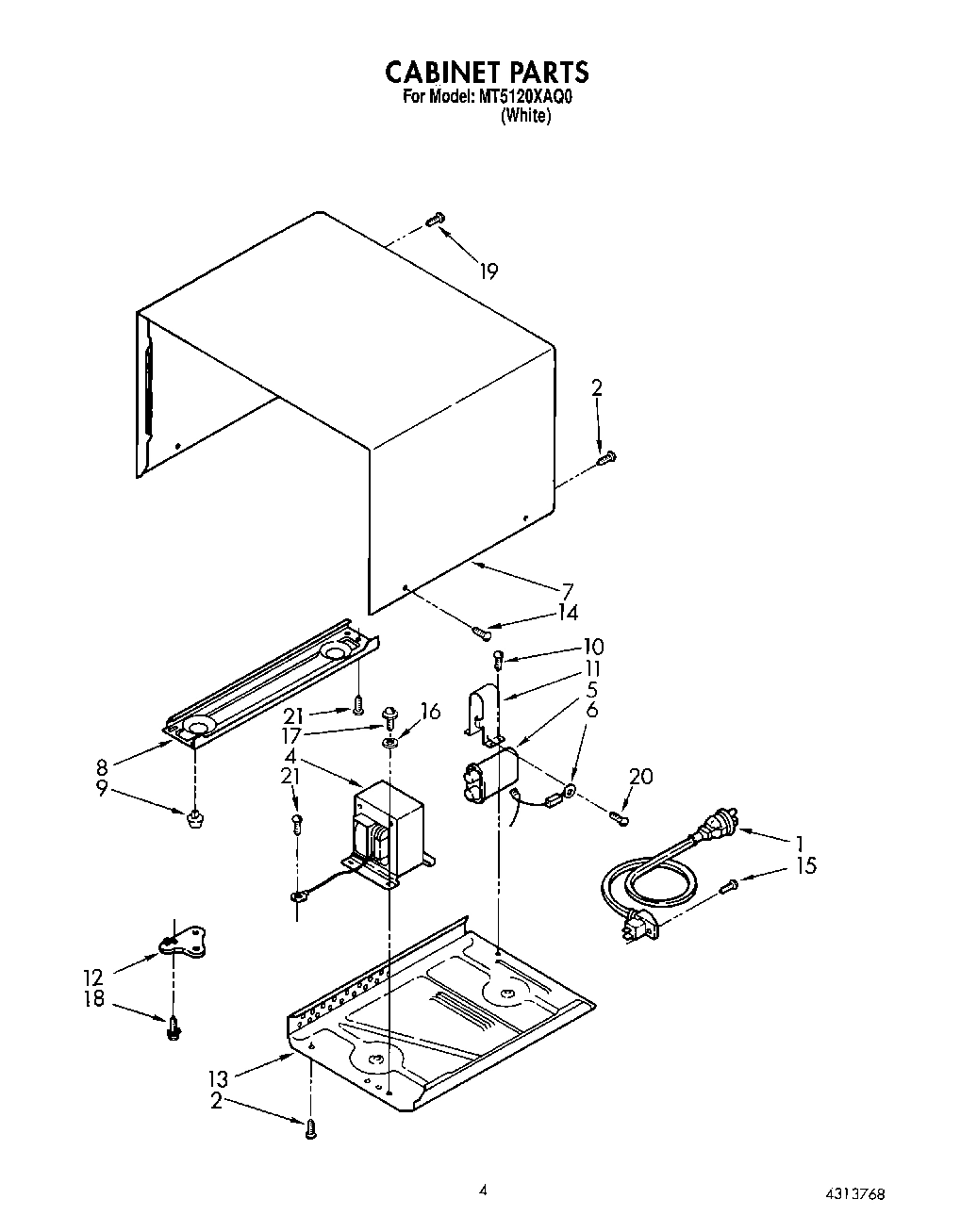

03 - CABINET

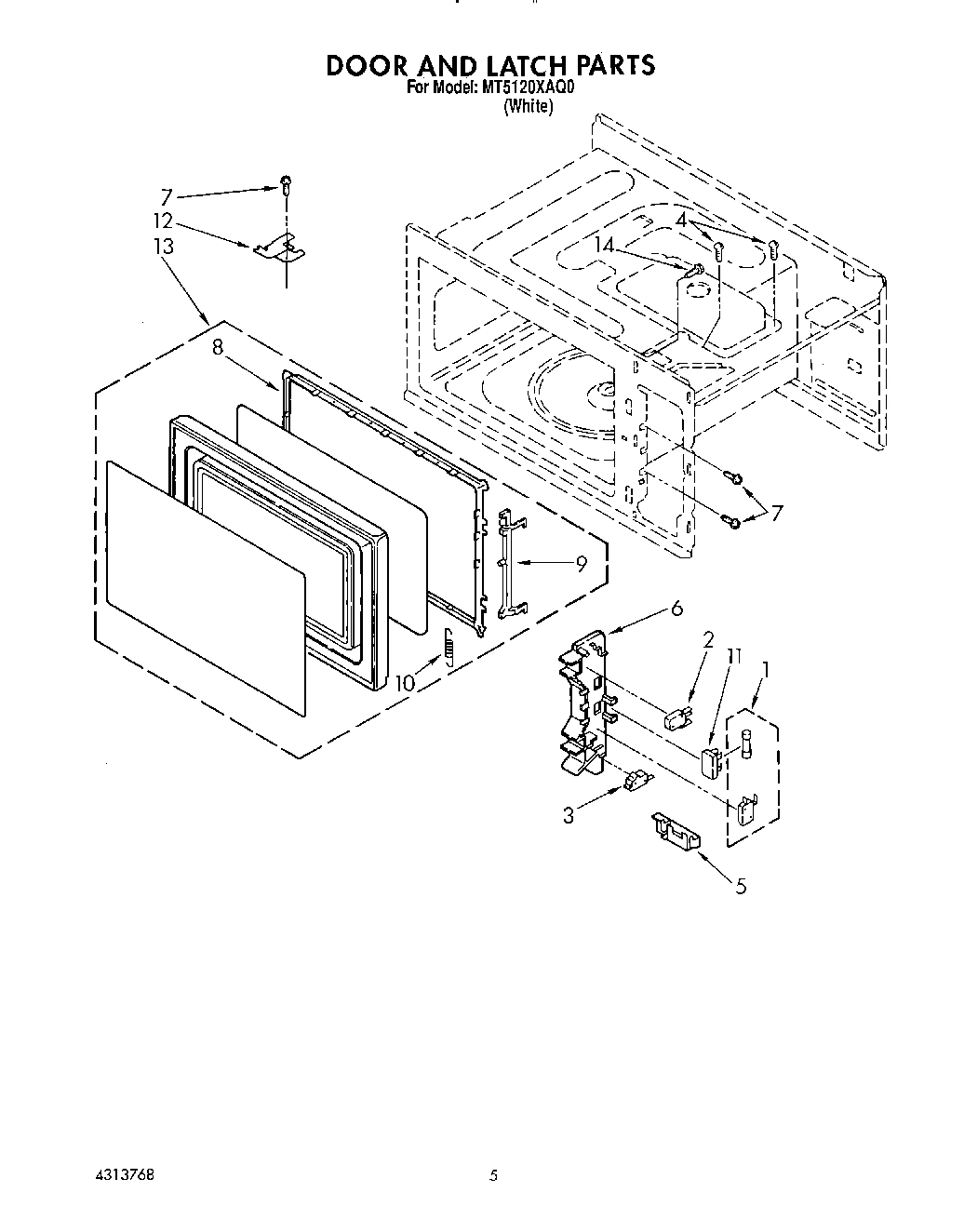

04 - DOOR AND LATCH
Common parts from model Whirlpool MT5120XAQ0
1
Microcomputer WPL 4313031 Contact Us For Availability
1
Harness, Main WPL 4365538 Contact Us For Availability
1
Lamp, Oven WPL 4313027 Contact Us For Availability
1
Power Cord WPL 4313617 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4313673 Contact Us For Availability
2
Cavity, Oven (Not a Serviceable Part) WPL ARI119009A Contact Us For Availability
2
Control Panel WPL 4313032 Contact Us For Availability
2
Harness, Thermal Protection WPL 4365539 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
3
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
3
Push Button WPL 4313630 Contact Us For Availability
3
Wire, High Voltage WPL 4313679 Contact Us For Availability
3
Duct, Fan WPL 4357346 Contact Us For Availability
4
Thermostat, Oven WPL 4313674 Contact Us For Availability
4
Magnetron WPL 4365503 Contact Us For Availability
4
Screw WPL 4365500 Contact Us For Availability
4
Transformer WPL 4313677 Contact Us For Availability
5
Screw WPL 4313632 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
7
Support, Turntable WPL 4365526 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Outer Cabinet WPL 4313637 Contact Us For Availability
8
Motor, Turntable WPL 4357340 Contact Us For Availability
8
Base Plate, Left Side WPL 4313622 Contact Us For Availability
8
Choke Cover WPL 4313651 Contact Us For Availability
9
Cover, Motor WPL 4313028 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
9
Latch, Door WPL 4313653 Contact Us For Availability
10
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
10
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
10
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
10
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
10
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
10
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
10
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
10
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
10
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
10
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
10
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
10
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
10
Gasket, Turntable WPL 4313642 Contact Us For Availability
10
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
10
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
10
Screw WPL 4313663 Contact Us For Availability
10
Spring, Latch WPL 4174992 Contact Us For Availability
11
Screw WPL 4174826 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Holder, Fuse WPL 4174899 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
12
Hinge, Upper WPL 4313030 Contact Us For Availability
13
Duct, Magnetron WPL 4313029 Contact Us For Availability
13
Base Plate, Right Side WPL 4365532 Contact Us For Availability
13
Door, Complete WPL 4313033 Contact Us For Availability
14
Cover, Wave Guide WPL 4313635 Contact Us For Availability
14
Screw WPL 4357320 Contact Us For Availability
14
Screw, Cabinet WPL 4313669 Contact Us For Availability
15
Shield, Magnetron WPL 4313643 Contact Us For Availability
15
Screw WPL 4312922 Contact Us For Availability
16
Washer, Ground WPL 4365501 Contact Us For Availability
17
Screw WPL 4313662 Contact Us For Availability
18
Screw WPL 4313034 Contact Us For Availability
19
Screw, Ground WPL 4313665 Contact Us For Availability
20
Screw WPL 4174811 Contact Us For Availability
21
Screw WPL 4313661 Contact Us For Availability
× ![]()
