Model Whirlpool MT5111XDQ0 – Common Parts & Diagrams

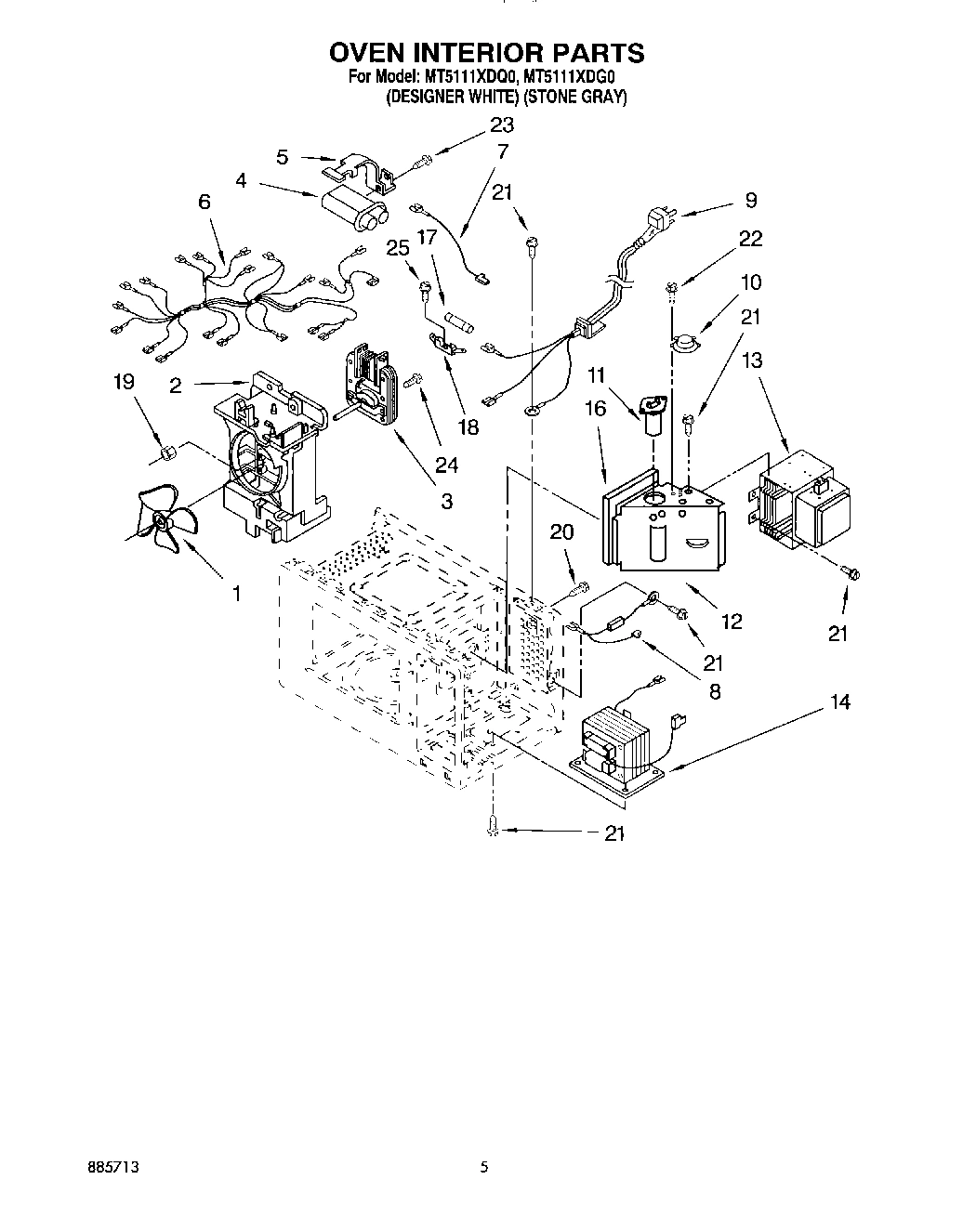

05 - OVEN INTERIOR, LITERATURE

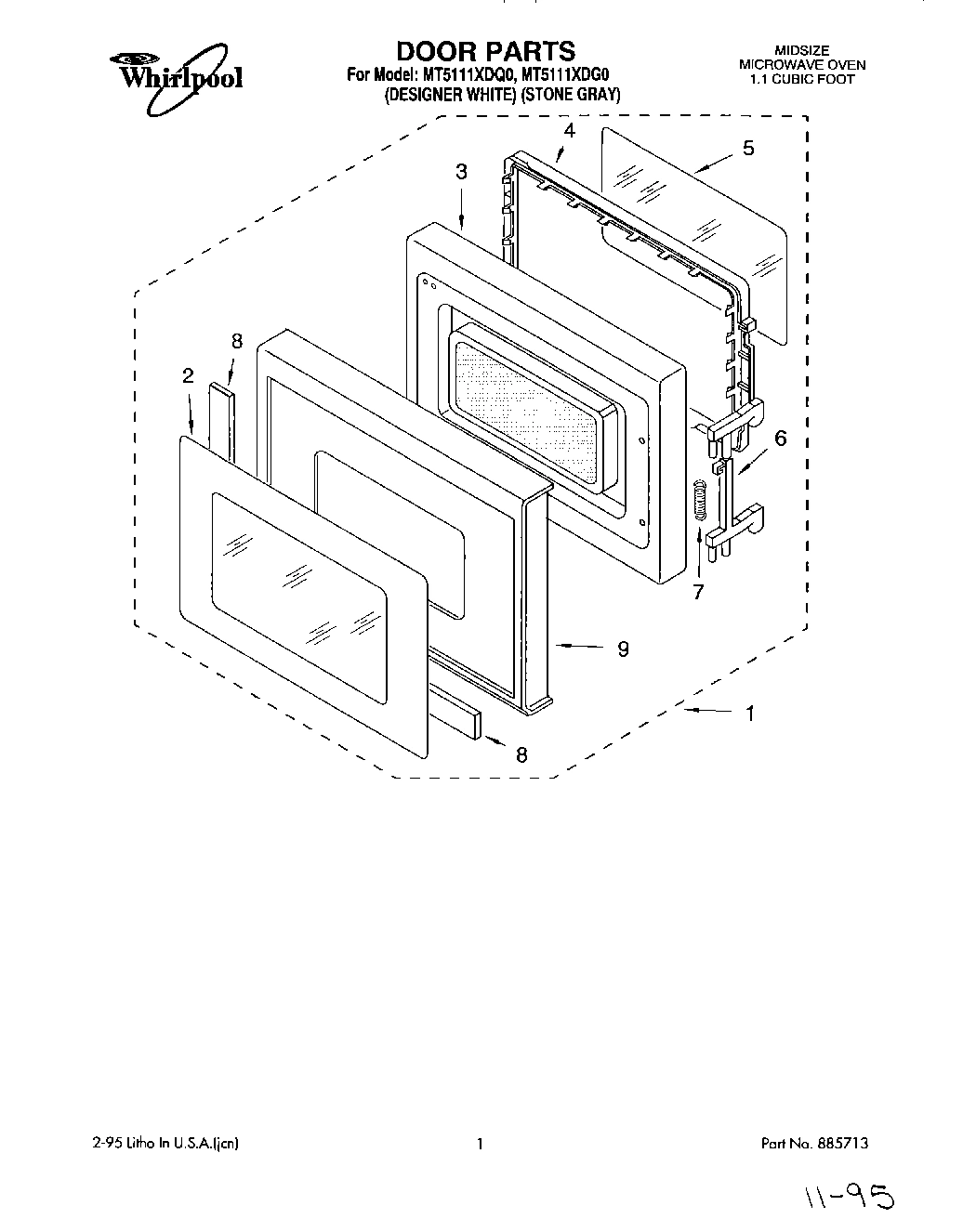

01 - DOOR

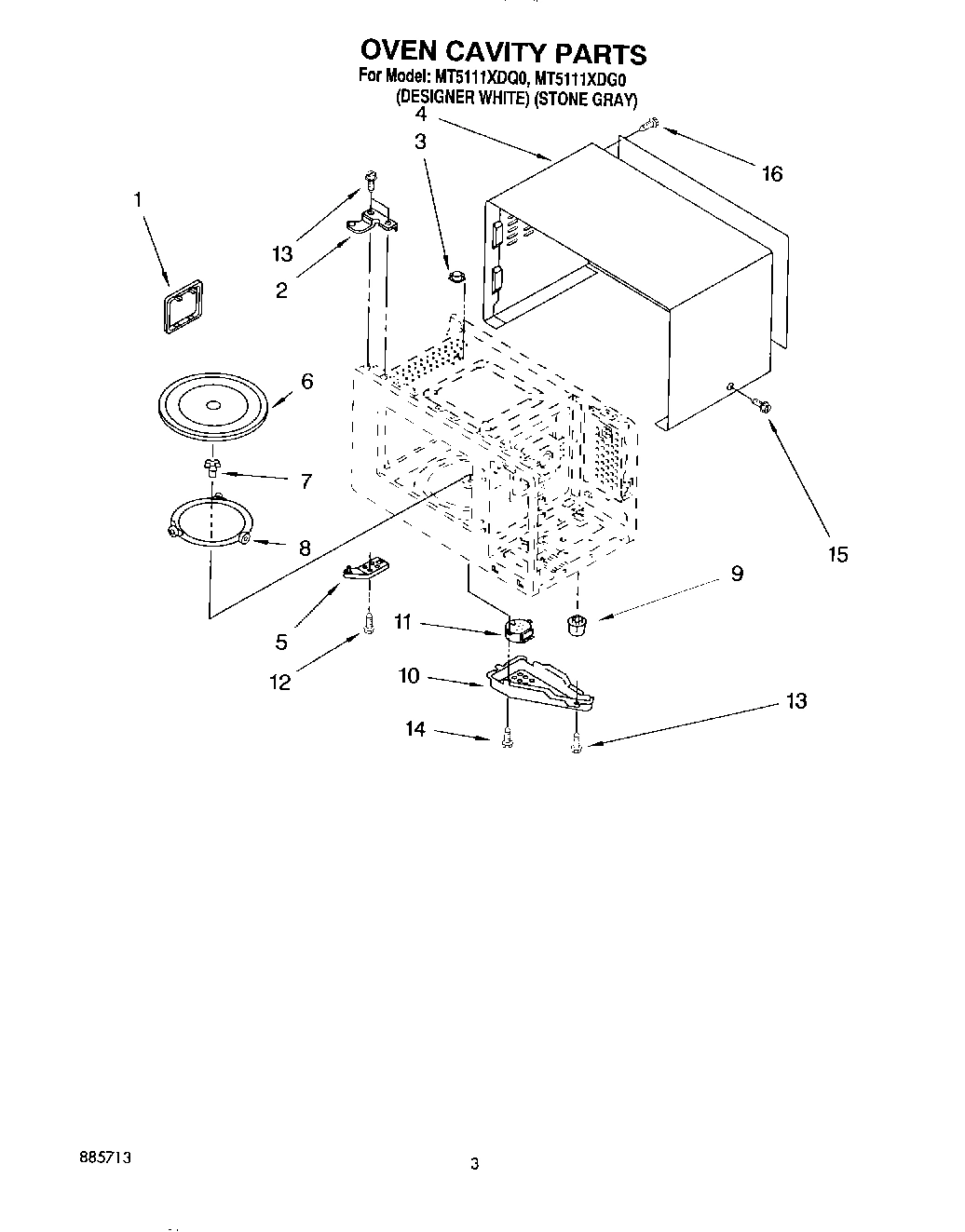

03 - OVEN CAVITY

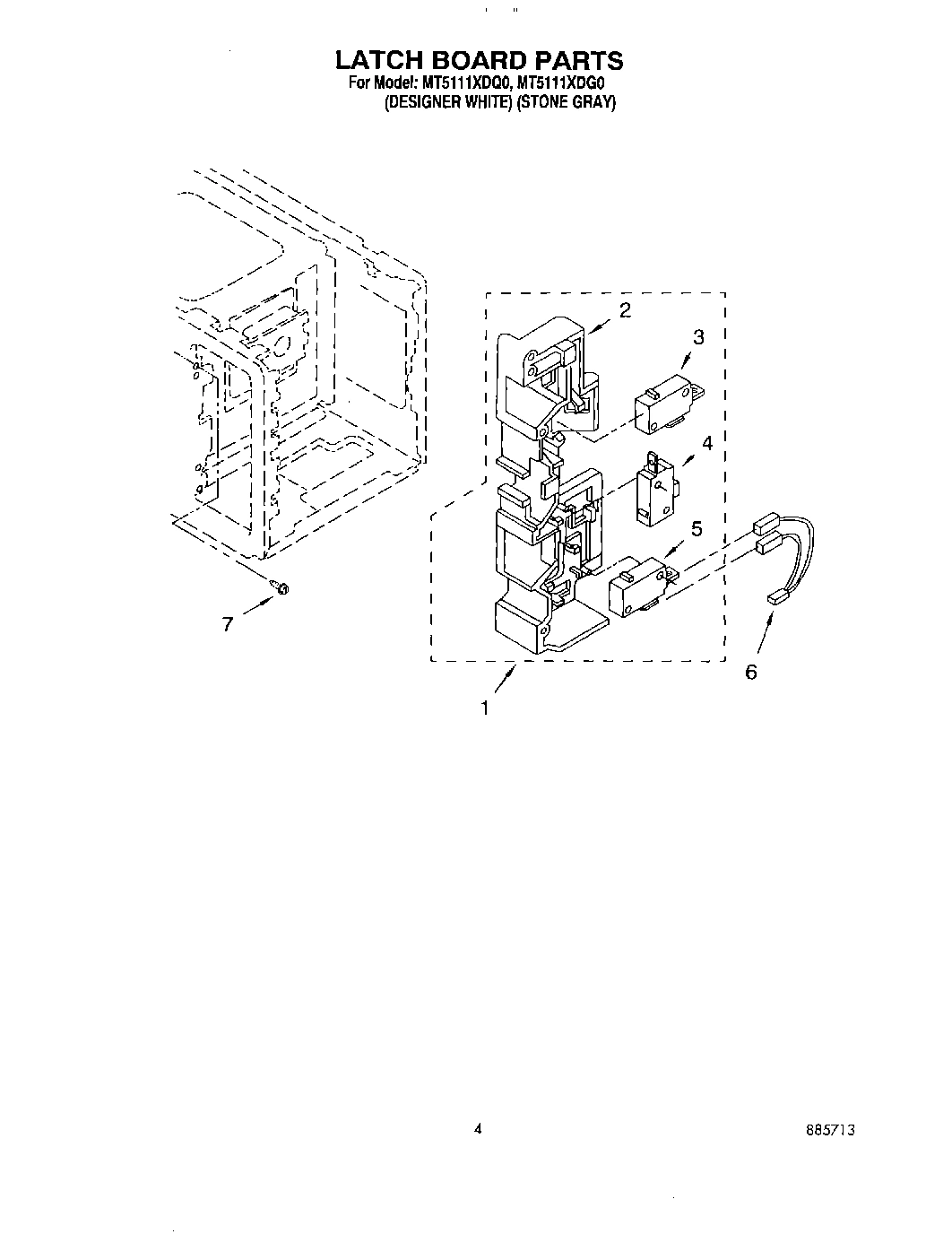

04 - LATCH BOARD

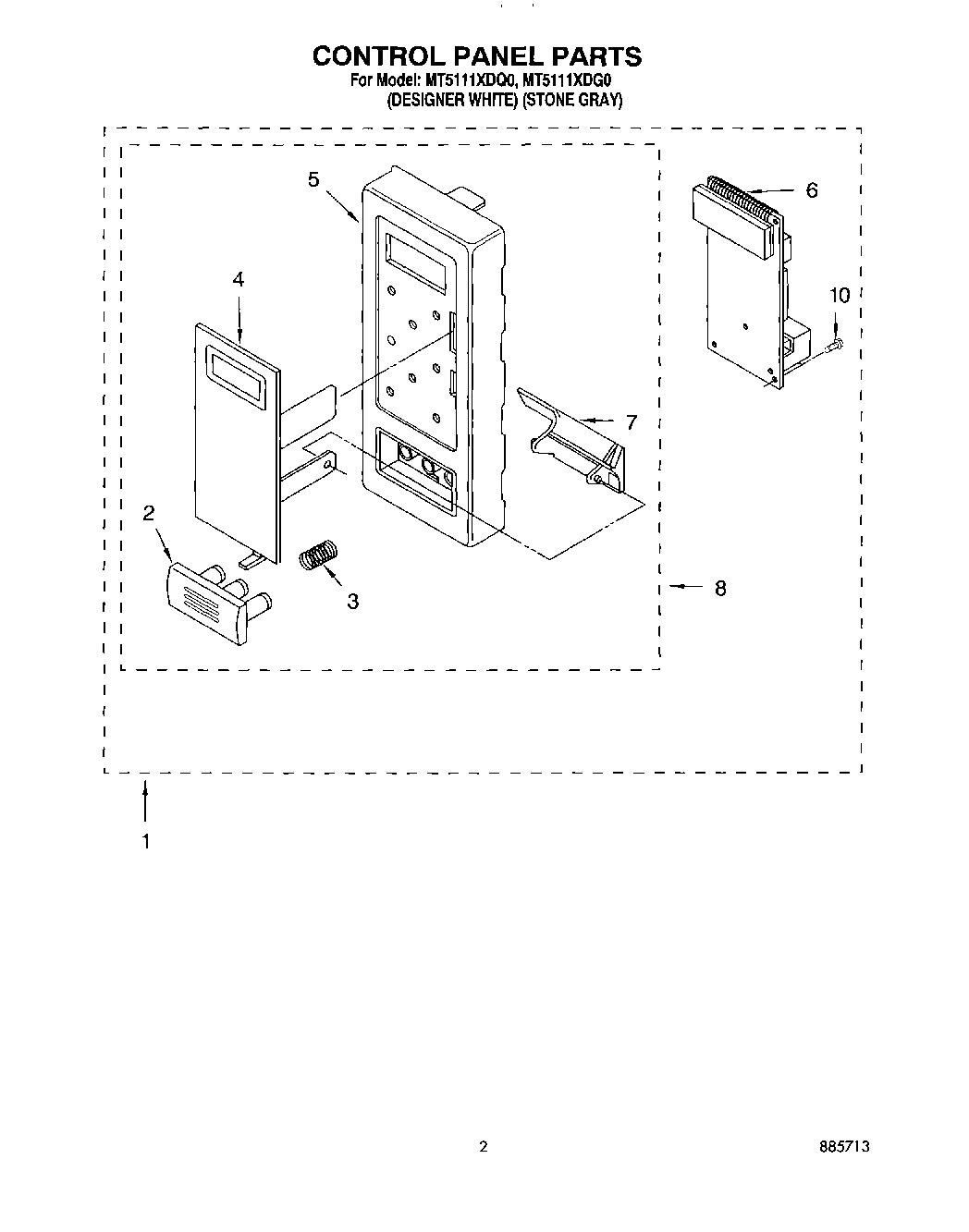

02 - CONTROL PANEL
Common parts from model Whirlpool MT5111XDQ0
1
Propeller WPL 4359112 Contact Us For Availability
1
Door Assembly (White Model) WPL 4359100 Contact Us For Availability
1
Door Assembly (Gray Model) WPL 4359122 Contact Us For Availability
1
Canopy WPL 4358638 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI119008A Contact Us For Availability
1
Controller Assembly (Not Serviceable) White M WPL ARI119007A Contact Us For Availability
2
Guide, Suction WPL 4358642 Contact Us For Availability
2
Front Screen (White Model) WPL 4359101 Contact Us For Availability
2
Front Screen (Gray Model) WPL 4359123 Contact Us For Availability
2
Plate, Hinge WPL 4358619 Contact Us For Availability
2
Latch Board WPL 4358635 Contact Us For Availability
2
Release Button (White Model) WPL 4359104 Contact Us For Availability
2
Release Button (Gray Model) WPL 4359126 Contact Us For Availability
3
Motor, Fan WPL 4358643 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359102 Contact Us For Availability
3
Door Frame Assembly (Gray Model) WPL 4359124 Contact Us For Availability
3
Thermostat WPL 4359064 Contact Us For Availability
3
Spring, Button WPL 4359105 Contact Us For Availability
4
H.V. Capacitor WPL 4359113 Contact Us For Availability
4
Choke Cover WPL 4358624 Contact Us For Availability
4
Outer Case (White Model) WPL 4358640 Contact Us For Availability
4
Outer Case (Gray Model) WPL 4359067 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359106 Contact Us For Availability
4
Key Membrane (Gray Model) WPL 4359127 Contact Us For Availability
5
H.V.C Bracket WPL 4358645 Contact Us For Availability
5
Tape, Seal WPL 4358605 Contact Us For Availability
5
Plate, Hinge WPL 4358622 Contact Us For Availability
5
Control Panel (White Model) WPL 4359107 Contact Us For Availability
5
Control Panel (Gray Model) WPL 4359128 Contact Us For Availability
6
Leadwire Assembly WPL 4359116 Contact Us For Availability
6
Latch WPL 4358606 Contact Us For Availability
6
Leadwire Assembly (Secondary) WPL 4358863 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359108 Contact Us For Availability
7
Screw (2) WPL 4358271 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
7
Shaft, Turntable WPL 4158786 Contact Us For Availability
7
Lever, Release WPL 4358636 Contact Us For Availability
8
H.V. Diode Cable WPL 4158897 Contact Us For Availability
8
Tape, Toyo WPL 4358629 Contact Us For Availability
8
Rotating Ring Ass`y WPL 4358647 Contact Us For Availability
8
Controller Sub Assembly (White Model) WPL 4359110 Contact Us For Availability
8
Controller Sub Assembly (Gray Model) WPL 4359129 Contact Us For Availability
9
Power Cord WPL 4359117 Contact Us For Availability
9
Door Panel (White Model) WPL 4359103 Contact Us For Availability
9
Door Panel (Gray Model) WPL 4359125 Contact Us For Availability
9
Leg (4) WPL 4358626 Contact Us For Availability
10
Thermostat WPL 4358650 Contact Us For Availability
10
Cover, Motor WPL 4358648 Contact Us For Availability
10
Screw (3) WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4358651 Contact Us For Availability
11
Motor, Synchronous WPL 4358628 Contact Us For Availability
12
Duct, Air WPL 4359118 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
H.V. Transformer WPL 4359120 Contact Us For Availability
14
Screw (2) WPL 4358188 Contact Us For Availability
15
Screw (Gray Model) WPL 4358015 Contact Us For Availability
16
Cushion WPL 4358660 Contact Us For Availability
18
Holder, Fuse WPL 4358785 Contact Us For Availability
19
Nut (2) WPL 4358475 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
23
Screw WPL 4358479 Contact Us For Availability
24
Screw (2) WPL 4358665 Contact Us For Availability
25
Screw WPL 4358451 Contact Us For Availability
× ![]()
