Model Whirlpool MT4210SLQ0 MICROWAVE OVEN 2.1 CUBIC FOOT – Common Parts & Diagrams

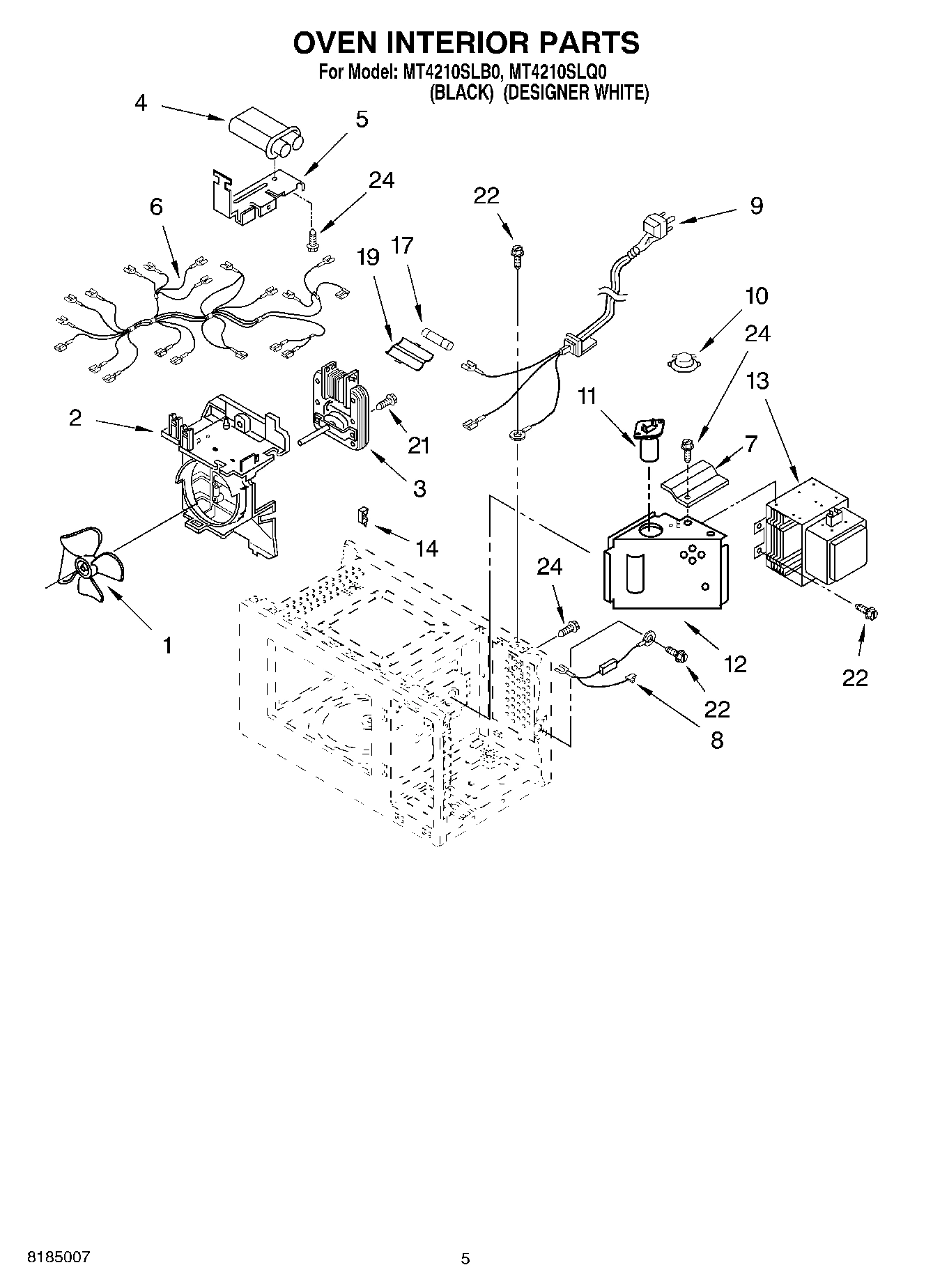

05 - OVEN INTERIOR PARTS

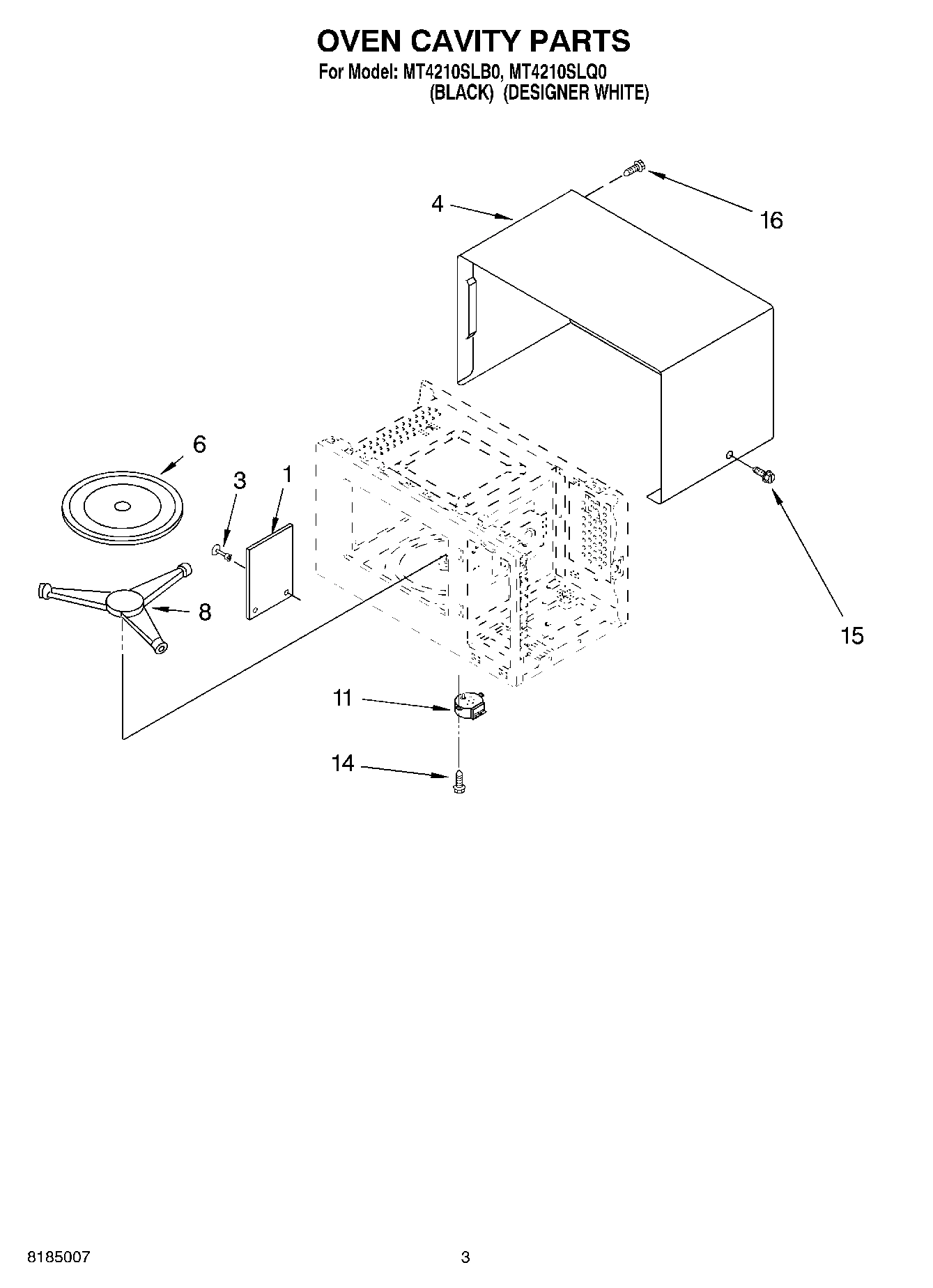

03 - OVEN CAVITY PARTS

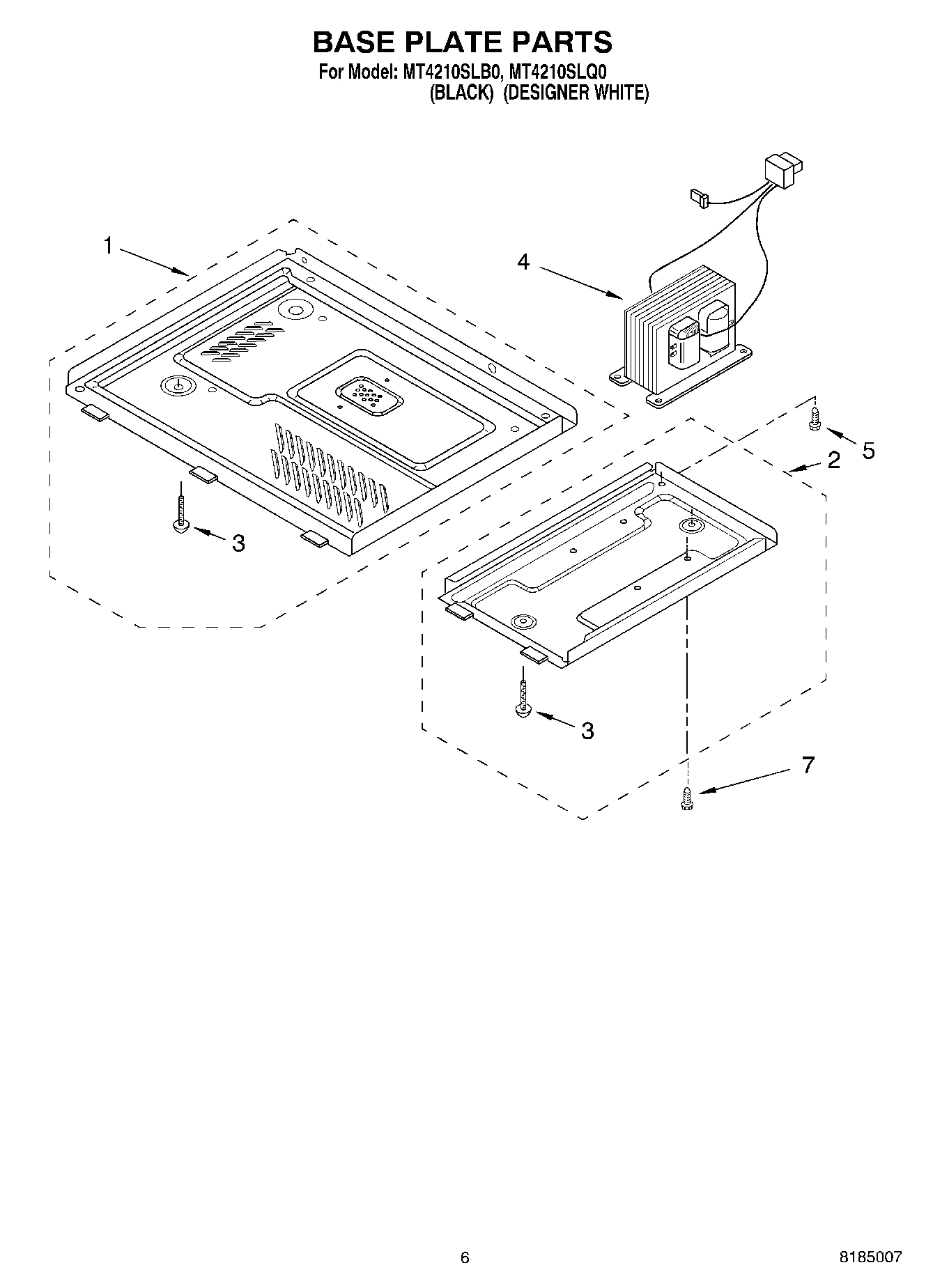

06 - BASE PLATE PARTS

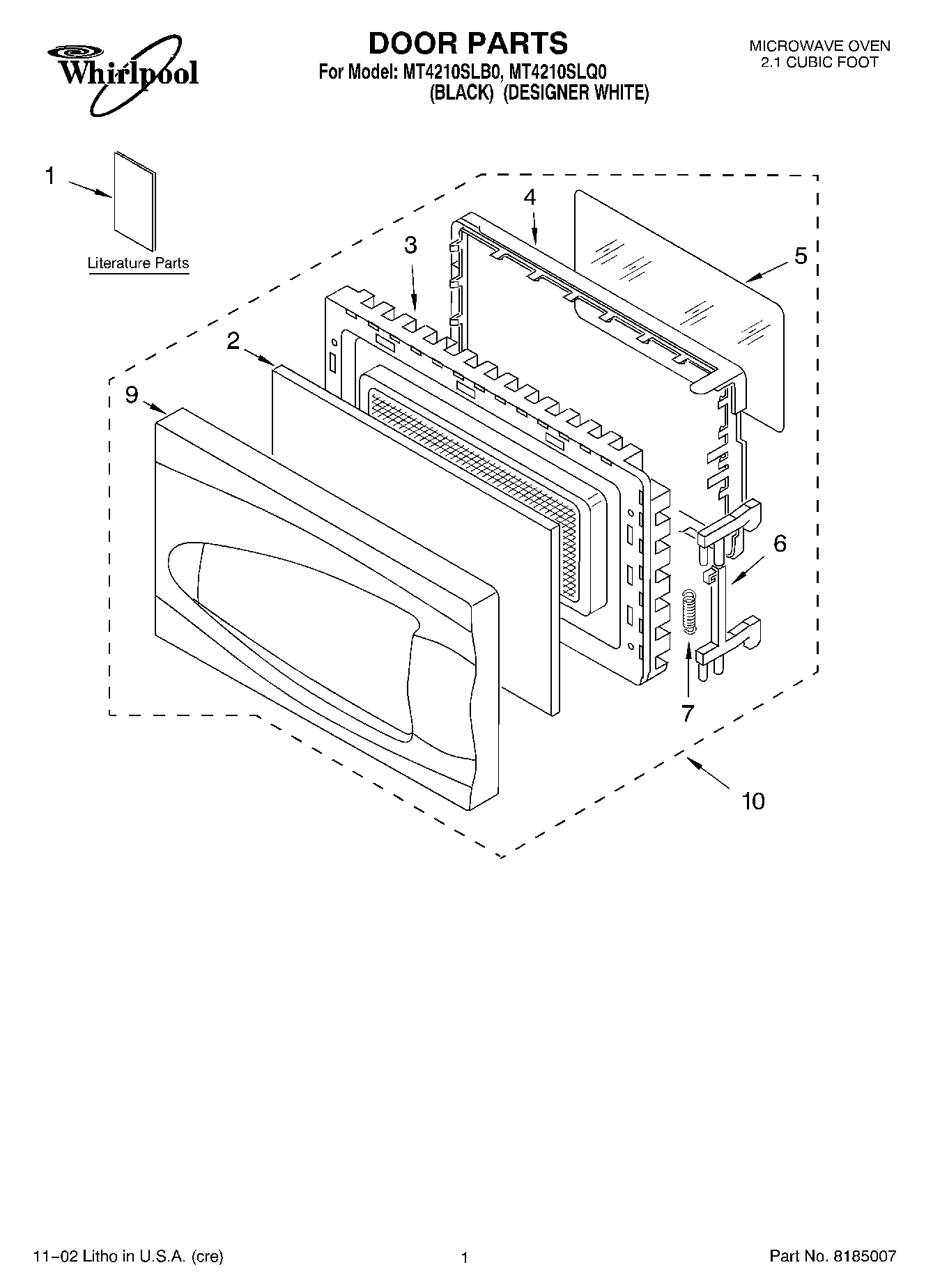

01 - DOOR PARTS

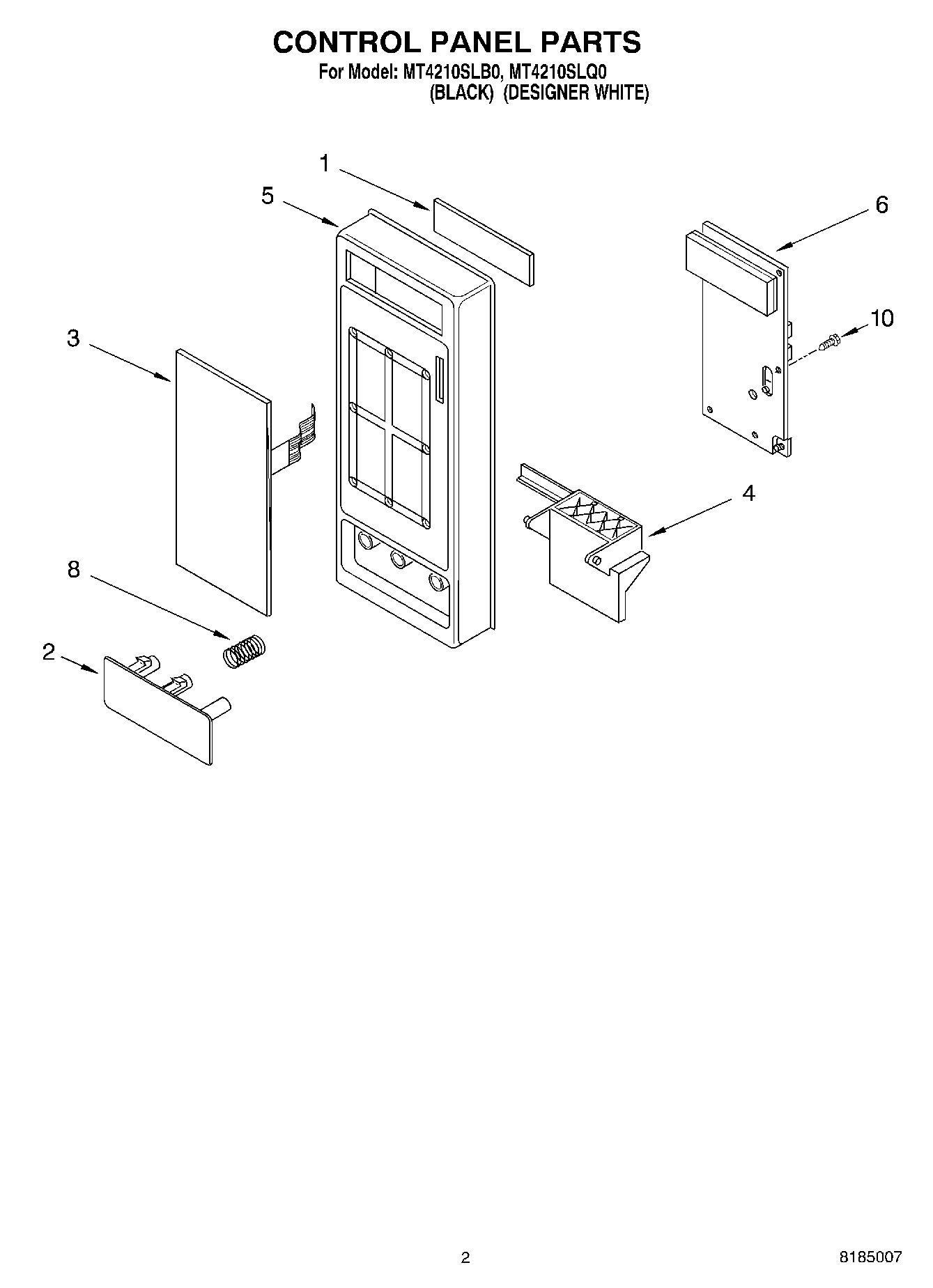

02 - CONTROL PANEL PARTS

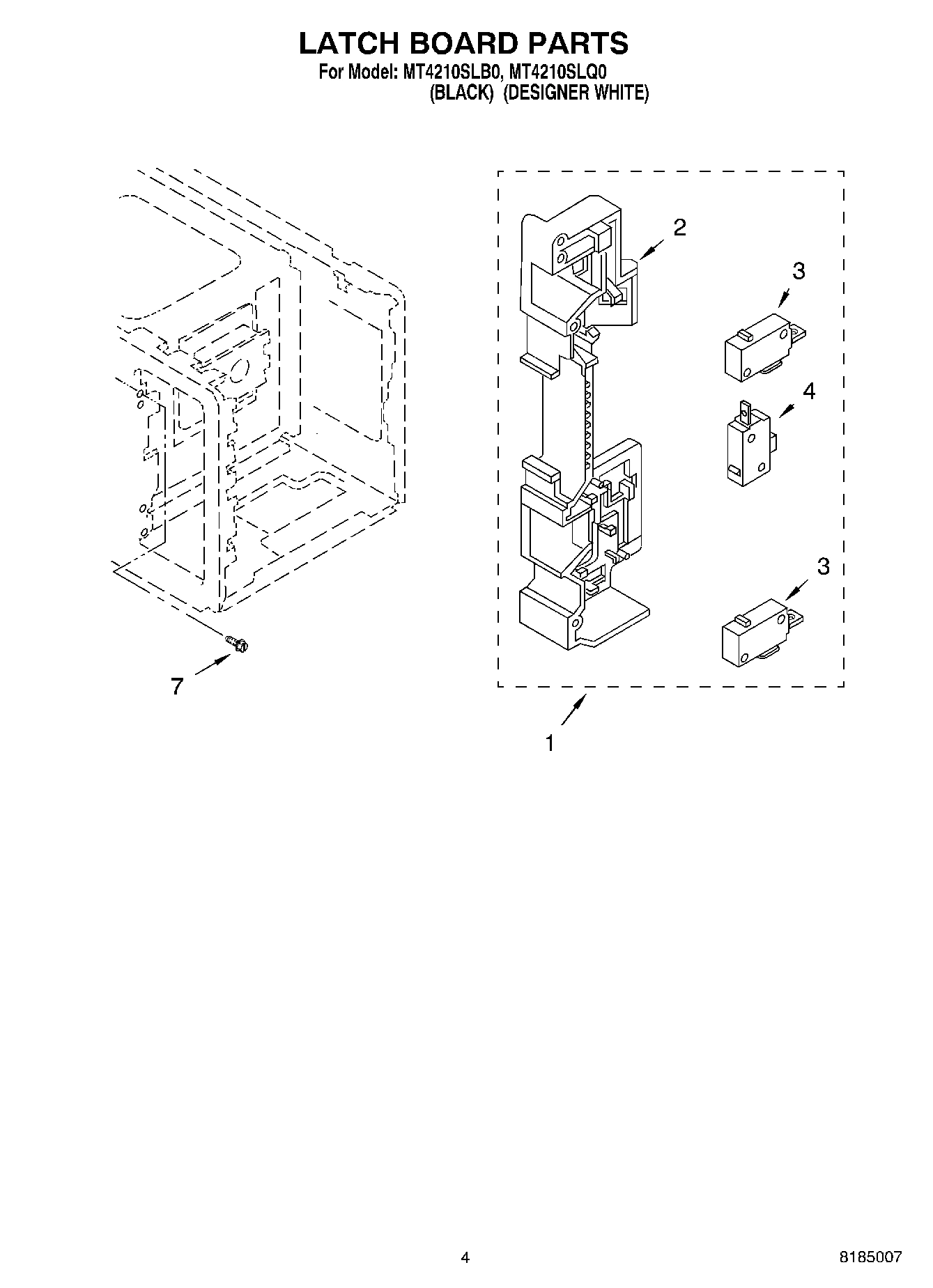

04 - LATCH BOARD PARTS
Common parts from model Whirlpool MT4210SLQ0 MICROWAVE OVEN 2.1 CUBIC FOOT
1
Canopy WPL 8171983 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
1
Template, Built-in Kit WPL 8172220 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172218 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8183908 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8184647 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184648 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI119003A Contact Us For Availability
2
Base Plate (R) WPL 8183516 Contact Us For Availability
2
Front Screen WPL 4359866 Contact Us For Availability
2
Button (White) WPL 8184336 Contact Us For Availability
2
Button (Black) WPL 8184427 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 8171890 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8184736 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8184595 Contact Us For Availability
3
Switch, Membrane (White) WPL 8184598 Contact Us For Availability
4
Outer Case (Black) WPL 8184342 Contact Us For Availability
4
Outer Case (White) WPL 8184343 Contact Us For Availability
4
Transformer WPL 8185125 Contact Us For Availability
4
Choke Cover WPL 8184431 Contact Us For Availability
4
Lever, Release WPL 4359718 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
5
Control Panel (Black) WPL 8184434 Contact Us For Availability
5
Control Panel (White) WPL 8184435 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Cntrl-Elec WPL 8185200 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
8
Spring WPL 4158178 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Black) WPL 8184594 Contact Us For Availability
9
Panel, Door (White) WPL 8184597 Contact Us For Availability
10
Door Assembly (Black) WPL 8184487 Contact Us For Availability
10
Door Assembly (White) WPL 8184488 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
