Model Whirlpool MT4210SKB0 MICROWAVE – Common Parts & Diagrams
04 - LATCH BOARD
06 - BASE PLATE

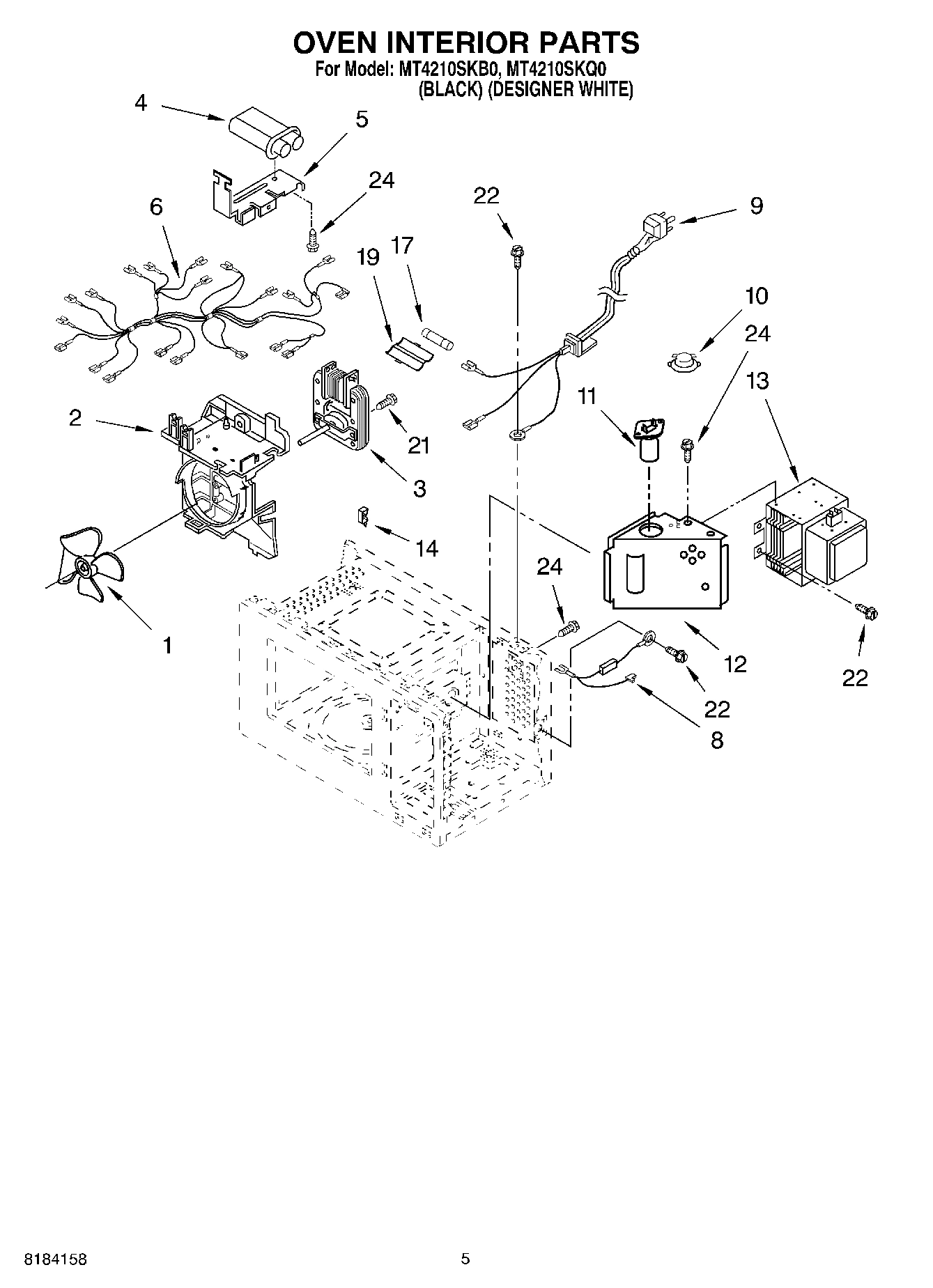

05 - OVEN INTERIOR

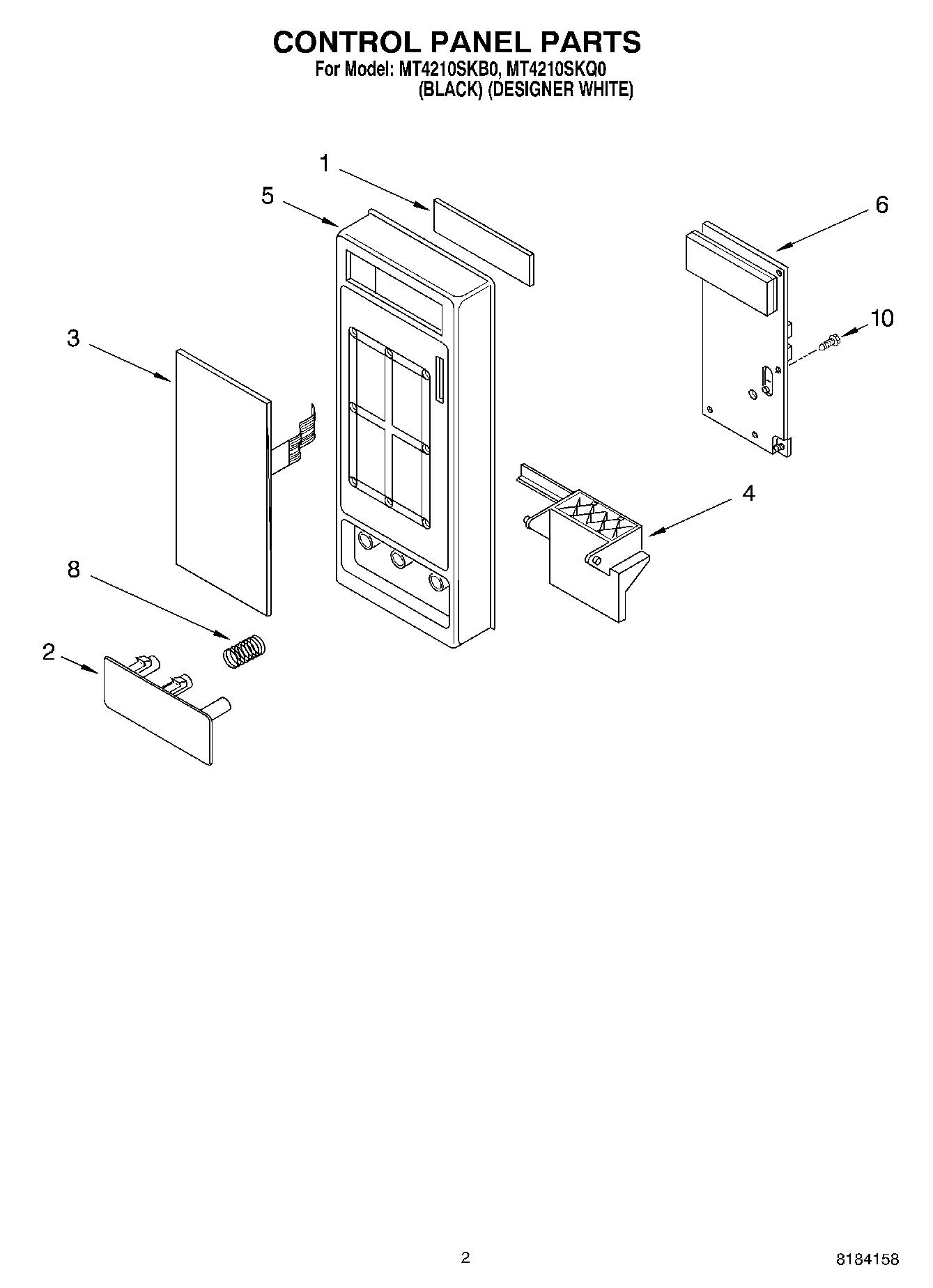

02 - CONTROL PANEL

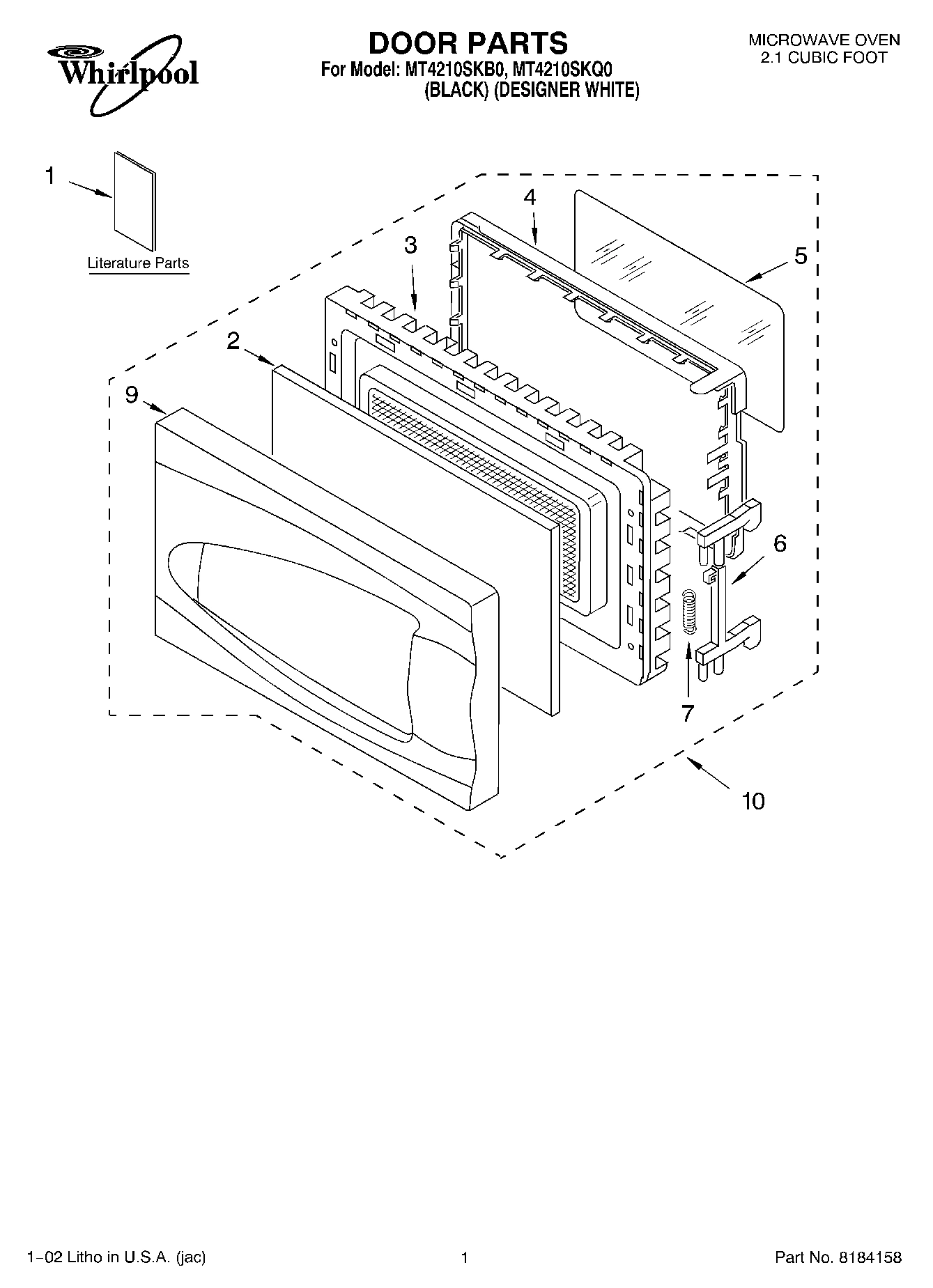

01 - DOOR, LITERATURE

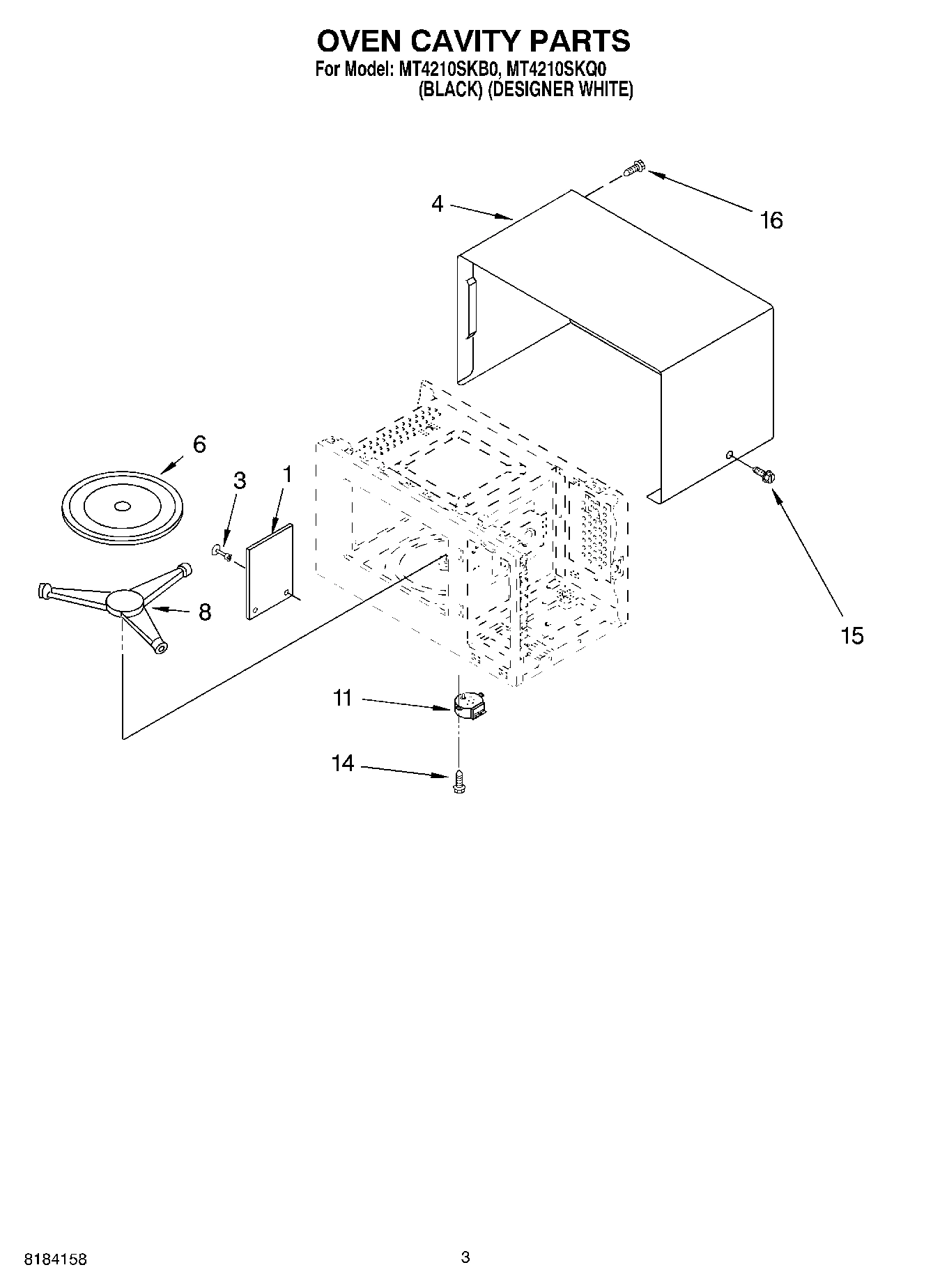

03 - OVEN CAVITY
Common parts from model Whirlpool MT4210SKB0 MICROWAVE
1
Propeller WPL 8184531 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Template, Built-in Kit WPL 8172220 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172218 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8183905 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8183908 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8183910 Contact Us For Availability
1
Canopy WPL 8171983 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Button (White) WPL 8184336 Contact Us For Availability
2
Button (Black) WPL 8184427 Contact Us For Availability
2
Front Screen WPL 4359866 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8184595 Contact Us For Availability
3
Switch, Membrane (White) WPL 8184598 Contact Us For Availability
3
Door Frame Assembly (White) WPL 4359924 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 8171890 Contact Us For Availability
4
H.V. Capacitor WPL 8183764 Contact Us For Availability
4
Lever, Release WPL 4359718 Contact Us For Availability
4
Choke Cover WPL 8184340 Contact Us For Availability
4
Outer Case (Black) WPL 8184342 Contact Us For Availability
4
Outer Case (White) WPL 8184343 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (White) WPL 8184341 Contact Us For Availability
5
Control Panel (Black) WPL 8184426 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
6
Leadwire Assembly WPL 8184596 Contact Us For Availability
6
Microcomputer WPL 8184425 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
8
Spring WPL 4158178 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Black) WPL 8184594 Contact Us For Availability
9
Panel, Door (White) WPL 8184597 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Black) WPL 8184487 Contact Us For Availability
10
Door Assembly (White) WPL 8184488 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
