Model Whirlpool MT4145SKB0 MICROWAVE – Common Parts & Diagrams

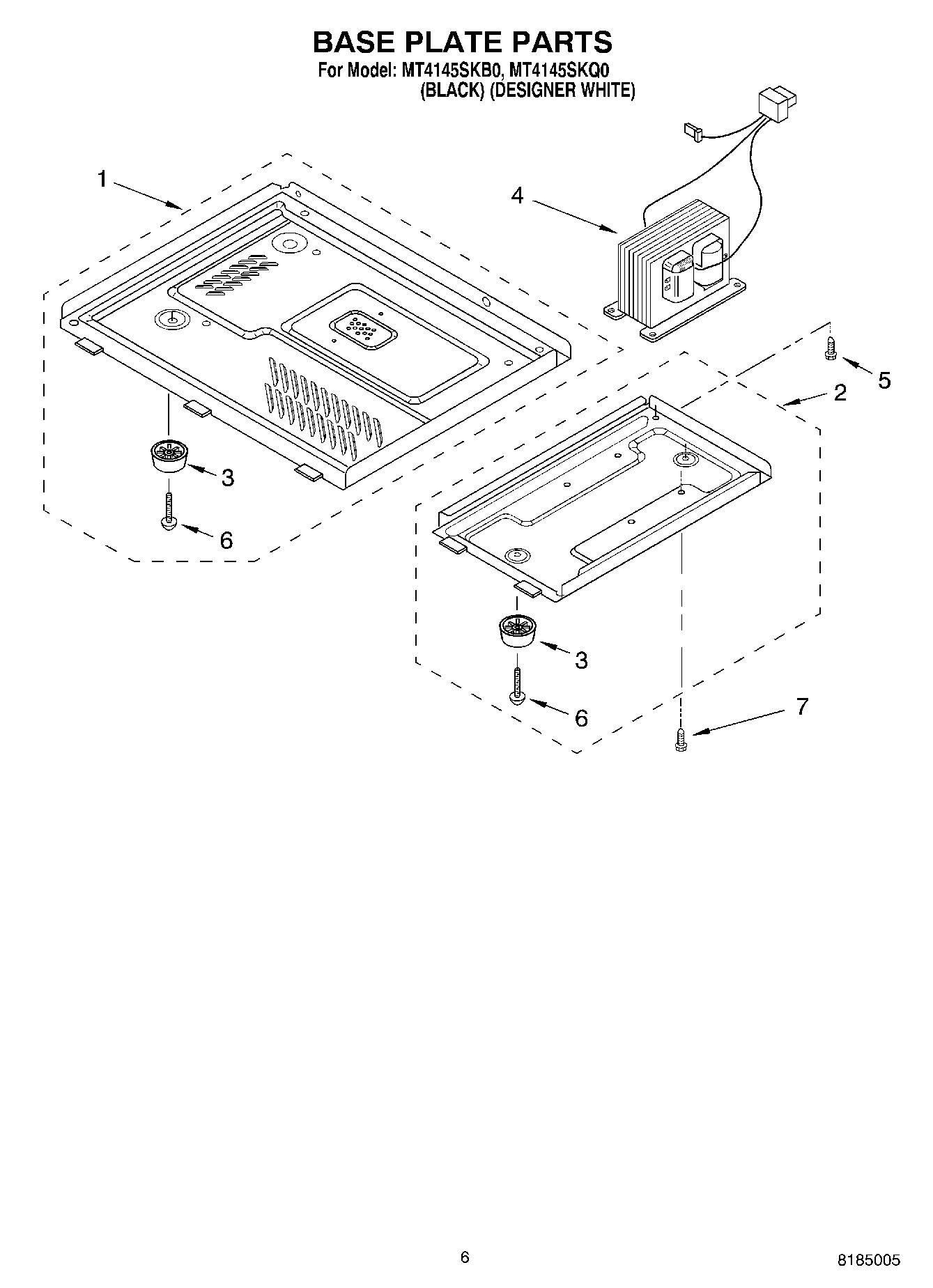

06 - BASE PLATE

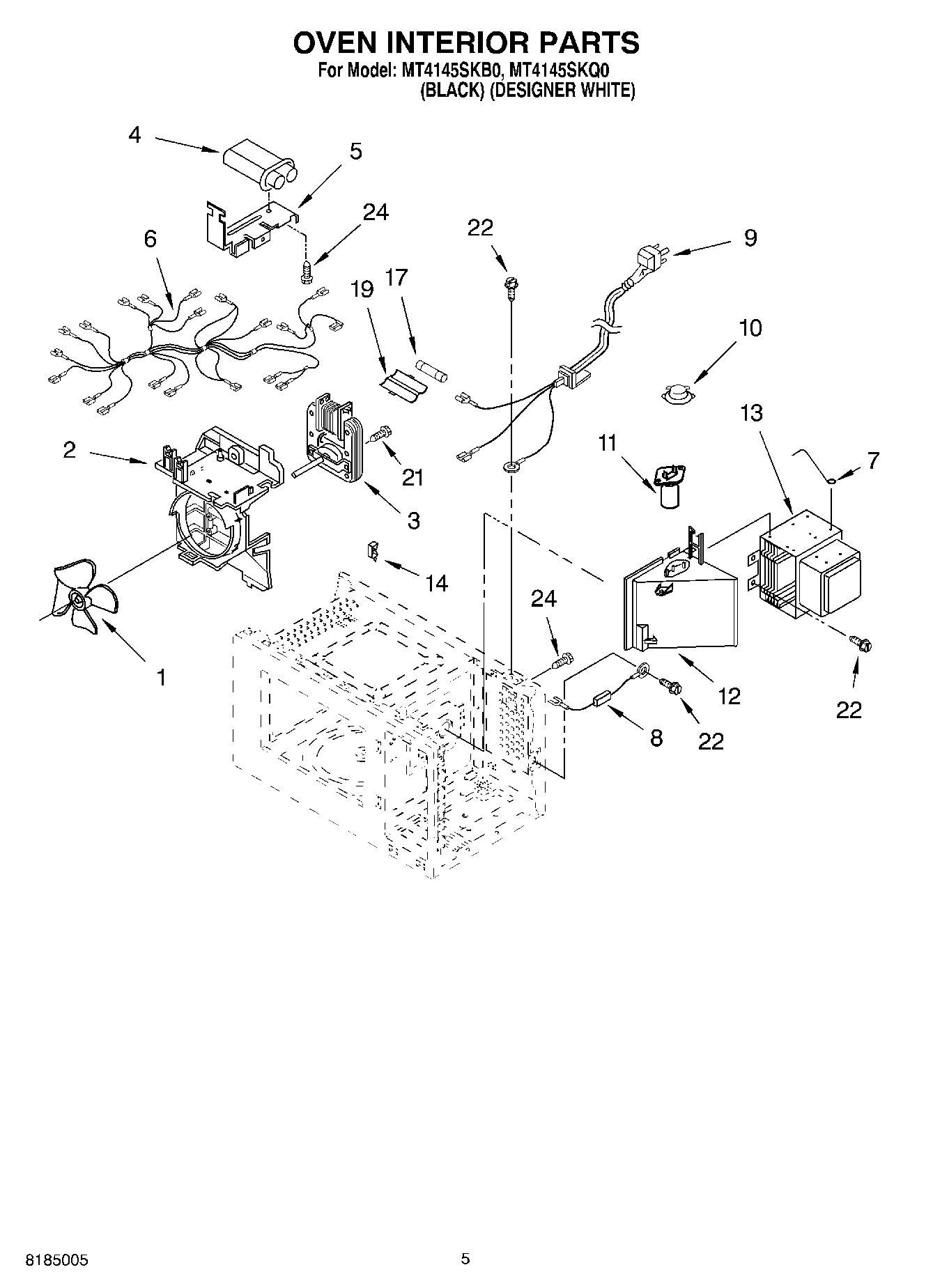

05 - OVEN INTERIOR

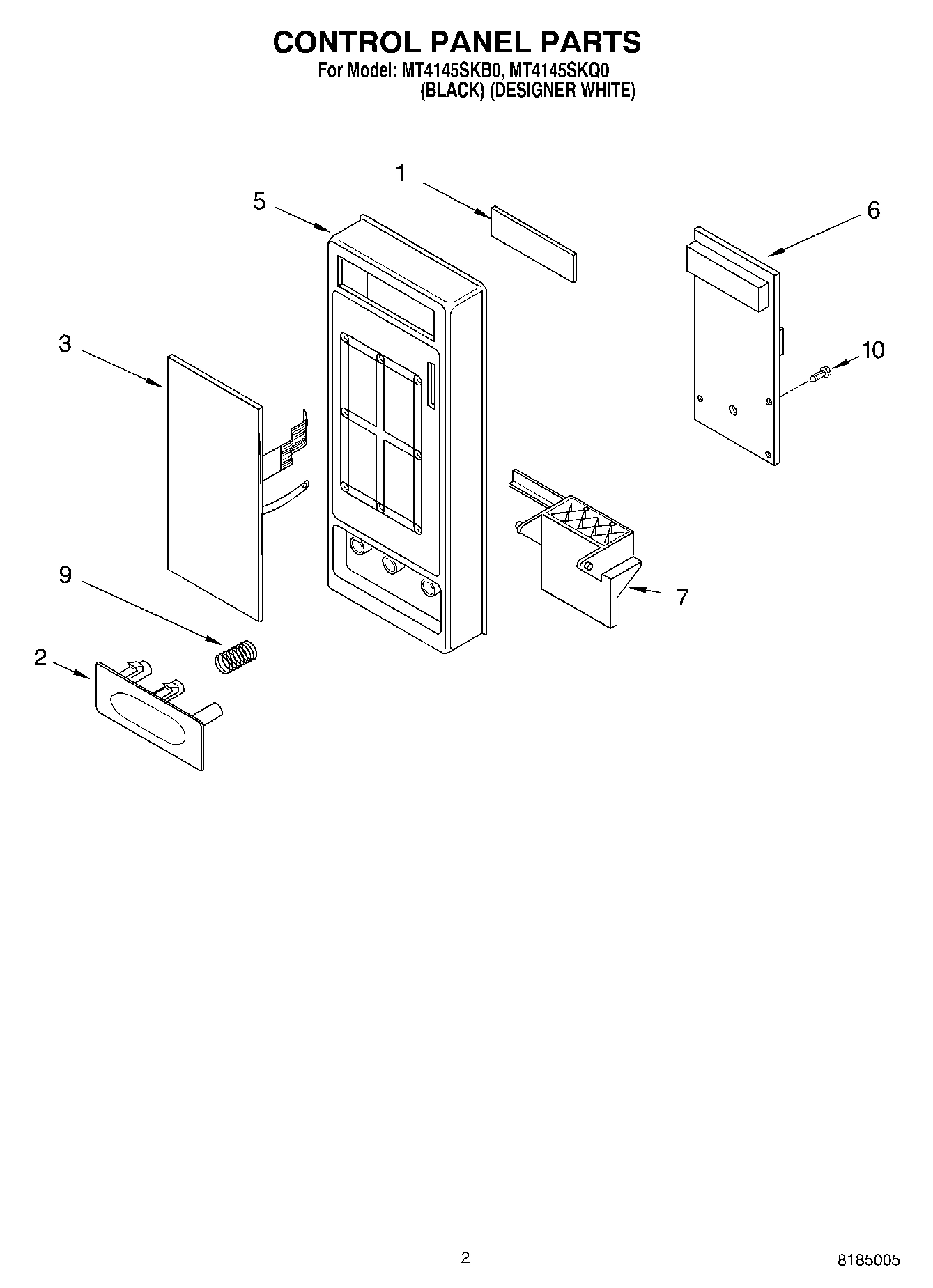

02 - CONTROL PANEL

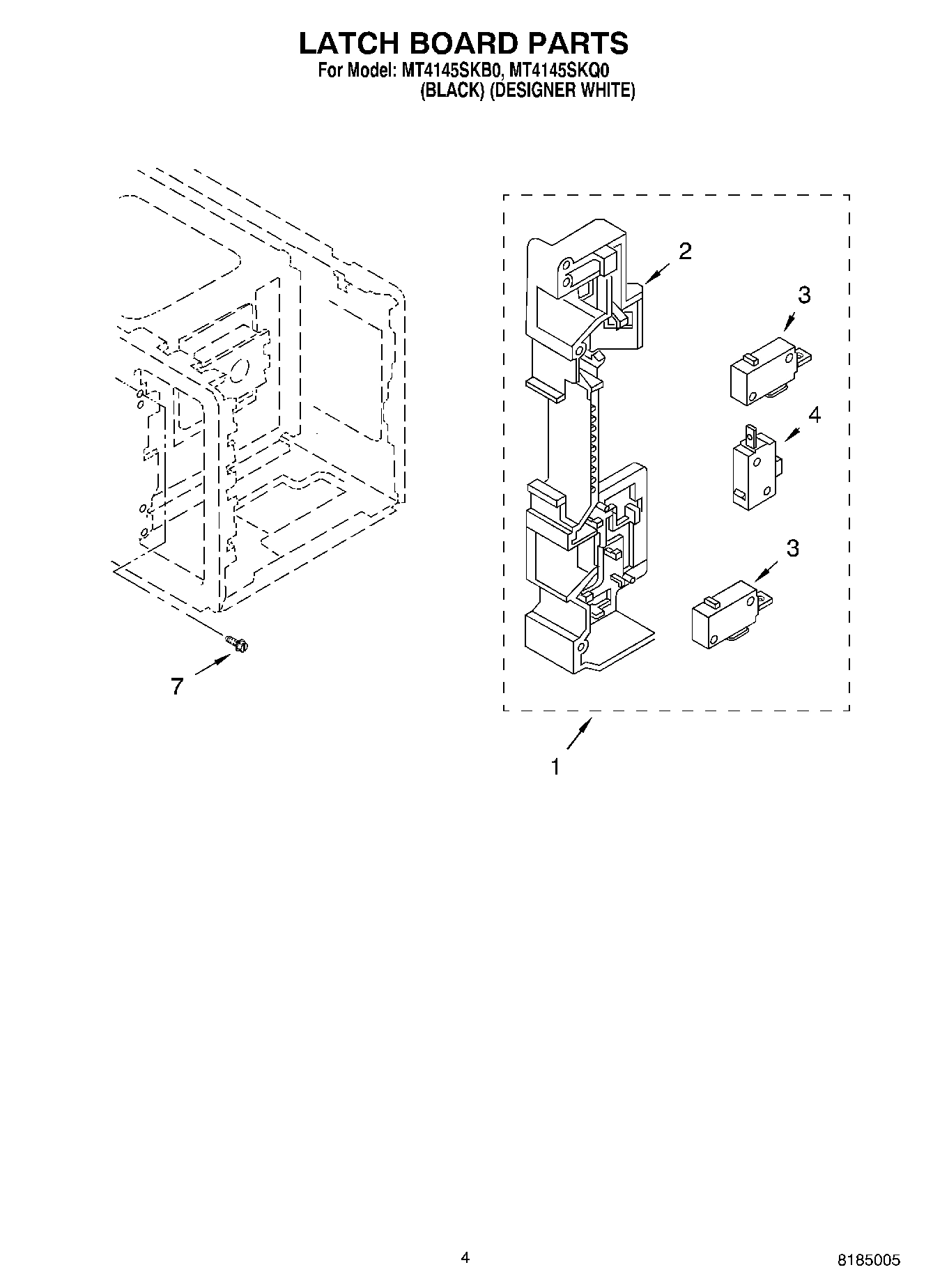

04 - LATCH BOARD

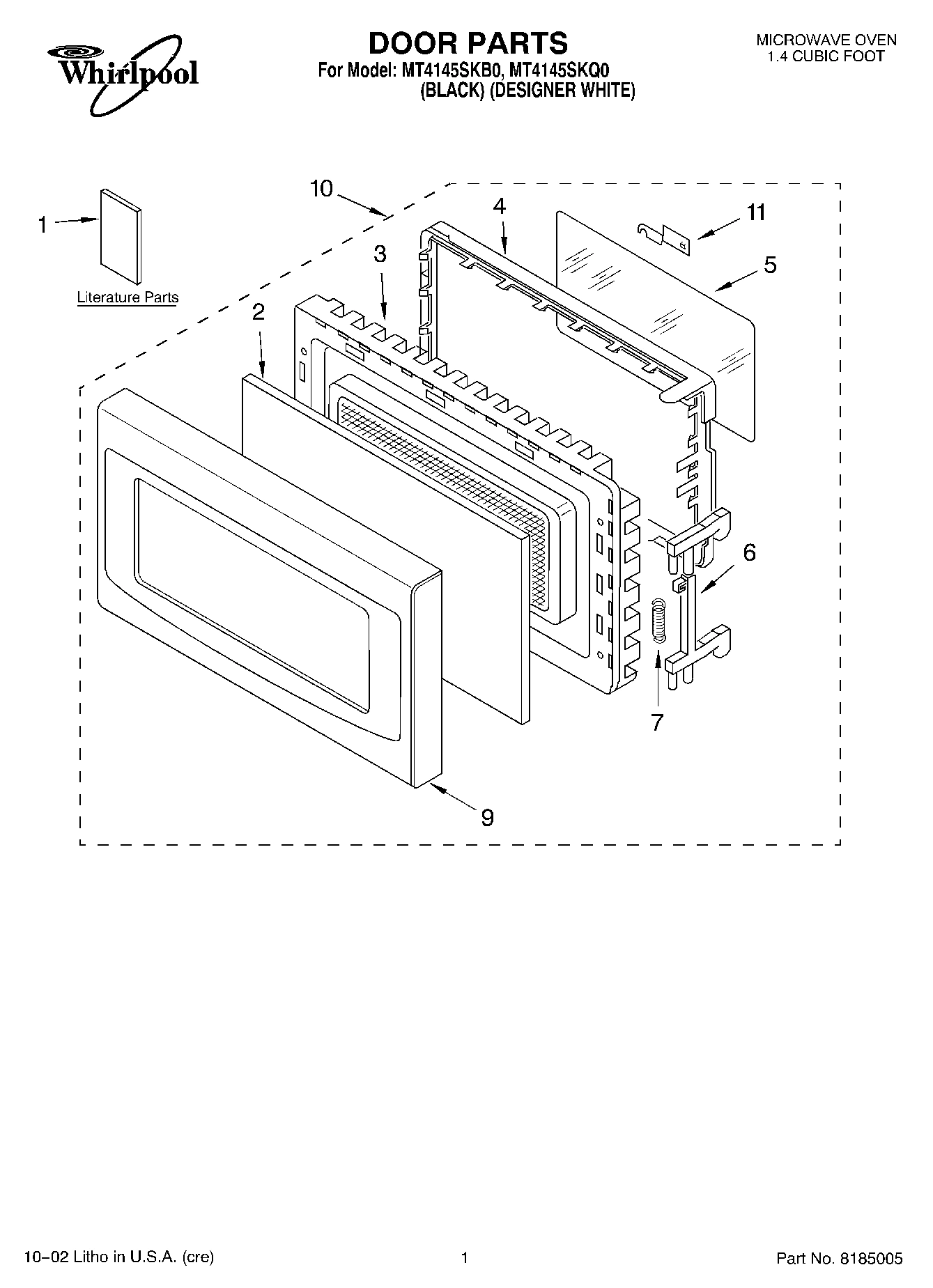

01 - DOOR, LITERATURE

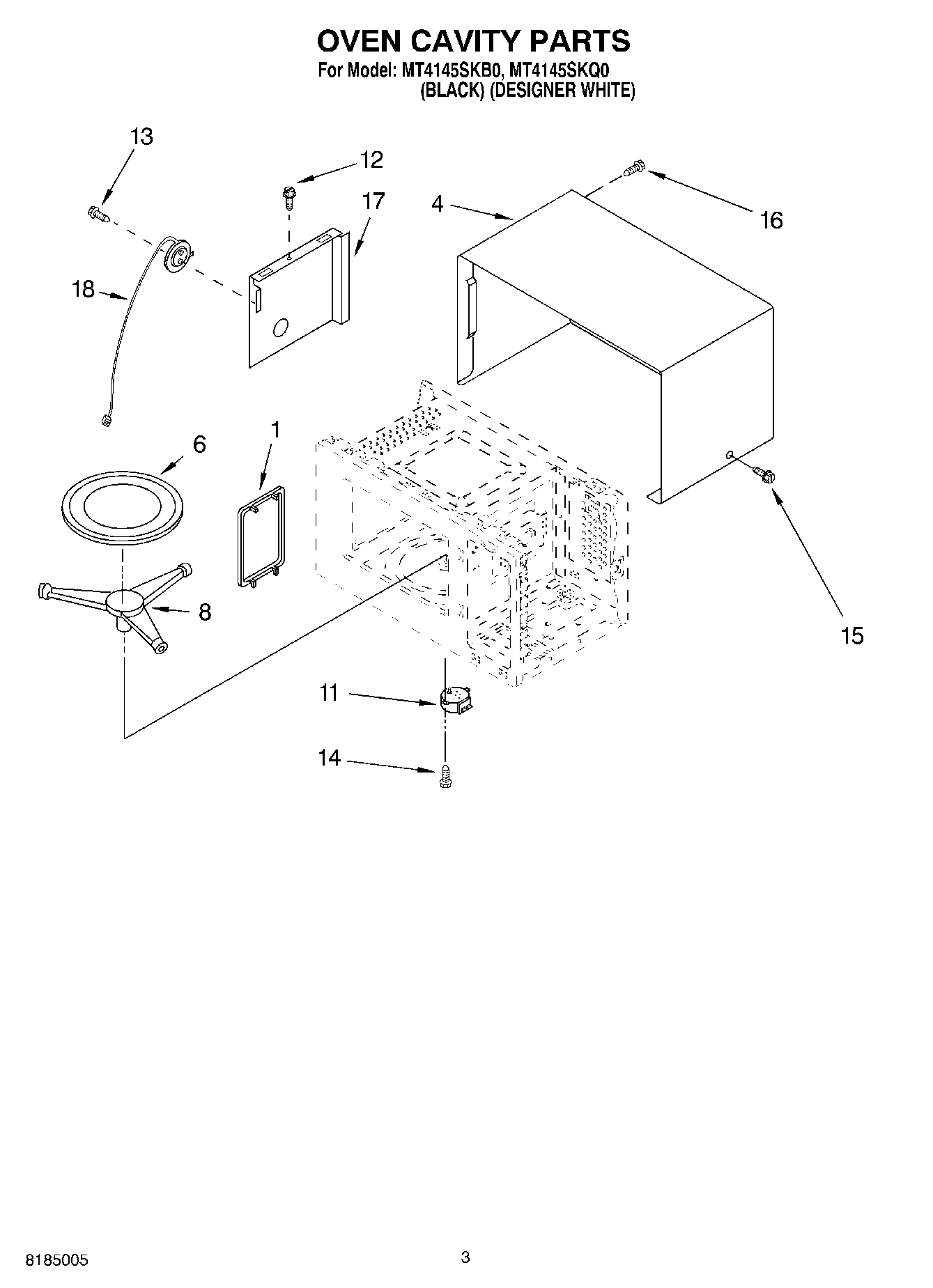

03 - OVEN CAVITY
Common parts from model Whirlpool MT4145SKB0 MICROWAVE
1
Window WPL 4359720 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI118947A Contact Us For Availability
1
Template-B/I Kit WPL 8172220 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8172194 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172217 Contact Us For Availability
1
Use & Care Guide WPL LIT8184577 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184646 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Button (White) WPL 8184336 Contact Us For Availability
2
Button (Black) WPL 8184427 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8185026 Contact Us For Availability
3
Switch, Membrane (White) WPL 8185027 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
4
Choke Cover WPL 8184532 Contact Us For Availability
4
Outer Case (Black) WPL 8183611 Contact Us For Availability
4
Outer Case (White) WPL 8184534 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (White) WPL 8184533 Contact Us For Availability
5
Control Panel (Black) WPL 8184541 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
6
Leadwire Assembly WPL 8183526 Contact Us For Availability
6
Microcomputer WPL 8184811 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
30`` hite WPL 130XHQ Contact Us For Availability
7
30`` ISCUIT WPL 130XHT Contact Us For Availability
7
24`` lack WPL 134XHB Contact Us For Availability
7
24`` hite WPL 134XHQ Contact Us For Availability
7
24`` ISCUIT WPL 134XHT Contact Us For Availability
7
27`` lack WPL 137XHB Contact Us For Availability
7
27`` hite WPL 137XHQ Contact Us For Availability
7
27`` ISCUIT WPL 137XHT Contact Us For Availability
7
Bracket, Support WPL 8184337 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Spring WPL 4158178 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Black) WPL 8184530 Contact Us For Availability
9
Panel, Door (White) WPL 8184540 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Black) WPL 8184419 Contact Us For Availability
10
Door Assembly (White) WPL 8184423 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Cap WPL 4359710 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
13
Screw WPL 4358450 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Duct-Sensor WPL 8183515 Contact Us For Availability
18
Sensor WPL 8184814 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
