Model Whirlpool MT4111XBQ0 – Common Parts & Diagrams

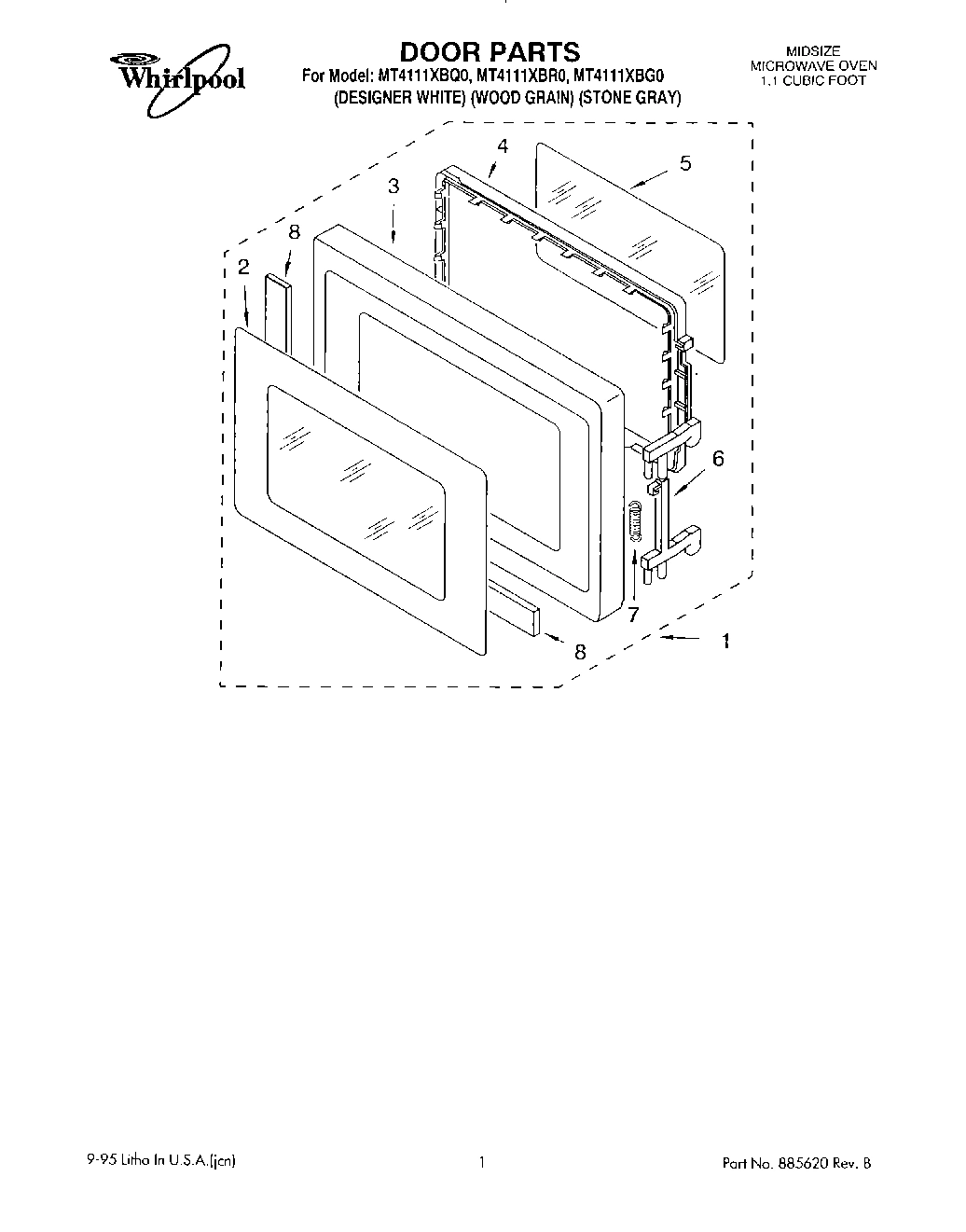

01 - DOOR

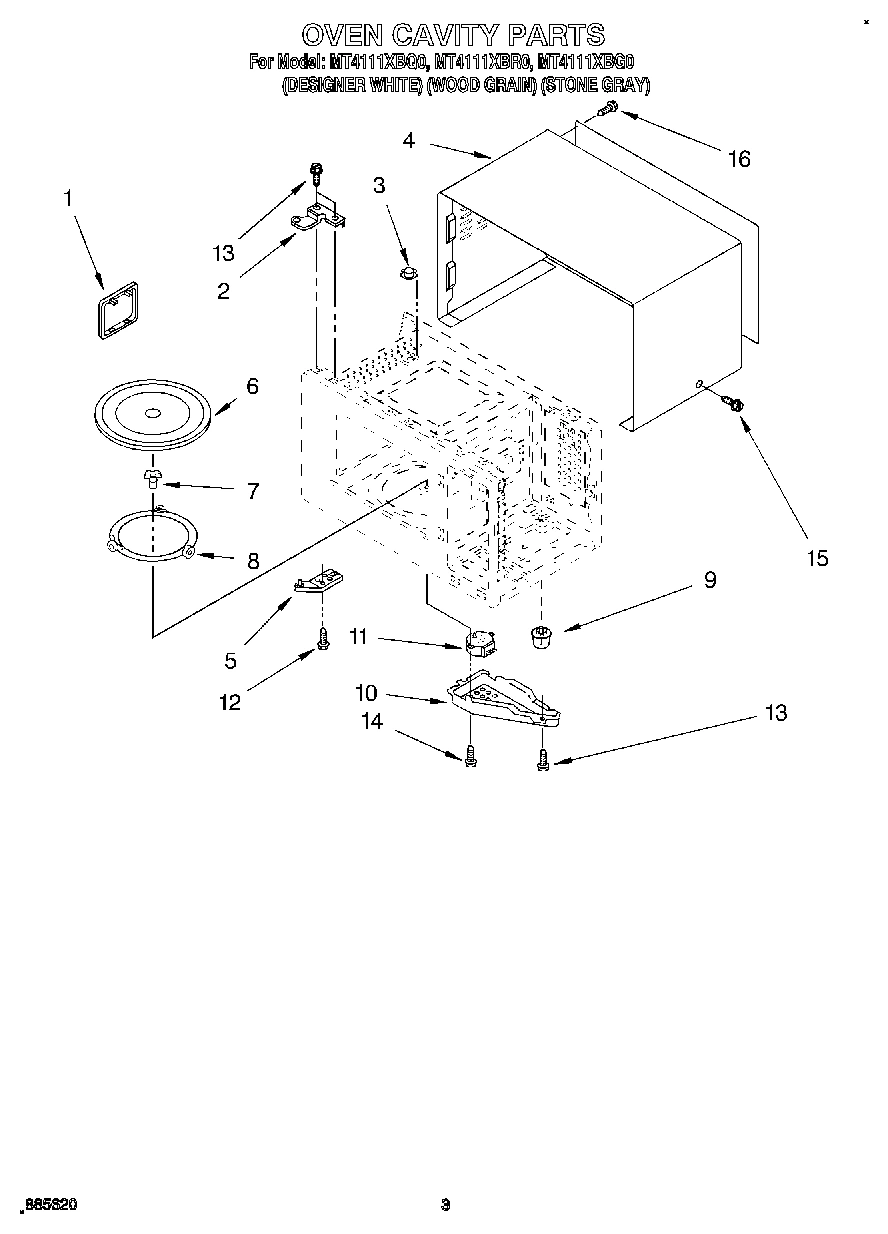

03 - OVEN CAVITY
02 - CONTROL PANEL
04 - LATCH BOARD
05 - OVEN INTERIOR, LITERATURE
Common parts from model Whirlpool MT4111XBQ0
Use & Care Guide WPL LIT4358527 Contact Us For Availability
Cook Guide Label WPL LIT4358529 Contact Us For Availability
Tech Sheet WPL LIT4358532 Contact Us For Availability
1
Propeller WPL 4158758 Contact Us For Availability
1
Door Assembly (Wood Grain & Gray Model) WPL 4358663 Contact Us For Availability
1
Canopy WPL 4358638 Contact Us For Availability
1
Controller Assembly (Not Serviceable) White M WPL ARI118931A Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118932A Contact Us For Availability
2
Front Screen (White Model) WPL 4358617 Contact Us For Availability
2
Front Screen (Wood Grain & Gray Model) WPL 4358664 Contact Us For Availability
2
Plate, Hinge WPL 4358619 Contact Us For Availability
2
Button, Release (White Model) WPL 4358610 Contact Us For Availability
2
Release Button (Wood Grain & Gray Model) WPL 4358670 Contact Us For Availability
2
Latch Board WPL 4358635 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4358623 Contact Us For Availability
3
Door Frame Assembly (Wood Grain & Gray Model) WPL 4358675 Contact Us For Availability
3
Thermostat WPL 4359064 Contact Us For Availability
3
Spring, Button WPL 4158110 Contact Us For Availability
3
Motor, Fan WPL 4358643 Contact Us For Availability
4
Choke Cover WPL 4358624 Contact Us For Availability
4
Outer Case (White Model) WPL 4358640 Contact Us For Availability
4
Outer Case (Wood Grain Model) WPL 4358711 Contact Us For Availability
4
Outer Case (Gray Model) WPL 4359067 Contact Us For Availability
4
Key Membrane (White Model) WPL 4358631 Contact Us For Availability
4
Key Membrane (Wood Grain & Gray Model) WPL 4358697 Contact Us For Availability
4
H.V. Capacitor WPL 4158466 Contact Us For Availability
5
Tape, Seal WPL 4358605 Contact Us For Availability
5
Plate, Hinge WPL 4358622 Contact Us For Availability
5
Control Panel (White Model) WPL 4358632 Contact Us For Availability
5
Control Panel (Wood Grain Model) WPL 4358709 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
6
Latch WPL 4358606 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4358633 Contact Us For Availability
6
Leadwire Assembly WPL 4358639 Contact Us For Availability
6
Leadwire Assembly WPL 4358646 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
7
Shaft, Turntable WPL 4158786 Contact Us For Availability
7
Lever, Release WPL 4358636 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
8
Tape, Toyo WPL 4358629 Contact Us For Availability
8
Rotating Ring Ass`y WPL 4358647 Contact Us For Availability
8
Controller Sub Assembly (White Model) WPL 4358692 Contact Us For Availability
8
Controller Sub Assembly (Wood Grain & Gray Mo WPL 4358710 Contact Us For Availability
8
H.V. Diode Cable WPL 4158897 Contact Us For Availability
9
Leg (4) WPL 4358626 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
10
Cover, Motor WPL 4358648 Contact Us For Availability
10
Screw (3) WPL 4358451 Contact Us For Availability
10
Thermostat WPL 4358650 Contact Us For Availability
11
Motor, Synchronous WPL 4358628 Contact Us For Availability
11
Lamp, Baseless WPL 4358651 Contact Us For Availability
12
Duct, Air WPL 4358656 Contact Us For Availability
13
Magnetron WPL 4158798 Contact Us For Availability
14
Screw (2) WPL 4358188 Contact Us For Availability
14
H.V. Transformer WPL 4358658 Contact Us For Availability
15
Screw (Wood Grain Model) WPL 4158084 Contact Us For Availability
15
Leadwire Ass`y WPL 4358655 Contact Us For Availability
16
Cushion WPL 4358660 Contact Us For Availability
17
Fuse WPL 4358263 Contact Us For Availability
18
Cap, Fuse WPL 4358659 Contact Us For Availability
19
Nut (2) WPL 4358475 Contact Us For Availability
20
Screw (2) WPL 4358051 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
23
Screw WPL 4358381 Contact Us For Availability
24
Screw (2) WPL 4358190 Contact Us For Availability
× ![]()
