Model Whirlpool MT4110XKQ0 MICROWAVE – Common Parts & Diagrams
03 - OVEN CAVITY
04 - LATCH BOARD

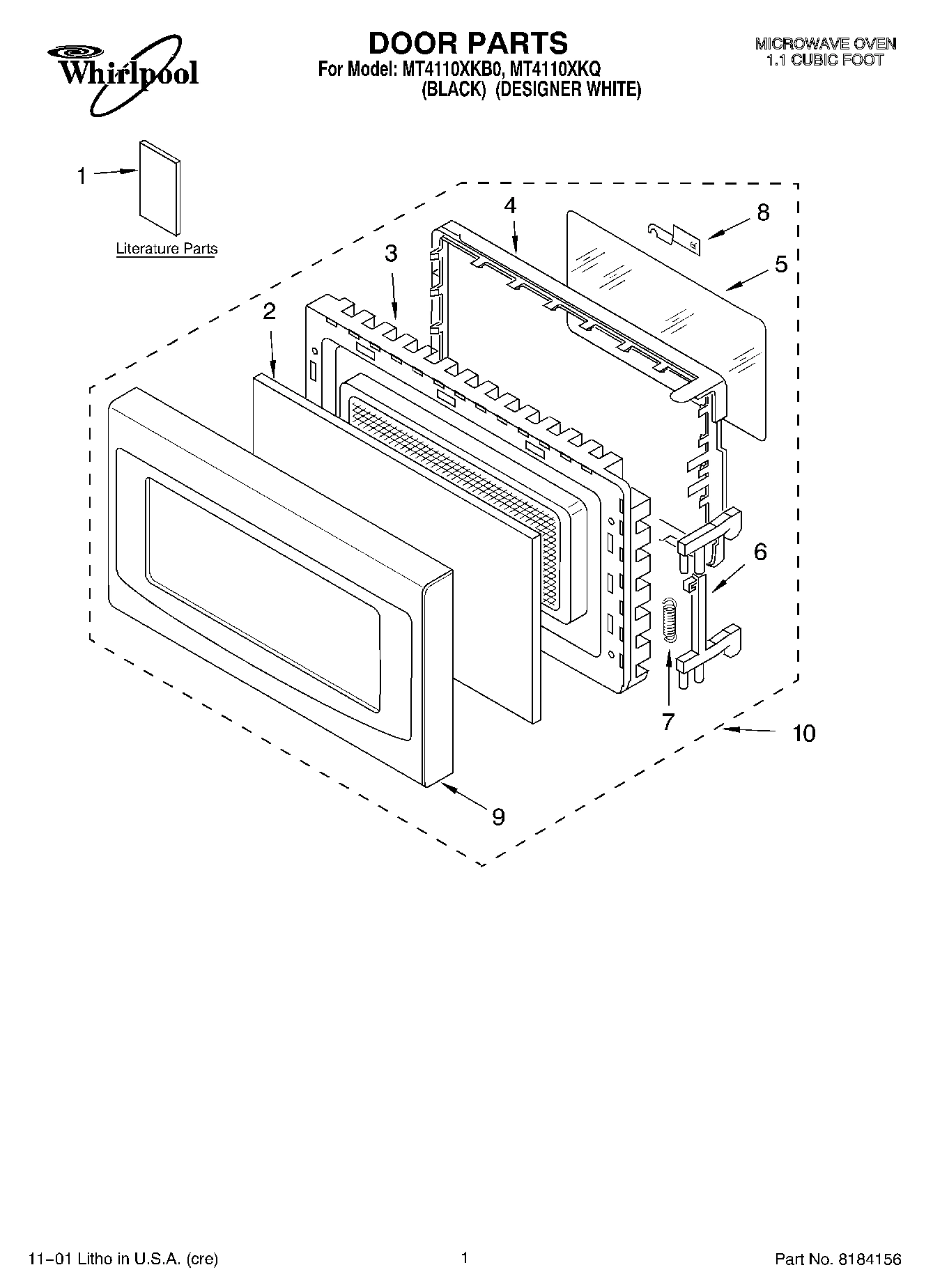

01 - DOOR, LITERATURE

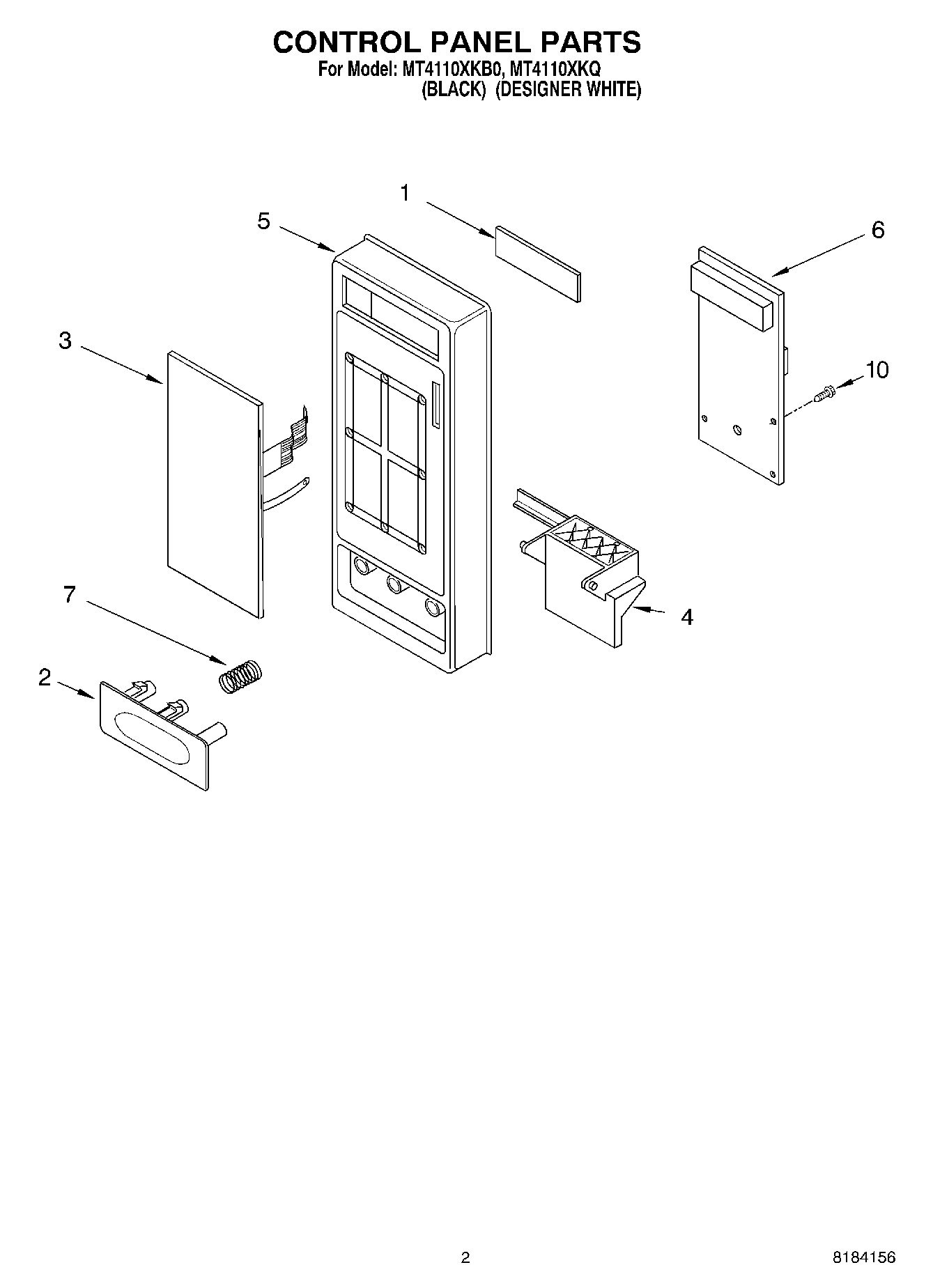

02 - CONTROL PANEL

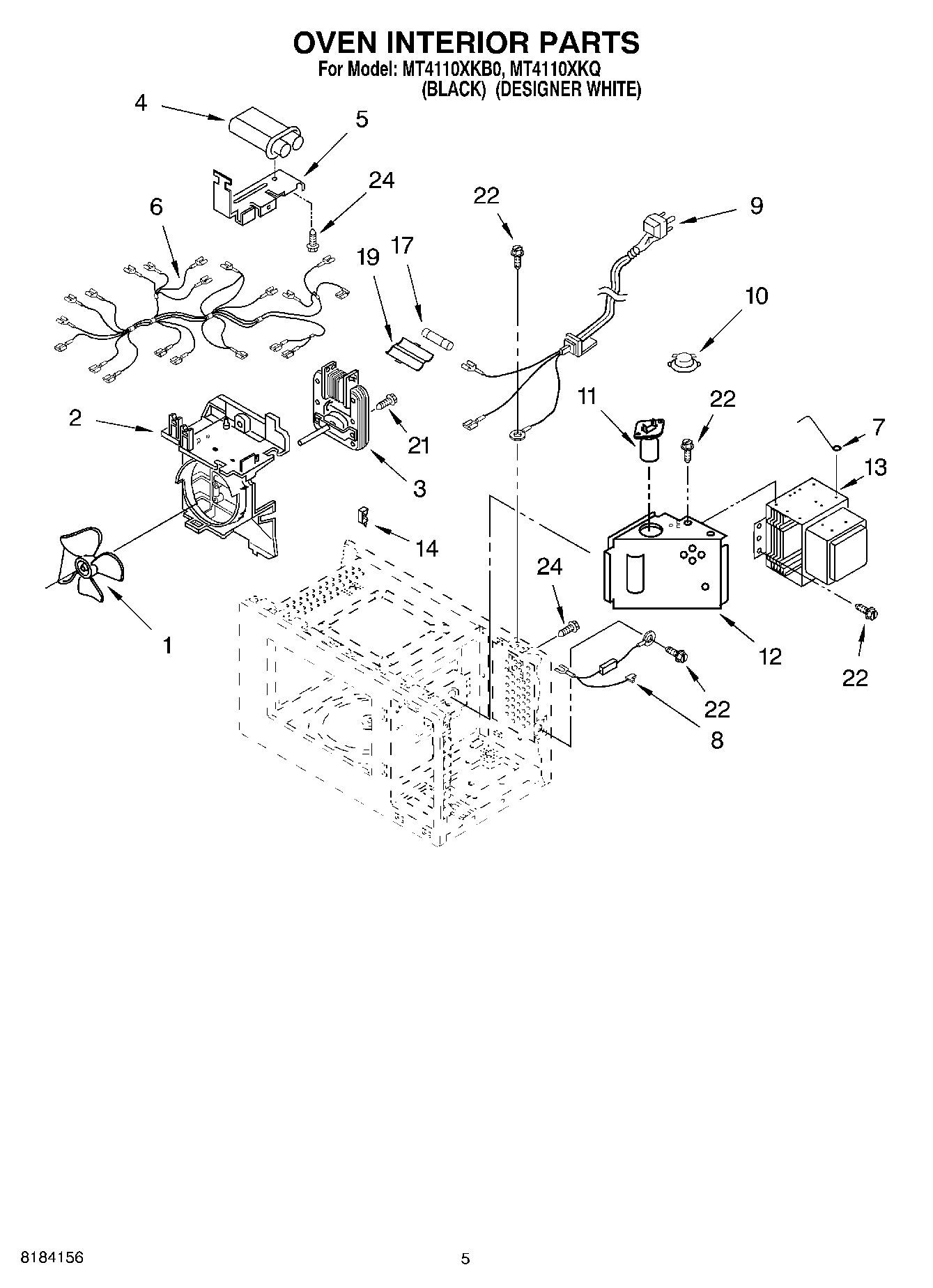

05 - OVEN INTERIOR

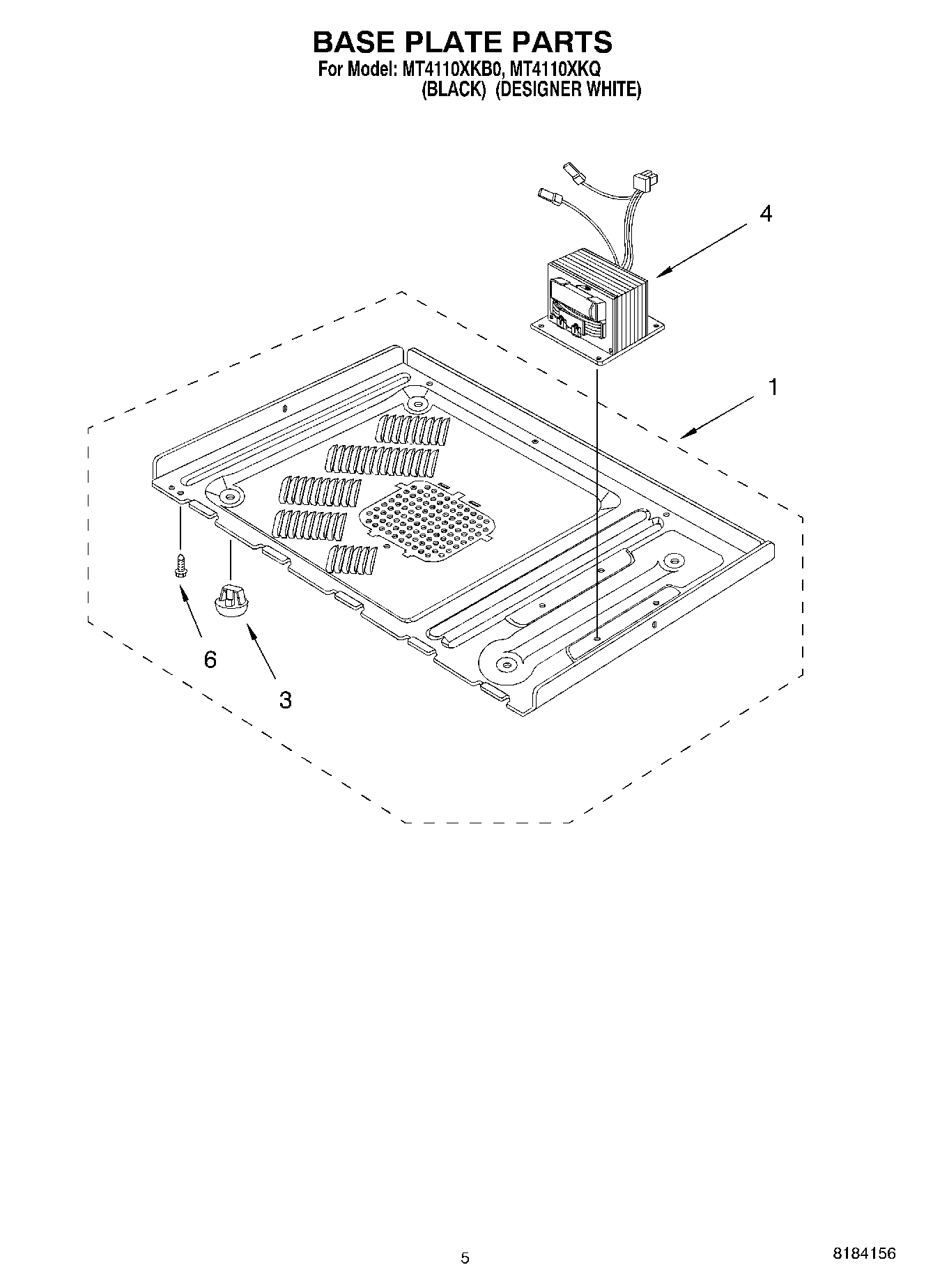

06 - BASE PLATE
Common parts from model Whirlpool MT4110XKQ0 MICROWAVE
1
Canopy WPL 8184278 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118928A Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8183904 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8183908 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8183910 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Base Plate WPL 8184297 Contact Us For Availability
2
Latch Board WPL 8184284 Contact Us For Availability
2
Front Screen WPL 8184256 Contact Us For Availability
2
Button (Black) WPL 8184273 Contact Us For Availability
2
Button (White) WPL 8184274 Contact Us For Availability
2
Guide, Suction WPL 8184289 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 8184254 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8184255 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8184275 Contact Us For Availability
3
Switch, Membrane (White) WPL 8184276 Contact Us For Availability
3
Leg WPL 8184298 Contact Us For Availability
4
Choke Cover WPL 8184258 Contact Us For Availability
4
Lever, Release WPL 8814269 Contact Us For Availability
4
H.V. Capacitor WPL 8184287 Contact Us For Availability
4
Transformer WPL 8184293 Contact Us For Availability
5
Tape, Seal WPL 8184257 Contact Us For Availability
5
Control Panel (Black) WPL 8184267 Contact Us For Availability
5
Control Panel (White) WPL 8184268 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Microcomputer WPL 8184277 Contact Us For Availability
6
Leadwire Assembly WPL 8184296 Contact Us For Availability
6
Scre WPL 4358381 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring WPL 8184272 Contact Us For Availability
7
Bracket, Support WPL 8184290 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
9
Panel, Door (Black) WPL 8184261 Contact Us For Availability
9
Panel, Door (White) WPL 8184262 Contact Us For Availability
9
Power Cord WPL 8184294 Contact Us For Availability
10
Door Assembly (Black) WPL 8184259 Contact Us For Availability
10
Door Assembly (White) WPL 8184260 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
11
Motor, Synchronous WPL 8184283 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Duct, Air WPL 8184291 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
