Model Whirlpool MT4110SPQ4 MICROWAVE OVEN 1.1 CUBIC FOOT – Common Parts & Diagrams
01 - DOOR PARTS
03 - OVEN CAVITY PARTS

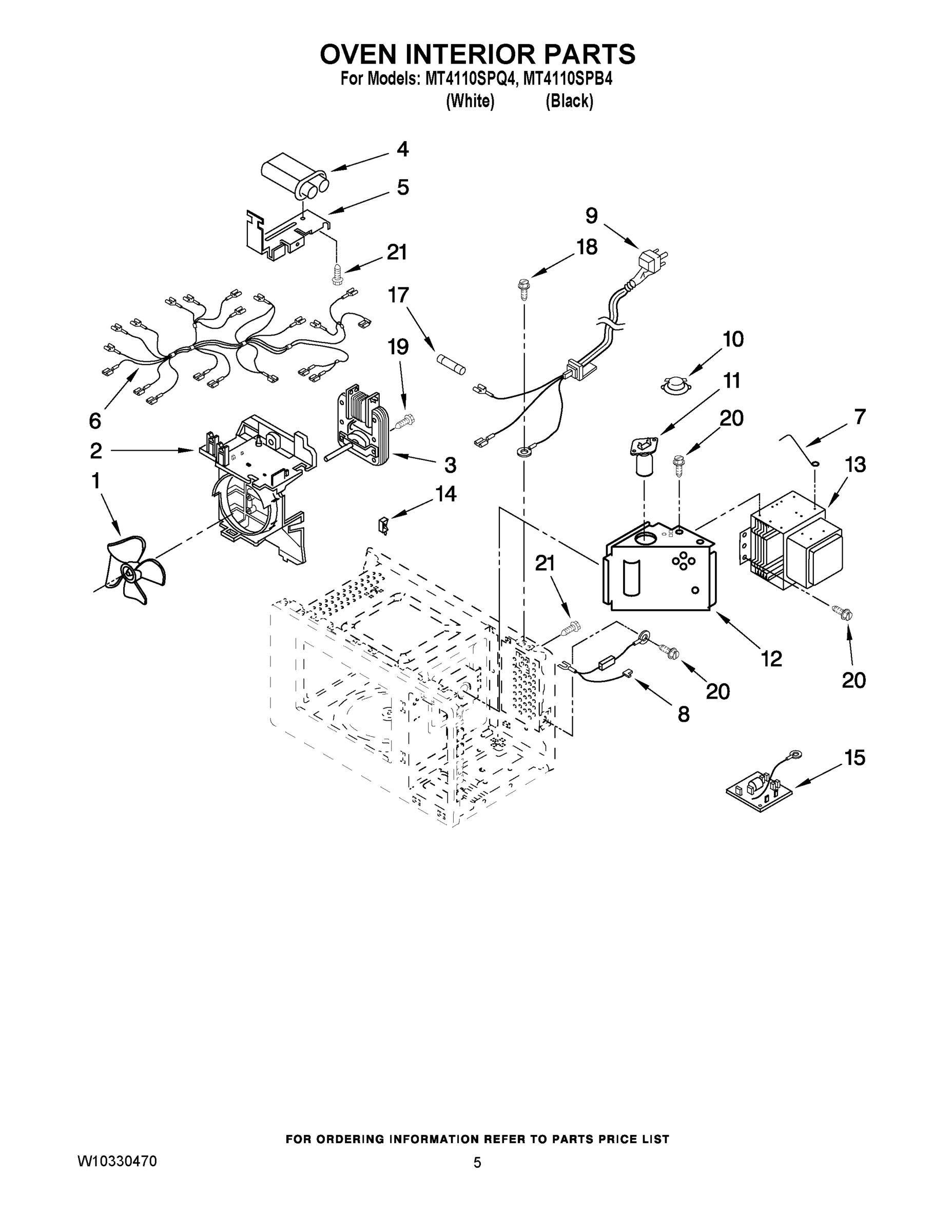

05 - OVEN INTERIOR PARTS

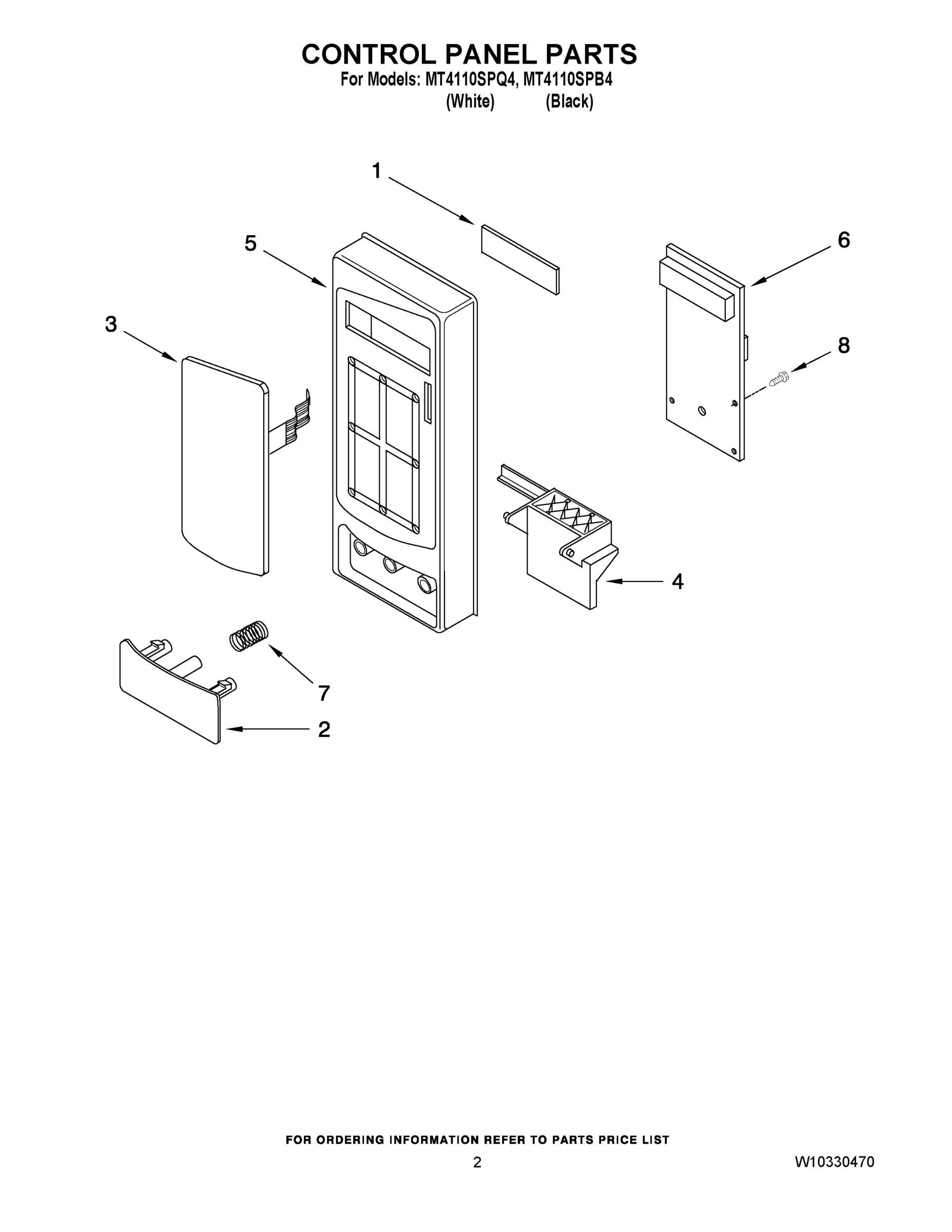

02 - CONTROL PANEL PARTS

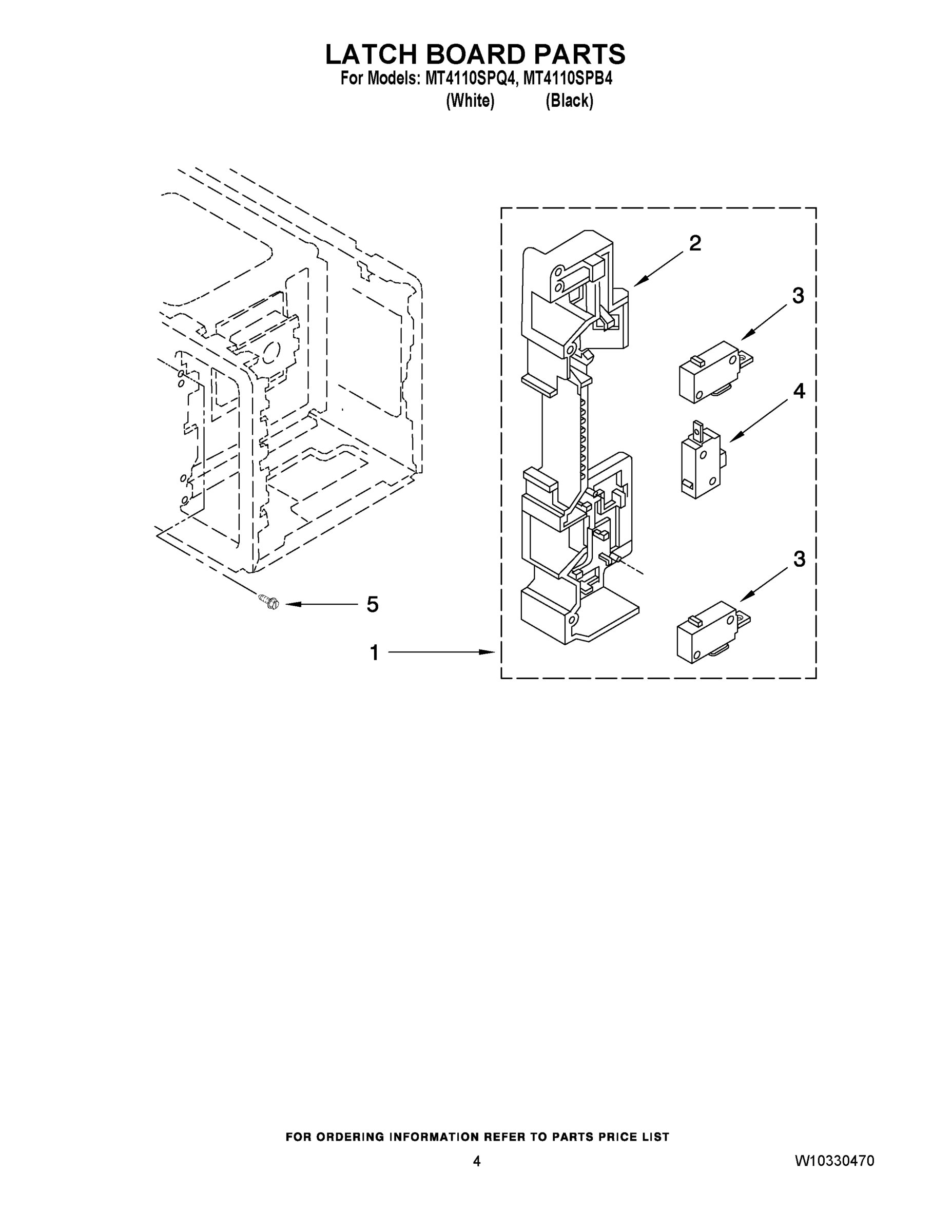

04 - LATCH BOARD PARTS

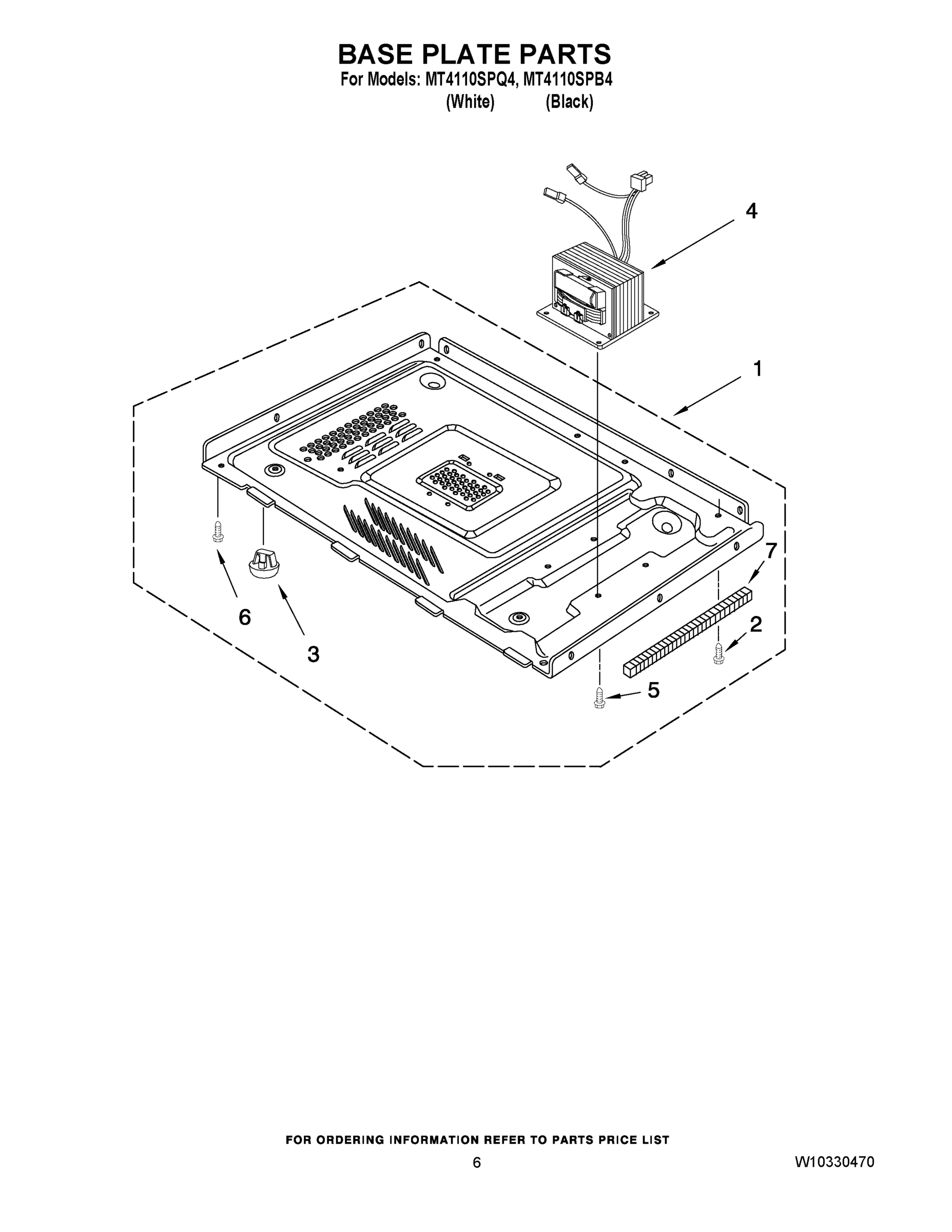

06 - BASE PLATE PARTS
Common parts from model Whirlpool MT4110SPQ4 MICROWAVE OVEN 1.1 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Window (White Model) WPL 4359720 Contact Us For Availability
1
Window (Black Model) WPL 8204891 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
1
Base Plate WPL 8184297 Contact Us For Availability
2
Latch WPL 8184263 Contact Us For Availability
2
Screw WPL 4358188 Contact Us For Availability
2
GUIDE, SUCTION WPL W10321804 Contact Us For Availability
2
Button (White) WPL 8204894 Contact Us For Availability
3
Spring, Latch WPL 8171918 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8204890 Contact Us For Availability
3
Leg WPL 8184298 Contact Us For Availability
4
Cap WPL 8184265 Contact Us For Availability
4
H.V. Capacitor WPL 8184619 Contact Us For Availability
4
TRANSFORMER WPL W10329903 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
Turntable Support WPL 8184282 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
5
Control Panel (White) WPL 8204892 Contact Us For Availability
5
Control Panel (Black) WPL 8204893 Contact Us For Availability
6
Motor, Synchronous WPL 8184283 Contact Us For Availability
6
HARNESS WPL W10329905 Contact Us For Availability
6
Screw WPL 4358190 Contact Us For Availability
6
Microcomputer WPL 8204896 Contact Us For Availability
7
Bracket, Support WPL 8184290 Contact Us For Availability
7
CUSHION WPL W10321803 Contact Us For Availability
8
Screw (Black) WPL 4358829 Contact Us For Availability
8
Screw WPL 4358883 Contact Us For Availability
9
Screw WPL 8171862 Contact Us For Availability
10
Thermostat WPL 8185274 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Duct, Air WPL 8184291 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
FILTER, NOISE WPL W10329753 Contact Us For Availability
20
Screw WPL W10160553 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
× ![]()
