Model Whirlpool MT4110RPQ1 MICROWAVE OVEN 1.1 CUBIC FOOT – Common Parts & Diagrams

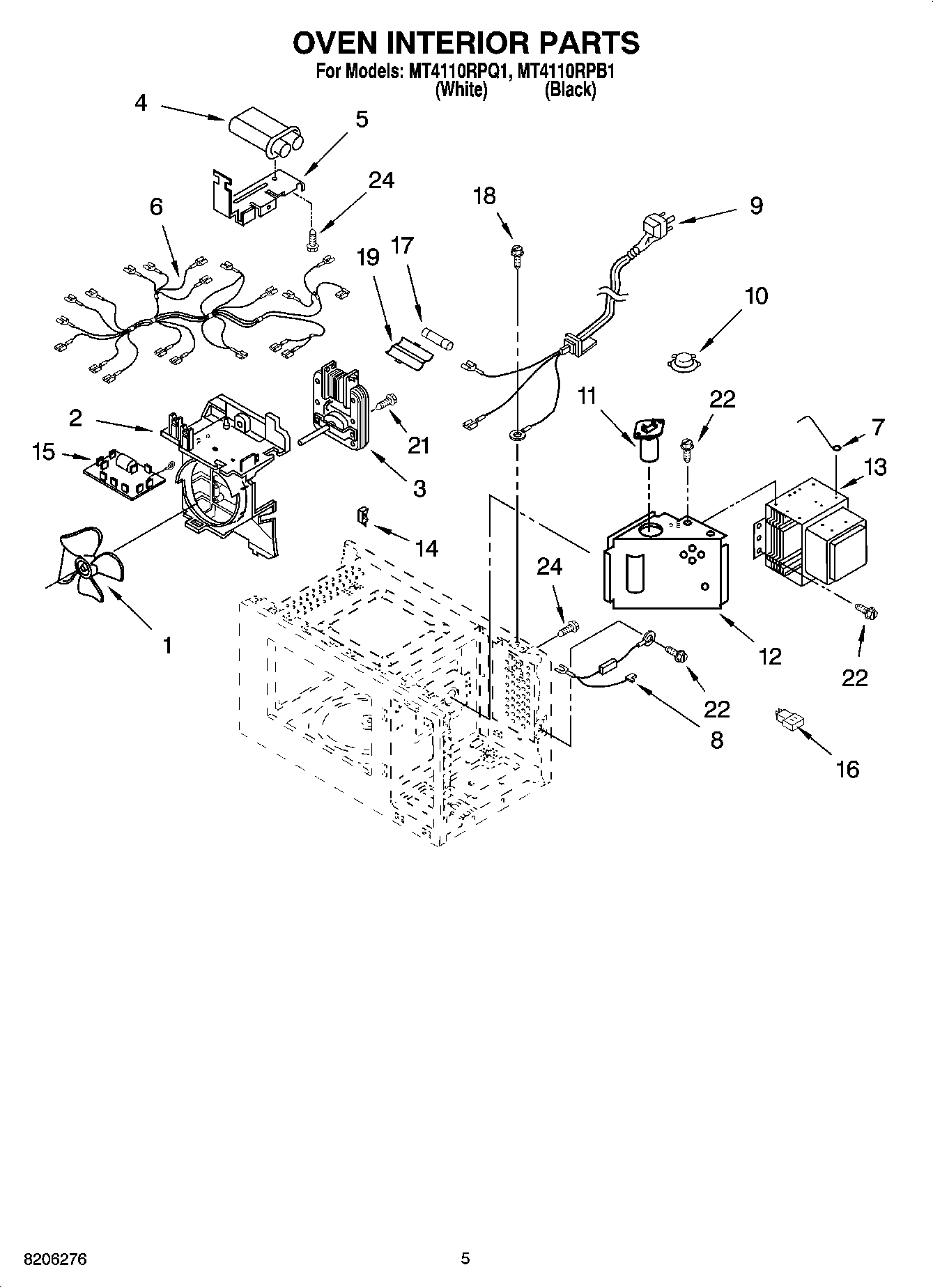

05 - OVEN INTERIOR PARTS

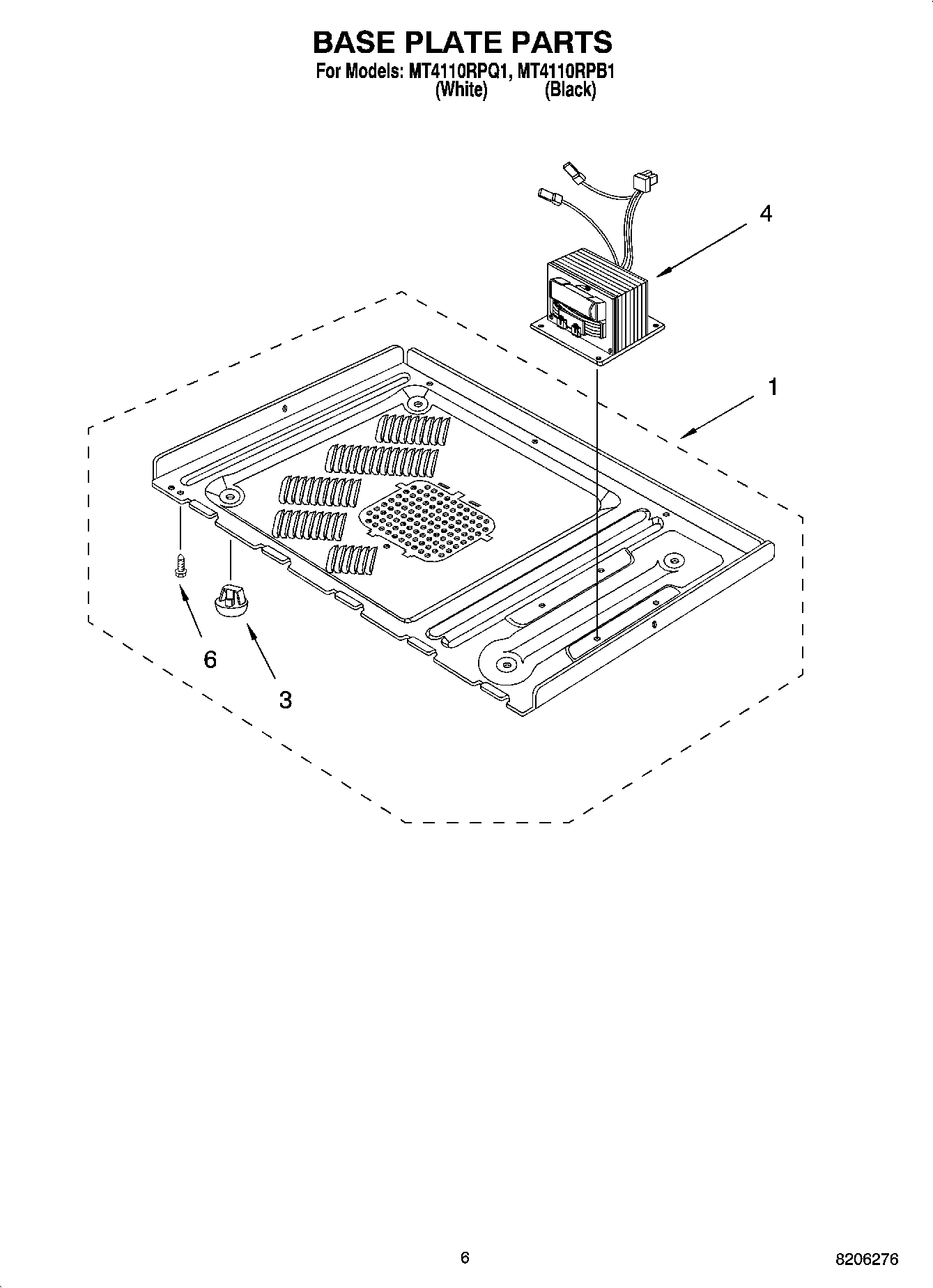

06 - BASE PLATE PARTS

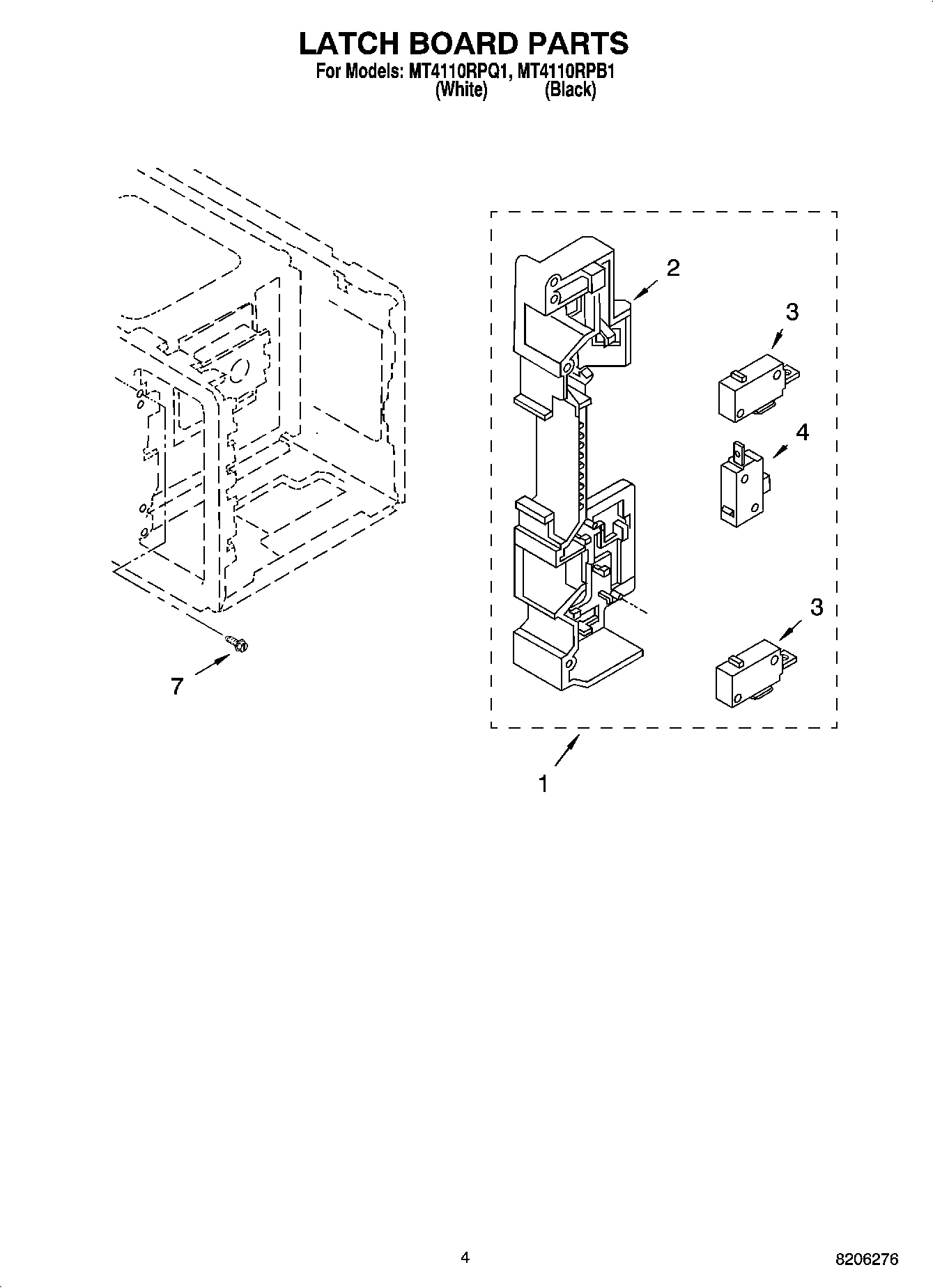

04 - LATCH BOARD PARTS

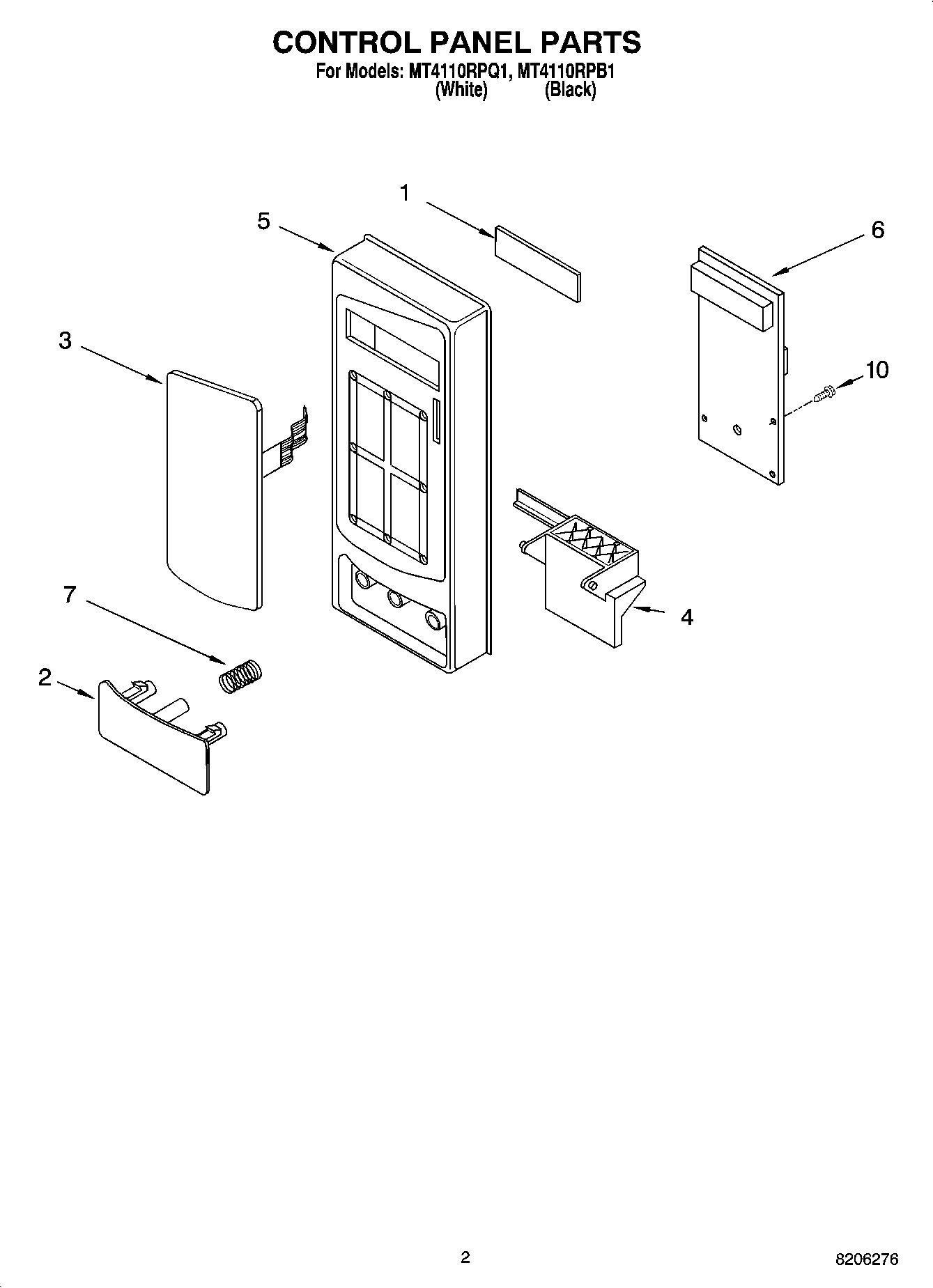

02 - CONTROL PANEL PARTS

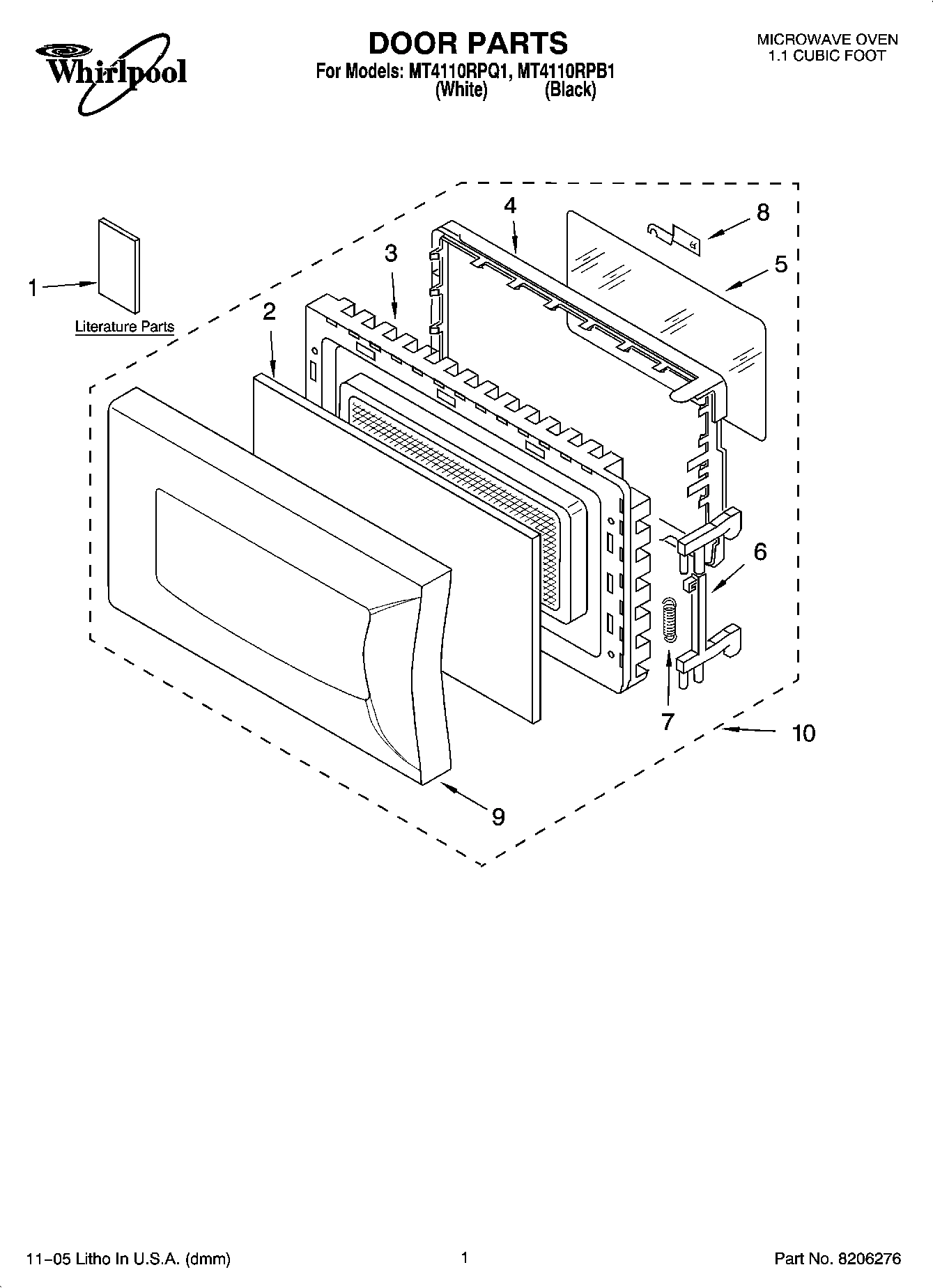

01 - DOOR PARTS

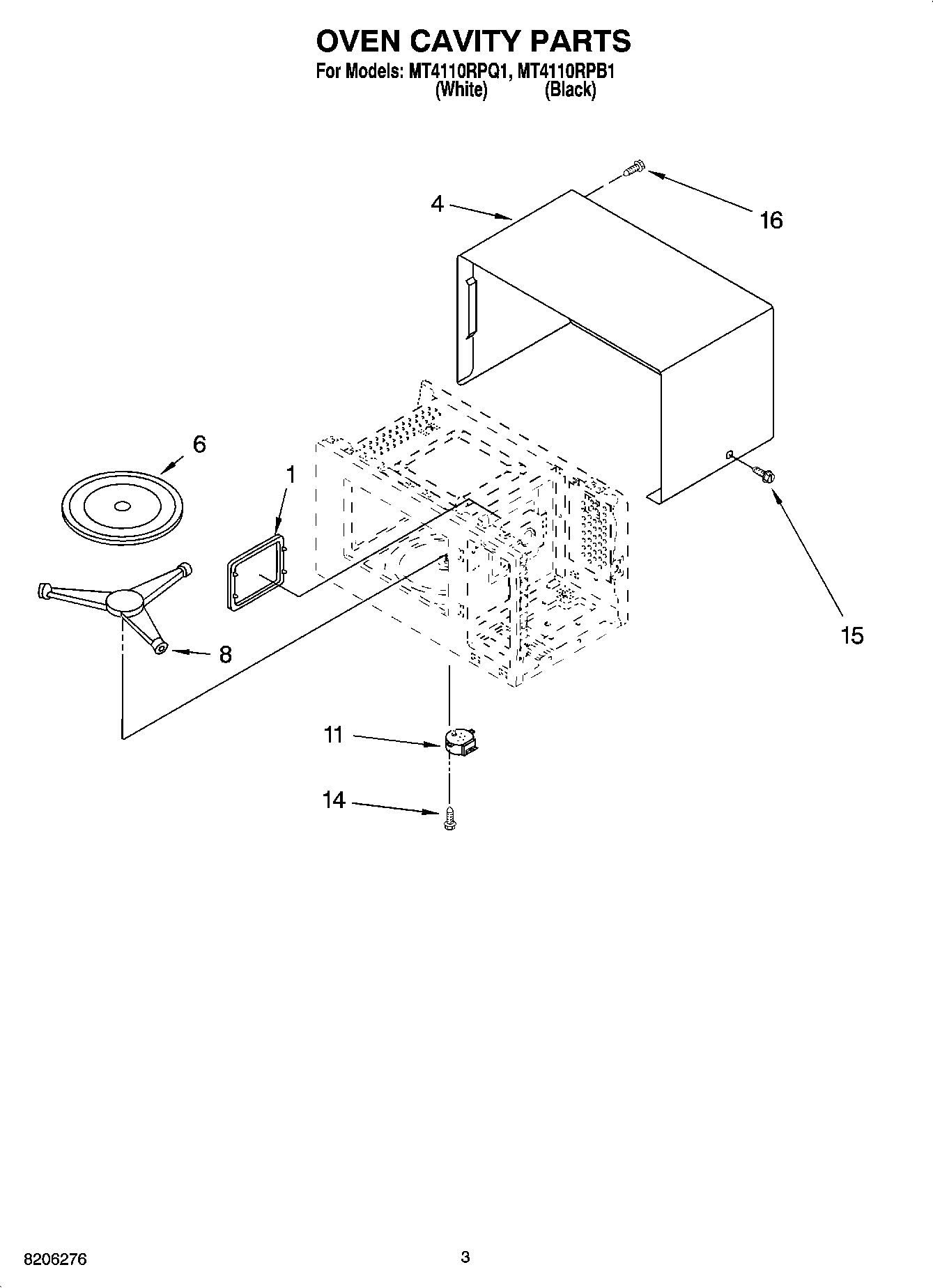

03 - OVEN CAVITY PARTS
Common parts from model Whirlpool MT4110RPQ1 MICROWAVE OVEN 1.1 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Base Plate WPL 8184297 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI118914A Contact Us For Availability
1
Window (White Model) WPL 4359720 Contact Us For Availability
1
Window (Black Model) WPL 8204891 Contact Us For Availability
1
Cook Guide Label WPL 8183908 Contact Us For Availability
1
Use & Care Guide WPL 8204841 Contact Us For Availability
1
Tech Sheet WPL 8204842 Contact Us For Availability
1
Installation Instructions WPL 8204843 Contact Us For Availability
2
Button (White) WPL 8204894 Contact Us For Availability
2
Front Screen WPL 8204883 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 8184298 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8204890 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8204881 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 8204882 Contact Us For Availability
4
Lever, Release WPL 8184269 Contact Us For Availability
4
Transformer WPL 8184293 Contact Us For Availability
4
Choke Cover WPL 8204884 Contact Us For Availability
4
Outer Case (White) WPL 8204897 Contact Us For Availability
4
Outer Case (Black) WPL 8204898 Contact Us For Availability
5
Control Panel (White) WPL 8204892 Contact Us For Availability
5
Control Panel (Black) WPL 8204893 Contact Us For Availability
5
Tape, Seal WPL 8184257 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Tray, Glass WPL 8204899 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
White WPL 8204845 Contact Us For Availability
6
Black WPL 8204846 Contact Us For Availability
6
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI118915A Contact Us For Availability
6
Trim Kit WPL ARI118916A Contact Us For Availability
6
Microcomputer WPL 8204896 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
8
Turntable Support WPL 8184282 Contact Us For Availability
9
Panel, Door (White) WPL 8204887 Contact Us For Availability
9
Panel, Door (Black) WPL 8204888 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (White) WPL 8204885 Contact Us For Availability
10
Door Assembly (Black) WPL 8204886 Contact Us For Availability
11
Motor, Synchronous WPL 8184283 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Filter, Choke WPL 8185021 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
18
Screw, Ground WPL 8204902 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
