Model Whirlpool MT4078SPQ4 COMPACT MICROWAVE OVEN 0.7 CUBIC FOOT – Common Parts & Diagrams

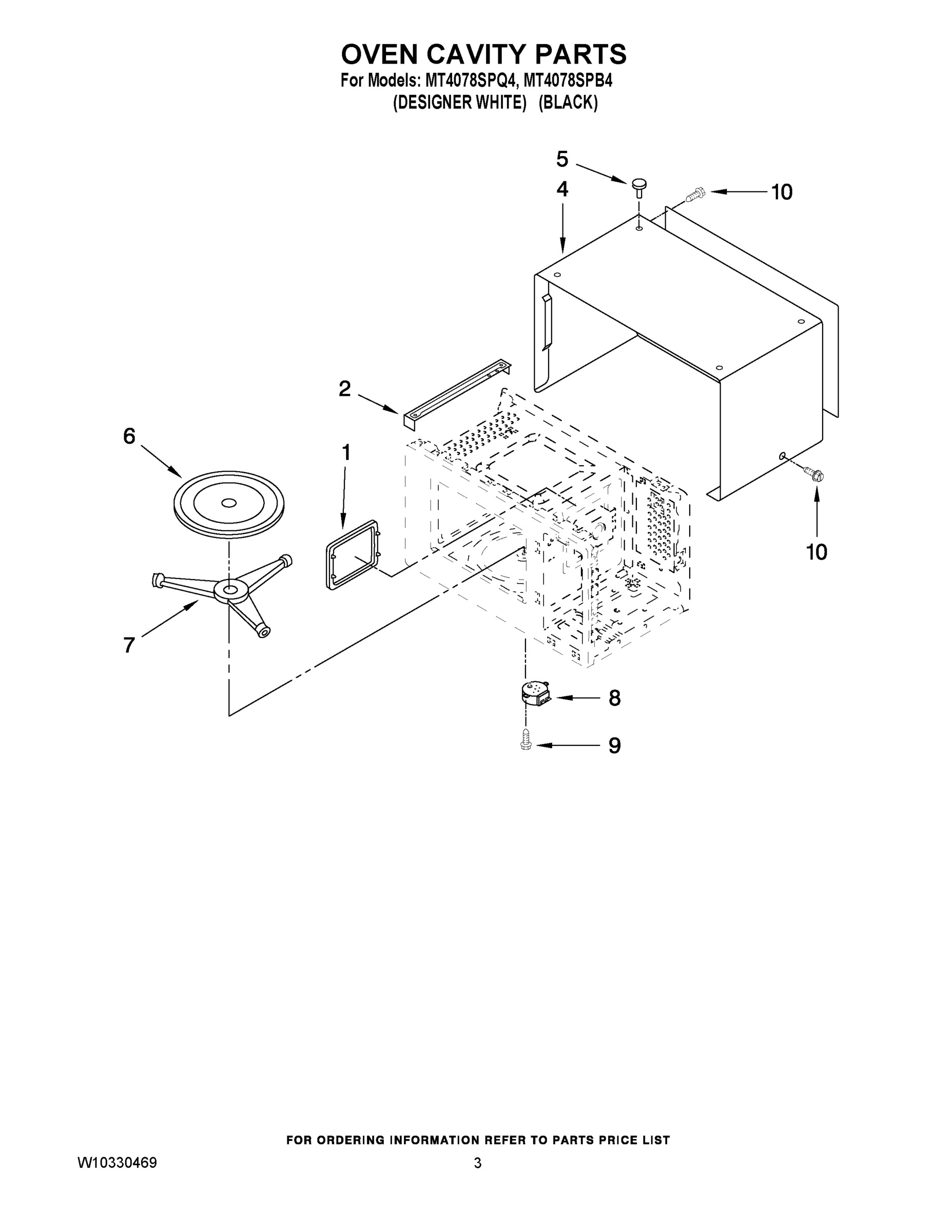

03 - OVEN CAVITY PARTS

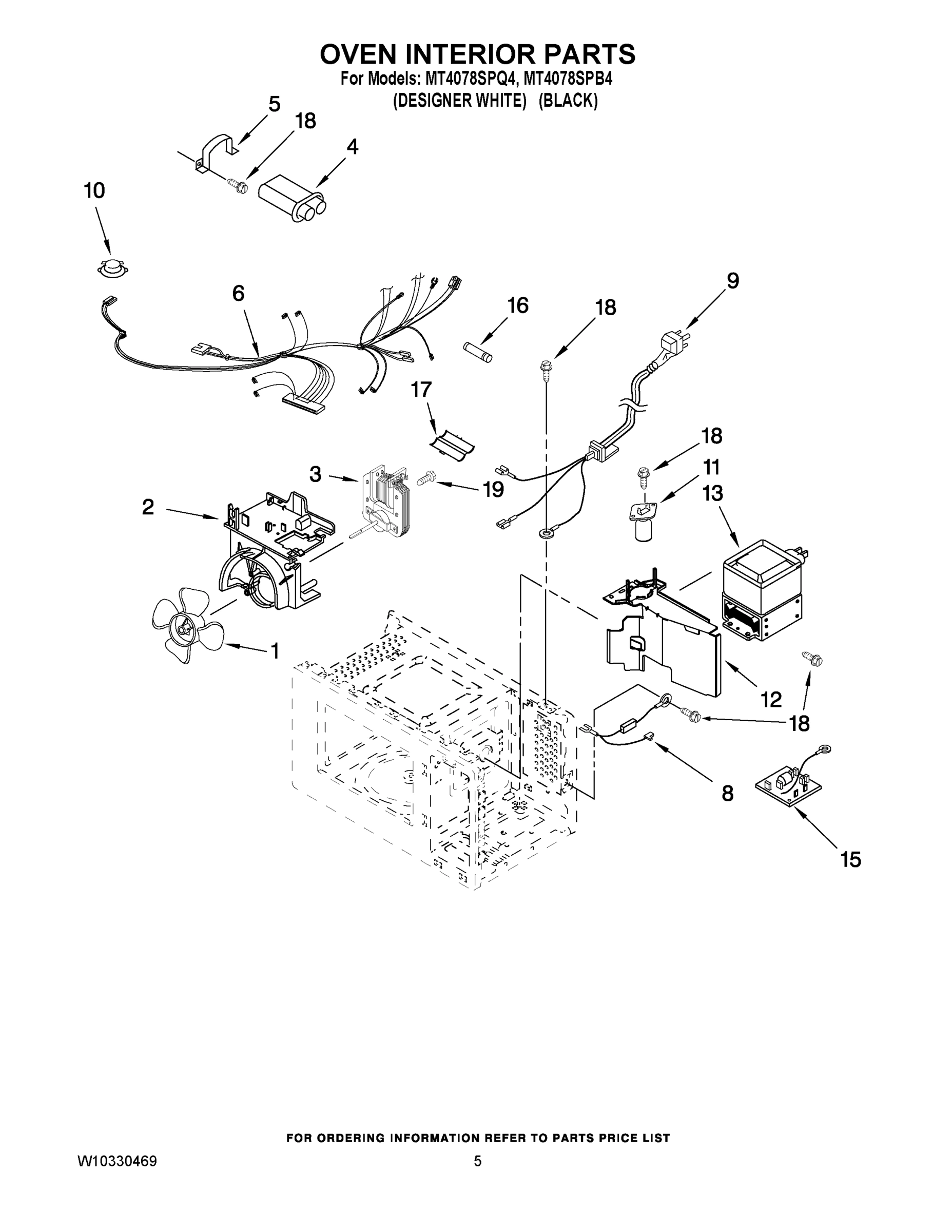

05 - OVEN INTERIOR PARTS

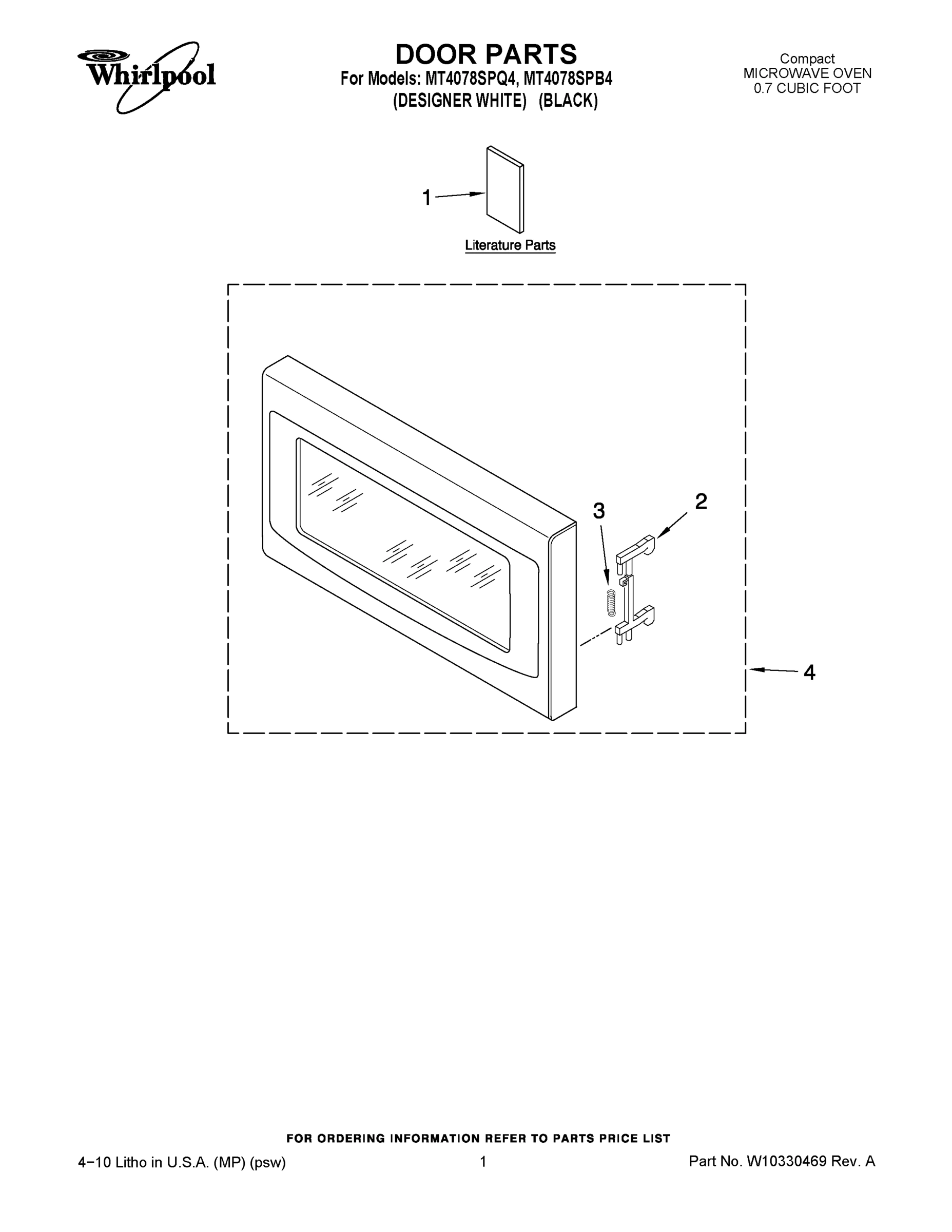

01 - DOOR PARTS

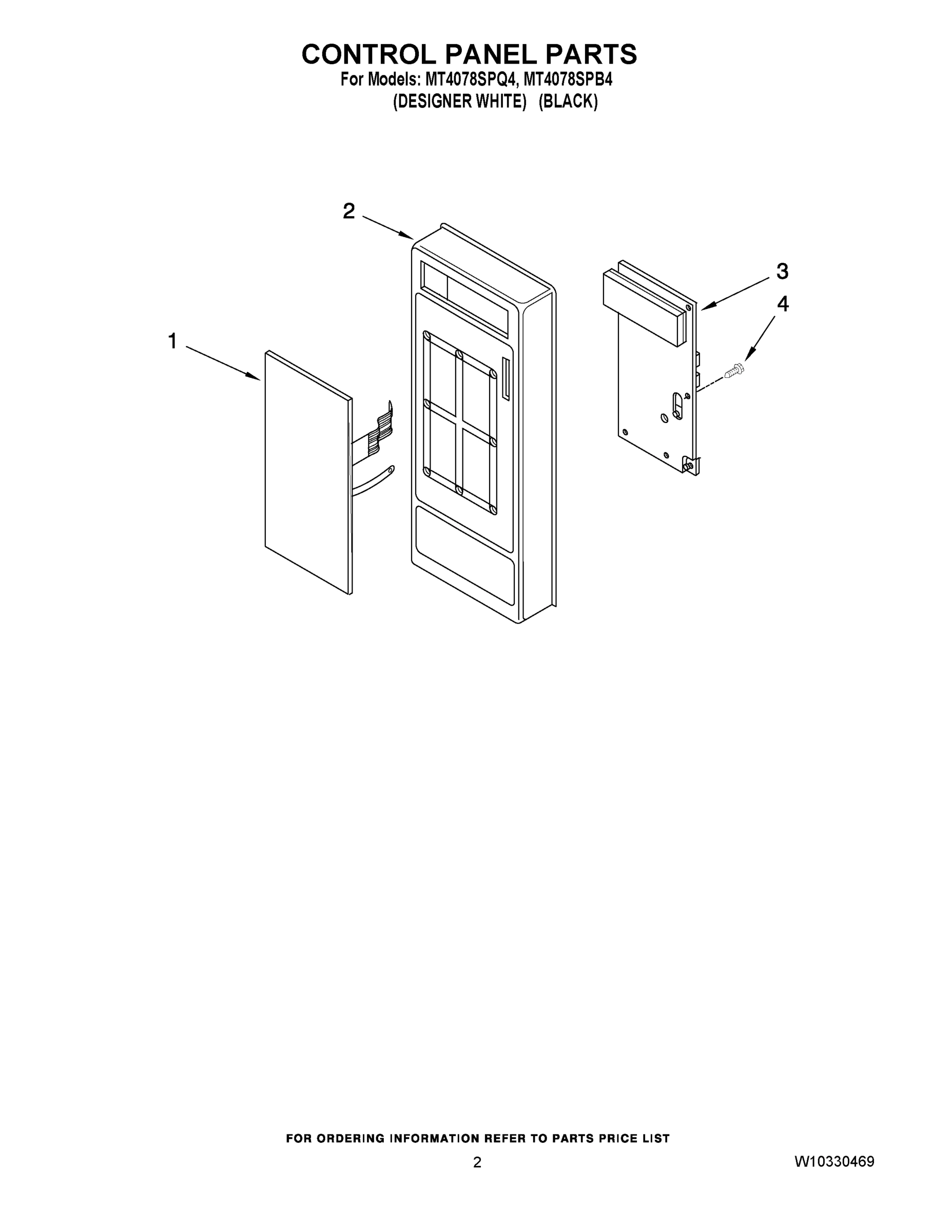

02 - CONTROL PANEL PARTS

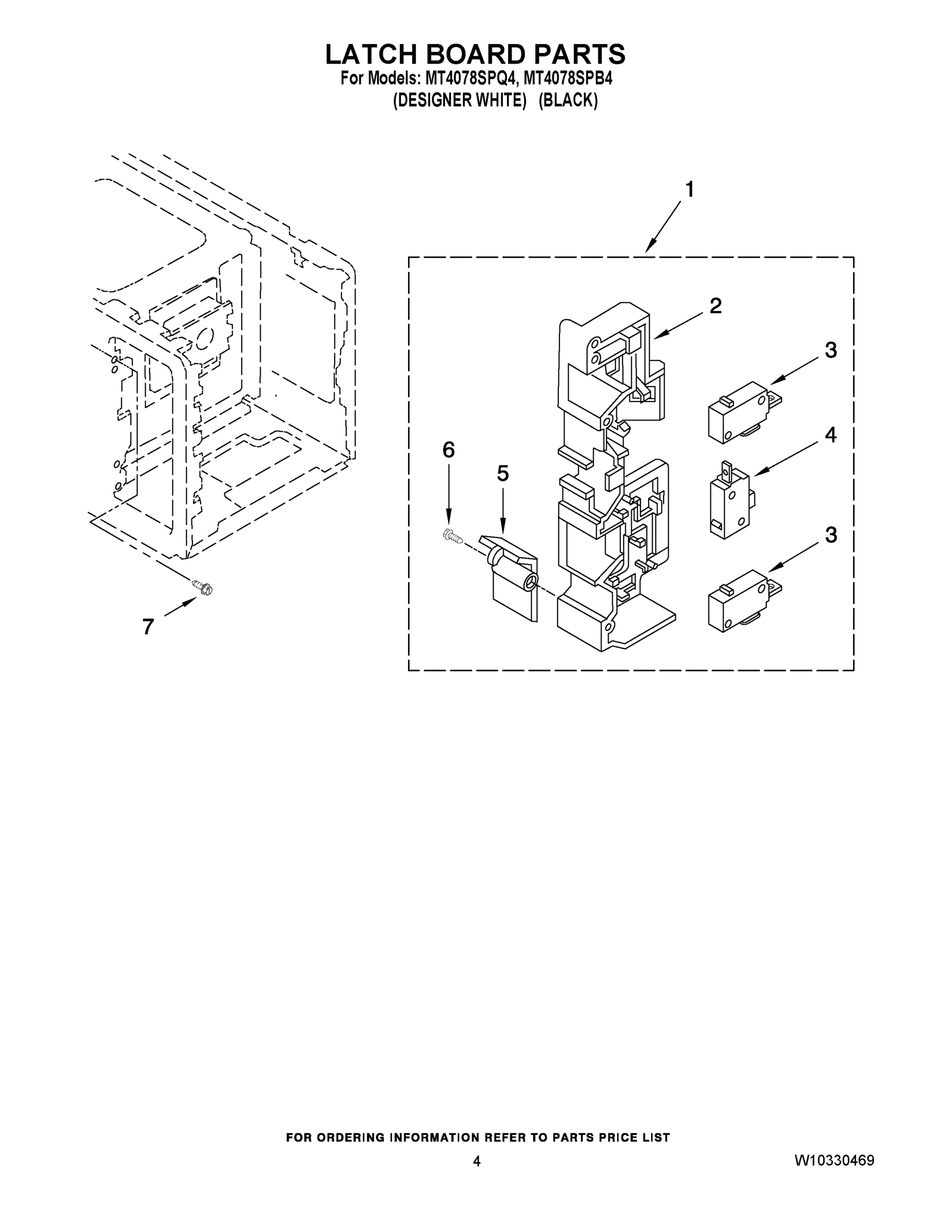

04 - LATCH BOARD PARTS

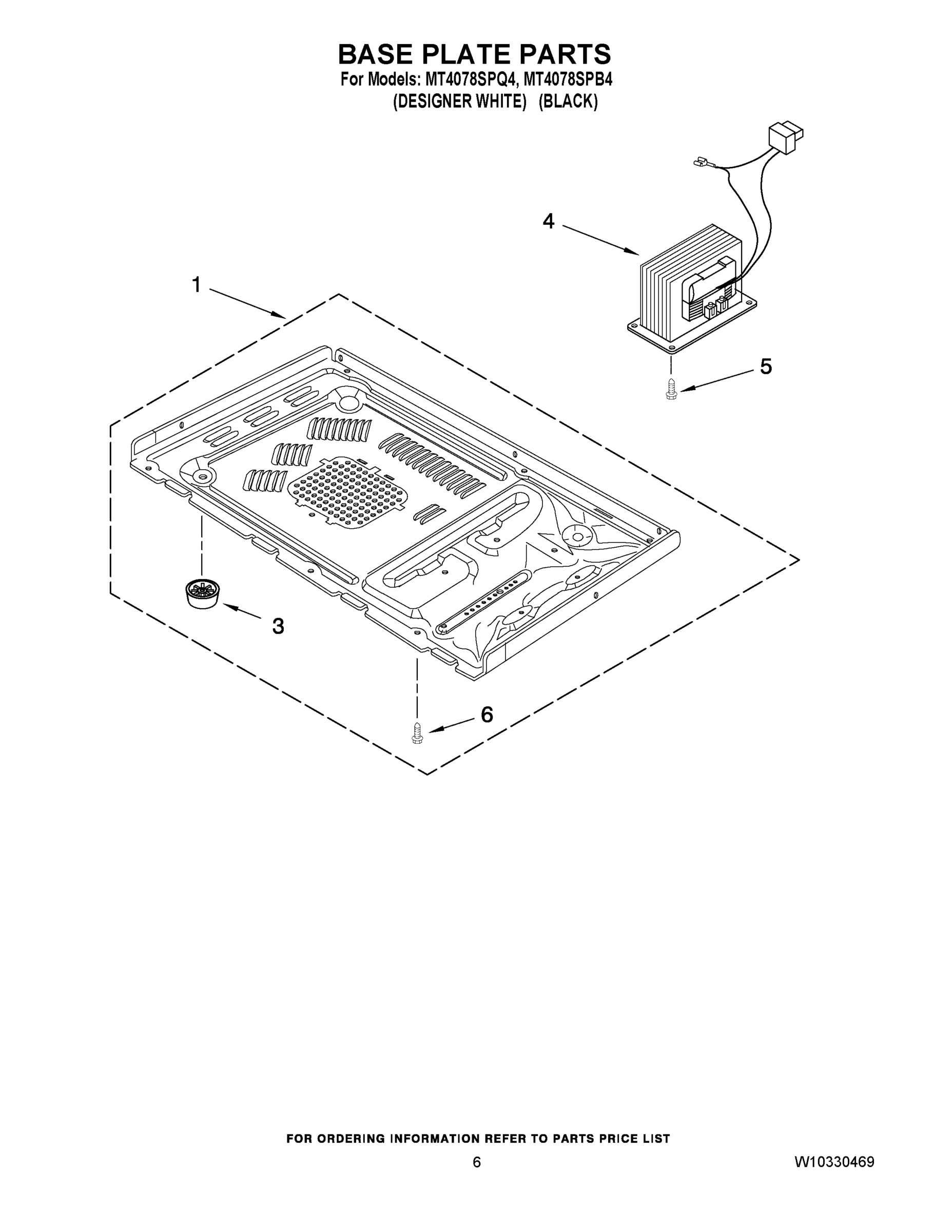

06 - BASE PLATE PARTS
Common parts from model Whirlpool MT4078SPQ4 COMPACT MICROWAVE OVEN 0.7 CUBIC FOOT
1
Cook Guide Label WPL 8204862 Contact Us For Availability
1
Instructions, Installation WPL 8204864 Contact Us For Availability
1
Use & Care Guide WPL W10178097 Contact Us For Availability
1
TECH SHEET WPL W10314559 Contact Us For Availability
1
Key Membrane (White Model) WPL 8205468 Contact Us For Availability
1
Key Membrane (Black Model) WPL 8205469 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
1
Base Plate Assy WPL 8205491 Contact Us For Availability
2
Guide, Suction WPL W10246255 Contact Us For Availability
2
Latch WPL 8205470 Contact Us For Availability
2
Control Panel (White Model) WPL 8205471 Contact Us For Availability
2
Control Panel (Black Model) WPL 8205472 Contact Us For Availability
2
Screw WPL 4358381 Contact Us For Availability
2
Latch Board WPL 8205477 Contact Us For Availability
3
Spring, Latch WPL 8171918 Contact Us For Availability
3
Motor, Fan WPL 8205488 Contact Us For Availability
3
Cap WPL 8184385 Contact Us For Availability
4
Complete Door (Black Model) WPL 8205467 Contact Us For Availability
4
H.V. Capacitor WPL W10246258 Contact Us For Availability
4
Complete Door (White Model) WPL 8205466 Contact Us For Availability
5
Mounting Cap (Black Model (4)) WPL 4358857 Contact Us For Availability
5
H.V.C Bracket WPL 8205479 Contact Us For Availability
5
Lever WPL 8205478 Contact Us For Availability
5
Screw WPL W10160553 Contact Us For Availability
6
Tray, Glass WPL 8205098 Contact Us For Availability
6
LEADWIRE ASSEMBLY WPL W10329447 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Turntable Support WPL 8205099 Contact Us For Availability
9
Screw WPL 4358188 Contact Us For Availability
10
Thermostat WPL W10246265 Contact Us For Availability
11
Lamp, Baseless WPL 4359165 Contact Us For Availability
12
Duct, air WPL 8205484 Contact Us For Availability
13
Magnetron WPL 8205486 Contact Us For Availability
15
NOISE FILTER WPL W10329455 Contact Us For Availability
16
FUSE WPL W10246259 Contact Us For Availability
17
Cap WPL 8205483 Contact Us For Availability
19
Screw WPL 4358190 Contact Us For Availability
NI
Template WPL 8205084 Contact Us For Availability
NI
Trim Kit (Black) WPL MK1074XHB Contact Us For Availability
NI
Trim Kit (White) WPL MK1074XHQ Contact Us For Availability
NI
UTC Kit WPL W10206556 Contact Us For Availability
× ![]()
