Model Whirlpool MT4070SKB0 MICROWAVE – Common Parts & Diagrams
04 - LATCH BOARD
06 - BASE PLATE, OPTIONAL

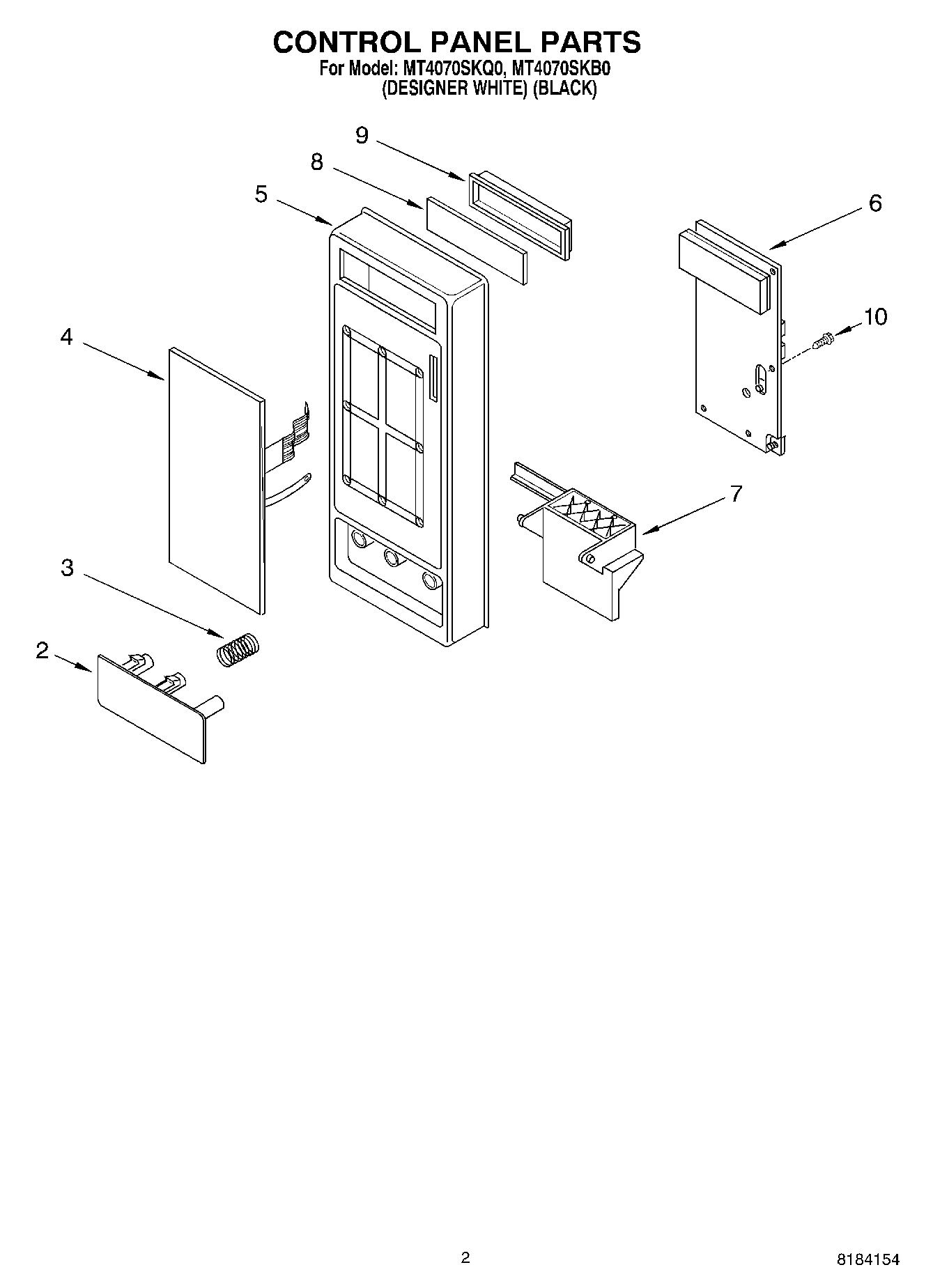

02 - CONTROL PANEL

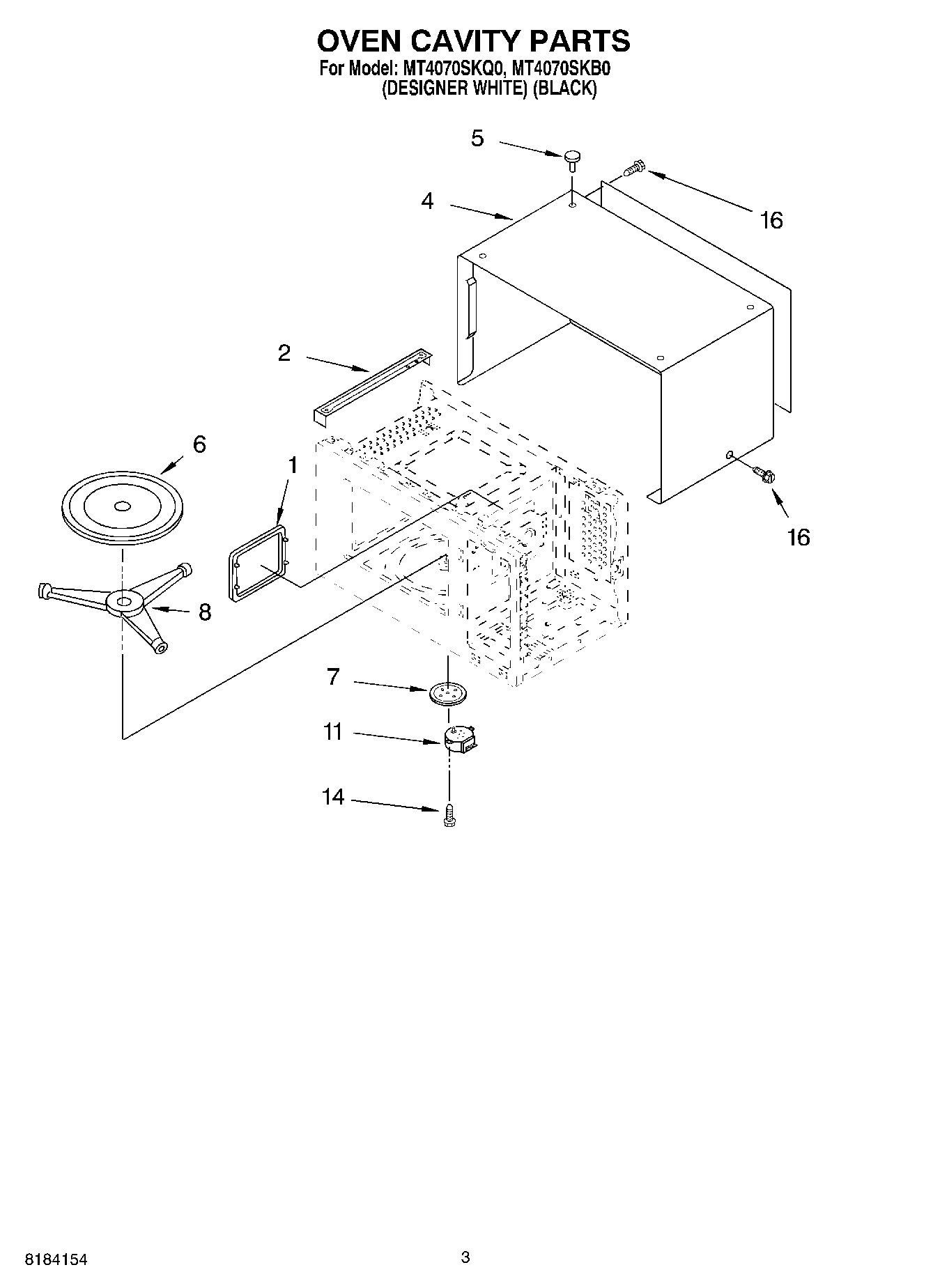

03 - OVEN CAVITY

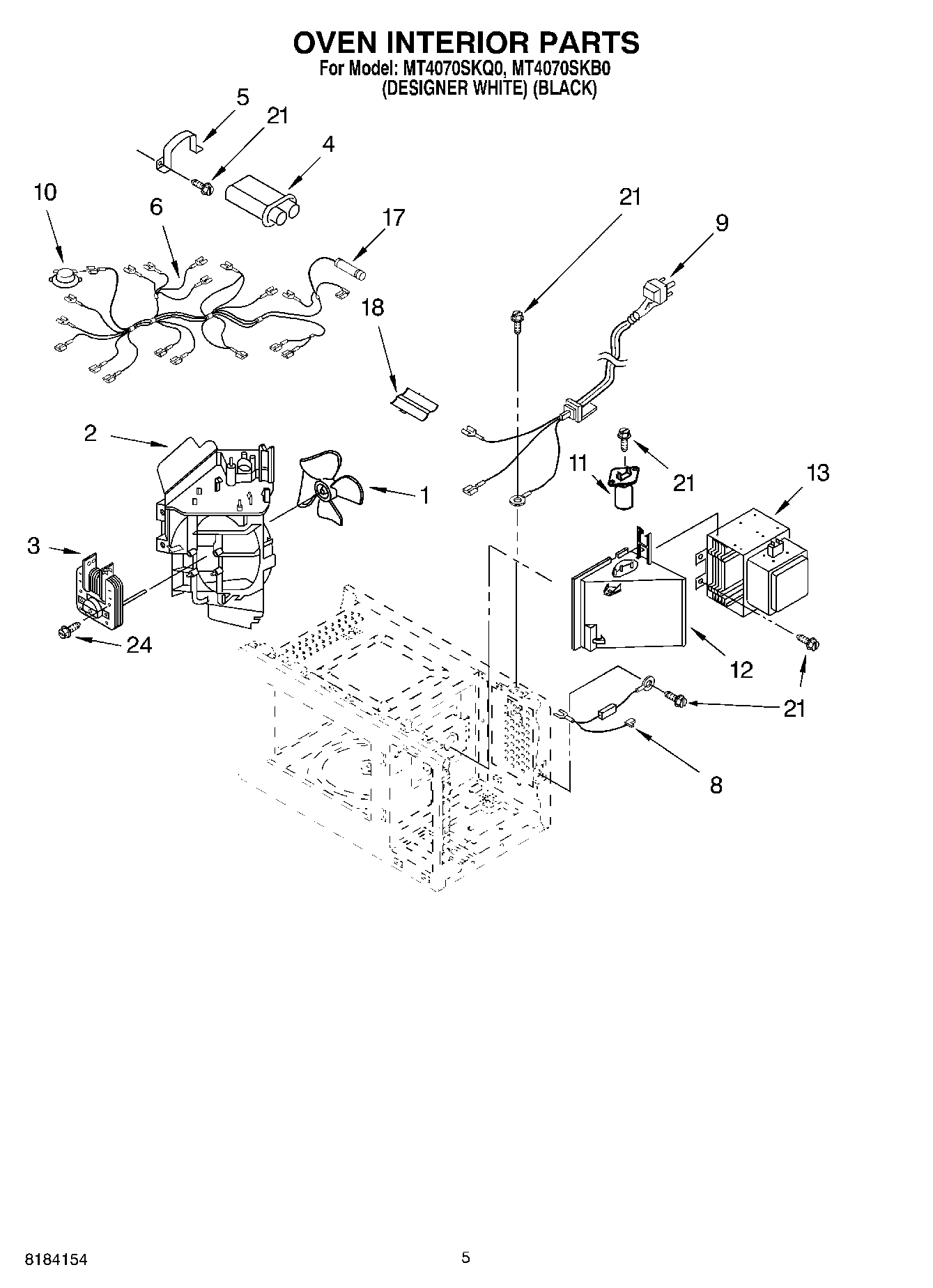

05 - OVEN INTERIOR

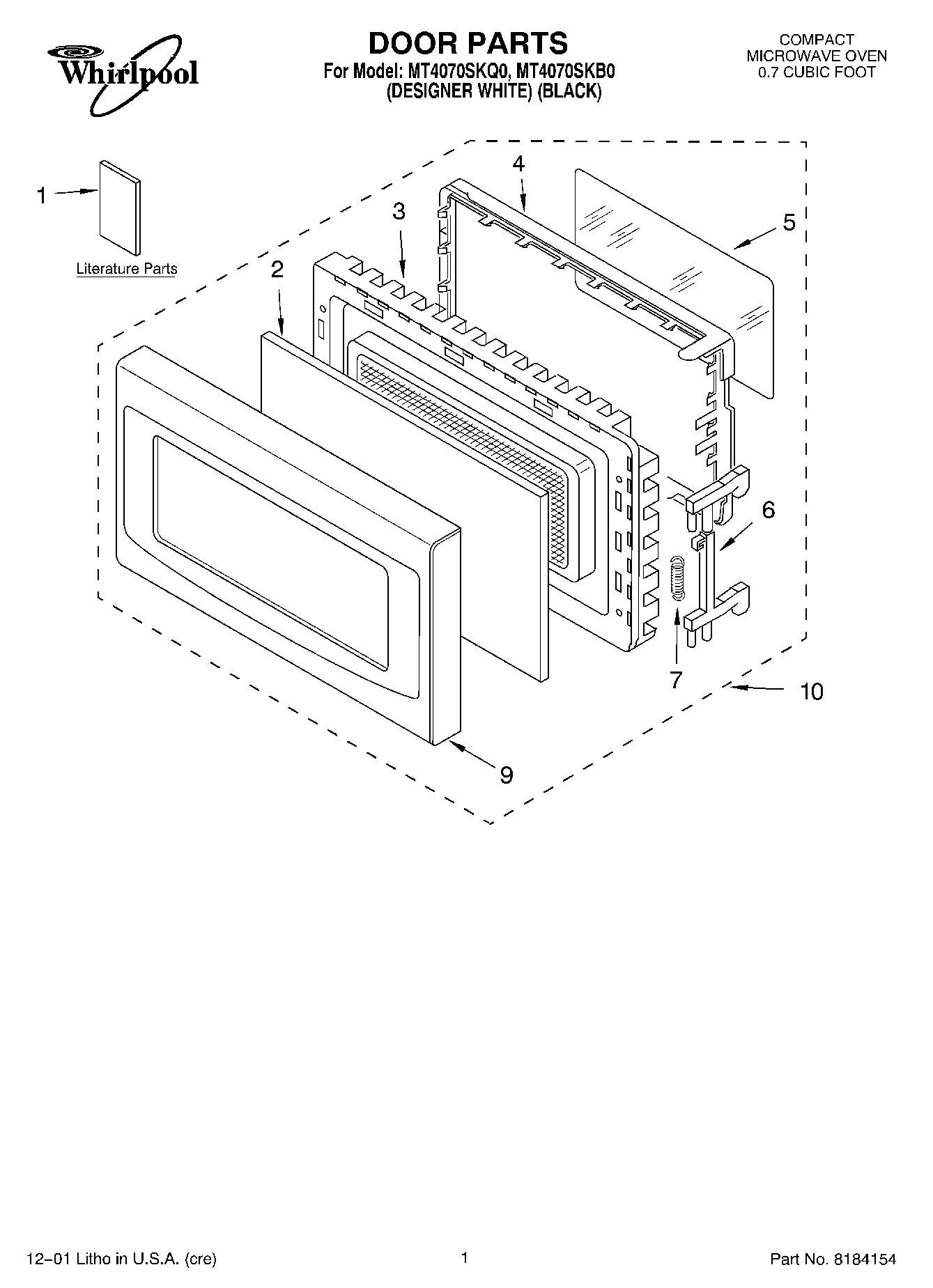

01 - DOOR, LITERATURE
Common parts from model Whirlpool MT4070SKB0 MICROWAVE
1
Canopy WPL 8184278 Contact Us For Availability
1
LITERATURE PARTS (Cook Guide Label) WPL LIT8183907 Contact Us For Availability
1
LITERATURE PARTS (Tech Sheet) WPL LIT8183909 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT8184351 Contact Us For Availability
2
Front Screen WPL 8172073 Contact Us For Availability
2
Release Button (Black Model) WPL 8184365 Contact Us For Availability
2
Release Button (White Model) WPL 8184366 Contact Us For Availability
2
UTC Bracket WPL 8184372 Contact Us For Availability
2
Guide, Suction WPL 8184378 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Door Frame Assembly (Black Model) WPL 8184352 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 8184353 Contact Us For Availability
4
Transformer WPL 8184380 Contact Us For Availability
4
Key Membrane (Black Model) WPL 8184367 Contact Us For Availability
4
Key Membrane (White Model) WPL 8184368 Contact Us For Availability
4
Outer Case (Black Model) WPL 8184370 Contact Us For Availability
4
Outer Case (White Model) WPL 8184539 Contact Us For Availability
4
H.V. Capacitor WPL 8184377 Contact Us For Availability
4
Choke Cover WPL 8184354 Contact Us For Availability
5
Control Panel (Black Model (Also, order key m WPL 8184360 Contact Us For Availability
5
Control Panel (White Model) WPL 8184361 Contact Us For Availability
5
Mounting Cap (White Model (4)) WPL 4158748 Contact Us For Availability
5
Mounting Cap (Black Model (4)) WPL 4358857 Contact Us For Availability
5
H.V.C Bracket WPL 8172074 Contact Us For Availability
5
Tape, Seal WPL 4359705 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
UTC Kit WPL 8184371 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8184369 Contact Us For Availability
6
Tray, Glass WPL 4359722 Contact Us For Availability
6
Leadwire Assembly WPL 8184382 Contact Us For Availability
6
Latch WPL 8184359 Contact Us For Availability
7
Lever, Release WPL 8184269 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Mount WPL 8184373 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Turntable Support WPL 8184374 Contact Us For Availability
9
Holder WPL 8184364 Contact Us For Availability
9
Power Cord WPL 8184381 Contact Us For Availability
9
Panel, Door (Black Model) WPL 8184357 Contact Us For Availability
9
Panel, Door (White Model) WPL 8184358 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 8184383 Contact Us For Availability
10
Door Assy (Black Model) WPL 8184355 Contact Us For Availability
10
Door Assy (White Model) WPL 8184356 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Duct, air WPL 8184379 Contact Us For Availability
13
Magnetron WPL 8171941 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
17
Fuse WPL 4358704 Contact Us For Availability
18
Cap WPL 4358659 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
