Model Whirlpool MT3135SHQ1 MICROWAVE – Common Parts & Diagrams

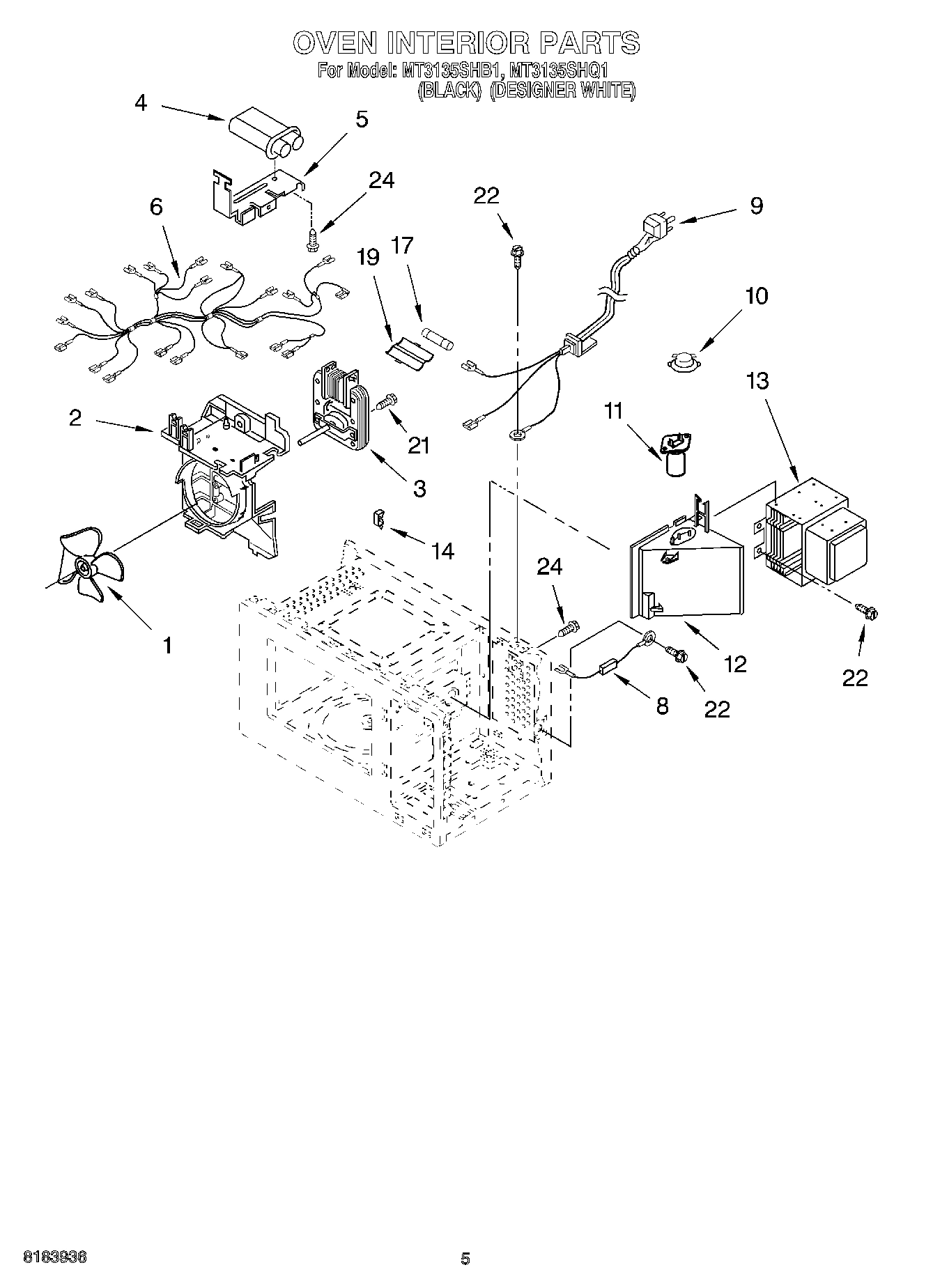

05 - OVEN INTERIOR

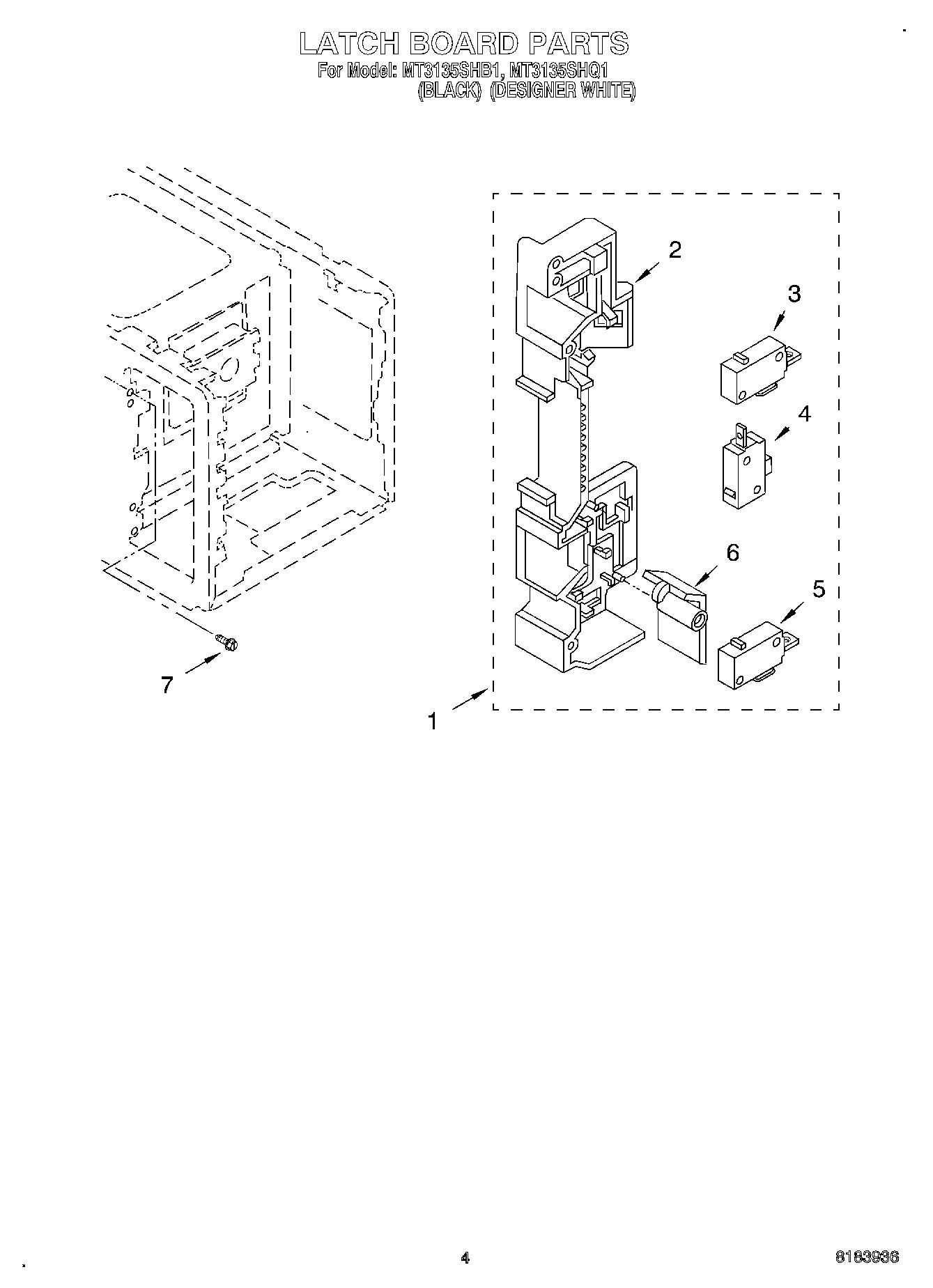

04 - LATCH BOARD
06 - BASE PLATE, OPTIONAL
01 - DOOR, LITERATURE
03 - OVEN CAVITY
02 - CONTROL PANEL
Common parts from model Whirlpool MT3135SHQ1 MICROWAVE
1
Canopy WPL 4359777 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118883A Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Literature Parts (Trim Kit) WPL LIT4359691 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359996 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8171833 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8171834 Contact Us For Availability
1
Literature Parts (Built-In Cook Guide Label) WPL LIT8171975 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8183940 Contact Us For Availability
1
Screw WPL 4358450 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Knob (White) WPL 8171928 Contact Us For Availability
2
Knob (Black) WPL 8171929 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly WPL 4359761 Contact Us For Availability
3
Button, Cook (White) WPL 8171922 Contact Us For Availability
3
Button, Cook (Black) WPL 8171923 Contact Us For Availability
4
Transformer WPL 8172082 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359804 Contact Us For Availability
4
PCB Assy WPL 8171995 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Seal, Water WPL 8171805 Contact Us For Availability
5
Control Panel (Black) WPL 8183942 Contact Us For Availability
5
Control Panel (White) WPL 8183943 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Lever WPL 4358795 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8183941 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
7
Button, Clock (White) WPL 8171924 Contact Us For Availability
7
Button, Clock (Black) WPL 8171925 Contact Us For Availability
8
Nameplate WPL 8171921 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
8
Window WPL 8171996 Contact Us For Availability
9
Panel, Door (White) WPL 8171990 Contact Us For Availability
9
Panel, Door (Black) WPL 8171991 Contact Us For Availability
9
Button, Start (White) WPL 8171926 Contact Us For Availability
9
Button, Start (Black) WPL 8171927 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Door Assembly (White) WPL 8171988 Contact Us For Availability
10
Door Assembly (Black) WPL 8171989 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Cap WPL 4359710 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (White) WPL 8171876 Contact Us For Availability
15
Screw (Black) WPL 8171877 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8171878 Contact Us For Availability
18
Guide, Sensor WPL 8171997 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
