Model Whirlpool MT3100SHB0 – Common Parts & Diagrams
Common parts from model Whirlpool MT3100SHB0
1

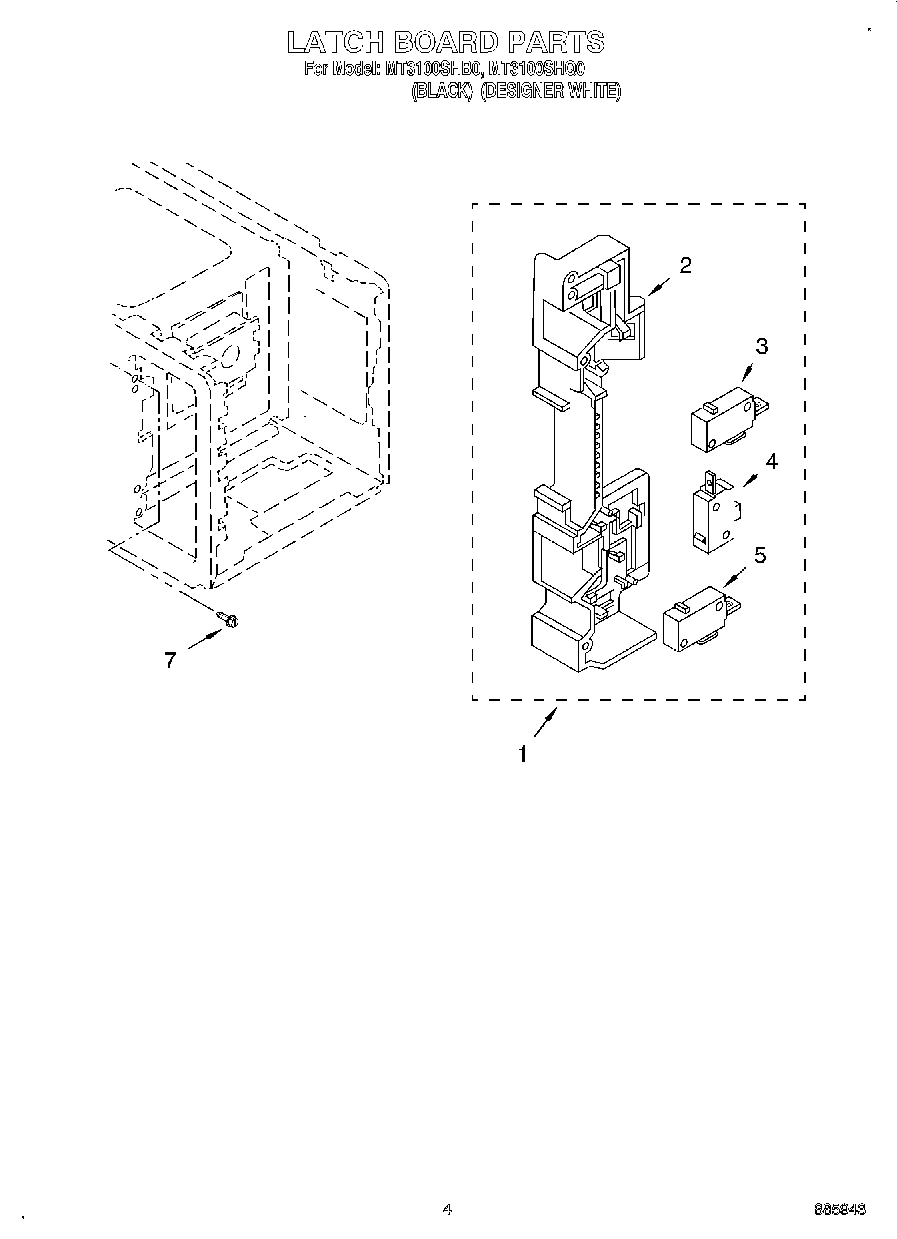

Latch Board Assembly (Not Serviceable) WPL ARI118872A Contact Us For Availability
1
Base Plate (L) WPL 8171812 Contact Us For Availability
1
Canopy WPL 8171983 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359997 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8171818 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (English) WPL LIT8171830 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Spanish) WPL LIT8171831 Contact Us For Availability
1
Screw WPL 4358376 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Base Plate (R) WPL 8171811 Contact Us For Availability
2
Mount WPL 8171804 Contact Us For Availability
2
Front Screen WPL 8171969 Contact Us For Availability
2
Knob (White) WPL 8171928 Contact Us For Availability
2
Knob (Black) WPL 8171929 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly WPL 8171970 Contact Us For Availability
3
Button, Cook (White) WPL 8171922 Contact Us For Availability
3
Button, Cook (Black) WPL 8171923 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
4
Outer Case (White) WPL 8171803 Contact Us For Availability
4
Outer Case (Black) WPL 8171984 Contact Us For Availability
4
Choke Cover WPL 8171795 Contact Us For Availability
4
PCB Assy WPL 8171981 Contact Us For Availability
5
Seal, Water WPL 8171805 Contact Us For Availability
5
Tape, Seal WPL 8171796 Contact Us For Availability
5
Control Panel (White) WPL 8171973 Contact Us For Availability
5
Control Panel (Black) WPL 8171979 Contact Us For Availability
6
Leadwire Assembly WPL 8171987 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Tray, Glass WPL 8171806 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8171980 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
7
Button, Clock (White) WPL 8171924 Contact Us For Availability
7
Button, Clock (Black) WPL 8171925 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
8
Window WPL 8171982 Contact Us For Availability
9
Power Cord WPL 8171985 Contact Us For Availability
9
Panel, Door (White) WPL 8171971 Contact Us For Availability
9
Panel, Door (Black) WPL 8171972 Contact Us For Availability
9
Button, Start (White) WPL 8171926 Contact Us For Availability
9
Button, Start (Black) WPL 8171927 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Door Assembly (White) WPL 8171967 Contact Us For Availability
10
Door Assembly (Black) WPL 8171968 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
11
Nameplate WPL 8171921 Contact Us For Availability
12
Duct, Air WPL 8171986 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (White) WPL 8171876 Contact Us For Availability
15
Screw (Black) WPL 8171877 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
