Model LG MT3100SHB – Common Parts & Diagrams

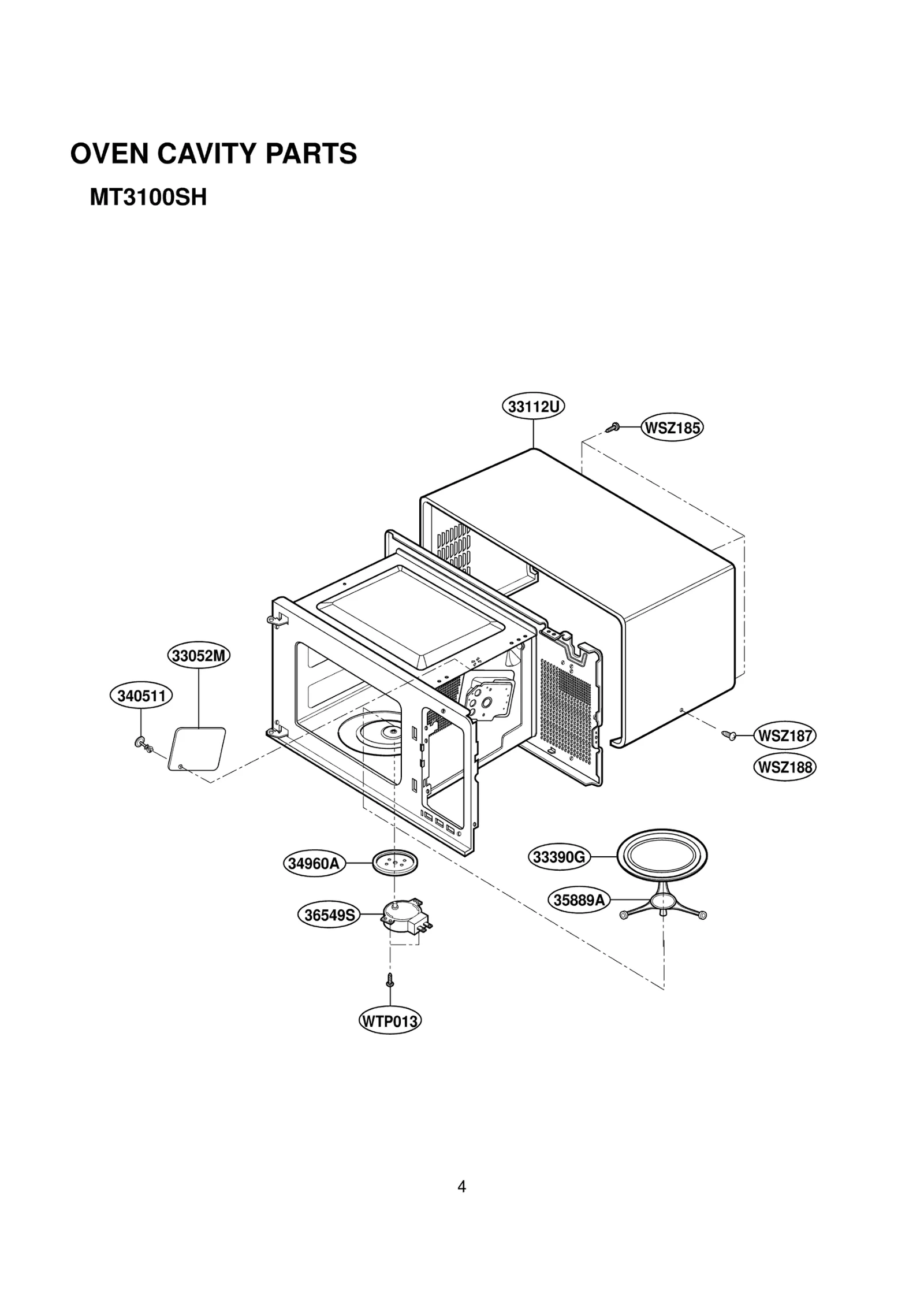

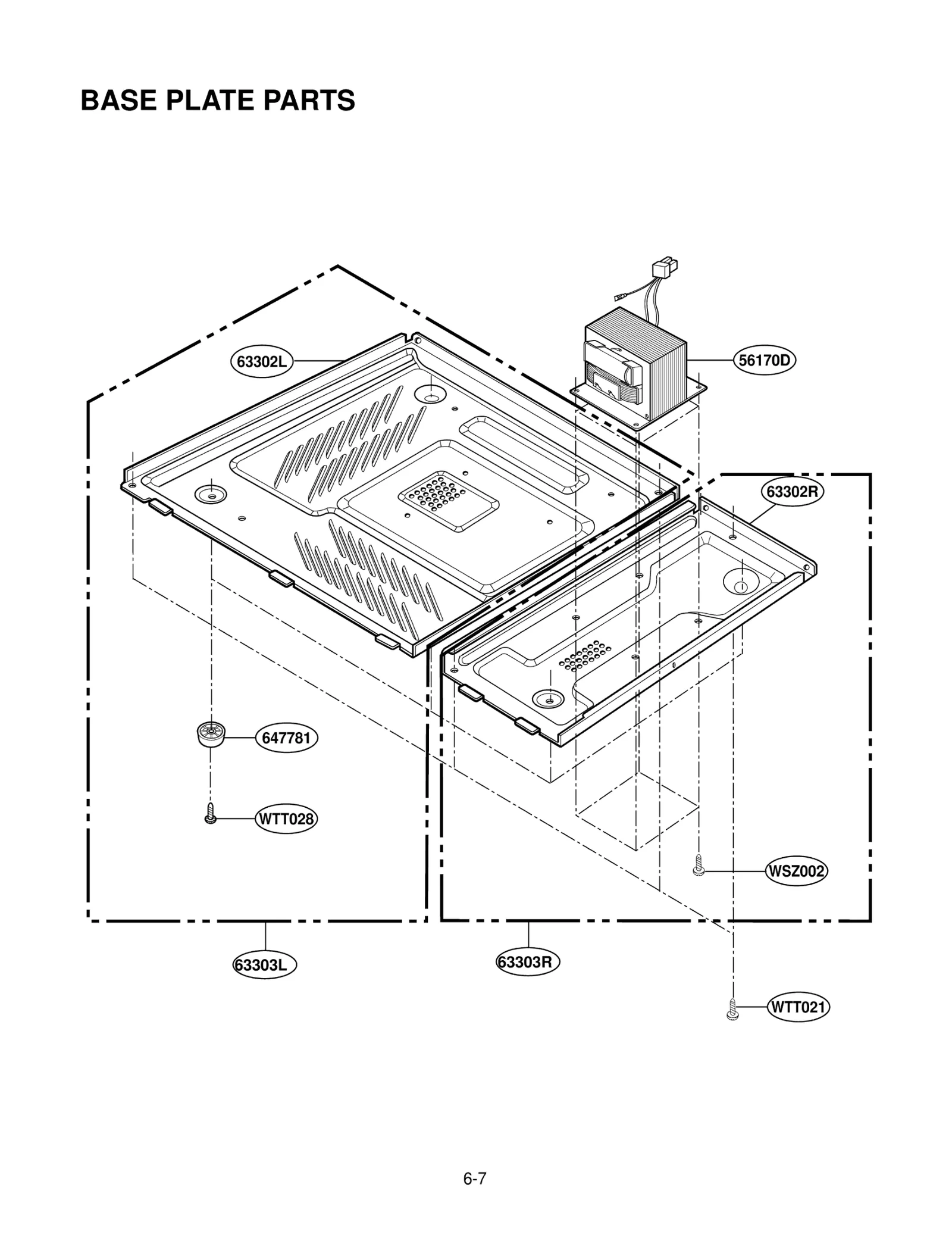

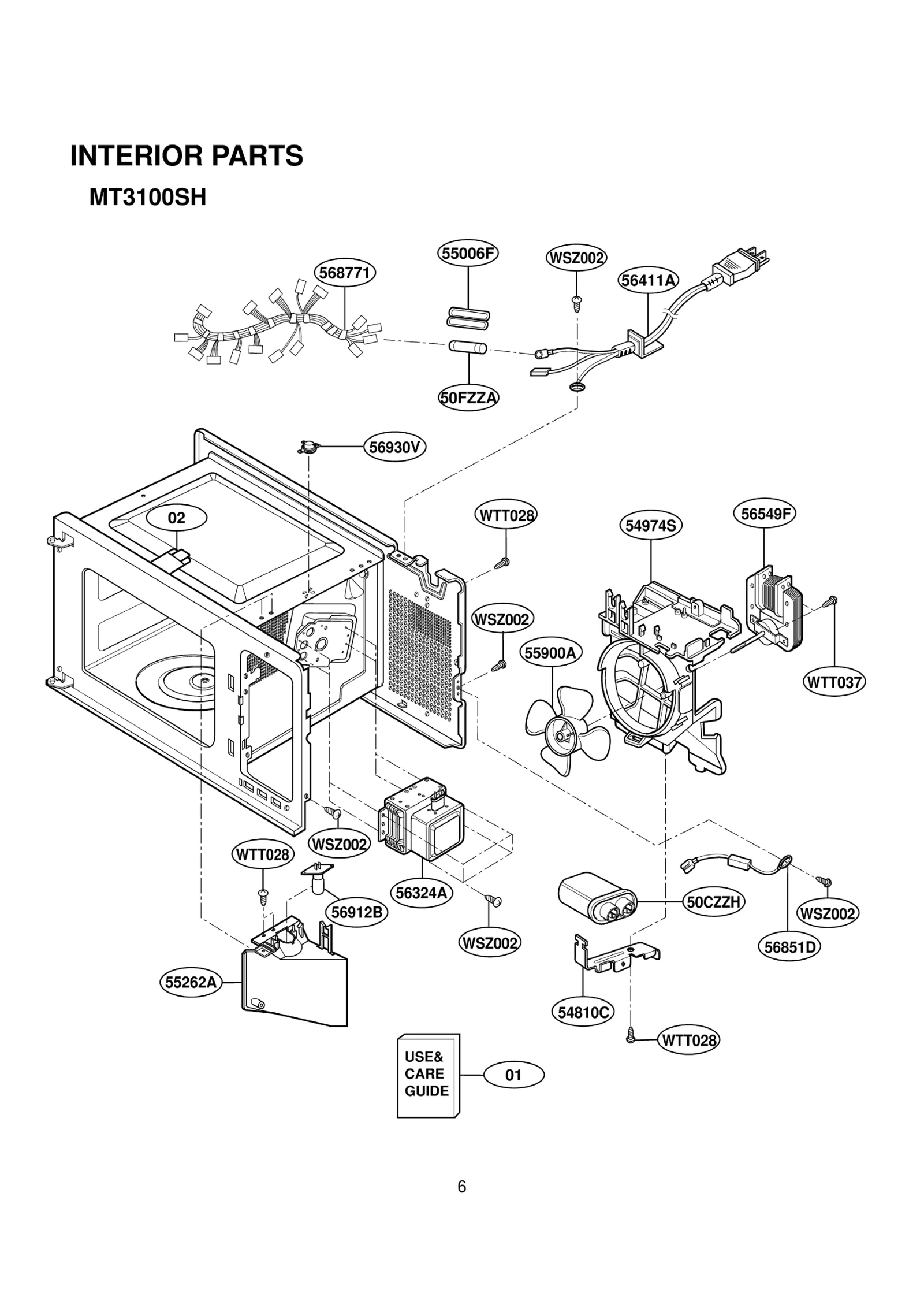

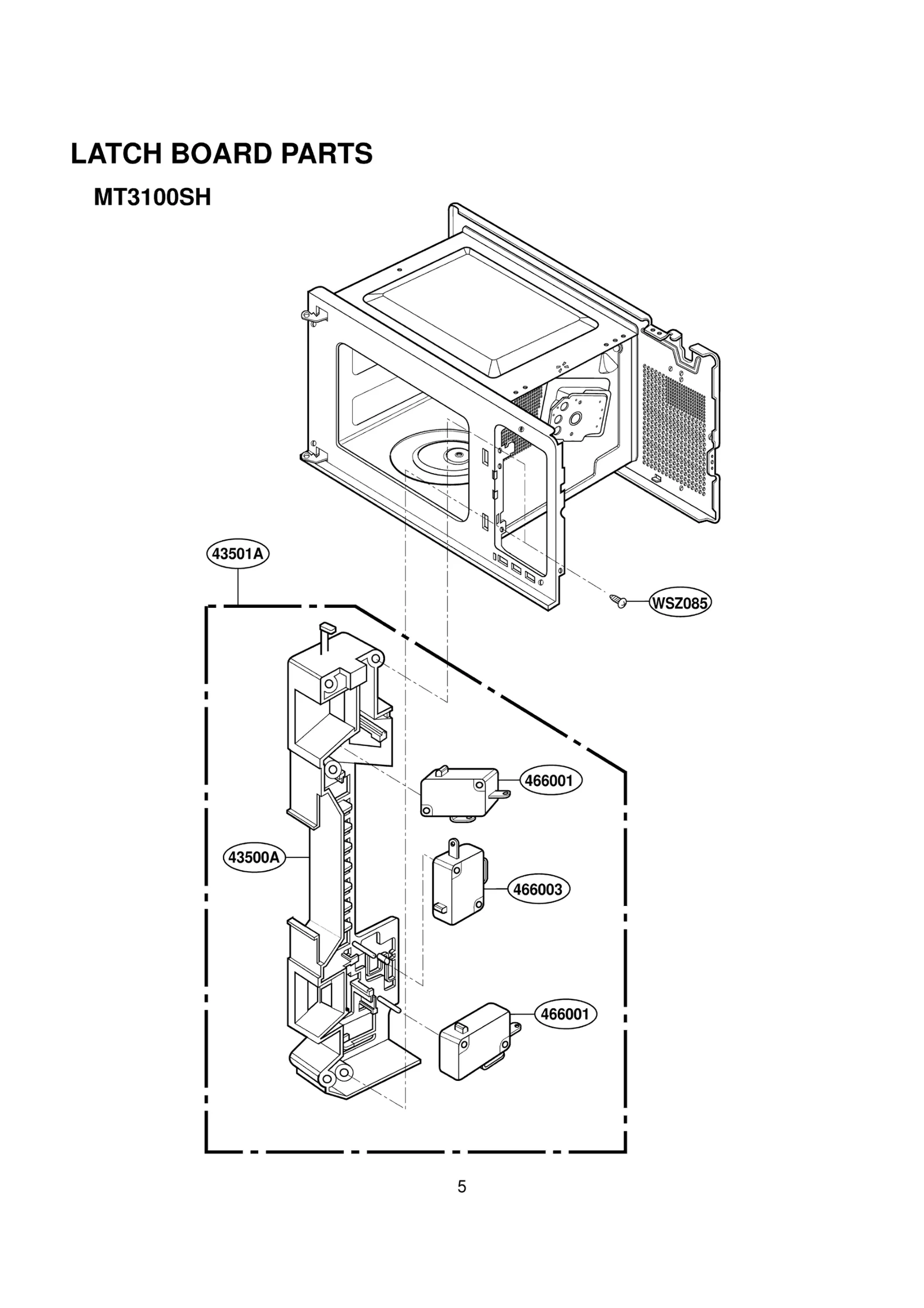

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MT3100SHB
*01
MANUAL,OWNERS(MWO) LGE 3828W5A1142 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3D015A Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3D016A Contact Us For Availability
*07
CARD,[TECHNICAL] LGE 3858W3T017H Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y026B Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W1U019E Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRON LGE 6549W1S004C Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A041C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D012G Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A018F Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
LGE 6930WRT002C LGE 6930WRT002C Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
250202
LGE 5020W2A098B LGE 5020W2A098B Contact Us For Availability
250203
LGE 5020W2A099B LGE 5020W2A099B Contact Us For Availability
268711
LGE 6871W2S125K LGE 6871W2S125K Contact Us For Availability
268712
PWB(PCB) ASSY,[KEY] LGE 6871W2S116B Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A182A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948505
CUSHION LGE 4B73438A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C21
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C82
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN01
LGE 6631W3YA16E LGE 6631W3YA16E Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5YA35C LGE 6630W5YA35C Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
LGE 6302W5A015A LGE 6302W5A015A Contact Us For Availability
EN01
LGE 6024W5A0004 LGE 6024W5A0004 Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R93
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R94
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R101
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R110(EMCR
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
SW09
SWITCH,TACT LGE 6600W5R004A Contact Us For Availability
U01
LGE 0IZZW5A016B LGE 0IZZW5A016B Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
