Model Whirlpool MT3090XBQ0 – Common Parts & Diagrams

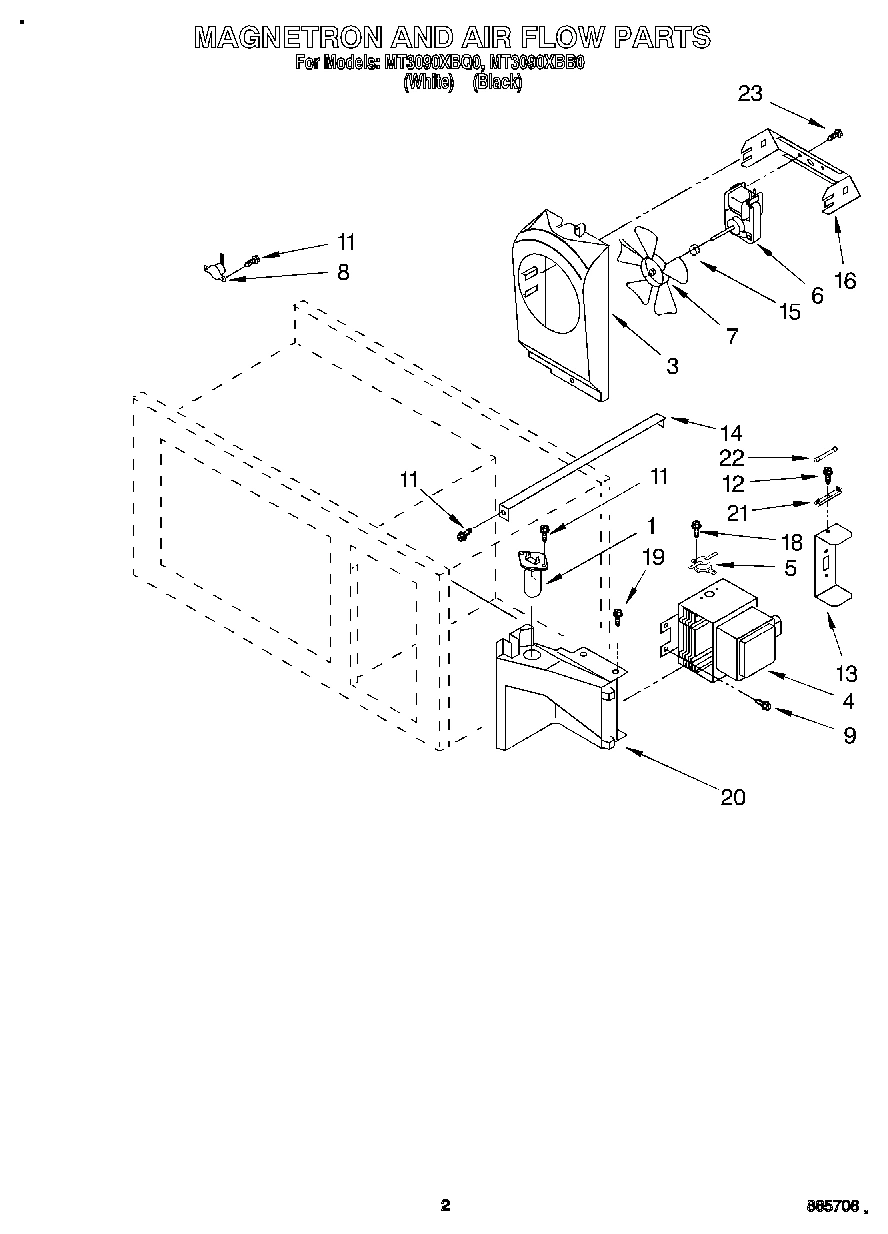

02 - MAGNETRON AND AIR FLOW, LITERATURE

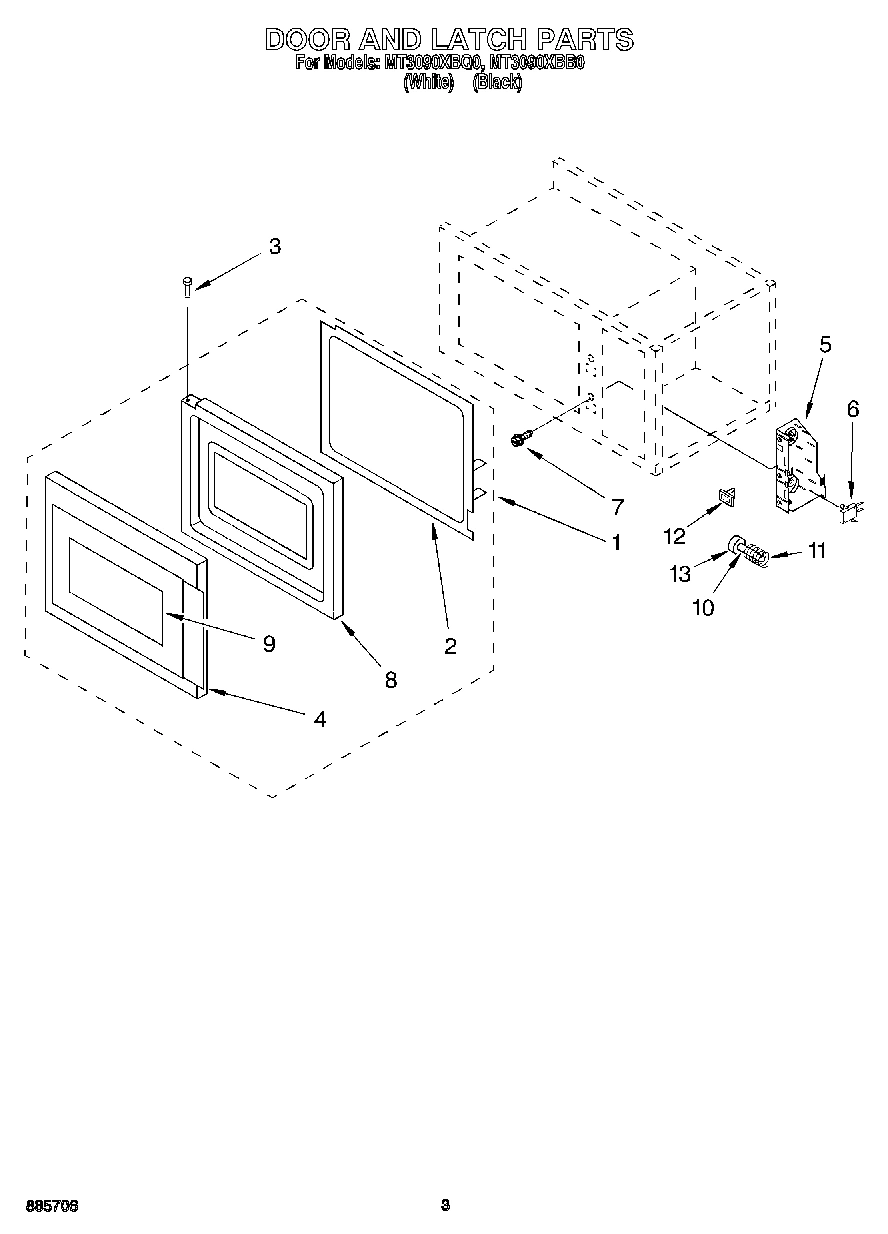

03 - DOOR AND LATCH
04 - TURN TABLE AND GRILLE
01 - CONTROL PANEL
05 - CABINET
Common parts from model Whirlpool MT3090XBQ0
1
Door, Complete (White) WPL 4375185 Contact Us For Availability
1
Door, Complete (Black) WPL 4375186 Contact Us For Availability
1
Microcomputer WPL 4375093 Contact Us For Availability
1
Power Cord WPL 4375224 Contact Us For Availability
2
Choke Cover WPL 4375062 Contact Us For Availability
2
Control Panel (Black) WPL 4375228 Contact Us For Availability
2
Control Panel (White) WPL 4375234 Contact Us For Availability
3
Pin, Hinge WPL 4375063 Contact Us For Availability
3
Transformer WPL 4375083 Contact Us For Availability
4
Outer Frame (White) WPL 4375222 Contact Us For Availability
4
Outer Frame (Black) WPL 4375223 Contact Us For Availability
5
Latch Board (Includes Item 6) WPL 4375188 Contact Us For Availability
5
Tray, Glass WPL 4375066 Contact Us For Availability
5
Touch Pad (White) WPL 4375229 Contact Us For Availability
5
Touch Pad (Black) WPL 4375230 Contact Us For Availability
5
Rectifier WPL 4375084 Contact Us For Availability
6
Micro switch (3) WPL 4375074 Contact Us For Availability
6
Grille, Plastic WPL 4375069 Contact Us For Availability
6
Outer Cabinet (White) WPL 4375064 Contact Us For Availability
6
Outer Cabinet (Black) WPL 4375065 Contact Us For Availability
7
Blade, Fan WPL 4375044 Contact Us For Availability
7
Screw WPL 4375051 Contact Us For Availability
7
Support, Turntable WPL 4375067 Contact Us For Availability
8
Thermostat, Oven WPL 4375233 Contact Us For Availability
8
Door, Inner WPL 4375148 Contact Us For Availability
8
Motor, Turntable WPL 4375076 Contact Us For Availability
8
Cover WPL 4375225 Contact Us For Availability
9
Screw, Magnatron WPL 4375040 Contact Us For Availability
9
Outer Glass (Black) WPL 4375215 Contact Us For Availability
9
Outer Glass (White) WPL 4375232 Contact Us For Availability
9
Cover, Motor WPL 4375031 Contact Us For Availability
9
Foot (4) WPL 4375029 Contact Us For Availability
10
Piston WPL 4375218 Contact Us For Availability
10
Bracket, Capacitor WPL 4375025 Contact Us For Availability
11
Spring WPL 4375219 Contact Us For Availability
11
Ring WPL 4375037 Contact Us For Availability
11
Lock Washer WPL 4375039 Contact Us For Availability
12
Screw WPL 4375048 Contact Us For Availability
12
Slide, Block WPL 4375220 Contact Us For Availability
12
Air Duct WPL 4375054 Contact Us For Availability
13
Bracket, Magnatron WPL 4375041 Contact Us For Availability
13
Cylinder WPL 4375227 Contact Us For Availability
13
Screw, Transformer WPL 4375038 Contact Us For Availability
14
Brace WPL 4375056 Contact Us For Availability
14
Cover, Lower WPL 4375226 Contact Us For Availability
15
Clip, Fan Blade WPL 4375043 Contact Us For Availability
16
Bracket, Fan Motor WPL 4375045 Contact Us For Availability
18
Screw WPL 4375042 Contact Us For Availability
19
Screw WPL 4375053 Contact Us For Availability
20
Duct, Magnetron WPL 4375052 Contact Us For Availability
22
Fuse WPL 4375073 Contact Us For Availability
23
Screw WPL 4375095 Contact Us For Availability
× ![]()
