Model Whirlpool MT3090XAB0 – Common Parts & Diagrams

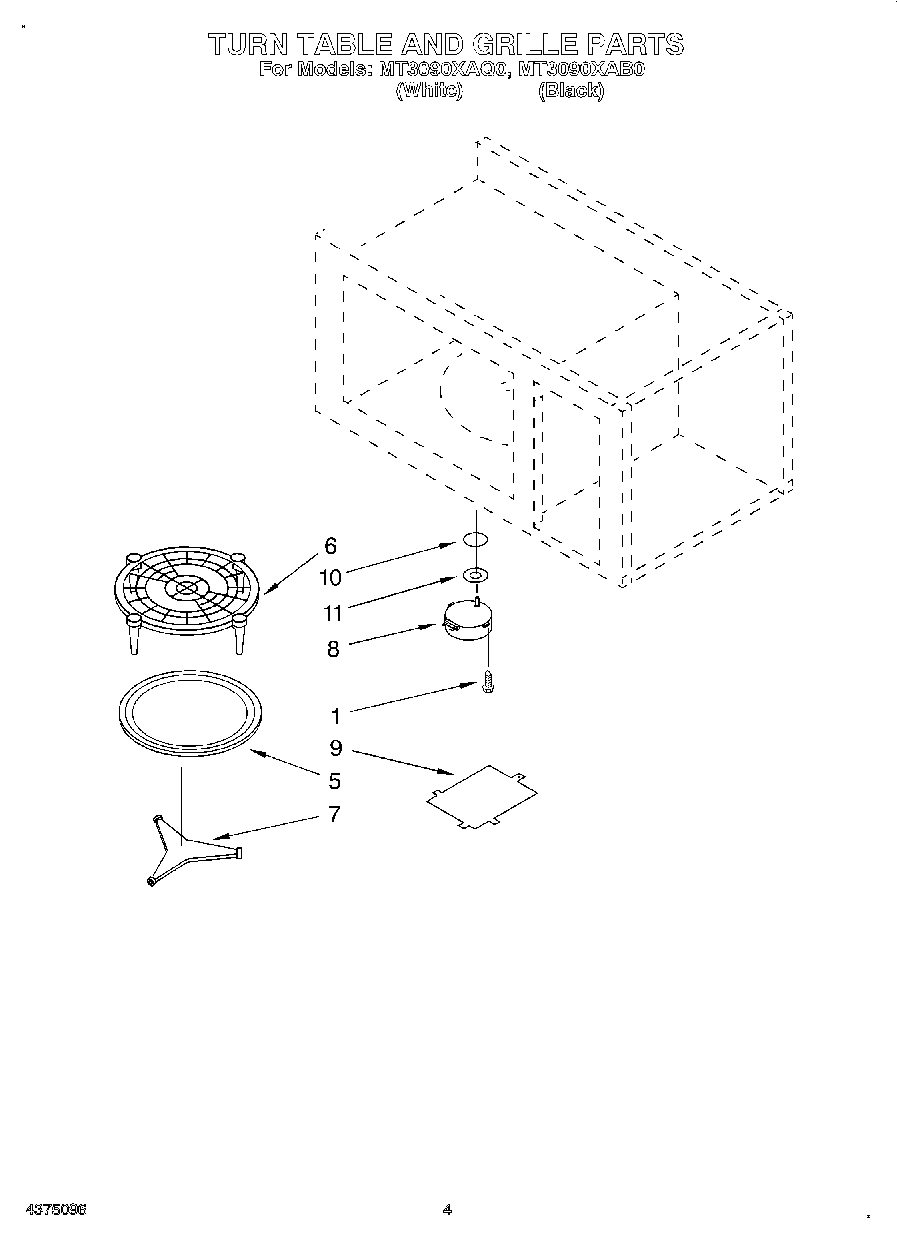

04 - TURN TABLE AND GRILLE

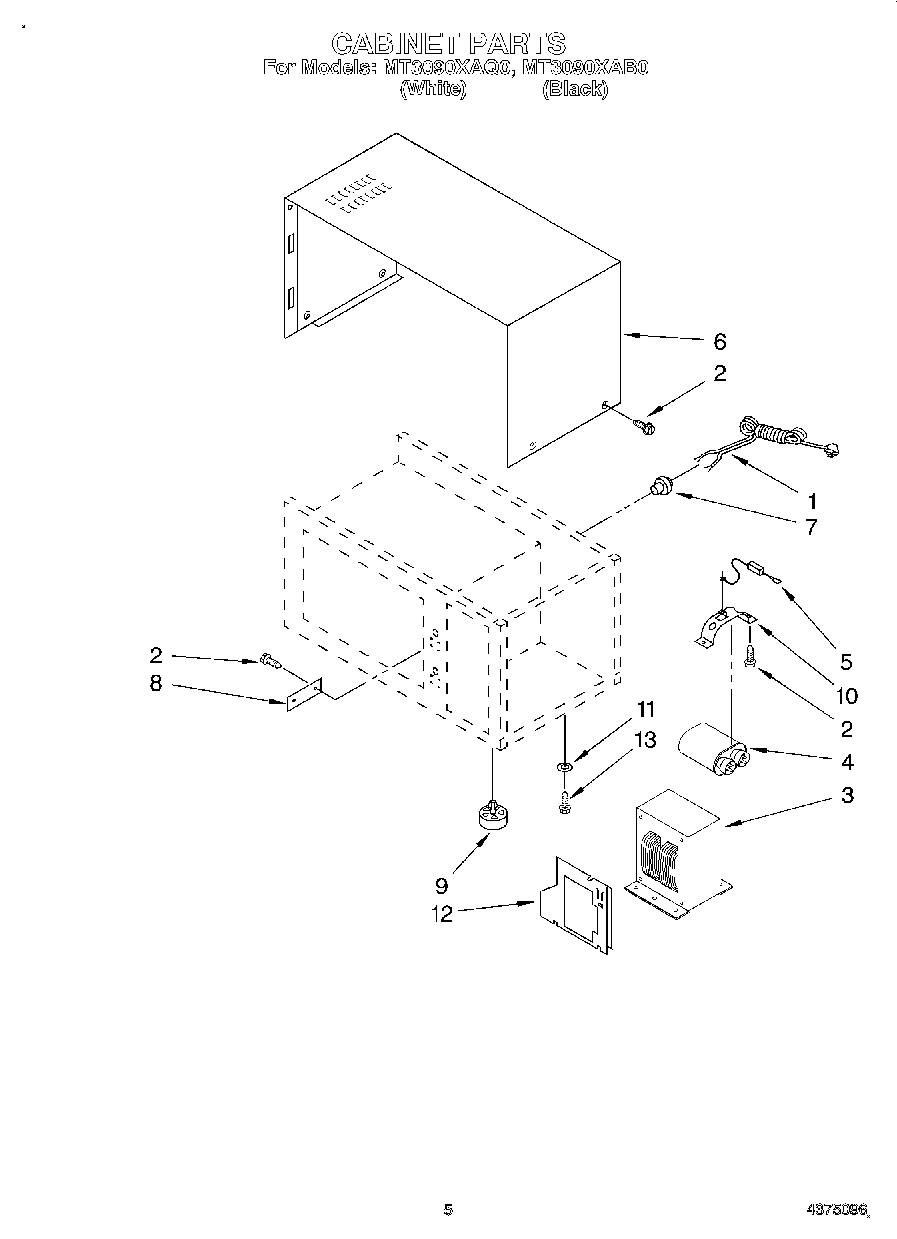

05 - CABINET
01 - CONTROL PANEL
02 - MAGNETRON AND AIRFLOW, LITERATURE
03 - DOOR AND LATCH
Common parts from model Whirlpool MT3090XAB0
White Model WPL 4319240 Contact Us For Availability
Black Model WPL 4319241 Contact Us For Availability
Use And Care Guide WPL LIT4375000 Contact Us For Availability
Tech Sheet WPL LIT4375005 Contact Us For Availability
Cook Guide Label WPL LIT4375007 Contact Us For Availability
1
Power Cord WPL 4375082 Contact Us For Availability
1
Microcomputer WPL 4375093 Contact Us For Availability
1
Lamp, Oven WPL 4375077 Contact Us For Availability
1
Door, Complete (White) WPL 4375089 Contact Us For Availability
1
Door, Complete (Black) WPL 4375090 Contact Us For Availability
2
Control Panel (White) WPL 4375085 Contact Us For Availability
2
Control Panel (Black) WPL 4375086 Contact Us For Availability
2
Choke Cover WPL 4375062 Contact Us For Availability
3
Transformer WPL 4375083 Contact Us For Availability
3
Push Button (White) WPL 4375032 Contact Us For Availability
3
Push Button (Black) WPL 4375033 Contact Us For Availability
3
Duct, Fan WPL 4375046 Contact Us For Availability
3
Pin, Hinge WPL 4375063 Contact Us For Availability
4
Spring, Button WPL 4375034 Contact Us For Availability
4
Outer Frame (Black) WPL 4375061 Contact Us For Availability
4
Outer Frame (White) WPL 4375091 Contact Us For Availability
5
Rectifier WPL 4375084 Contact Us For Availability
5
Touch Pad (White) WPL 4375087 Contact Us For Availability
5
Touch Pad (Black) WPL 4375088 Contact Us For Availability
5
Latch Board (Includes Item 6) WPL 4375049 Contact Us For Availability
6
Outer Cabinet (White) WPL 4375064 Contact Us For Availability
6
Outer Cabinet (Black) WPL 4375065 Contact Us For Availability
6
Door Release WPL 4375057 Contact Us For Availability
6
Motor, Fan WPL 4375075 Contact Us For Availability
6
Micro switch (3) WPL 4375074 Contact Us For Availability
7
Clamp WPL 4375027 Contact Us For Availability
7
Blade, Fan WPL 4375044 Contact Us For Availability
7
Screw WPL 4375051 Contact Us For Availability
8
Cover WPL 4375028 Contact Us For Availability
8
Thermostat, Oven WPL 4375094 Contact Us For Availability
8
Door, Inner (White) WPL 4375147 Contact Us For Availability
8
Door, Inner (Black) WPL 4375148 Contact Us For Availability
9
Foot (4) WPL 4375029 Contact Us For Availability
9
Screw, Magnatron WPL 4375040 Contact Us For Availability
9
Outer Glass (White) WPL 4375214 Contact Us For Availability
9
Outer Glass (Black) WPL 4375215 Contact Us For Availability
10
Bracket, Capacitor WPL 4375025 Contact Us For Availability
11
Ring WPL 4375037 Contact Us For Availability
11
Lock Washer WPL 4375039 Contact Us For Availability
12
Air Duct WPL 4375054 Contact Us For Availability
12
Screw WPL 4375048 Contact Us For Availability
13
Screw, Transformer WPL 4375038 Contact Us For Availability
13
Bracket, Magnatron WPL 4375041 Contact Us For Availability
14
Brace WPL 4375056 Contact Us For Availability
15
Clip, Fan Blade WPL 4375043 Contact Us For Availability
16
Bracket, Fan Motor WPL 4375045 Contact Us For Availability
18
Screw WPL 4375042 Contact Us For Availability
19
Screw WPL 4375053 Contact Us For Availability
20
Duct, Magnetron WPL 4375052 Contact Us For Availability
21
Fuse Holder WPL 4375047 Contact Us For Availability
22
Fuse WPL 4375073 Contact Us For Availability
23
Screw WPL 4375095 Contact Us For Availability
× ![]()
