Model Whirlpool MT3070SHQ0 – Common Parts & Diagrams
05 - OVEN INTERIOR
06 - BASE PLATE

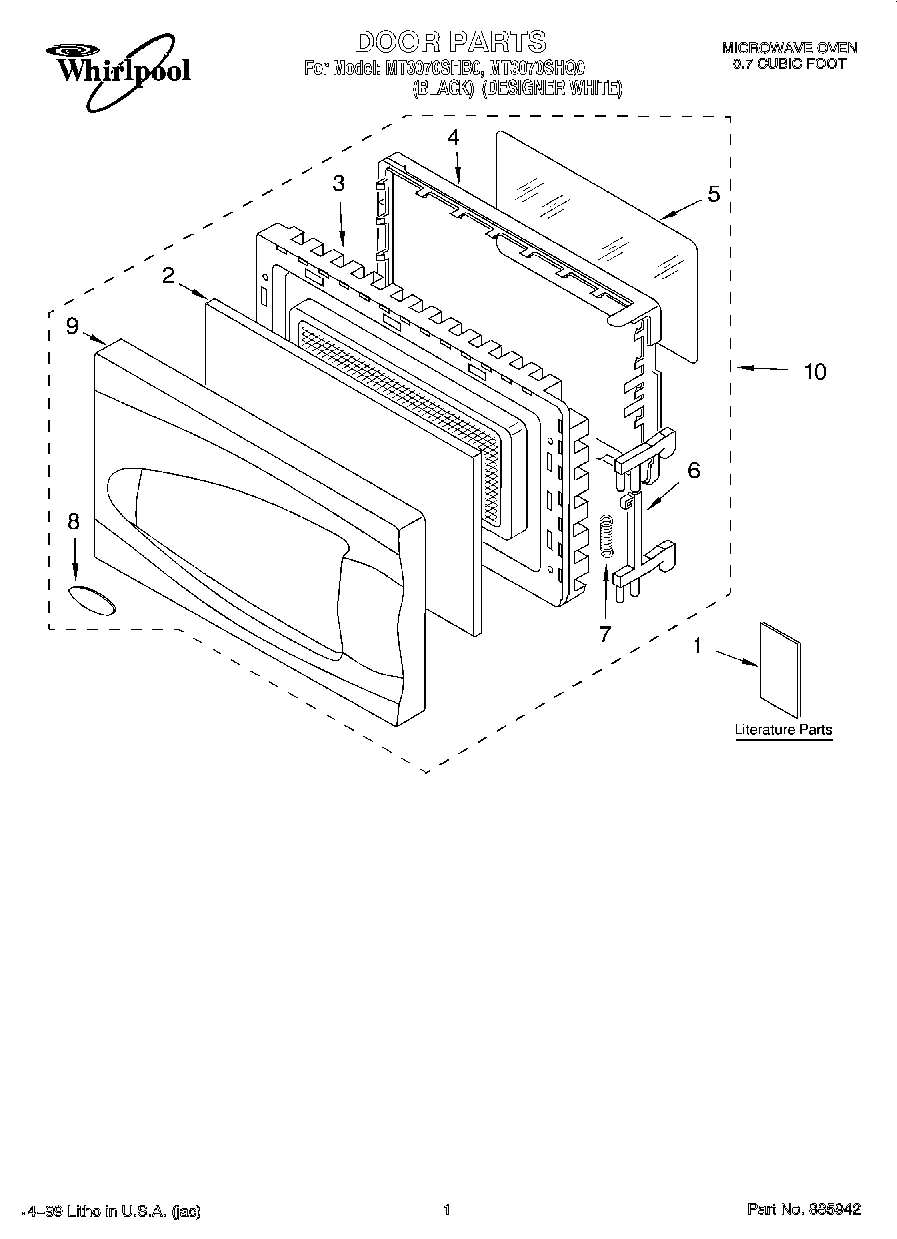

01 - DOOR, LITERATURE

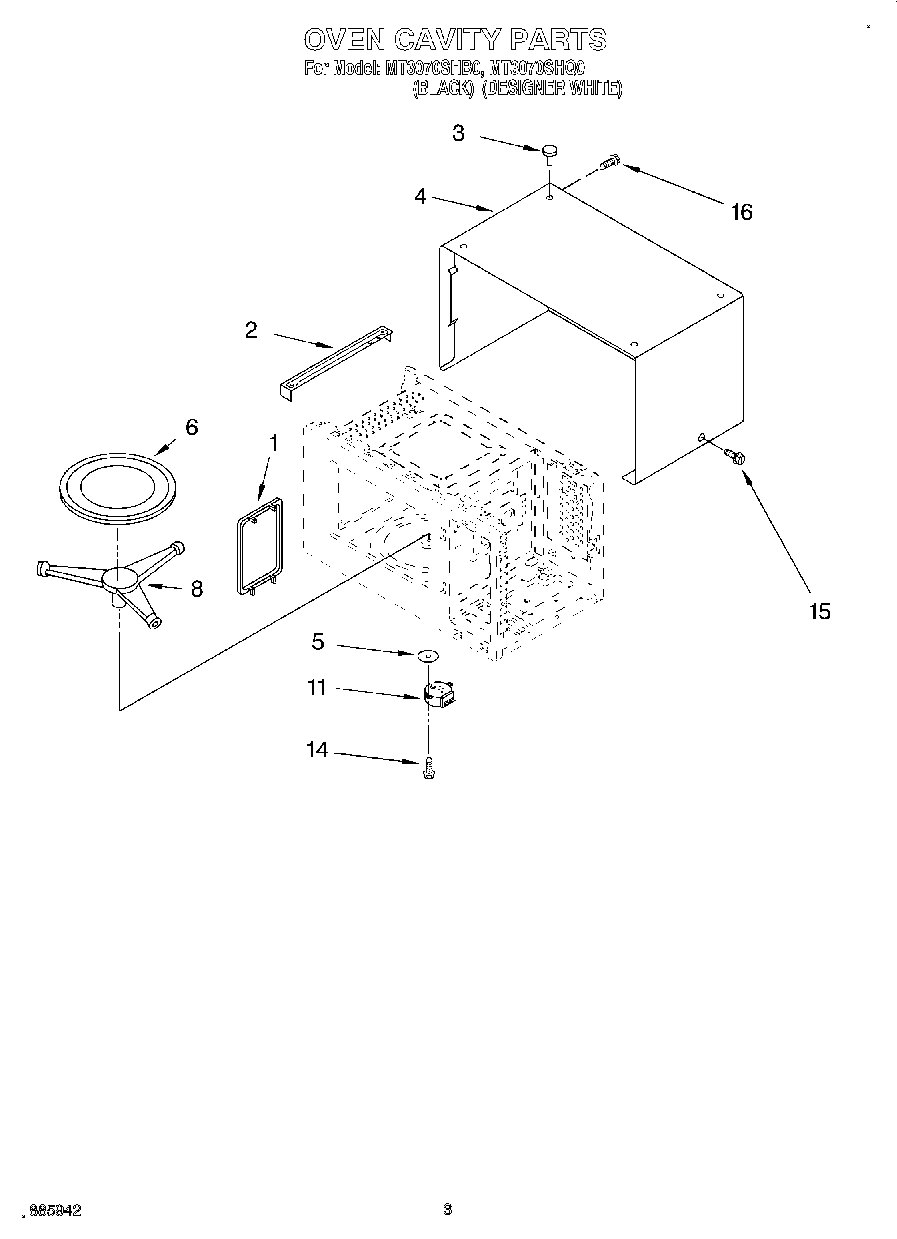

03 - OVEN CAVITY

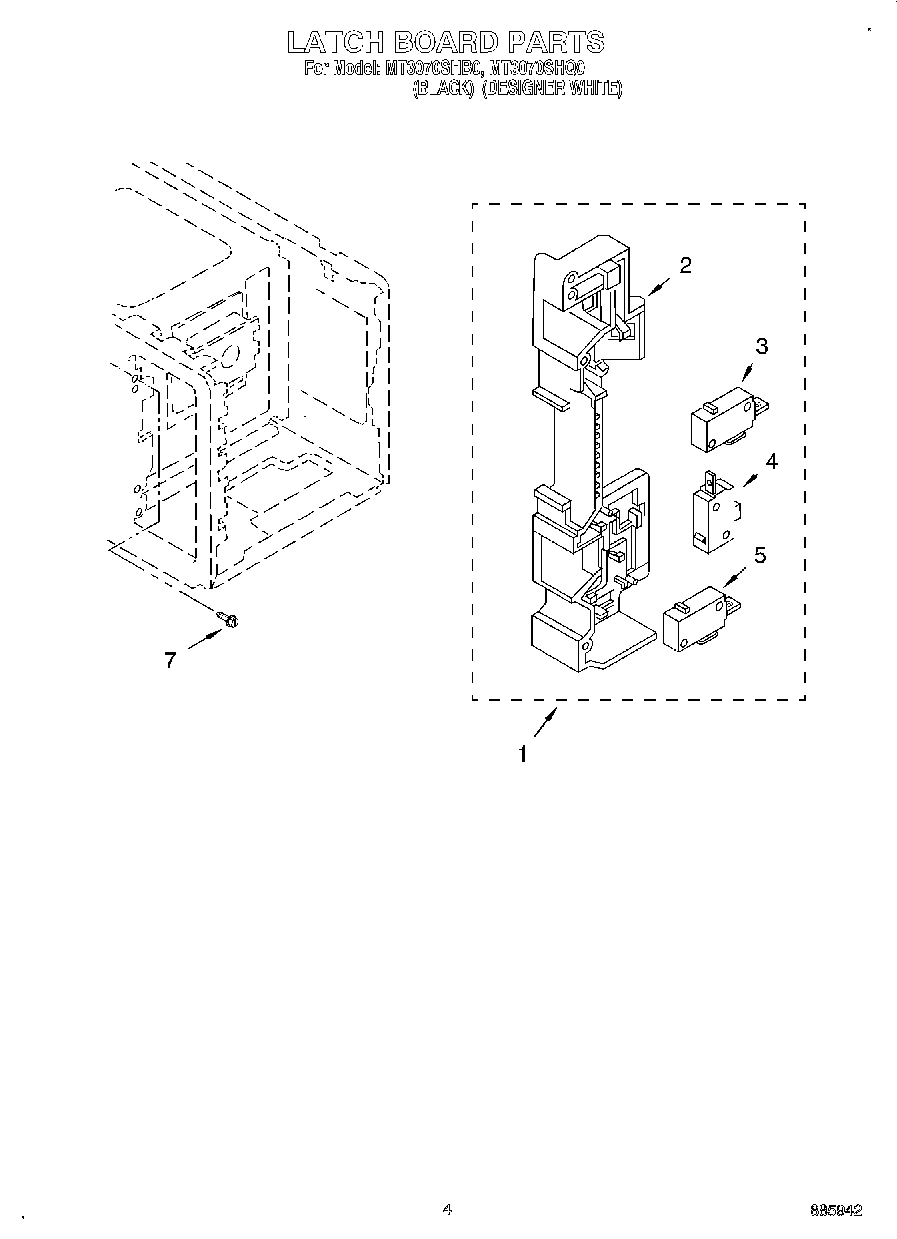

04 - LATCH BOARD

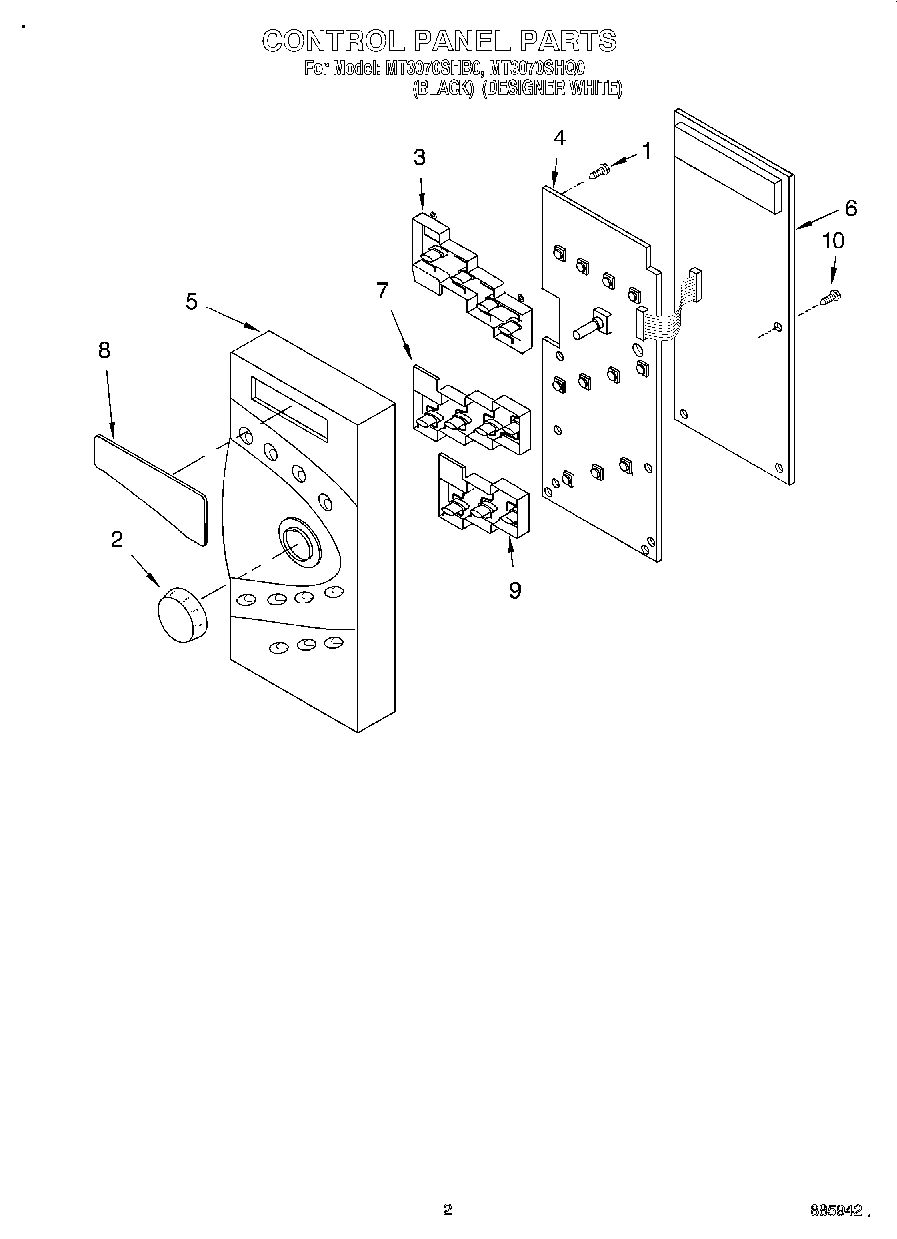

02 - CONTROL PANEL
Common parts from model Whirlpool MT3070SHQ0
1
Base Plate (L) WPL 8171942 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359698 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359910 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359911 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8171791 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8171816 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (English) WPL LIT8171827 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Spanish) WPL LIT8171828 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118871A Contact Us For Availability
1
Screw WPL 4358376 Contact Us For Availability
2
Front Screen WPL 4359701 Contact Us For Availability
2
Bracket, UTC WPL 4359945 Contact Us For Availability
2
Board, Latch WPL 4358794 Contact Us For Availability
2
Knob (White) WPL 8171928 Contact Us For Availability
2
Knob (Black) WPL 8171929 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
3
Door Frame Assembly WPL 4359703 Contact Us For Availability
3
Cap, Mount (White) WPL 4158748 Contact Us For Availability
3
Cap, Mount (Black) WPL 4358857 Contact Us For Availability
3
Button, Cook (White) WPL 8171922 Contact Us For Availability
3
Button, Cook (Black) WPL 8171923 Contact Us For Availability
4
Transformer WPL 8171939 Contact Us For Availability
4
Choke Cover WPL 4359704 Contact Us For Availability
4
Outer Case (White Model) WPL 4359739 Contact Us For Availability
4
Outer Case (Black Model) WPL 4359740 Contact Us For Availability
4
PCB Assy WPL 8171933 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359705 Contact Us For Availability
5
Seal, Water WPL 8171805 Contact Us For Availability
5
Control Panel (White) WPL 8171930 Contact Us For Availability
5
Control Panel (Black) WPL 8171931 Contact Us For Availability
6
Leadwire Assembly WPL 8171938 Contact Us For Availability
6
Latch WPL 8171917 Contact Us For Availability
6
Tray, Glass WPL 4359722 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8171932 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
7
UTC Kit WPL 4359914 Contact Us For Availability
7
Button, Clock (White) WPL 8171924 Contact Us For Availability
7
Button, Clock (Black) WPL 8171925 Contact Us For Availability
8
Nameplate WPL 8171921 Contact Us For Availability
8
Turntable Support WPL 4359723 Contact Us For Availability
8
Window WPL 8171934 Contact Us For Availability
9
Power Cord WPL 8171940 Contact Us For Availability
9
Panel, Door (White) WPL 8171919 Contact Us For Availability
9
Panel, Door (Black) WPL 8171920 Contact Us For Availability
9
Button, Start (White) WPL 8171926 Contact Us For Availability
9
Button, Start (Black) WPL 8171927 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Door Assembly (White) WPL 8171915 Contact Us For Availability
10
Door Assembly (Black) WPL 8171916 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359165 Contact Us For Availability
11
Motor, Synchronous WPL 8171936 Contact Us For Availability
12
Duct, Air WPL 8171937 Contact Us For Availability
13
Magnetron WPL 8171941 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (White) WPL 8171876 Contact Us For Availability
15
Screw (Black) WPL 8171877 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Fuse WPL 4358704 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
