Model Whirlpool MT2210SJQ0 – Common Parts & Diagrams
03 - ELECTRIC COOKTOP ELEMENTS
05 - PRODUCT LITERATURE
01 - EXTERIOR DIMENSIONS, CUTOUT DIMENSIONS
02 - OTHER DIMENSIONS, COOKTOP FINISH
04 - GAS COOKTOP BURNERS
06 - OTHER
Common parts from model Whirlpool MT2210SJQ0
1
Literature Parts (Guide, U & C) WPL LIT8172175 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (English) WPL LIT8172192 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Spanish) WPL LIT8172193 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172207 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Instruct WPL LIT8172218 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Template WPL LIT8172220 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1

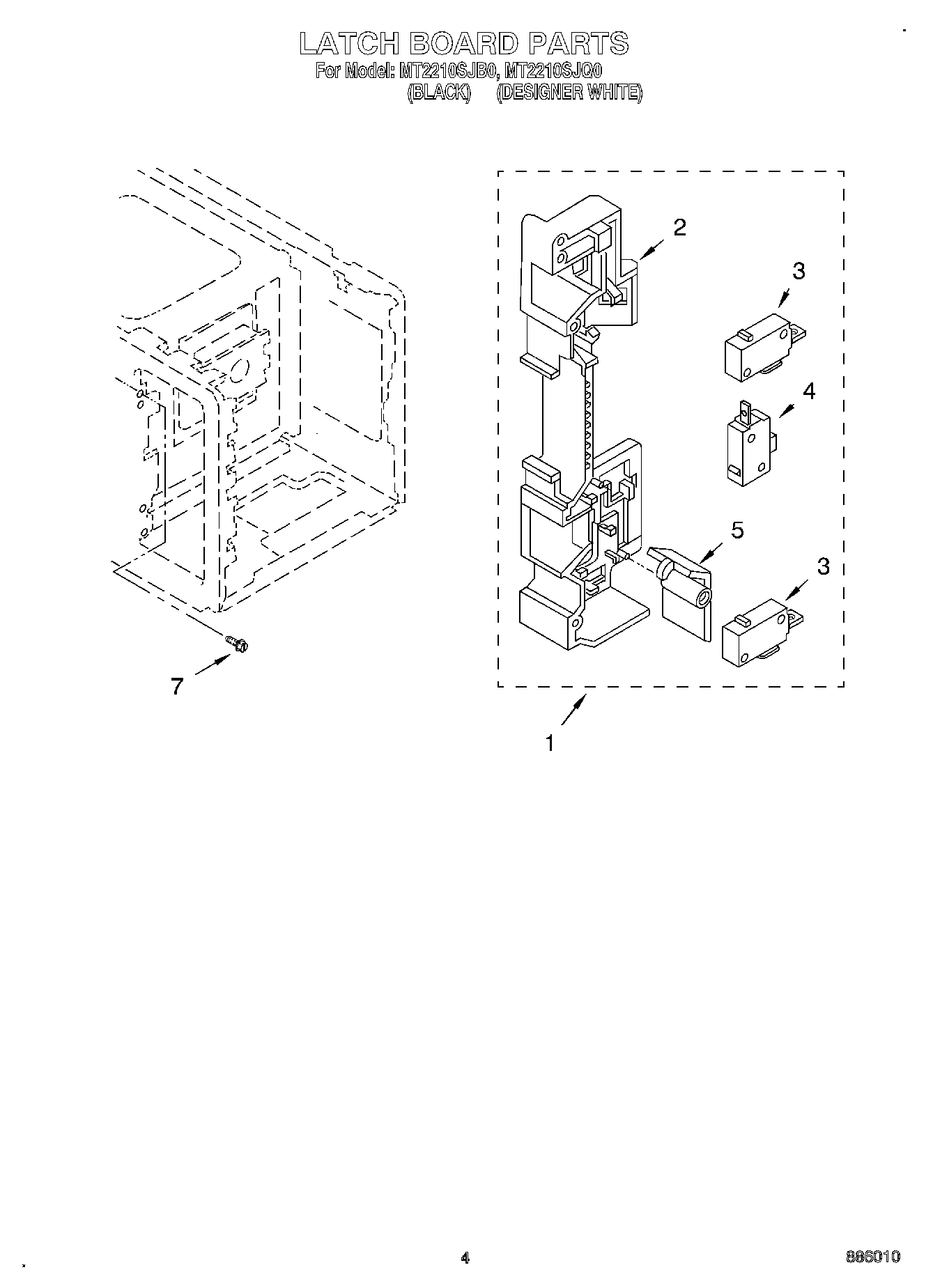

Latch Board Assembly (Not Serviceable) WPL ARI118869A Contact Us For Availability
1

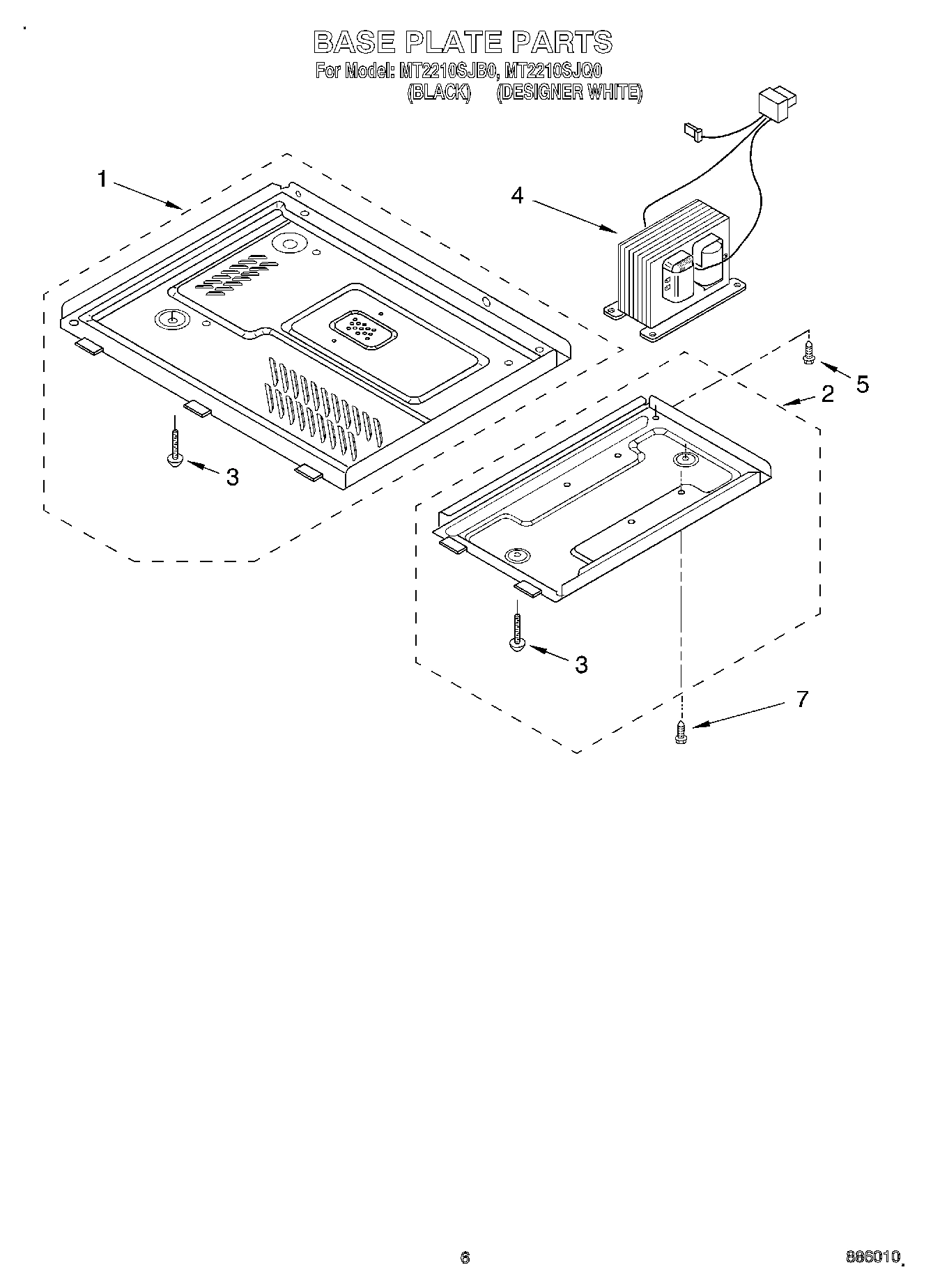

Base Plate (L) WPL 4359921 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen WPL 8172006 Contact Us For Availability
2
Switch, Membrane (Black) WPL 8183518 Contact Us For Availability
2
Switch, Membrane (White) WPL 8183521 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Base Plate (R) WPL 8183516 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly WPL 8171890 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8183530 Contact Us For Availability
3
Switch, Membrane (White) WPL 8183531 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
Choke Cover WPL 4359869 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
5

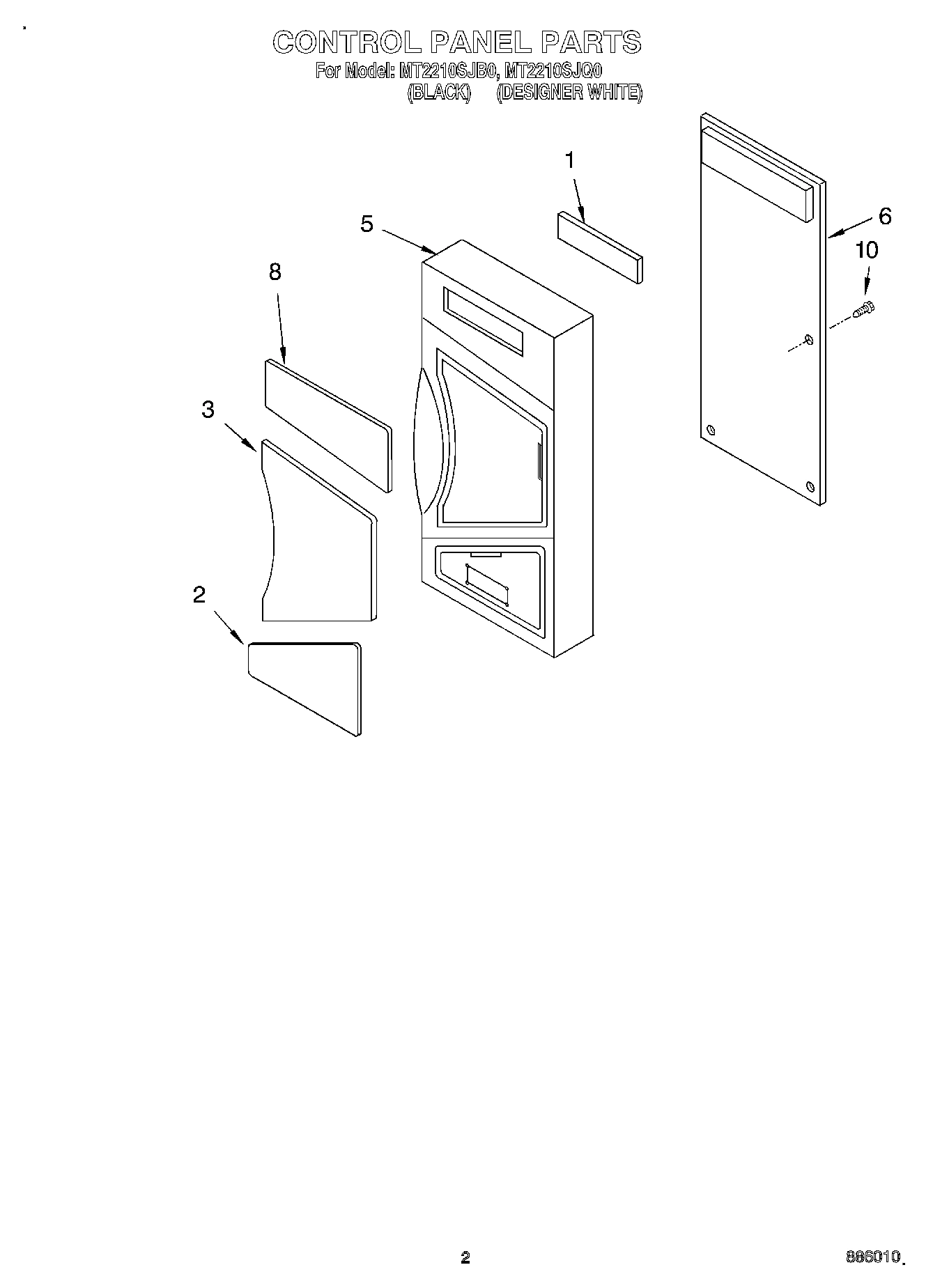

Control Panel (Black) WPL 8183534 Contact Us For Availability
5
Control Panel (White) WPL 8183535 Contact Us For Availability
5
Lever, Switch WPL 4358795 Contact Us For Availability
6
Leadwire Assembly WPL 8183533 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
6
Microcomputer WPL 8183532 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
8
Window WPL 8172013 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Panel, Door (White) WPL 8172007 Contact Us For Availability
9
Panel, Door (Black) WPL 8172008 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10

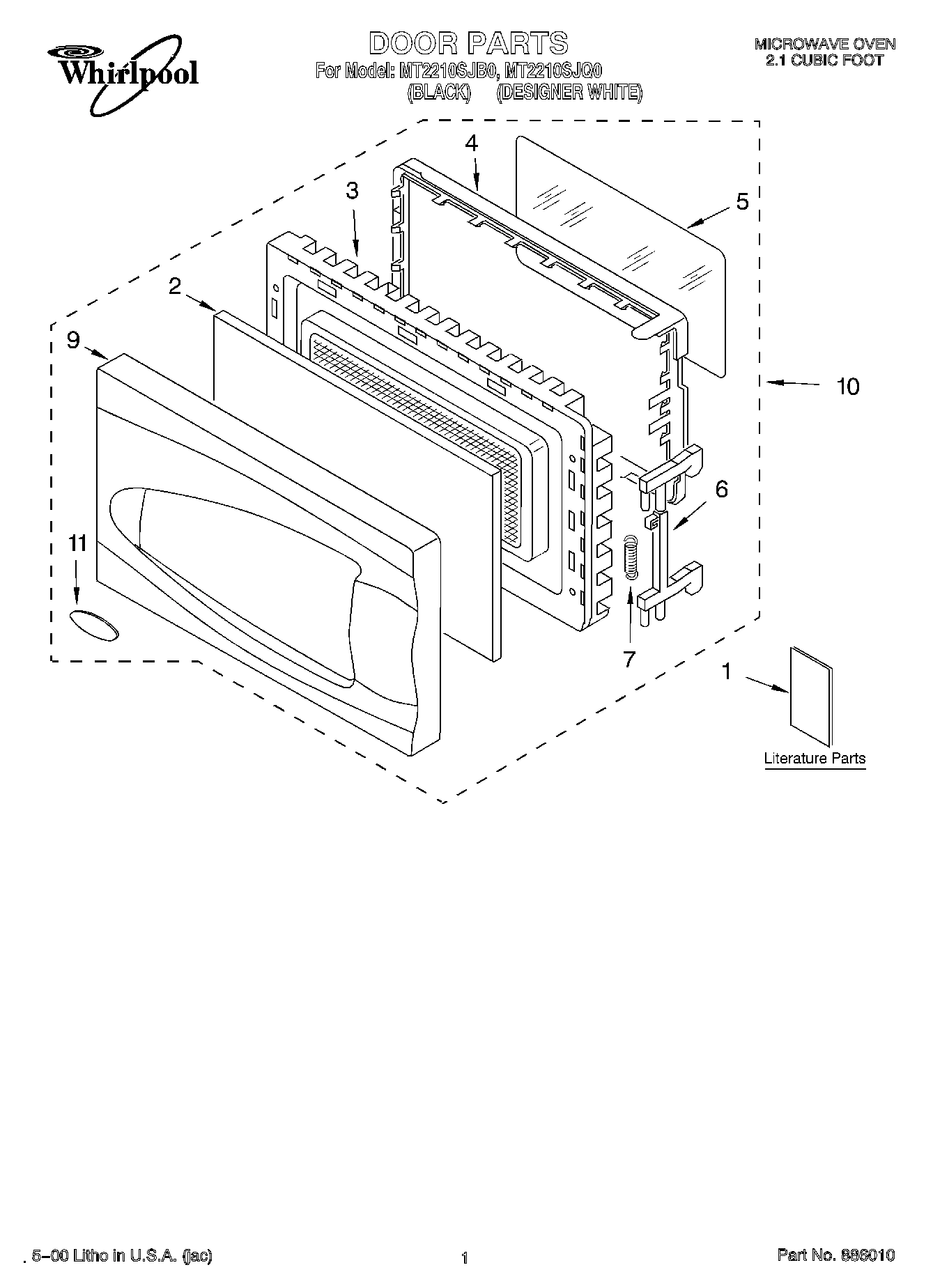

Door Assembly (White) WPL 8172004 Contact Us For Availability
10
Door Assembly (Black) WPL 8172005 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Nameplate WPL 8171921 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
