Model Whirlpool MT2145SJB0 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams

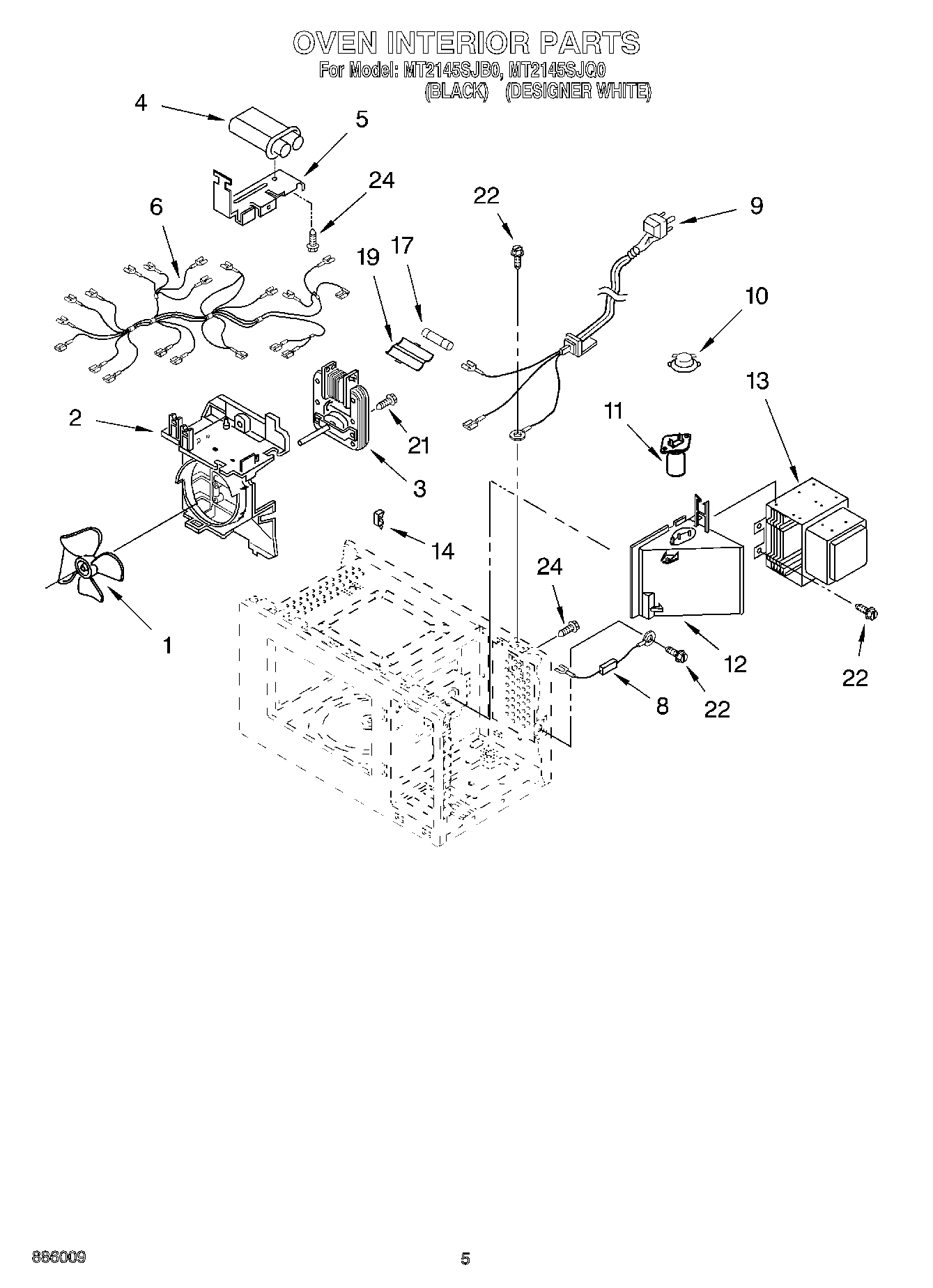

05 - OVEN INTERIOR

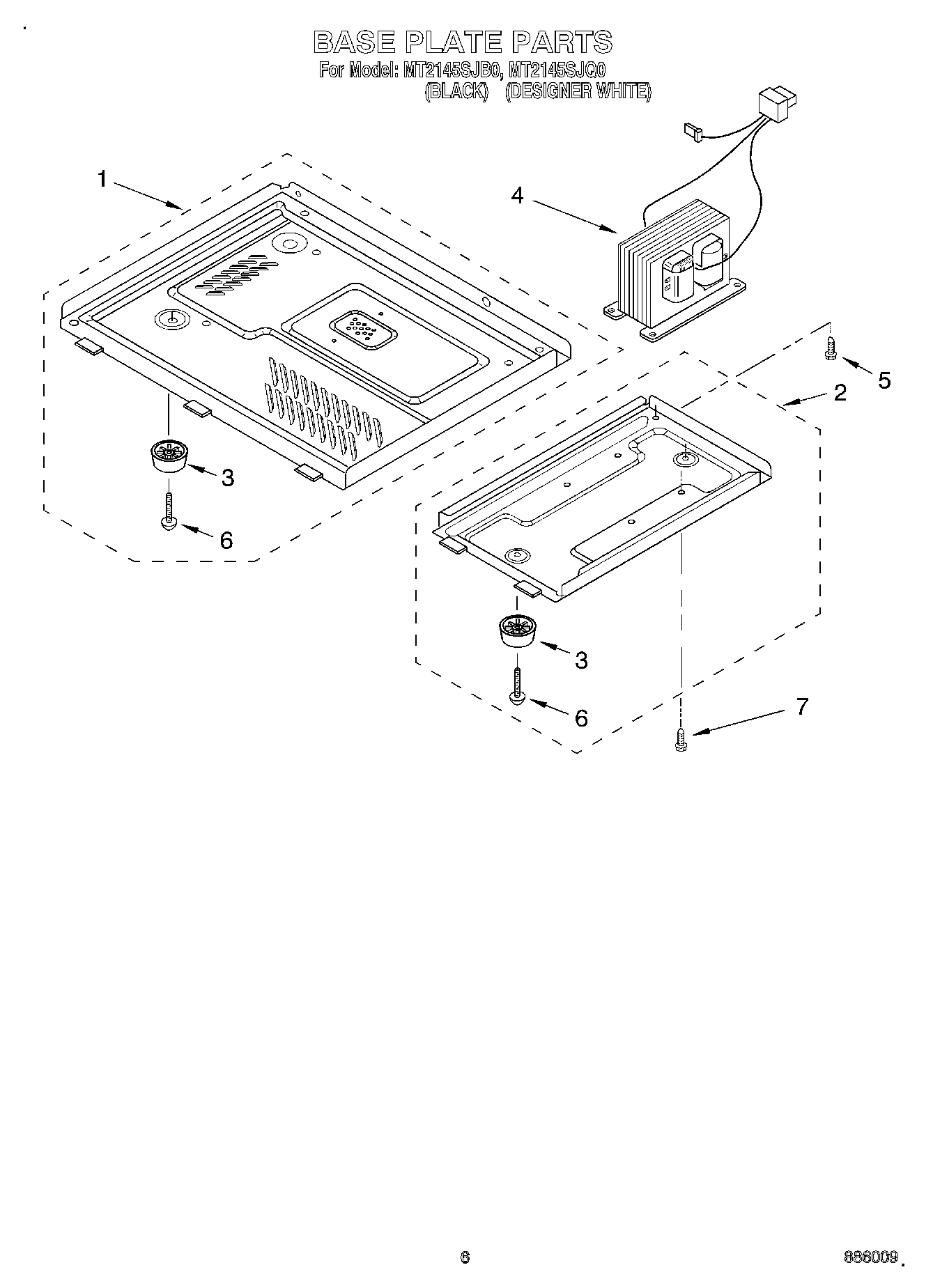

06 - BASE PLATE

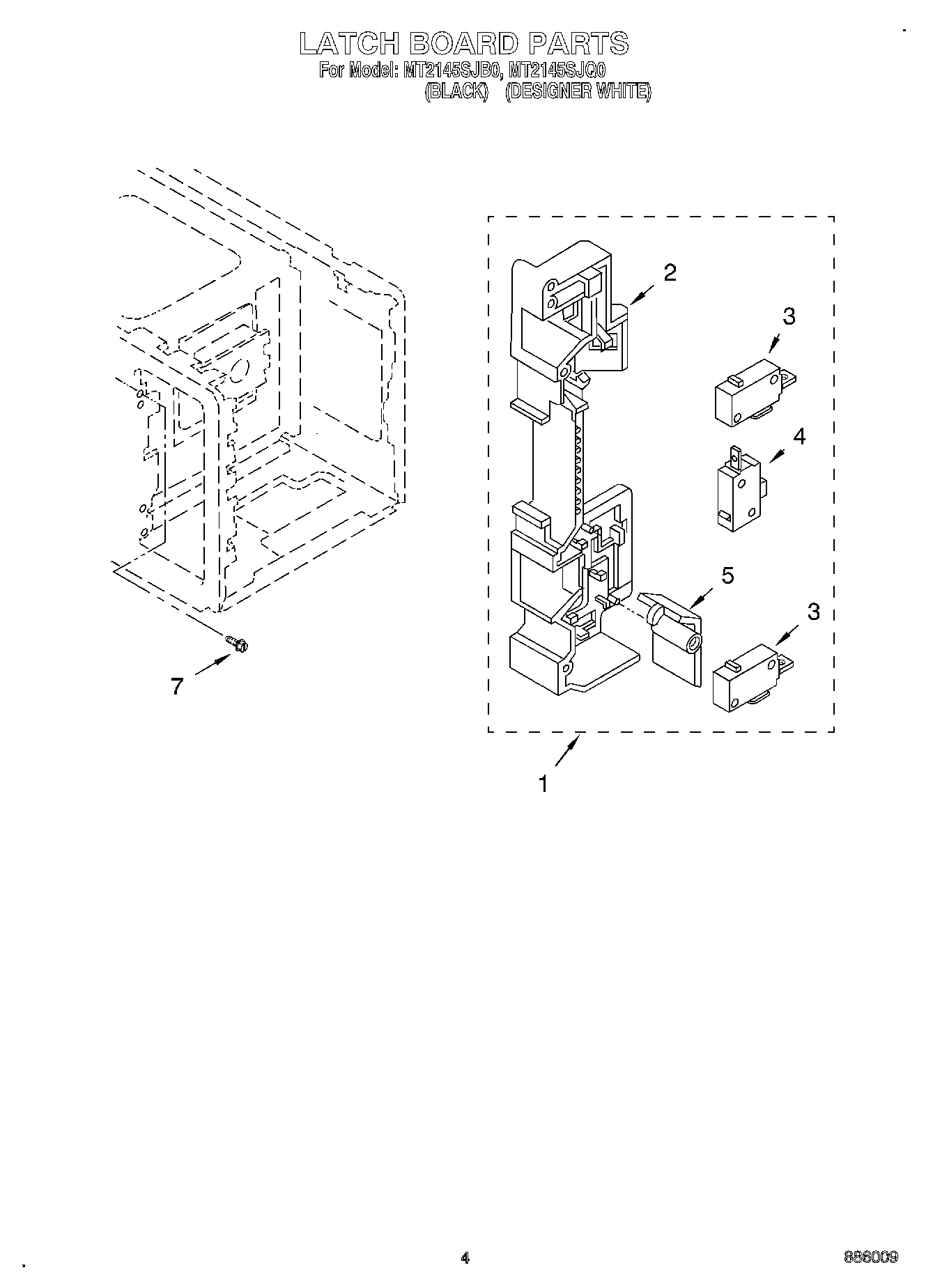

04 - LATCH BOARD

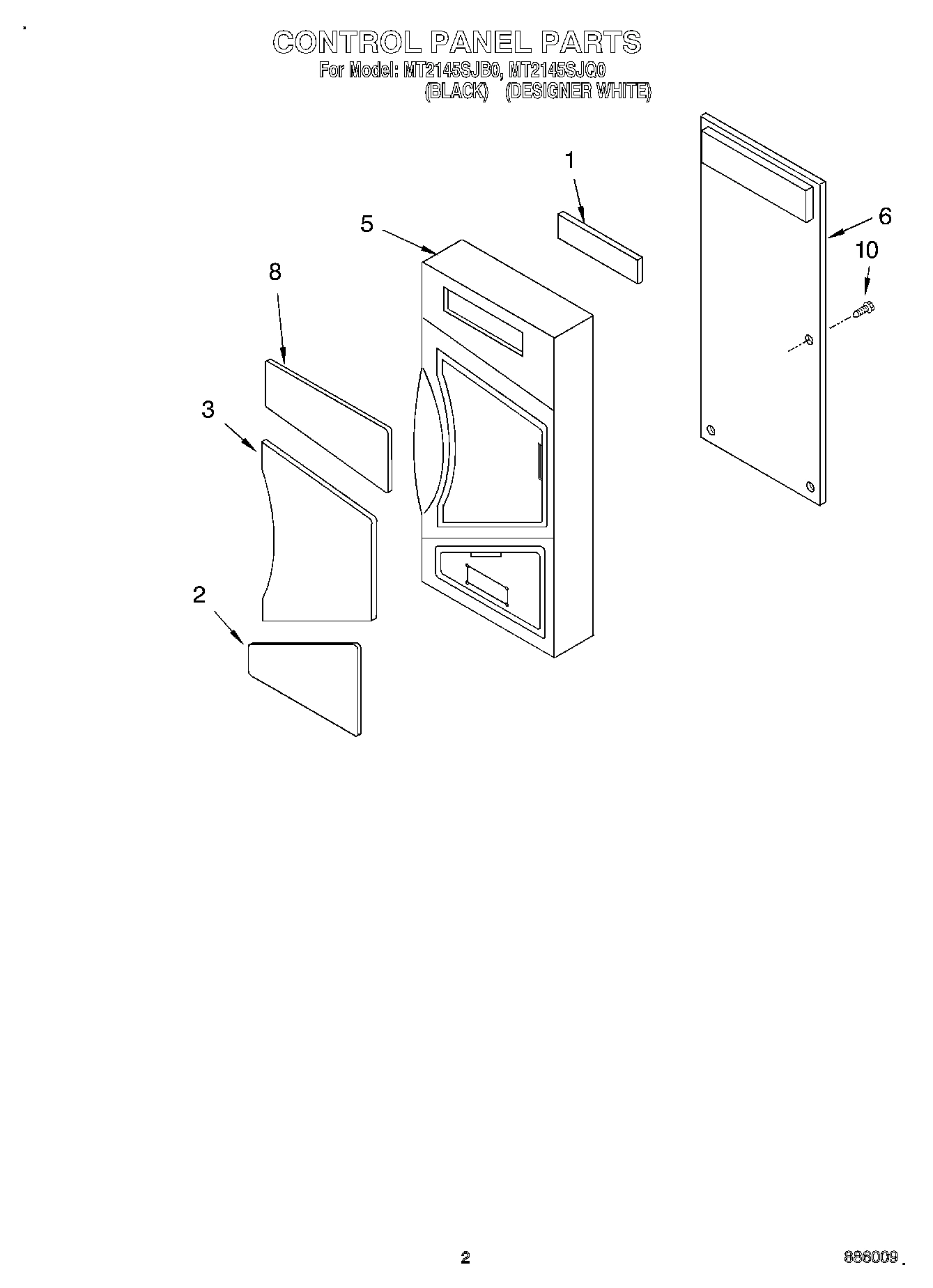

02 - CONTROL PANEL

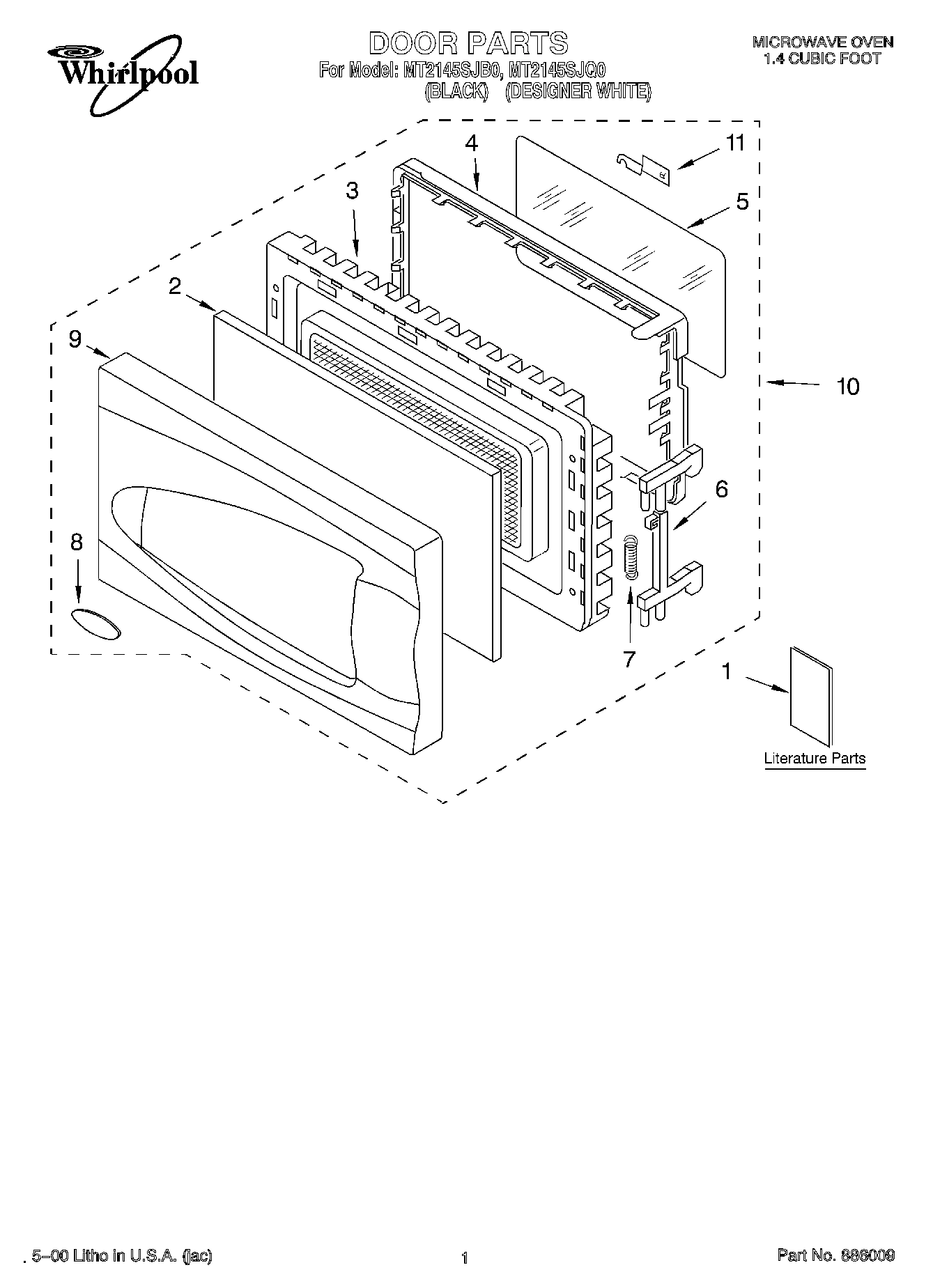

01 - DOOR, LITERATURE

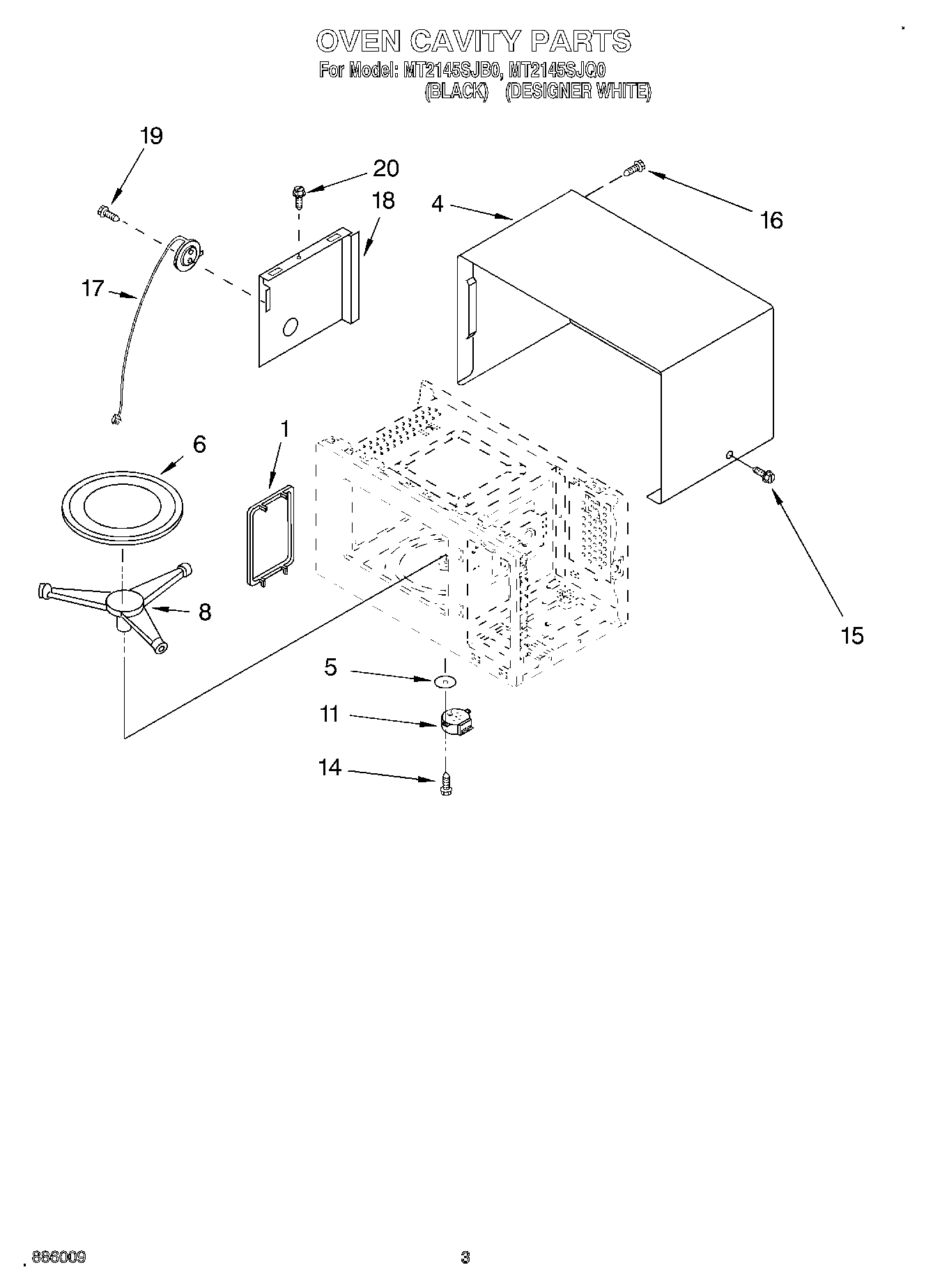

03 - OVEN CAVITY
Common parts from model Whirlpool MT2145SJB0 MICROWAVE OVEN 1.4 CUBIC FOOT
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118860A Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8172177 Contact Us For Availability
1
Literature Parts (English) WPL LIT8172194 Contact Us For Availability
1
Literature Parts (Spanish) WPL LIT8172195 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172208 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172217 Contact Us For Availability
1
Literature Parts (Template-B/I Kit Cook Guide WPL LIT8172220 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Switch, Membrane (Black) WPL 8183518 Contact Us For Availability
2
Switch, Membrane (White) WPL 8183521 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8183528 Contact Us For Availability
3
Switch, Membrane (White) WPL 8183529 Contact Us For Availability
3
Door Frame Assembly WPL 4359761 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359804 Contact Us For Availability
5
Lever Monitor WPL 4358795 Contact Us For Availability
5
Control Panel (Black) WPL 8183522 Contact Us For Availability
5
Control Panel (White) WPL 8183523 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Seal, Water WPL 8171805 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Microcomputer WPL 8183527 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
8
Window WPL 8171996 Contact Us For Availability
8
Nameplate WPL 8171921 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
9
Panel, Door (White) WPL 8171990 Contact Us For Availability
9
Panel, Door (Black) WPL 8171991 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (White) WPL 8171988 Contact Us For Availability
10
Door Assembly (Black) WPL 8171989 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Cap WPL 4359710 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8183515 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
