Model Whirlpool MT2110SJQ0 – Common Parts & Diagrams
03 - OVEN CAVITY
04 - LATCH BOARD

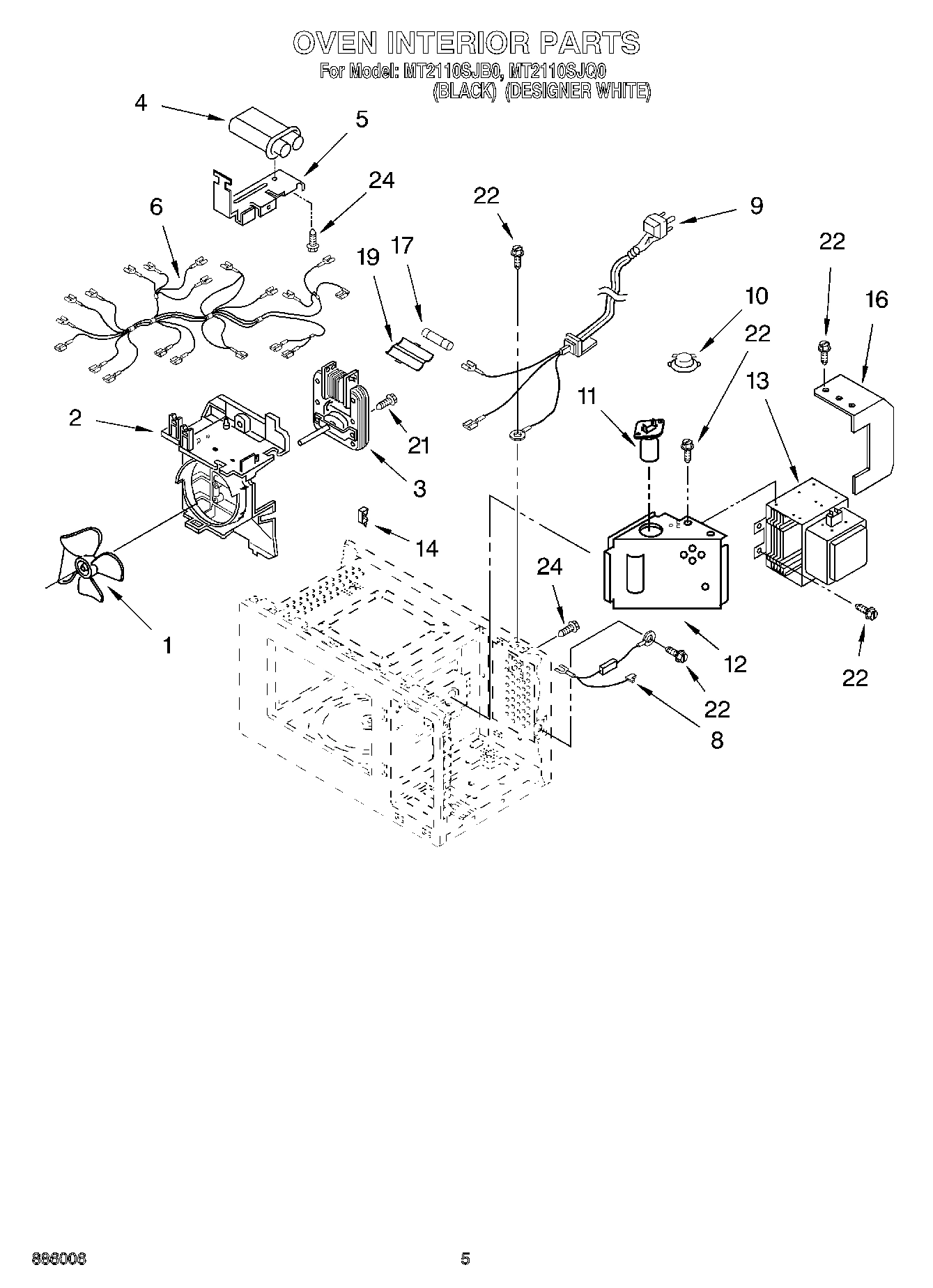

05 - OVEN INTERIOR

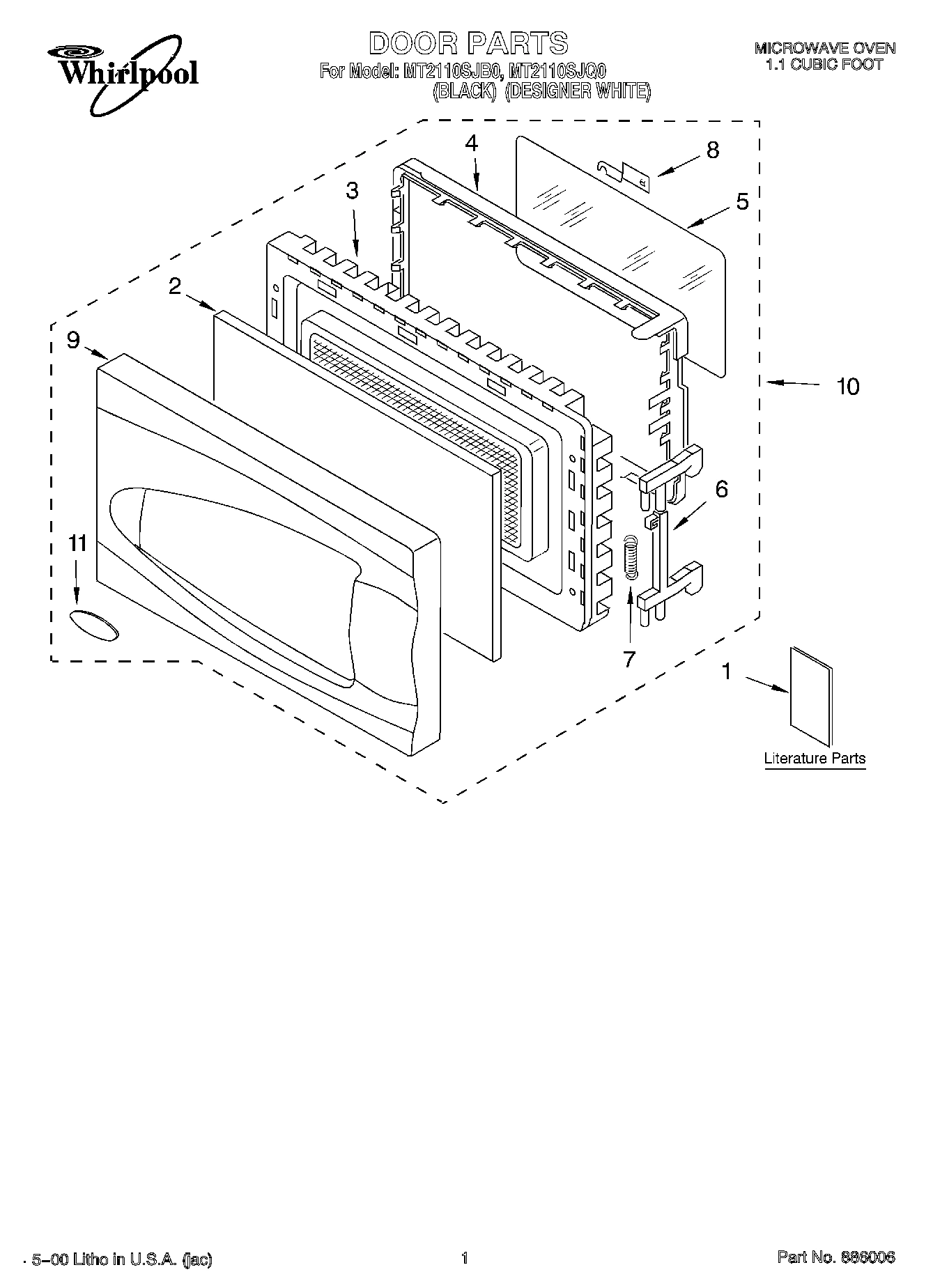

01 - DOOR, LITERATURE

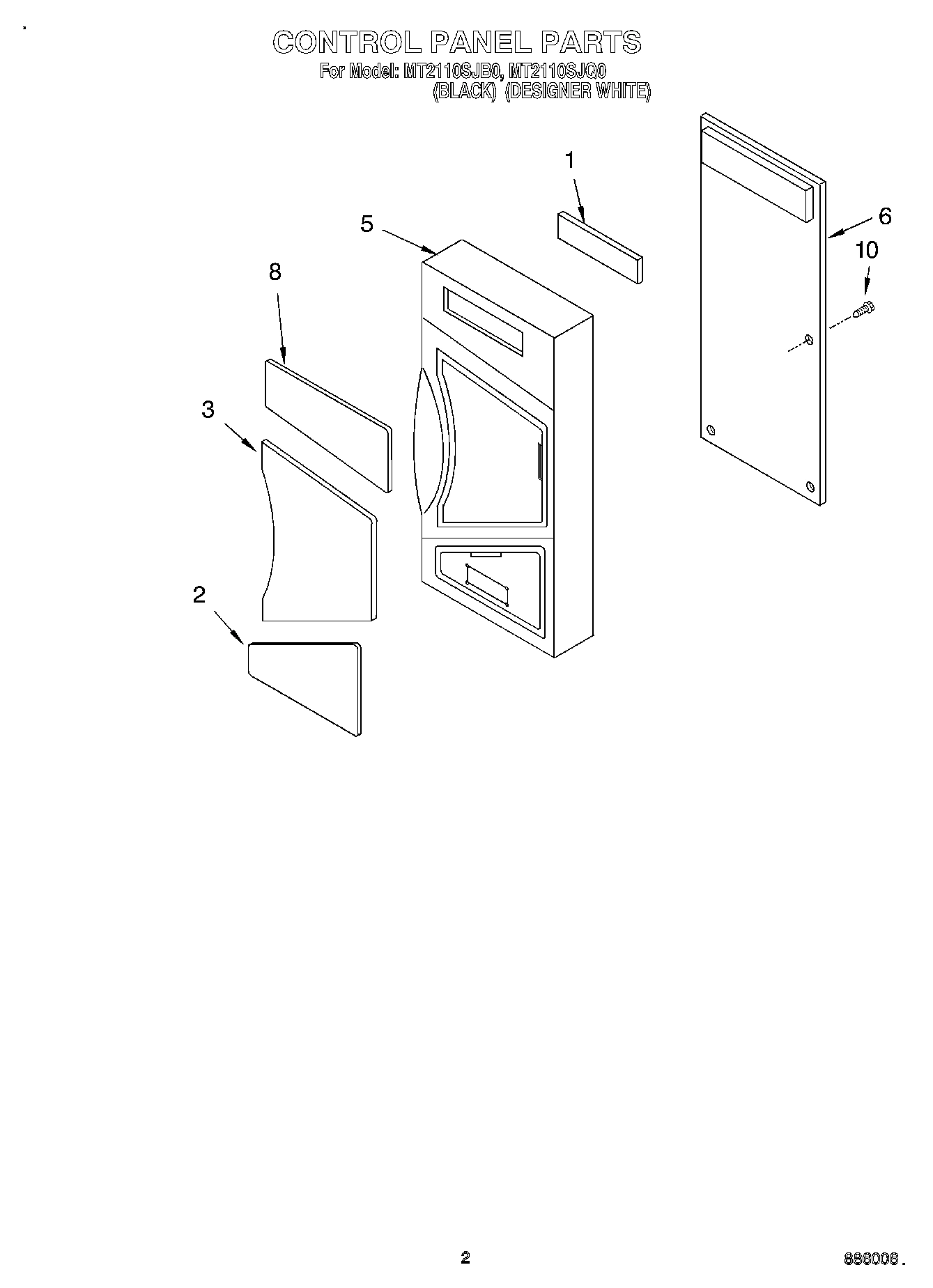

02 - CONTROL PANEL

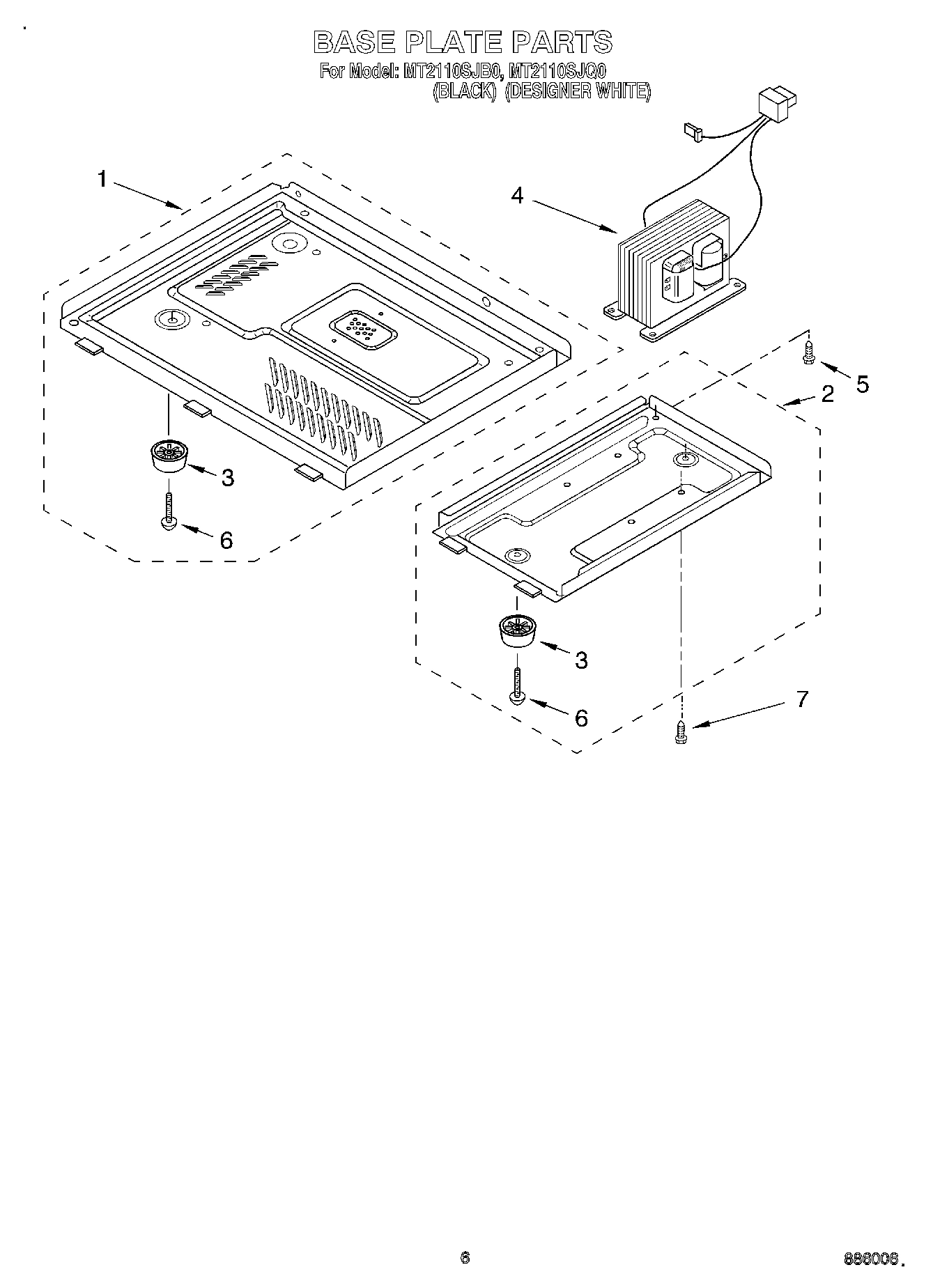

06 - BASE PLATE
Common parts from model Whirlpool MT2110SJQ0
1
Latch Board Assembly (Not Serviceable) WPL ARI118855A Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8172175 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (English) WPL LIT8172192 Contact Us For Availability
1
Literature Parts (Cook Guide Label) (Spanish) WPL LIT8172193 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172207 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Base Plate (L) WPL 8171812 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen WPL 8171969 Contact Us For Availability
2
Switch, Membrane (Black) WPL 8183499 Contact Us For Availability
2
Switch, Membrane (White) WPL 8183501 Contact Us For Availability
2
Base Plate (R) WPL 8171811 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly WPL 8171970 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8183498 Contact Us For Availability
3
Switch, Membrane (White) WPL 8183500 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Choke Cover WPL 8171795 Contact Us For Availability
4
Transformer WPL 8172082 Contact Us For Availability
5
Lever Monitor WPL 4358795 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 8171796 Contact Us For Availability
5
Control Panel (Black) WPL 8183502 Contact Us For Availability
5
Control Panel (White) WPL 8183503 Contact Us For Availability
6
Leadwire Assembly WPL 8183506 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
6
Microcomputer WPL 8183497 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
8
Window WPL 8171982 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Panel, Door (White) WPL 8171971 Contact Us For Availability
9
Panel, Door (Black) WPL 8171972 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Door Assembly (White) WPL 8171967 Contact Us For Availability
10
Door Assembly (Black) WPL 8171968 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Nameplate WPL 8171921 Contact Us For Availability
12
Duct, Air WPL 8172096 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
16
Bracket, Mounting WPL 8183508 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
