Model Whirlpool MT2100XYR0 – Common Parts & Diagrams

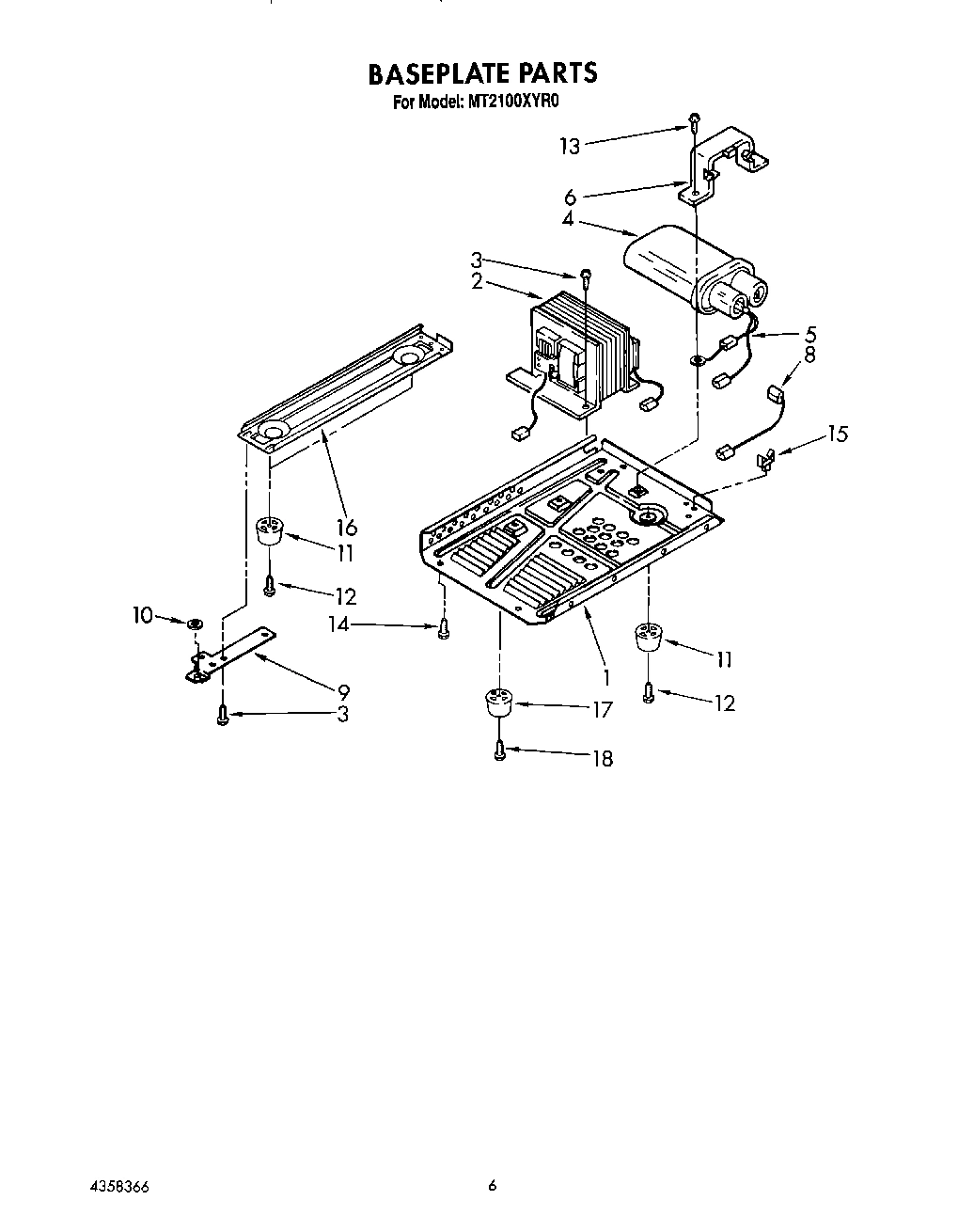

05 - BASEPLATE

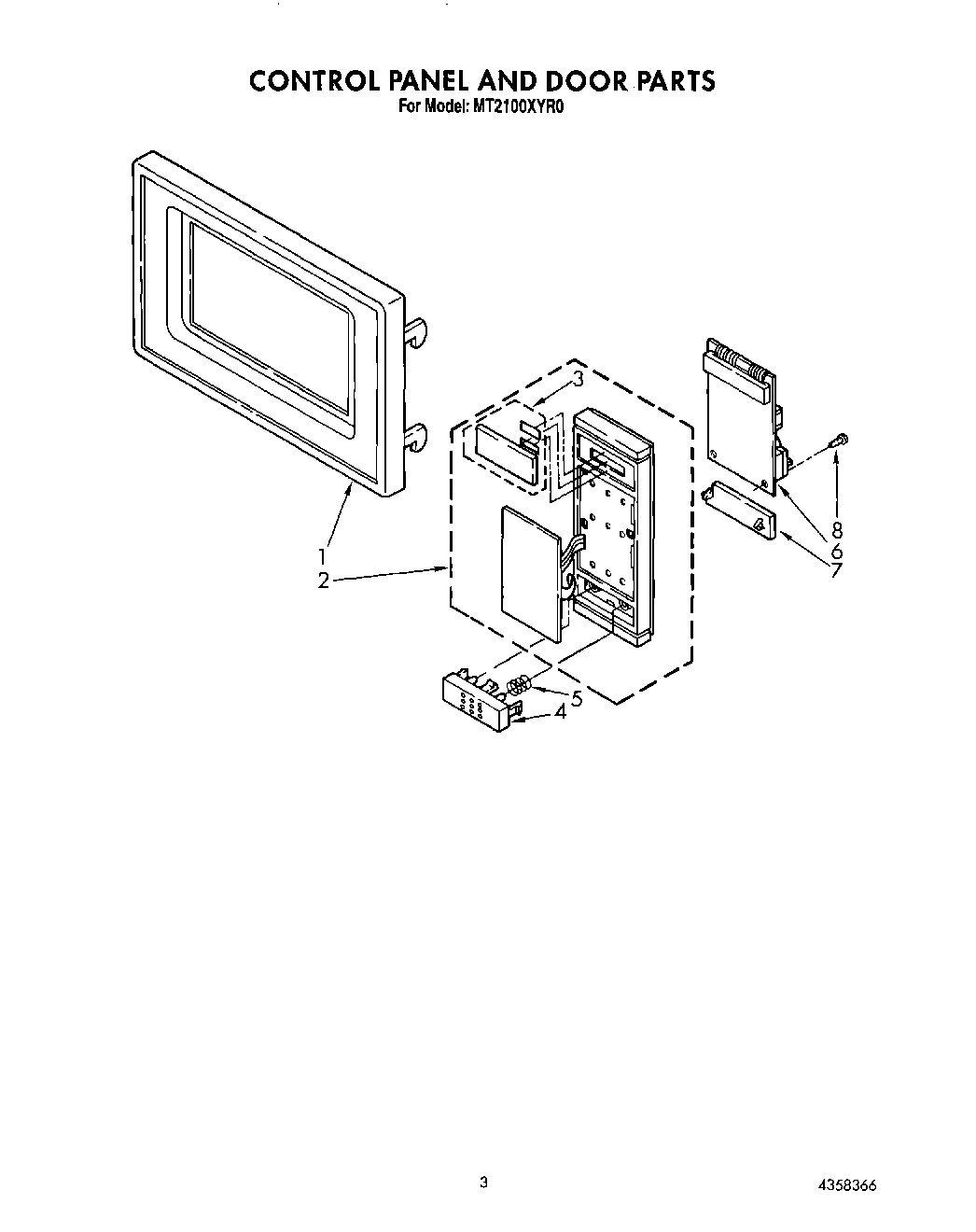

03 - CONTROL PANEL AND DOOR
04 - MAGNETRON AND AIR FLOW, LIT/OPTIONAL
02 - CABINET AND TURNTABLE
Common parts from model Whirlpool MT2100XYR0
Cook Book WPL LIT4158713 Contact Us For Availability
Guide, Use And Care WPL LIT4358197 Contact Us For Availability
Tech Sheet WPL LIT4358227 Contact Us For Availability
Repair Parts List WPL LIT4358366 Contact Us For Availability
1
Door, Complete WPL 4358304 Contact Us For Availability
1
Magnetron WPL 4158798 Contact Us For Availability
1
Cabinet Wrapper WPL 4358354 Contact Us For Availability
2
Control Panel Complete WPL 4358307 Contact Us For Availability
2
Thermostat, Magnetron WPL 4158539 Contact Us For Availability
2
Screw No.4x12mm (4) WPL 4158084 Contact Us For Availability
3
Digitron Window WPL 4358308 Contact Us For Availability
3
Screw WPL 4358359 Contact Us For Availability
4
Button, Door WPL 4158857 Contact Us For Availability
4
Baseless Lamp WPL 4158586 Contact Us For Availability
4
Shaft, Turntable WPL 4158786 Contact Us For Availability
5
Spring, Door Button (2) WPL 4158178 Contact Us For Availability
5
Motor, Turntable WPL 4158944 Contact Us For Availability
6
Microcomputer WPL 4358302 Contact Us For Availability
6
Guide, Air WPL 4158889 Contact Us For Availability
6
Tray, Glass WPL 4158813 Contact Us For Availability
7
Screw No.4x10mm (8) WPL 4158076 Contact Us For Availability
7
Lever, Release WPL 4158808 Contact Us For Availability
7
Bracket, Fan WPL 4158890 Contact Us For Availability
7
Nut, (2) WPL 4158403 Contact Us For Availability
8
Wire Harness WPL 4158827 Contact Us For Availability
8
Motor, Fan WPL 4158891 Contact Us For Availability
8
Screw WPL 4158079 Contact Us For Availability
9
Hinge Plate, Lower WPL 4158867 Contact Us For Availability
9
Insulator, Thermostat WPL 4158396 Contact Us For Availability
9
Seal, Cabinet WPL 4158903 Contact Us For Availability
10
Seal, Cavity WPL 4158904 Contact Us For Availability
11
Washer WPL 4158894 Contact Us For Availability
11
Foot, Left Side And Right Rear WPL 4339375 Contact Us For Availability
11
Screw WPL 4339398 Contact Us For Availability
12
Holder, Fuse WPL 4158862 Contact Us For Availability
13
Fuse WPL 4358177 Contact Us For Availability
14
Screw No.4x8mm (1) WPL 4158072 Contact Us For Availability
14
Hinge, Upper WPL 4158902 Contact Us For Availability
15
Wire Holder WPL 4158267 Contact Us For Availability
15
Screw (2) WPL 4158192 Contact Us For Availability
16
Base Plate, Left Side WPL 4158866 Contact Us For Availability
16
Air Duct WPL 4158887 Contact Us For Availability
17
Foot, Right Front WPL 4158620 Contact Us For Availability
17
Cord, Power WPL 4158832 Contact Us For Availability
18
Screw WPL 4158472 Contact Us For Availability
18
Cushion, Magnetron WPL 4358358 Contact Us For Availability
18
Base, Turntable WPL 4158899 Contact Us For Availability
20
Wiring Harness WPL 4358310 Contact Us For Availability
20
Cover, Turntable Motor WPL 4158895 Contact Us For Availability
23
Thermostat, Oven WPL 4158795 Contact Us For Availability
24
Latch, Upper WPL 4158840 Contact Us For Availability
26
Latch, Lower WPL 4158839 Contact Us For Availability
31
Rod, Release WPL 4158155 Contact Us For Availability
33
Screw WPL 4158187 Contact Us For Availability
36
Spacer WPL 4339376 Contact Us For Availability
38
Screw WPL 4158307 Contact Us For Availability
40
Screw WPL 4158190 Contact Us For Availability
40
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
40
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
40
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
40
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
40
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
40
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
40
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
40
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
40
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
40
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
40
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
40
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
40
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
40
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
× ![]()
